Test F: Turbine/Output Shaft (TSS/OSS) Speed Sensors

PINPOINT TEST F: TURBINE SHAFT SPEED (TSS) SENSOR AND OUTPUT SHAFT SPEED (OSS) SENSOR

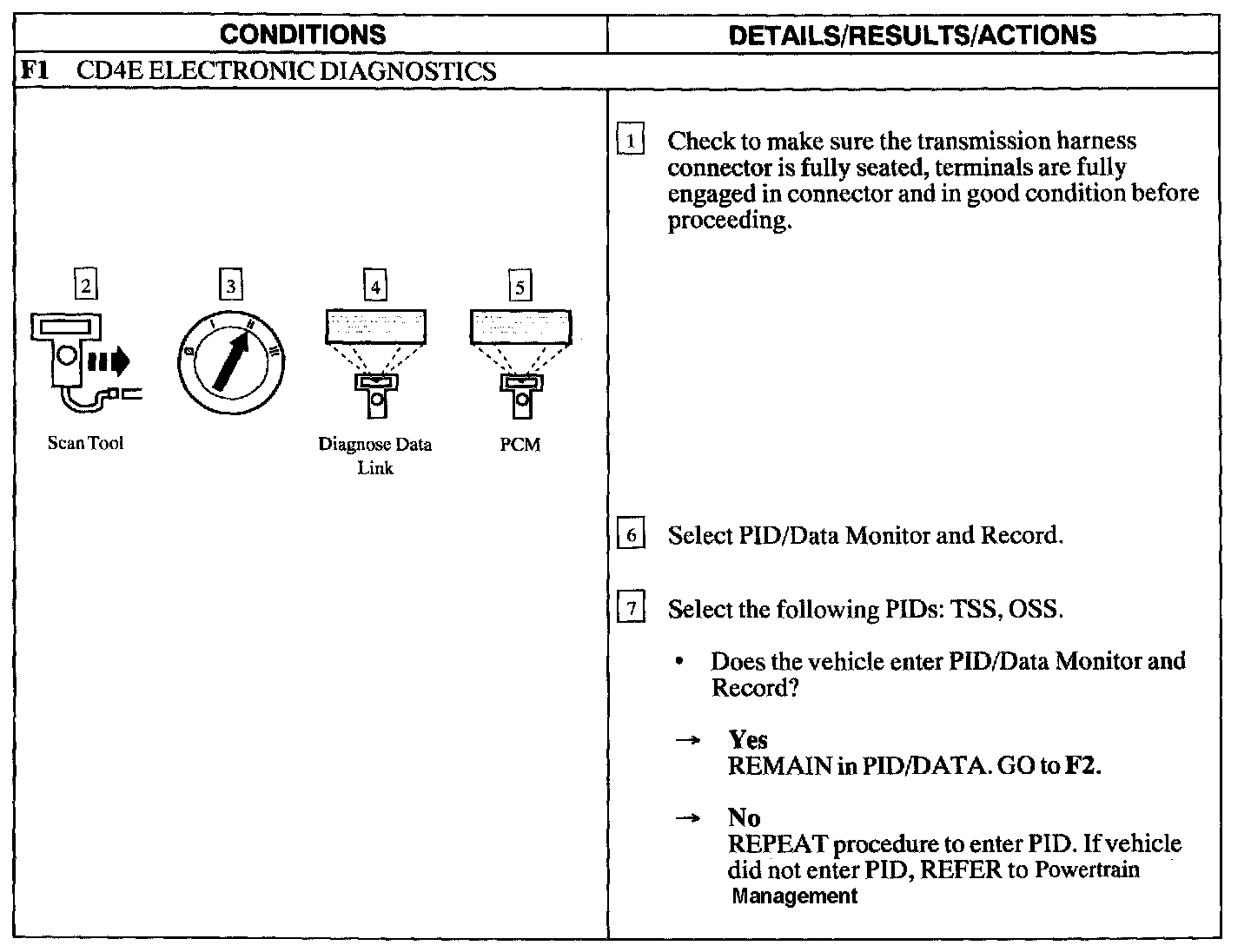

F1

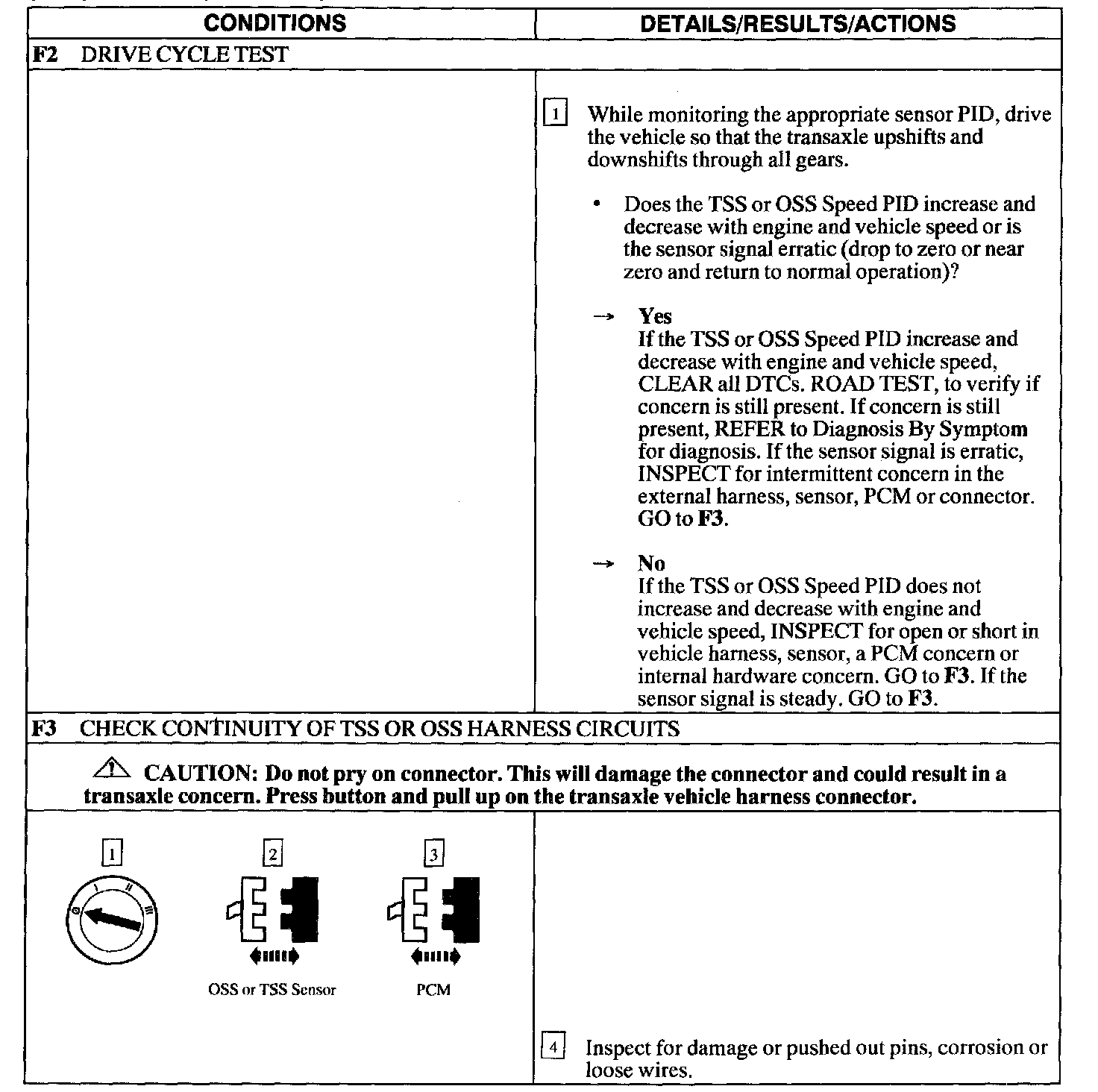

F2 - F3

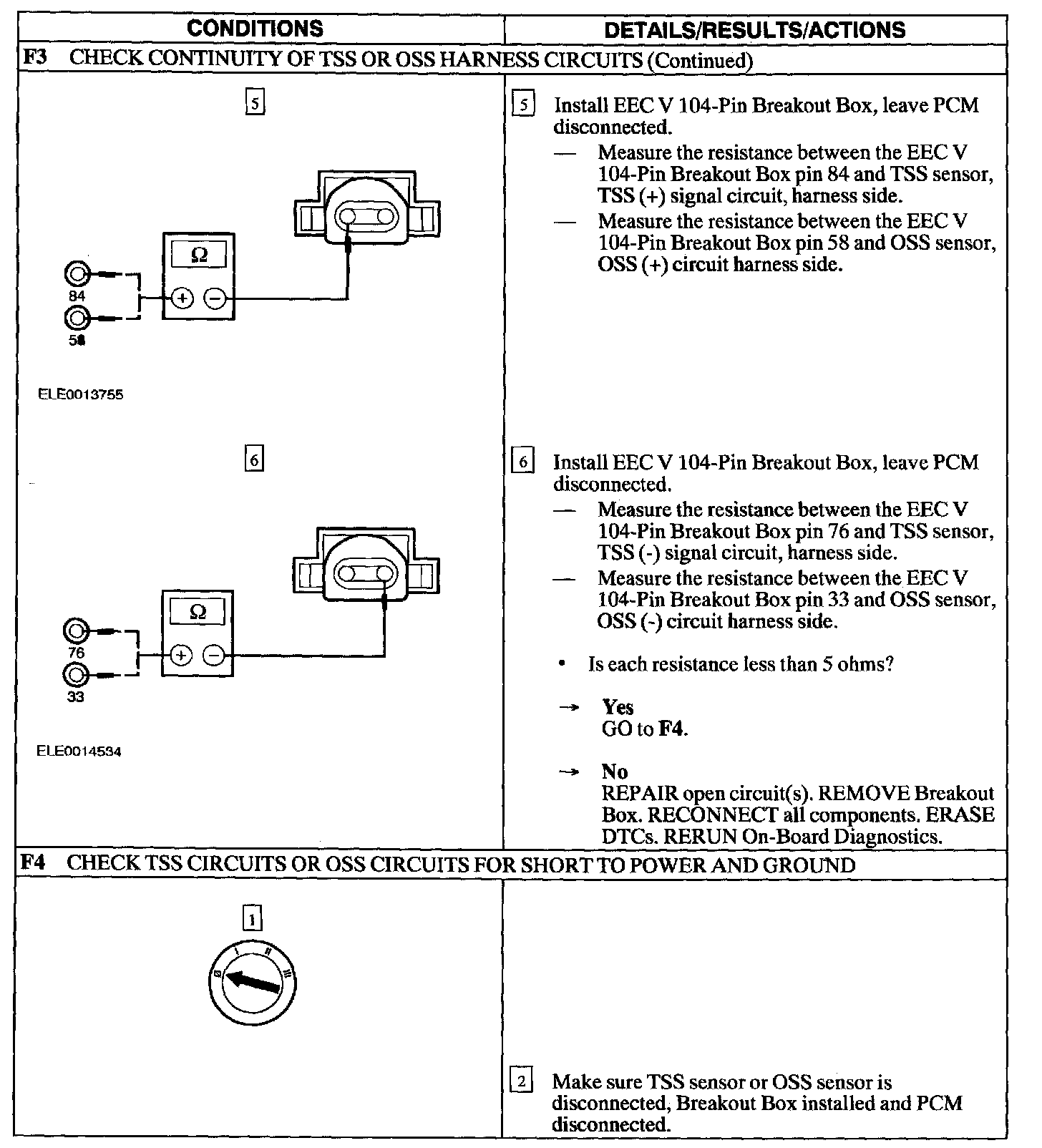

F3 - F4

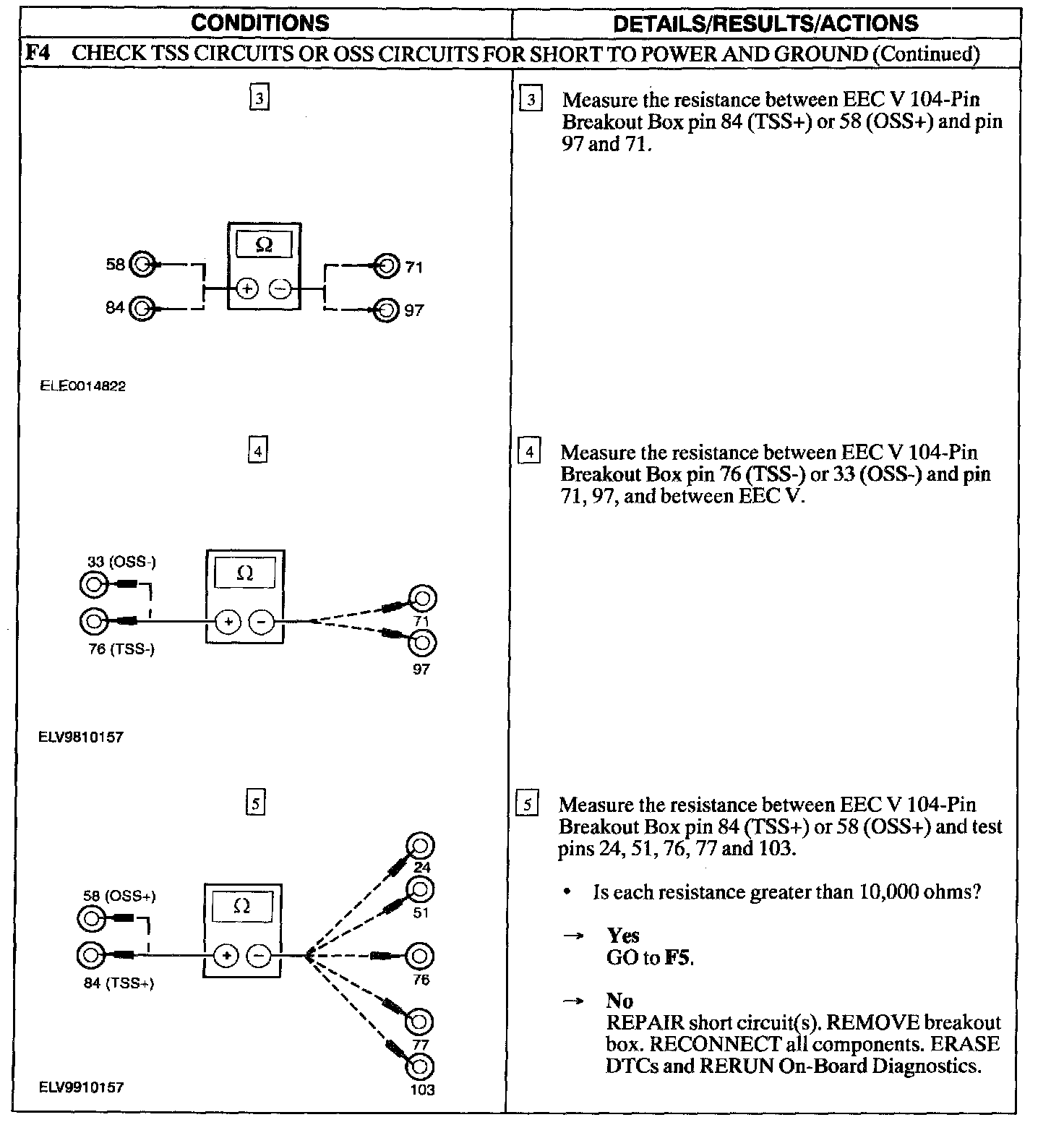

F4

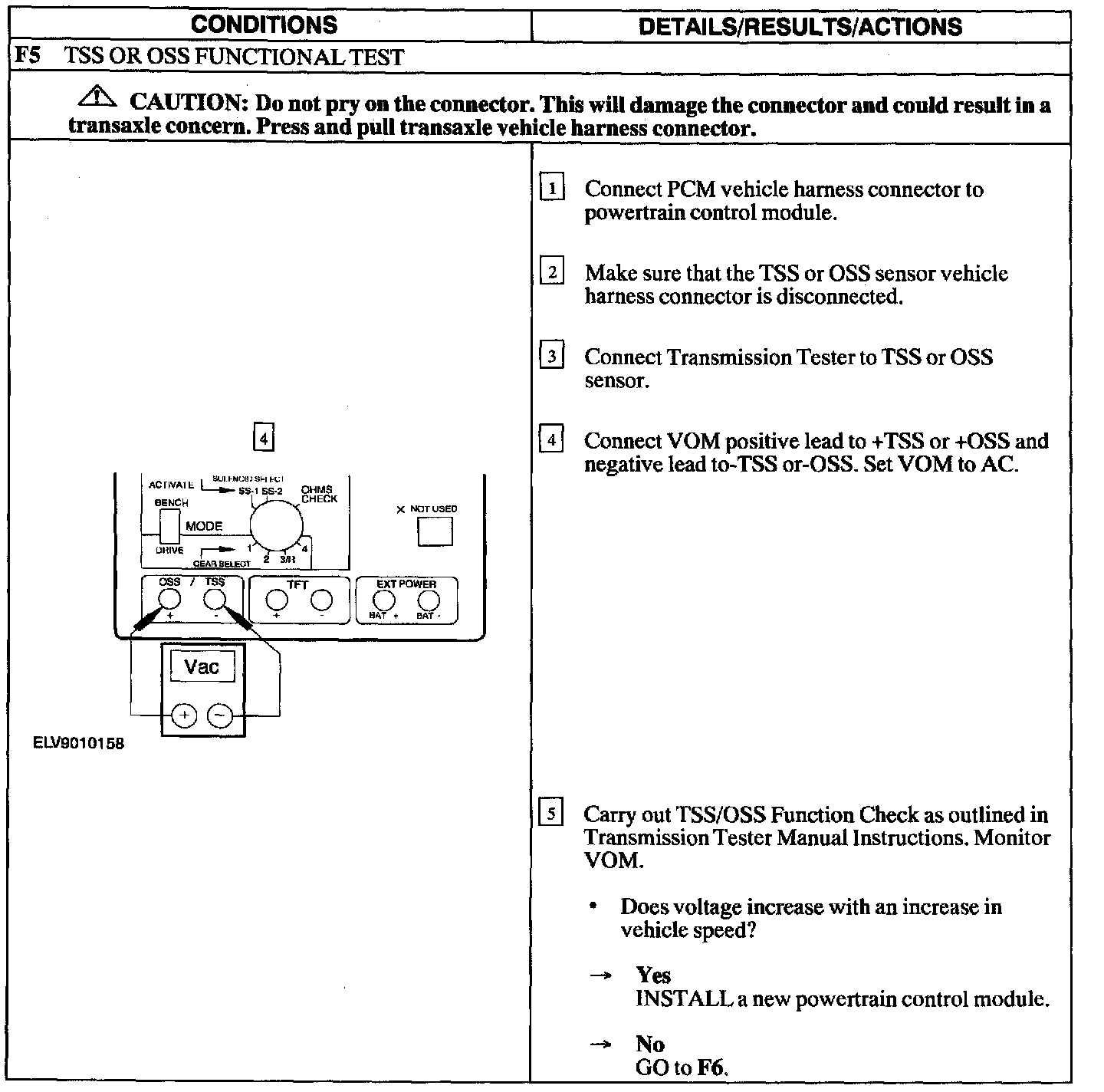

F5

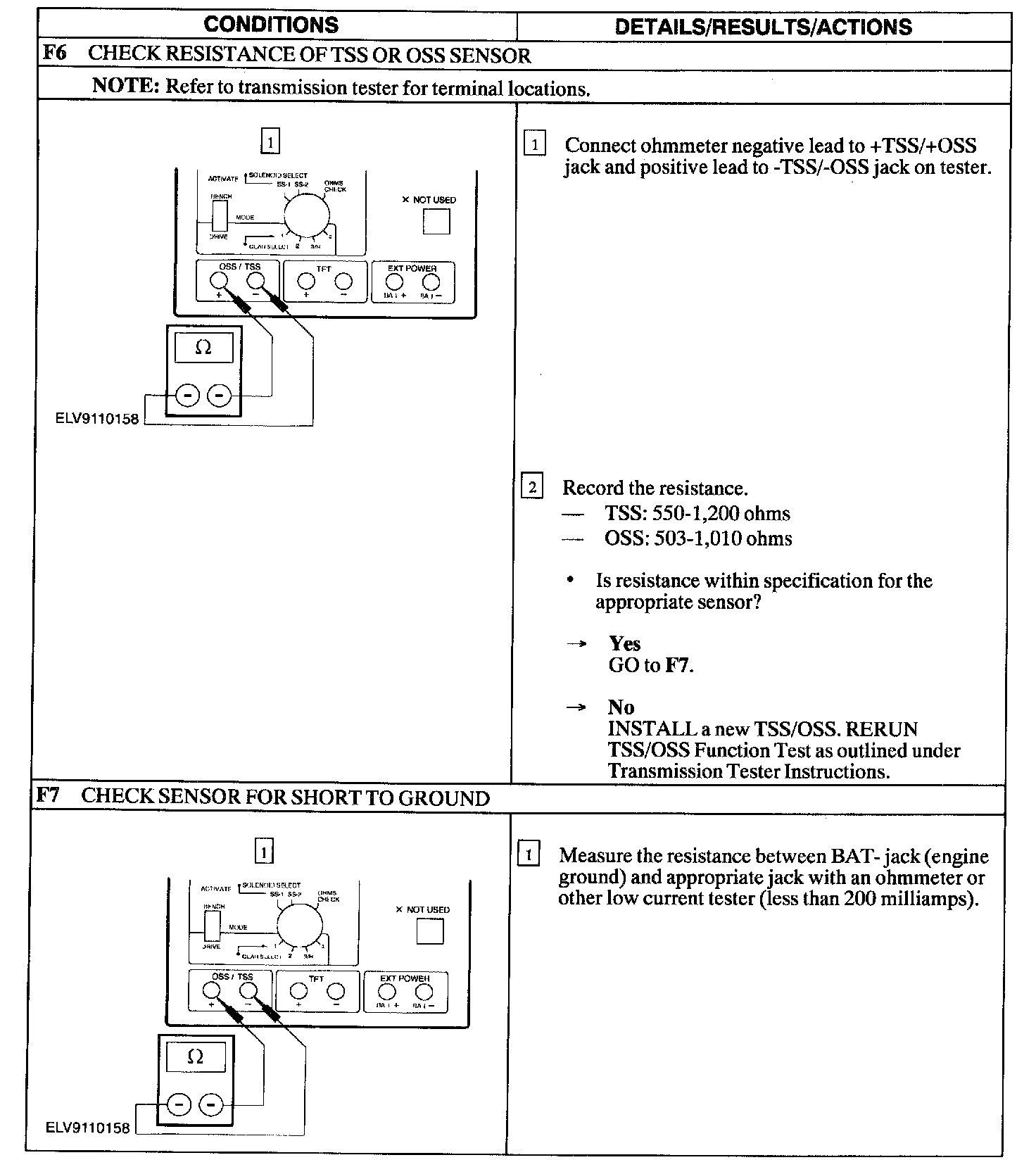

F6 - F7

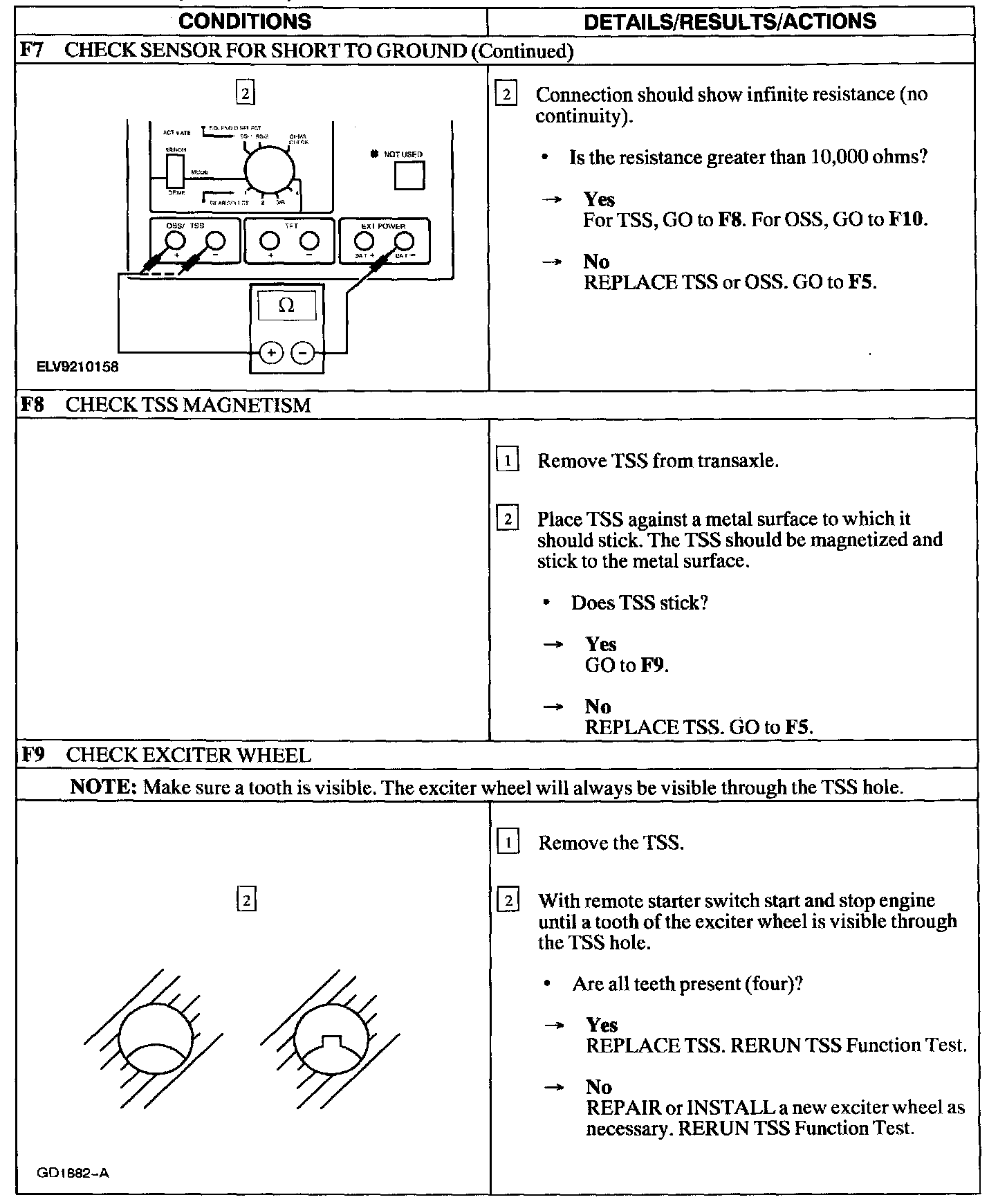

F7 - F9

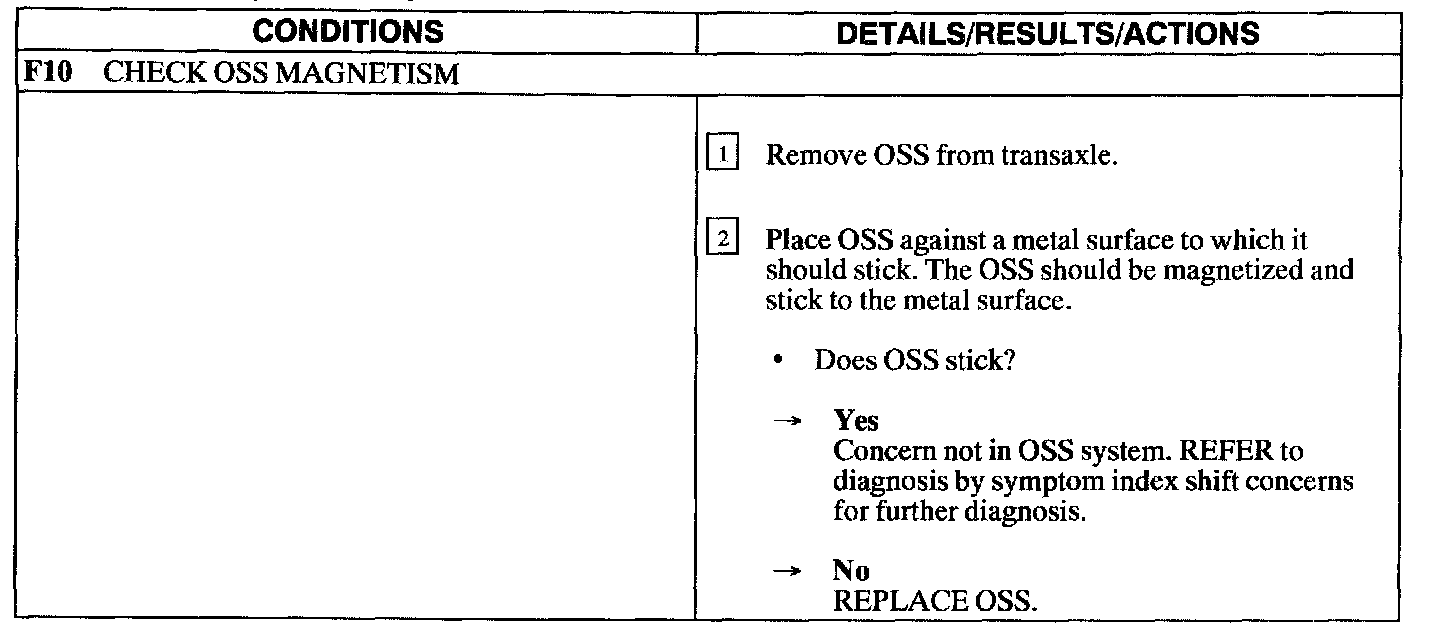

F10

NOTE: Refer to the OSS-Sensor or TSS-Sensor connector illustration.
