Test E: Electronic Pressure Control (EPC) Solenoid

PINPOINT TEST E: ELECTRONIC PRESSURE CONTROL (EPC, SOLENOID)

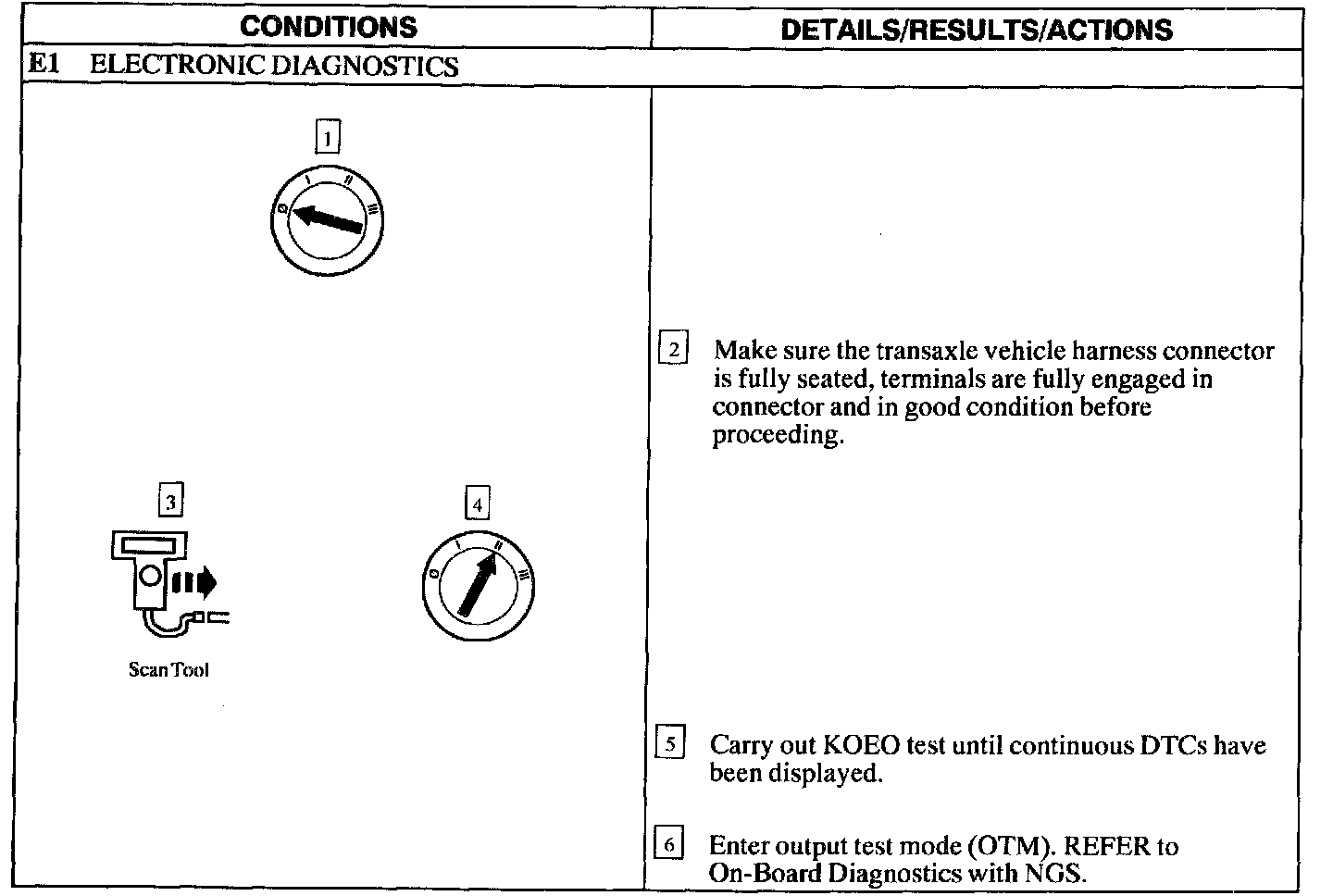

E1

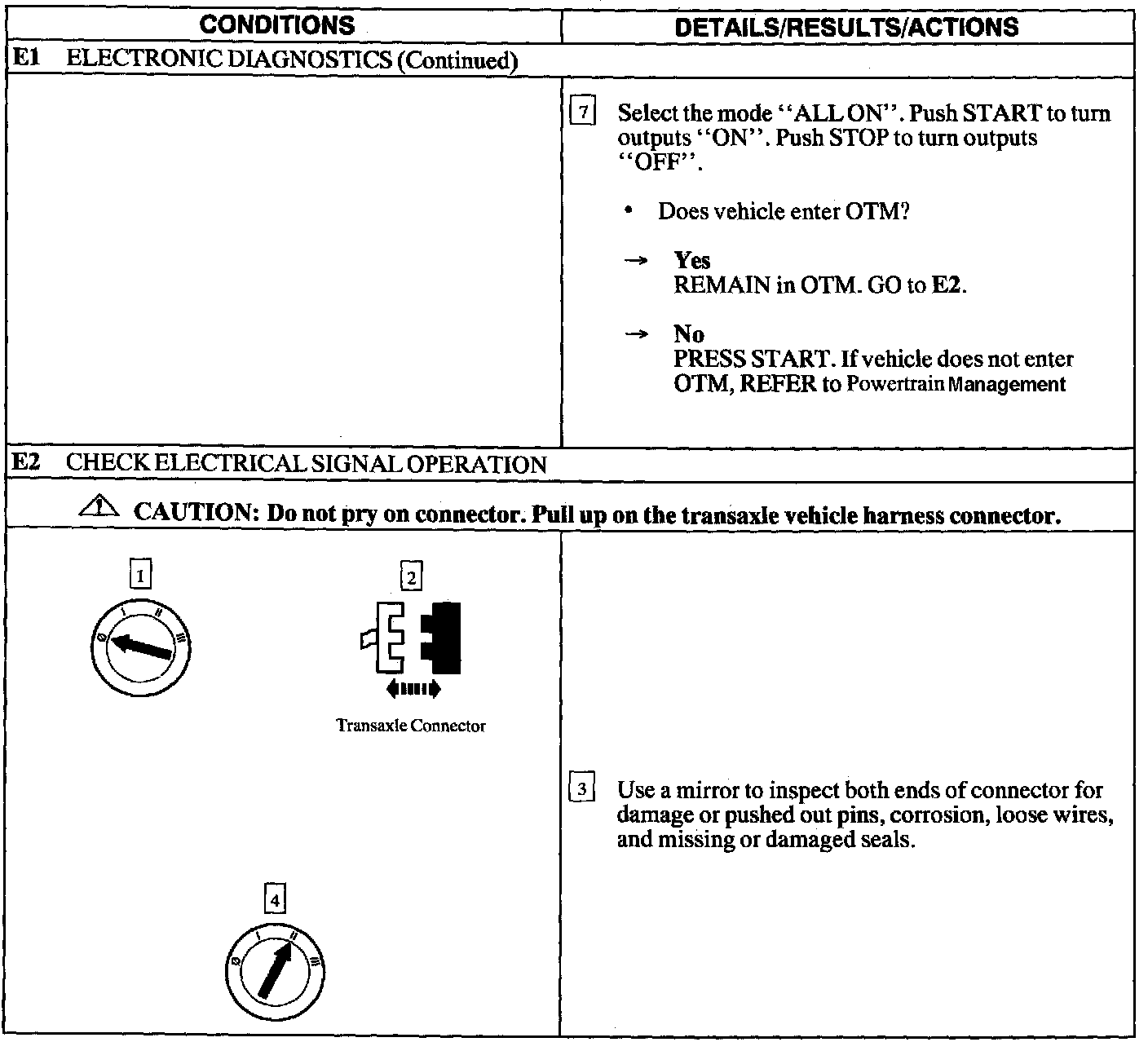

E1 - E2

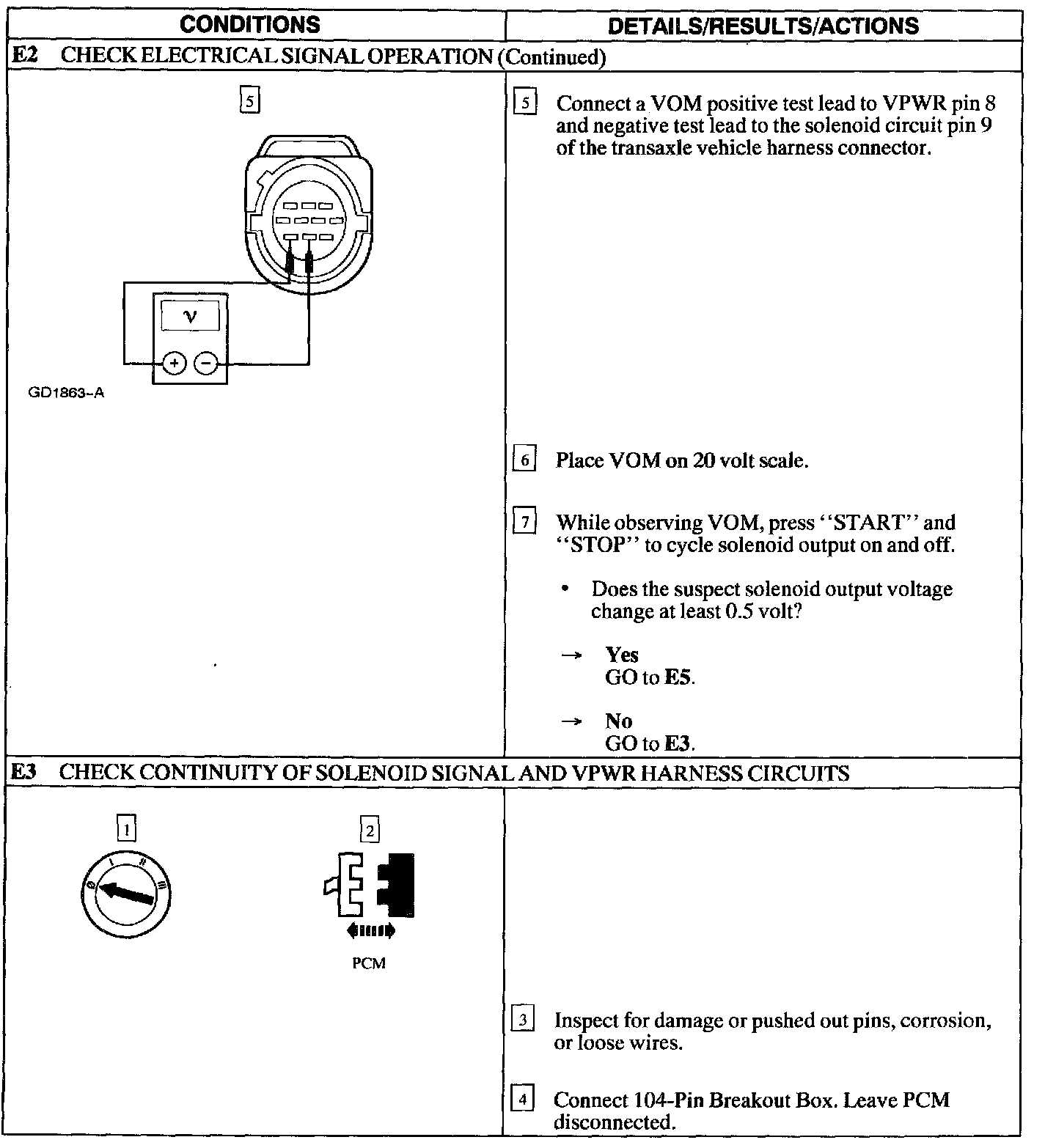

E2 - E3

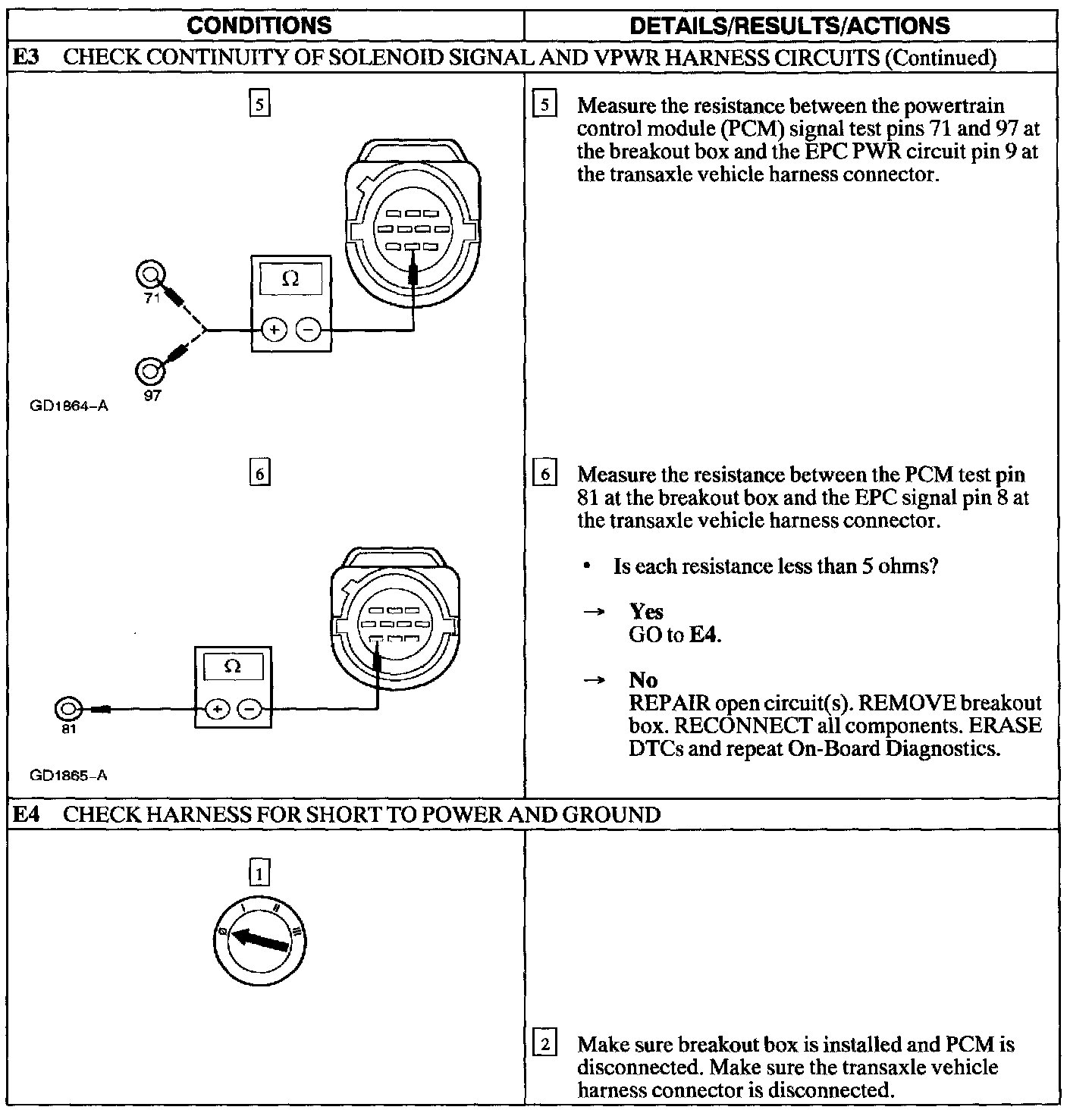

E3 - E4

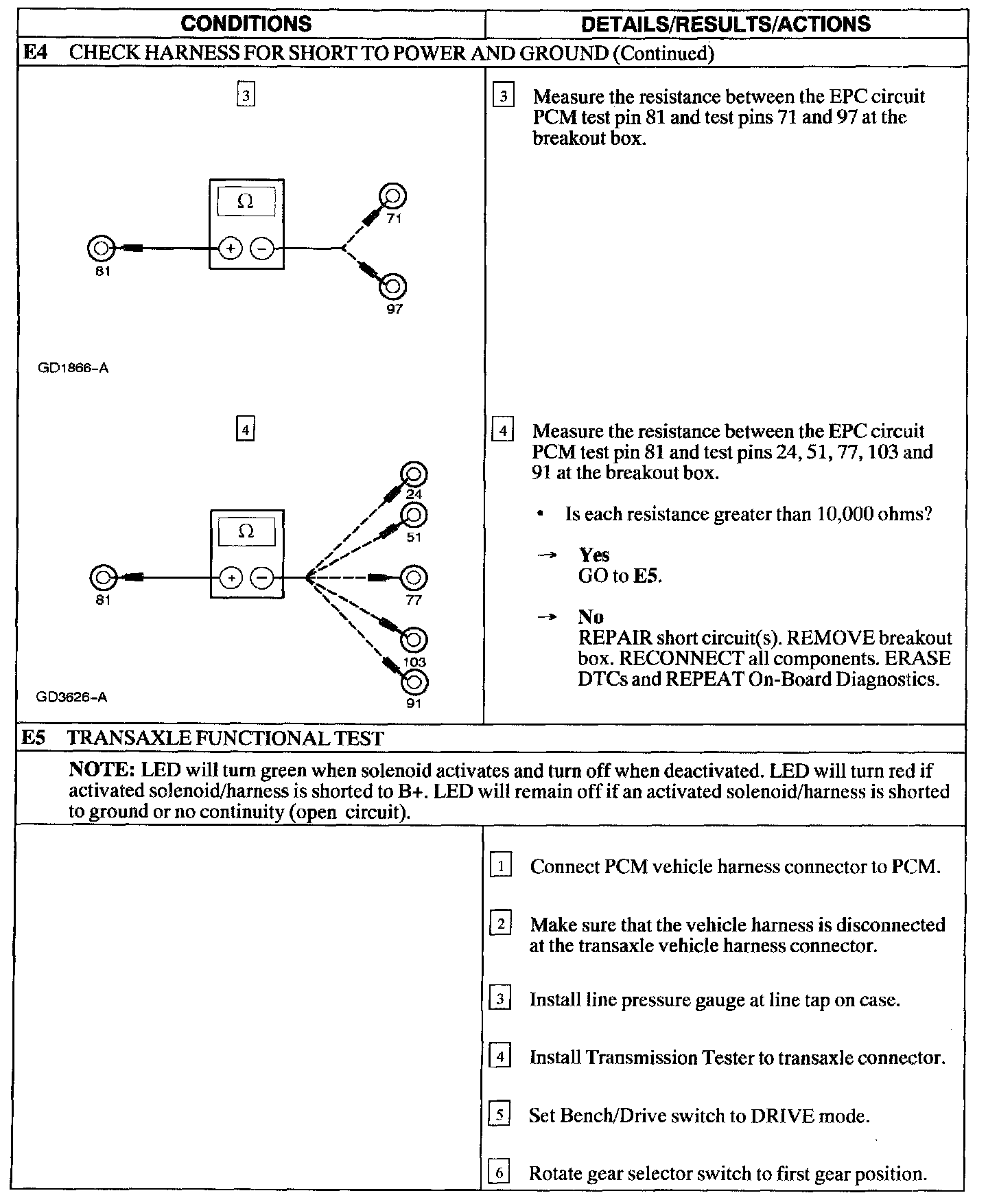

E4 - E5

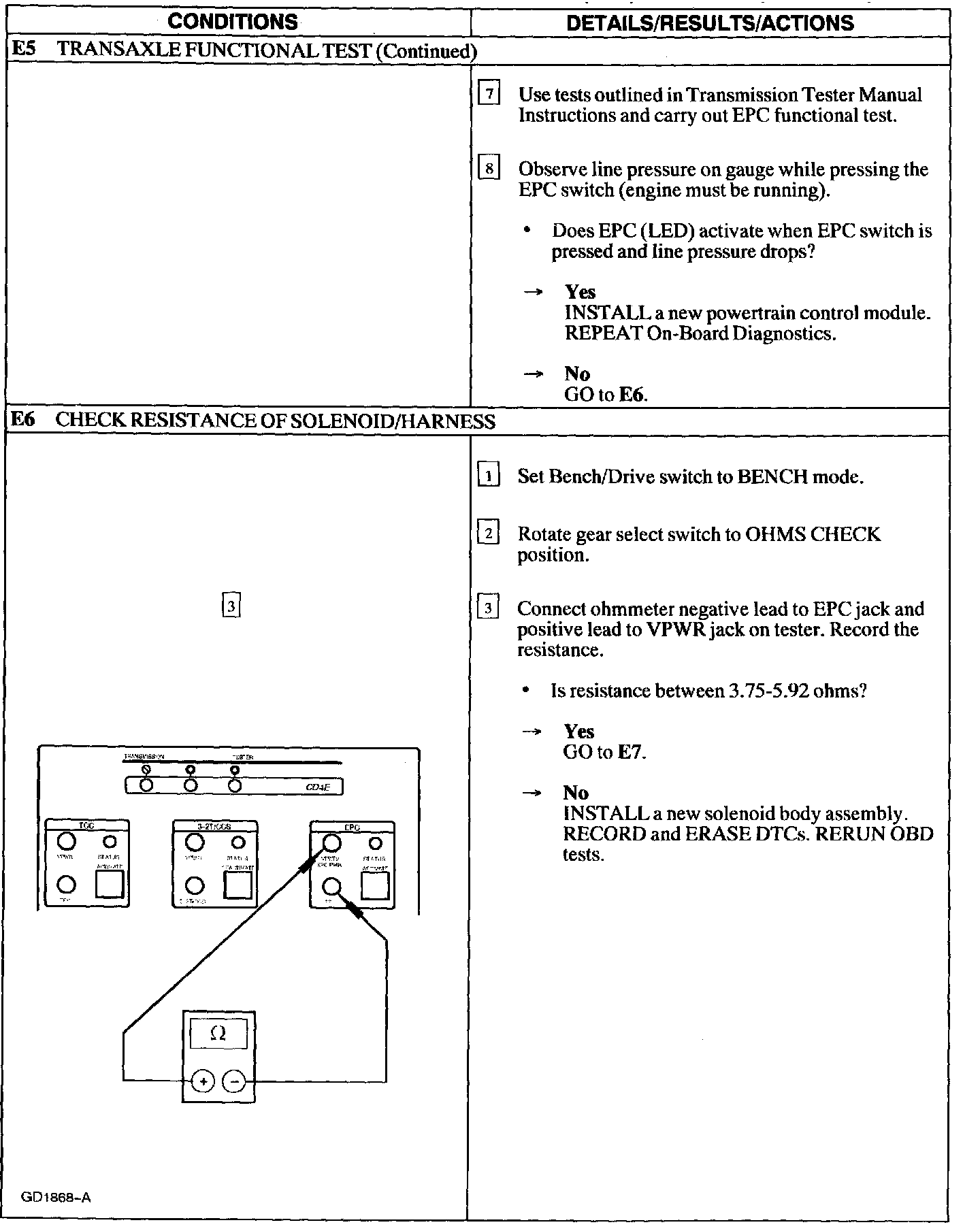

E5 - E6





E7
