Test D: Transmission Range (TR) Sensor

PINPOINT TEST D: TRANSMISSION RANGE (TR) SENSOR

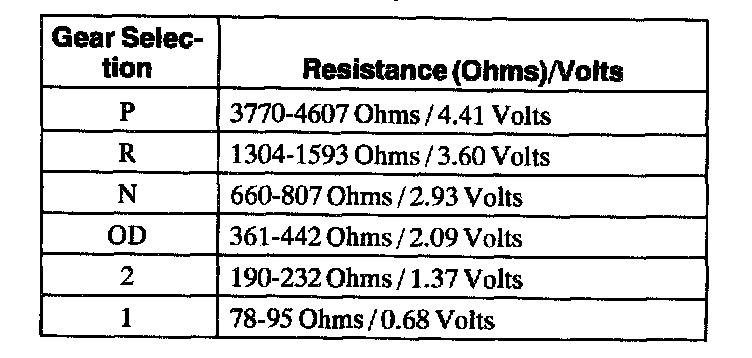

TR Sensor Resistance Table

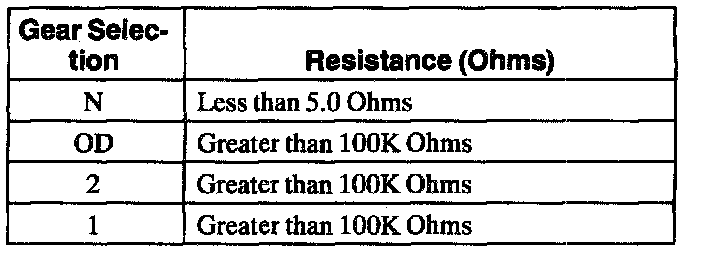

Park/Neutral Position Resistance Table

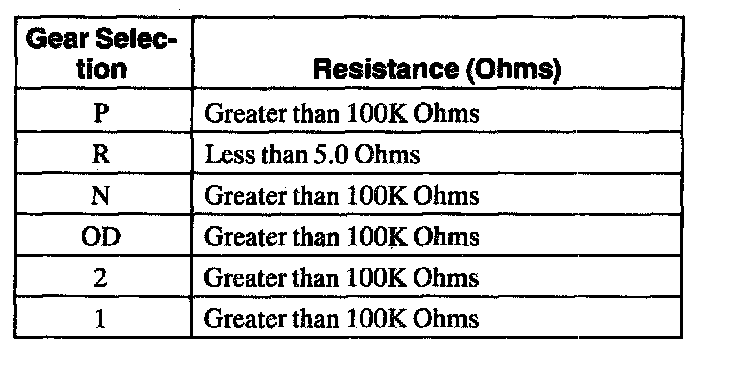

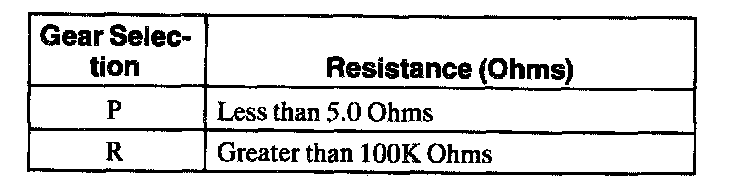

Reverse Position Resistance Table

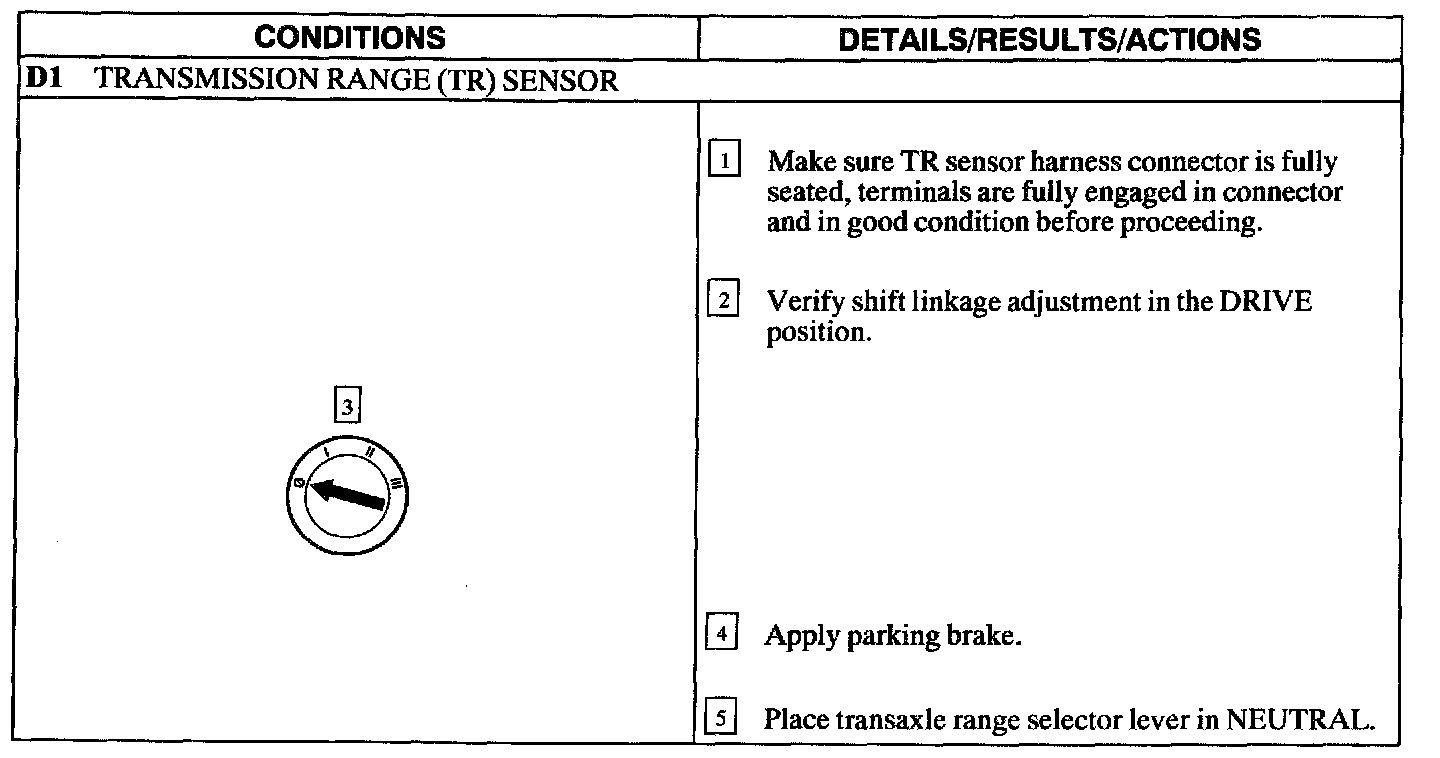

D1

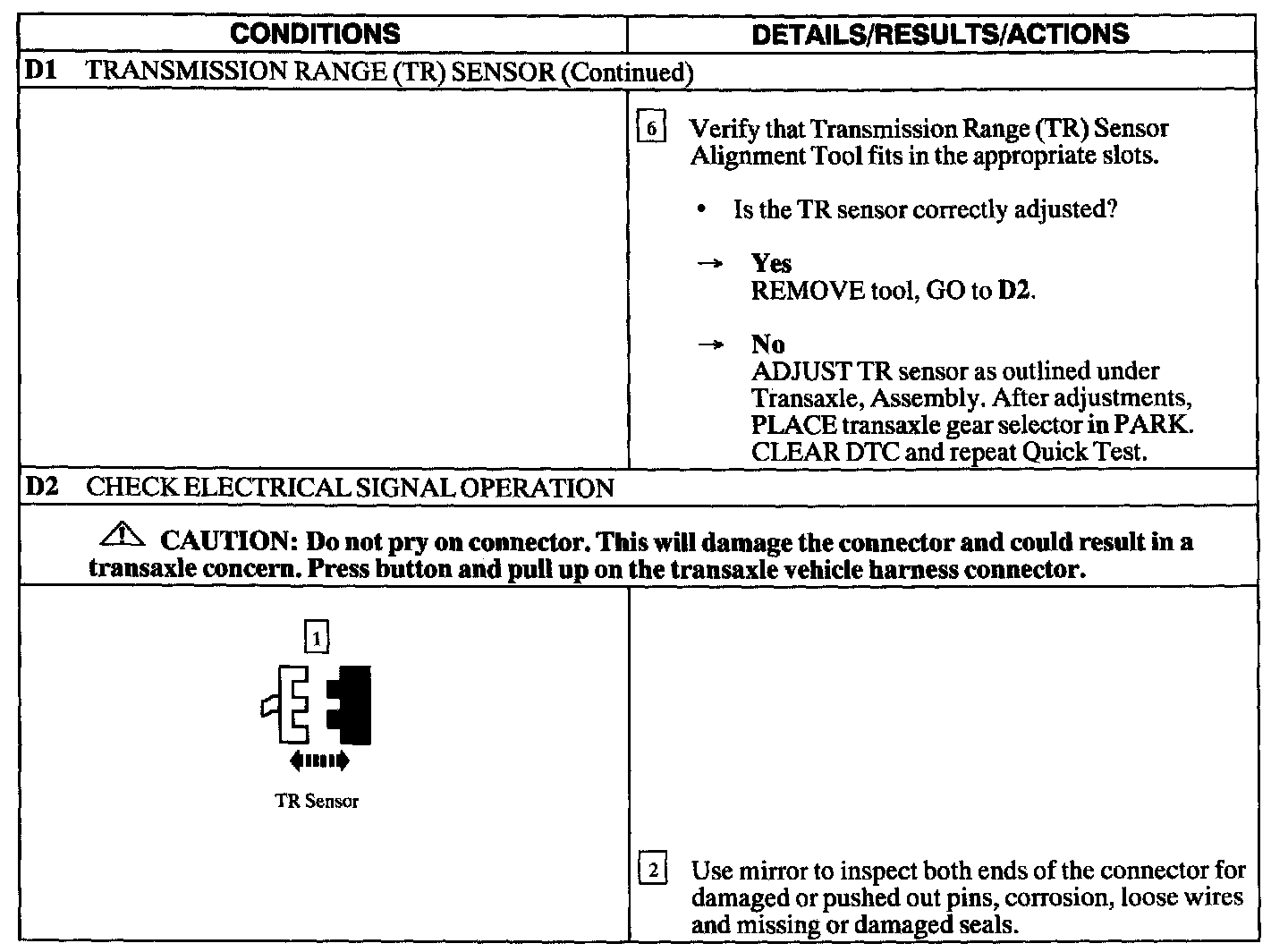

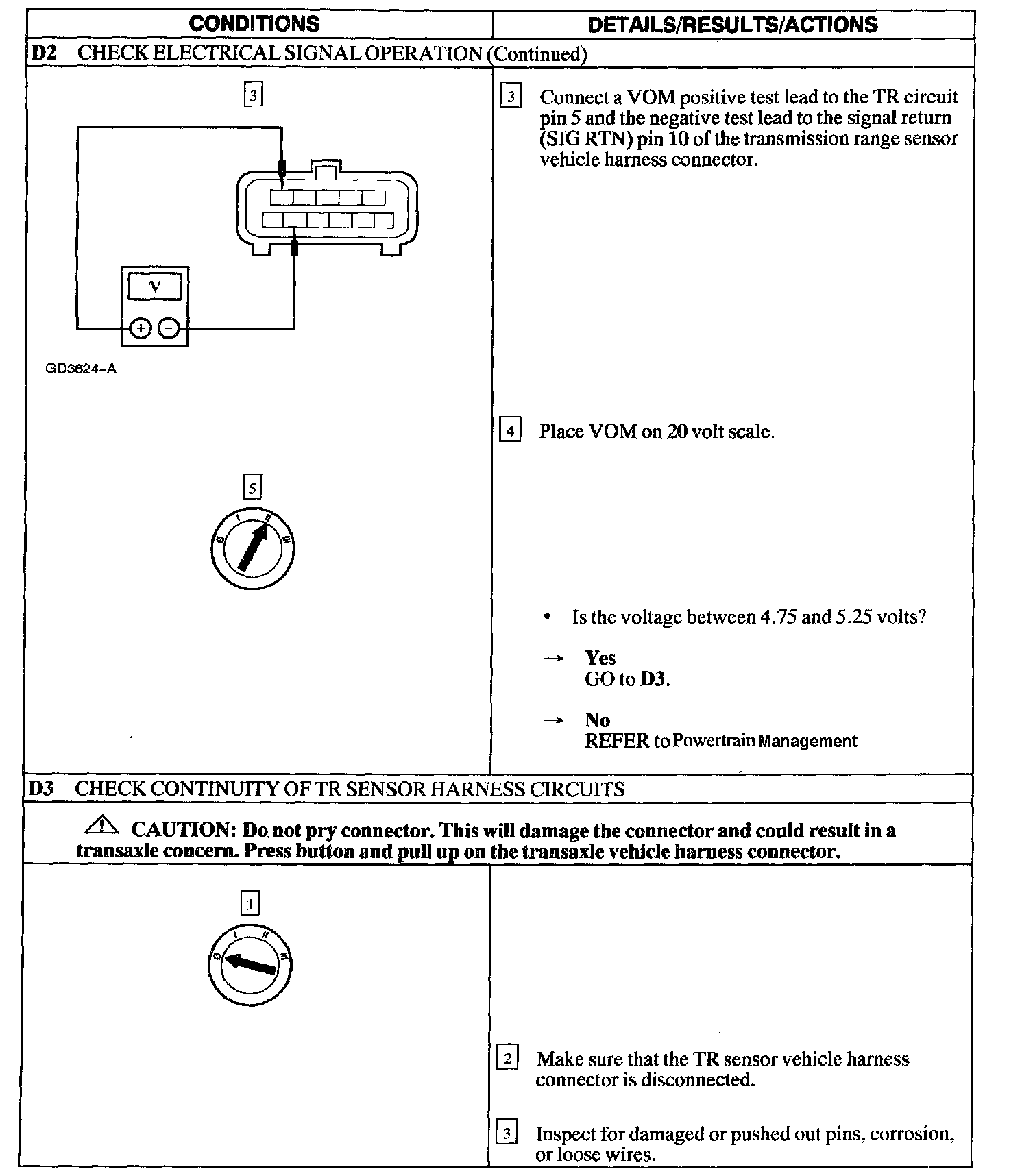

D1 - D2





D2 - D3





D3 - D4

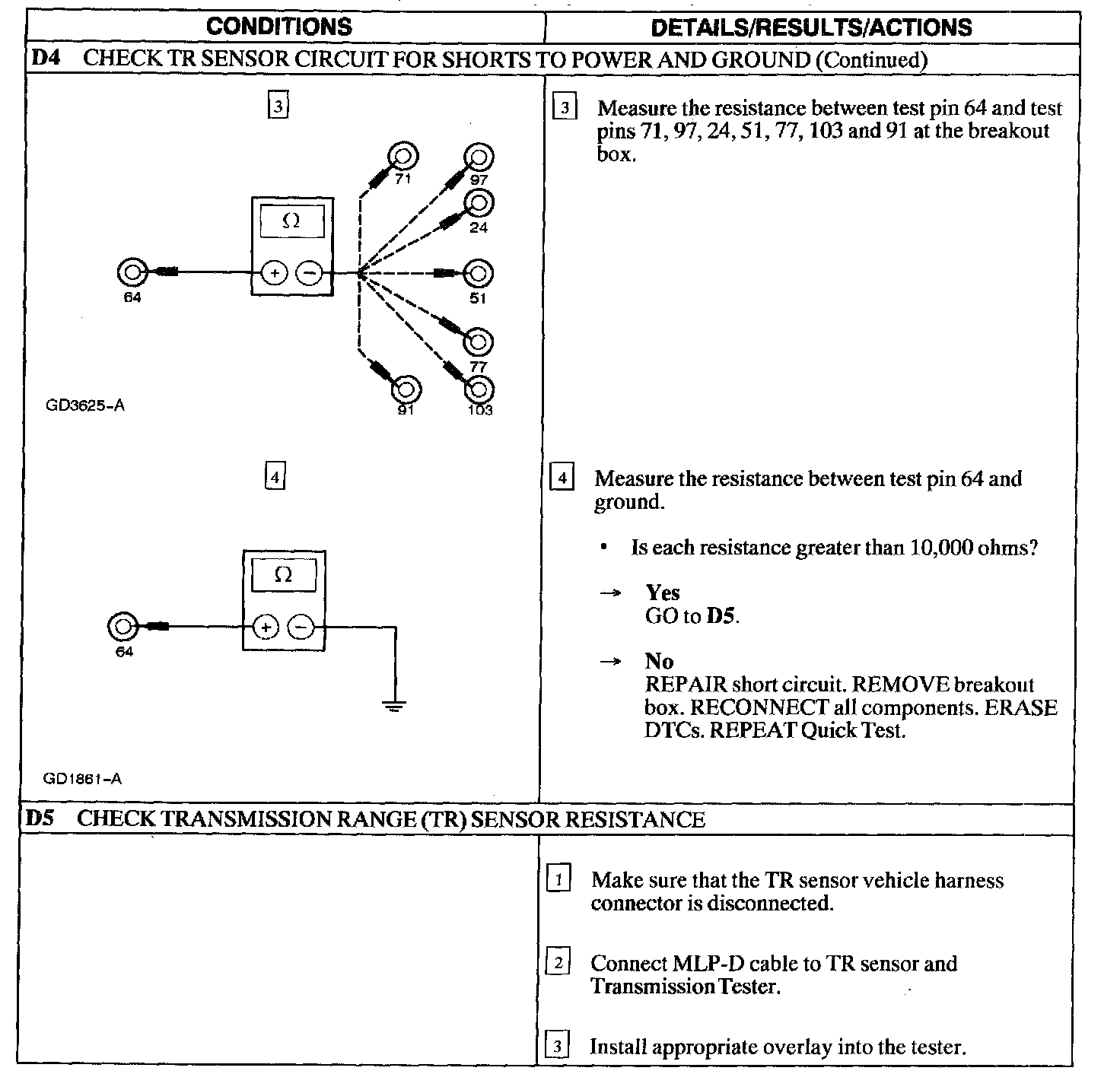

D4 - D5

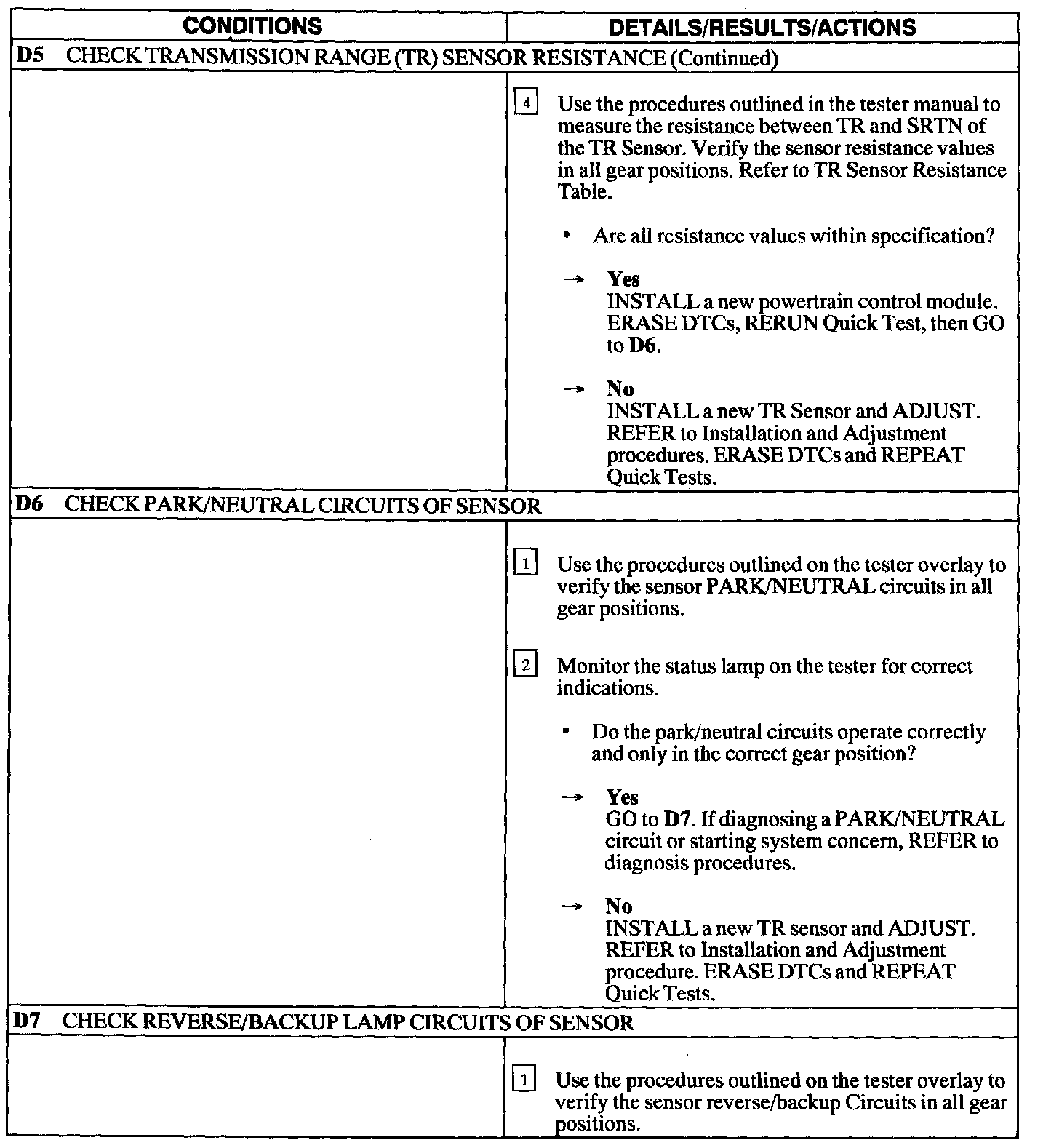

D5 - D7

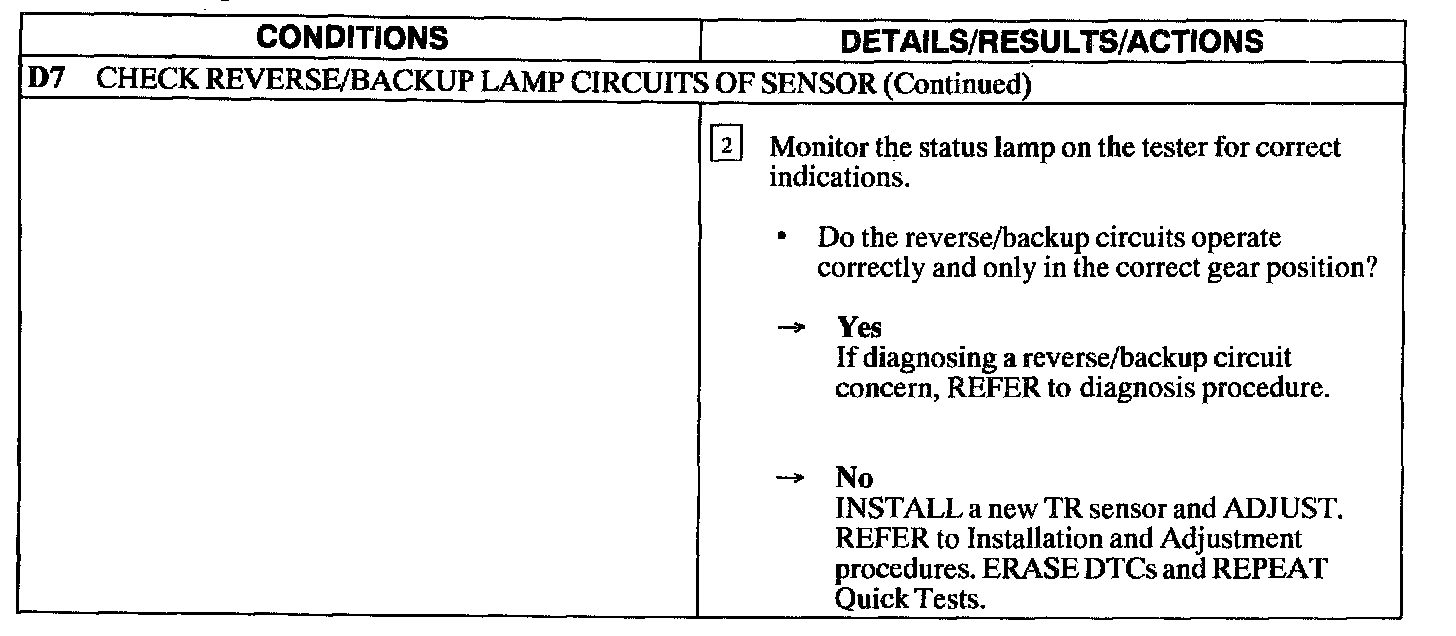

D7
