Test C: Torque Converter Clutch (TCC) Solenoid

PINPOINT TEST C TORQUE CONVERTER CLUTCH (TCC) SOLENOID

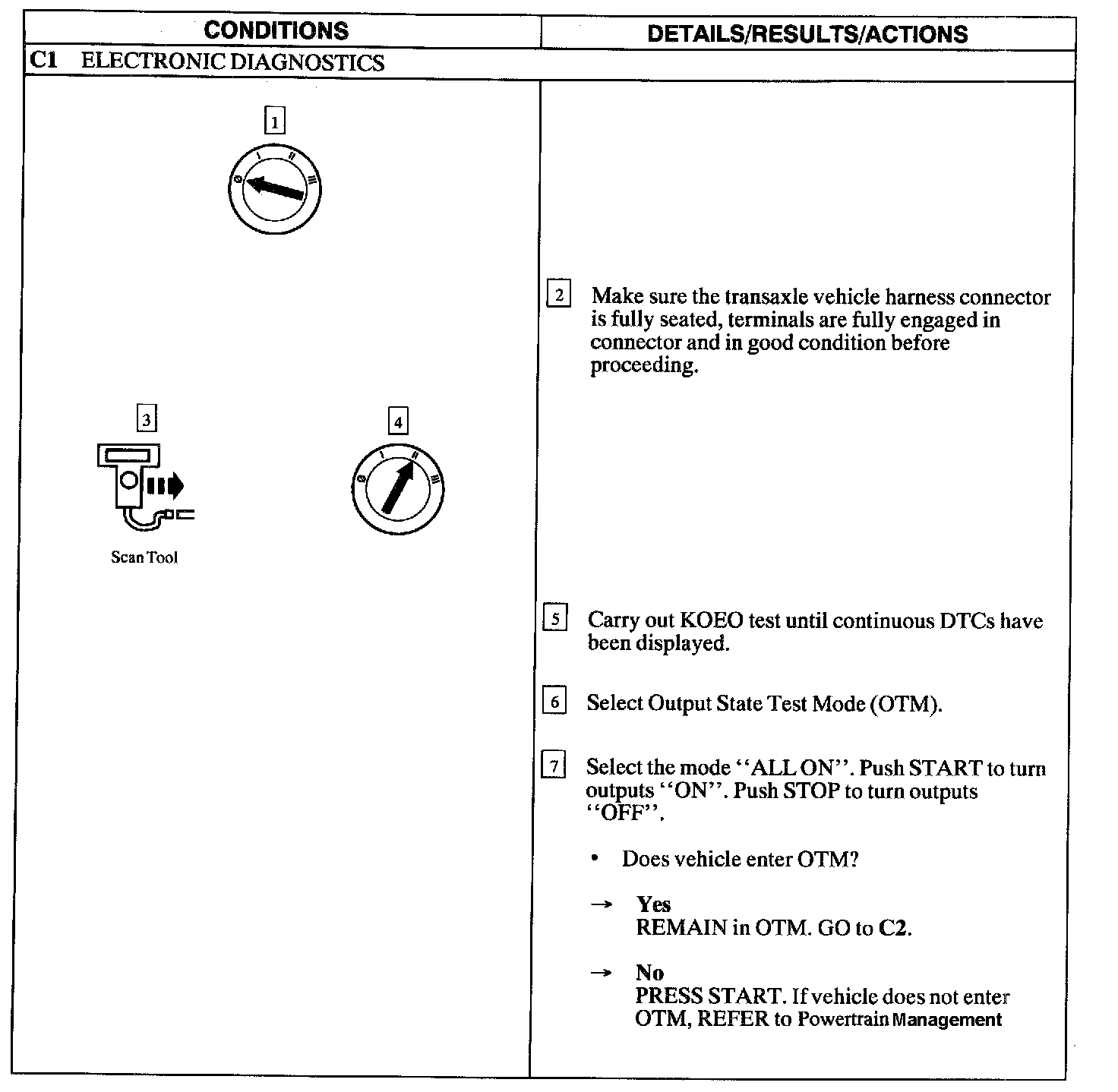

C1

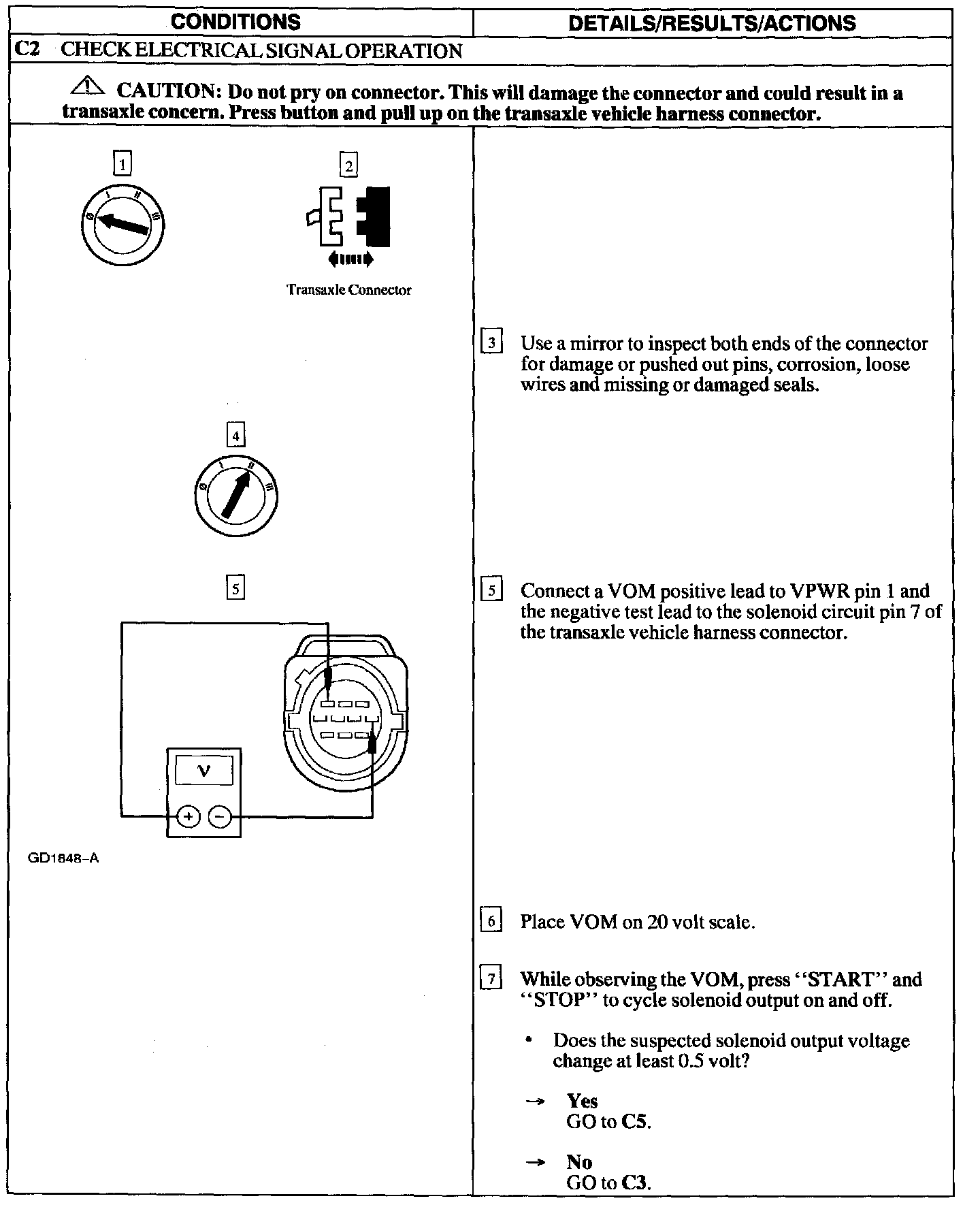

C2

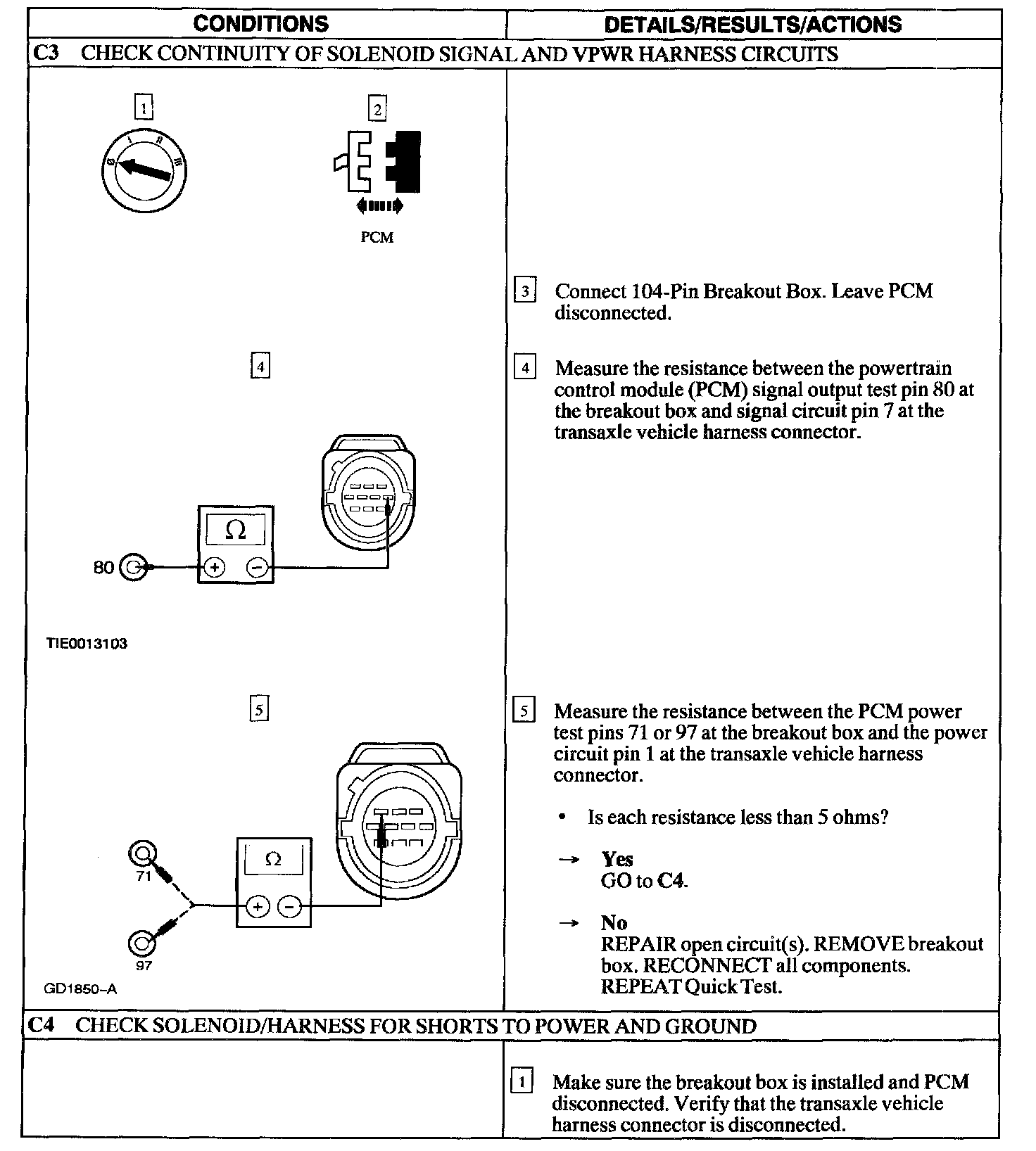

C3 - C4

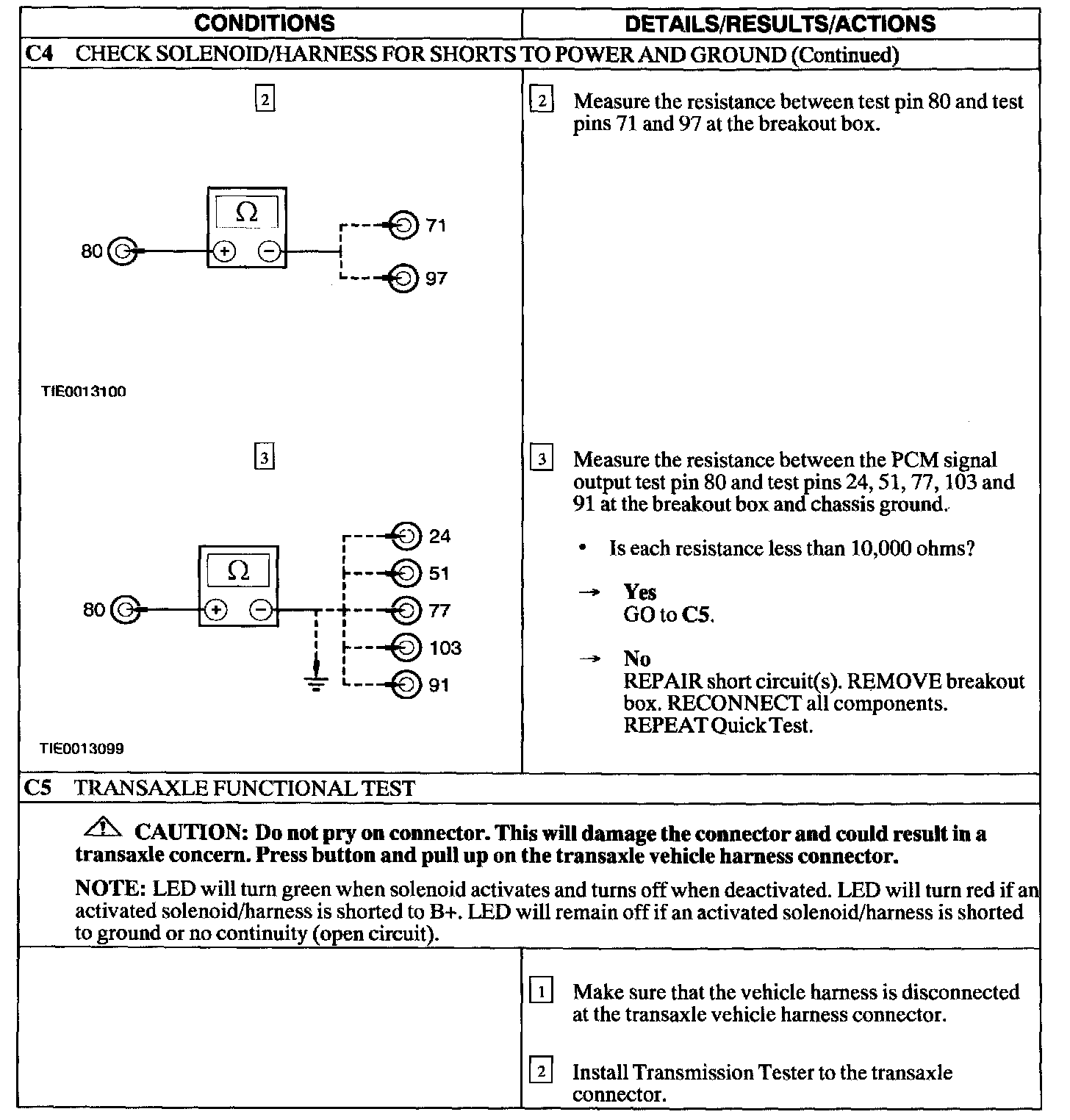

C4 - C5

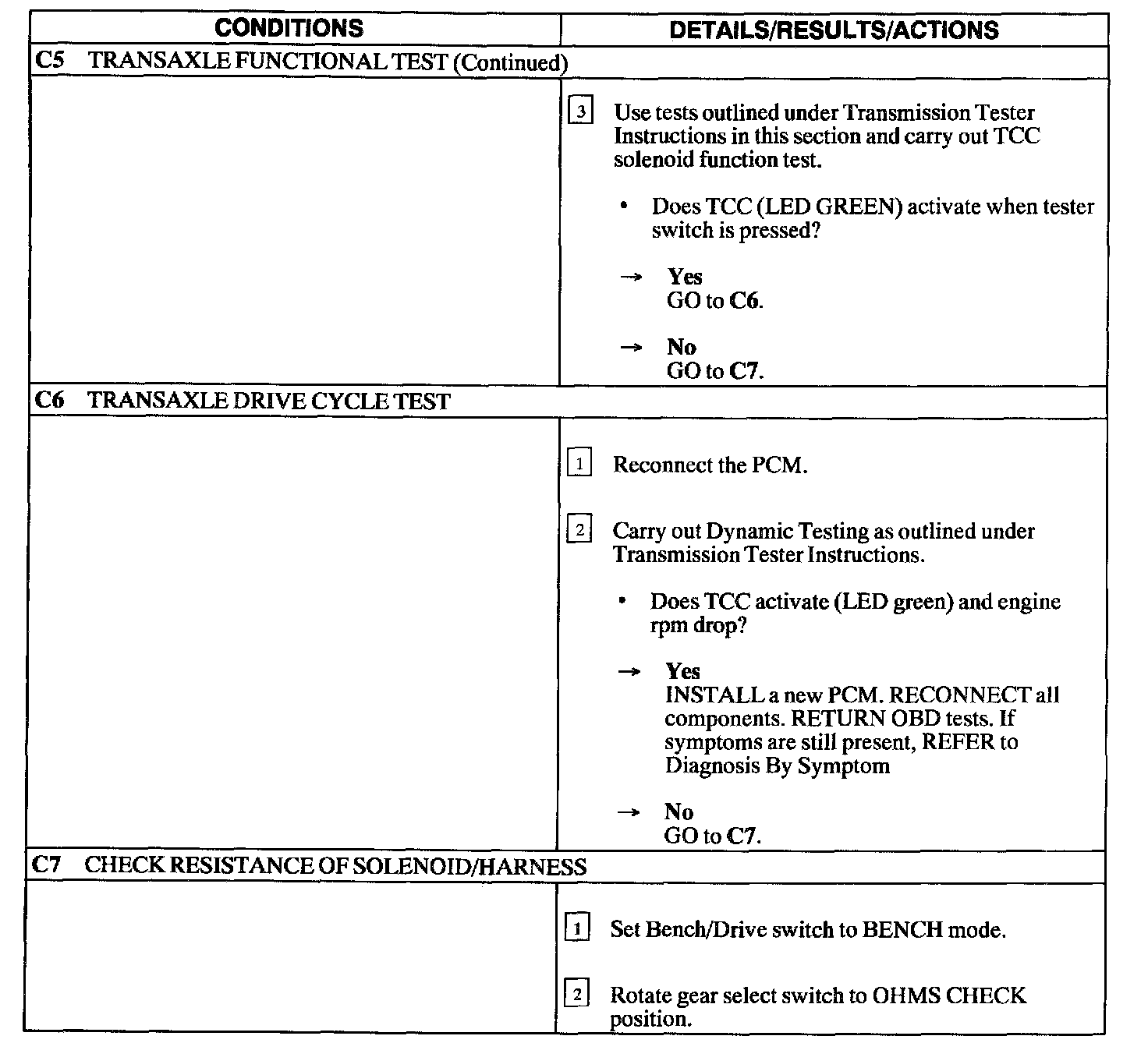

C5 - C7

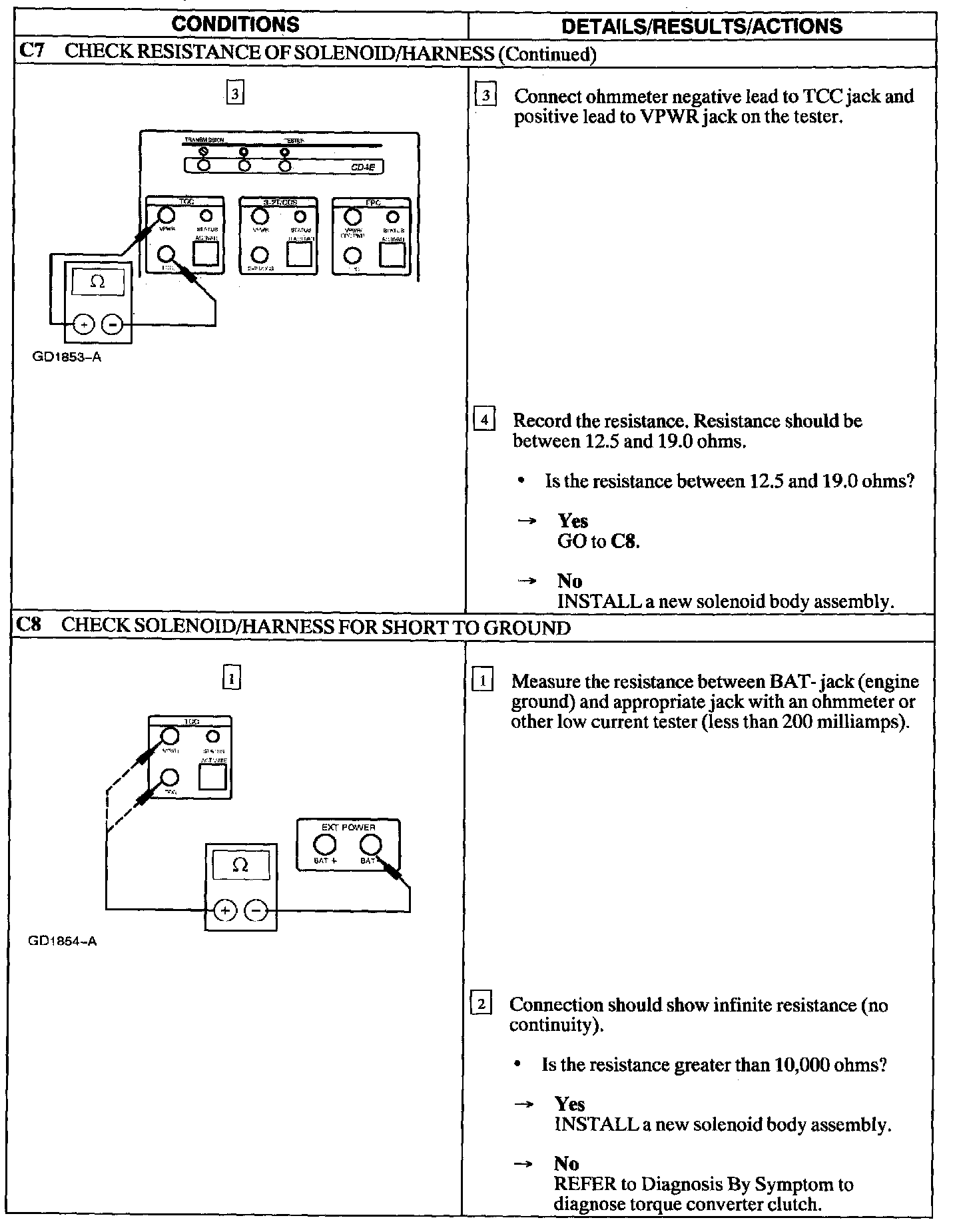

C7 - C8
