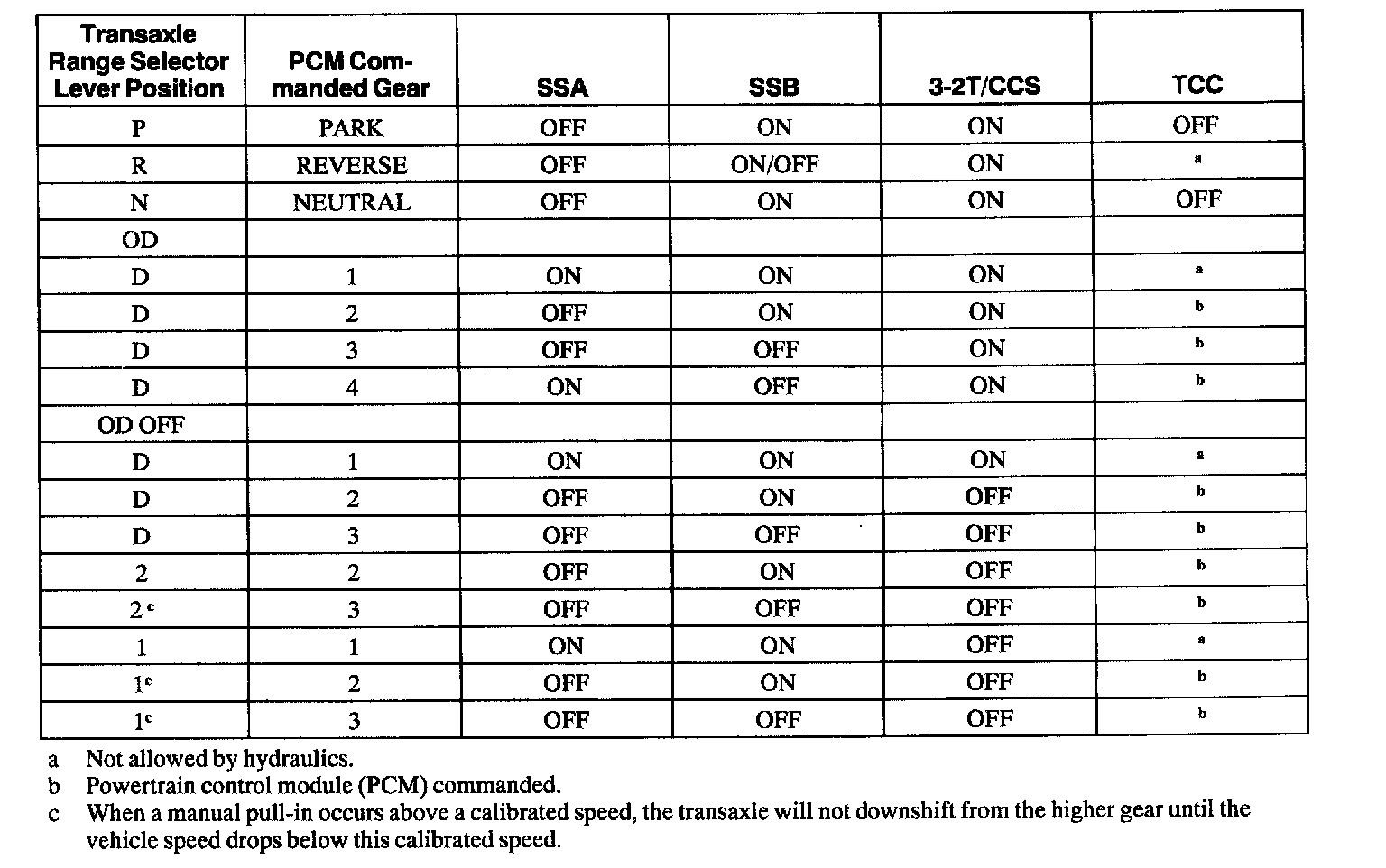

Solenoid Operation Chart

Pinpoint Test A-Shift Solenoids





Solenoid Operation Chart

a Not allowed by hydraulics.
b Powertrain control module (PCM) commanded.
c When a manual pull-in occurs above a calibrated speed, the transaxle will not downshift from the higher gear until the vehicle speed drops below this calibrated speed.
