Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> CD4E Automatic Transmission >> Special Tool(S)

Special Tool(S)

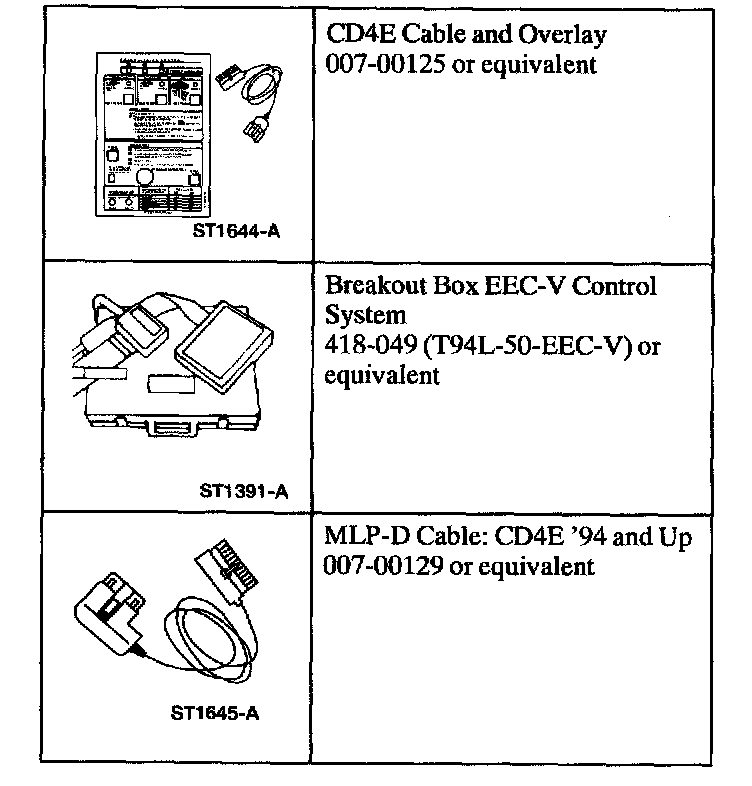

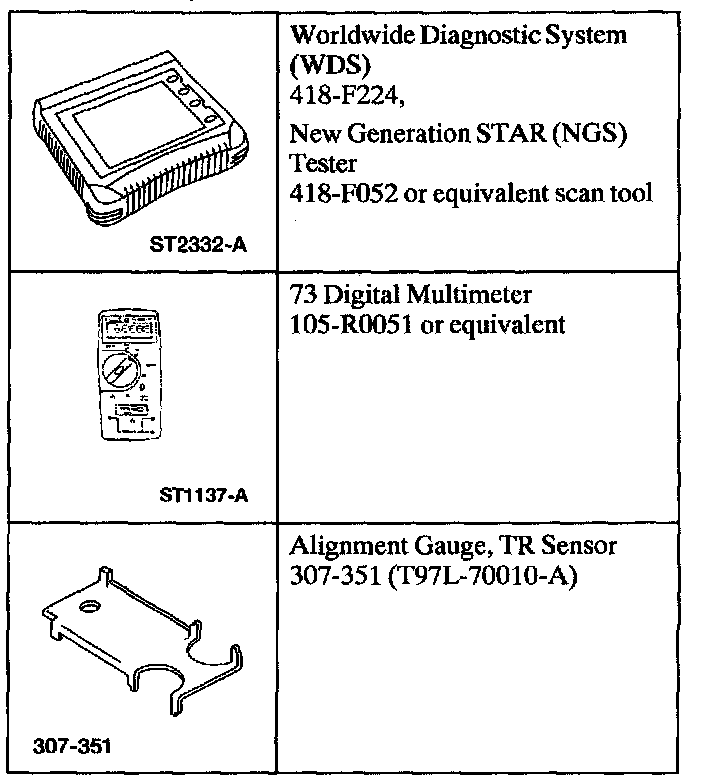

Special Tool(s)





1 of 3





2 of 3





3 of 3
