Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Special Test Procedures >> Reference: Application Charts >> Clutch/Band Application Chart No. 601

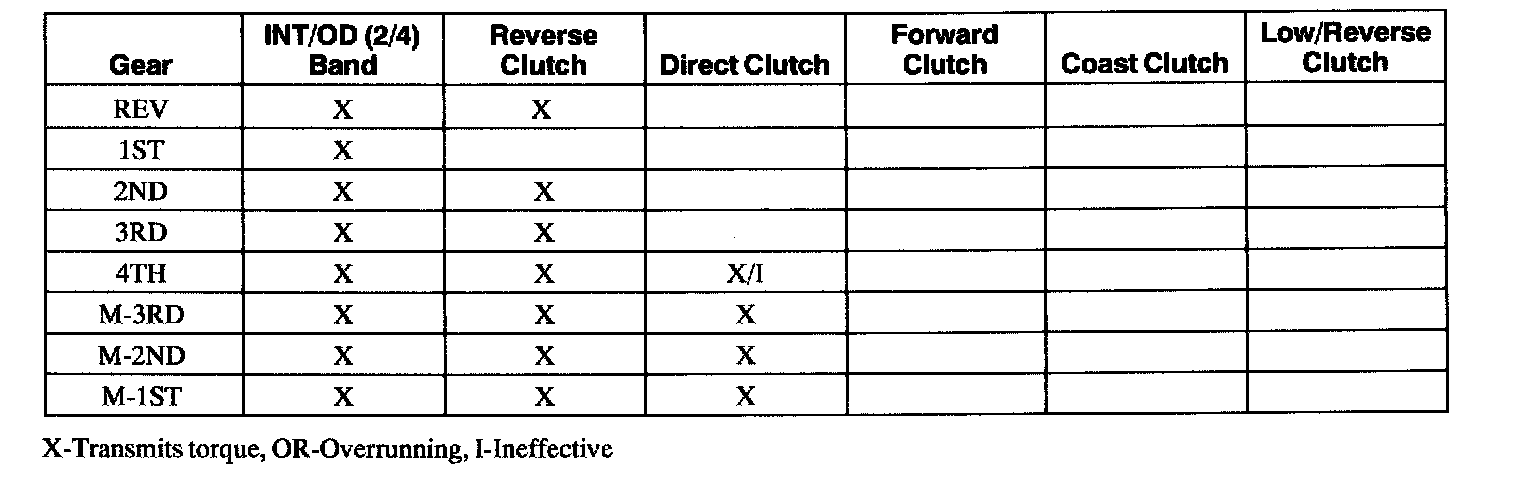

Clutch/Band Application Chart No. 601

Reference: Clutch/Band Application Chart





X-Transmits torque, OR-Overrunning, I-Ineffective
