Low/Reverse Piston

Low/Reverse Piston
Disassembly

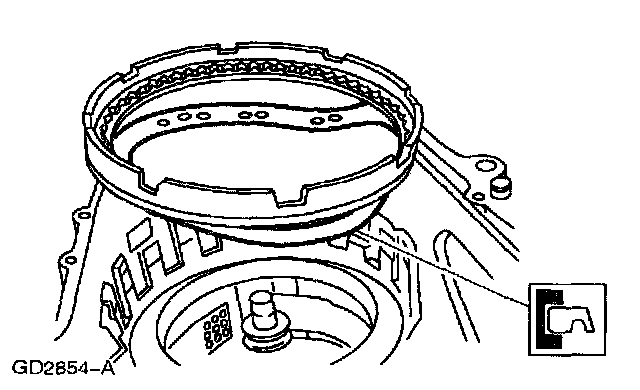

1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.





2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.

Assembly








1. Install the low/reverse clutch piston outer seal on the low/reverse clutch piston.
2. Install the low/reverse clutch piston inner seal on the low/reverse clutch piston.
