Chain Sprockets

Chain Sprockets

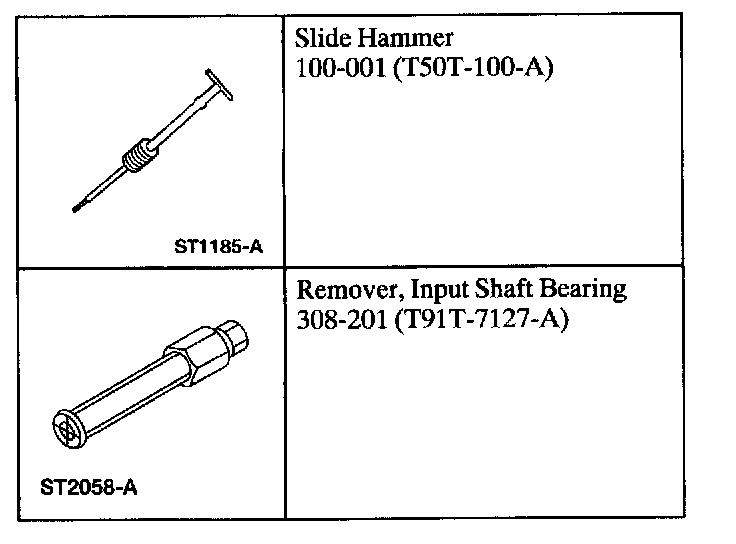

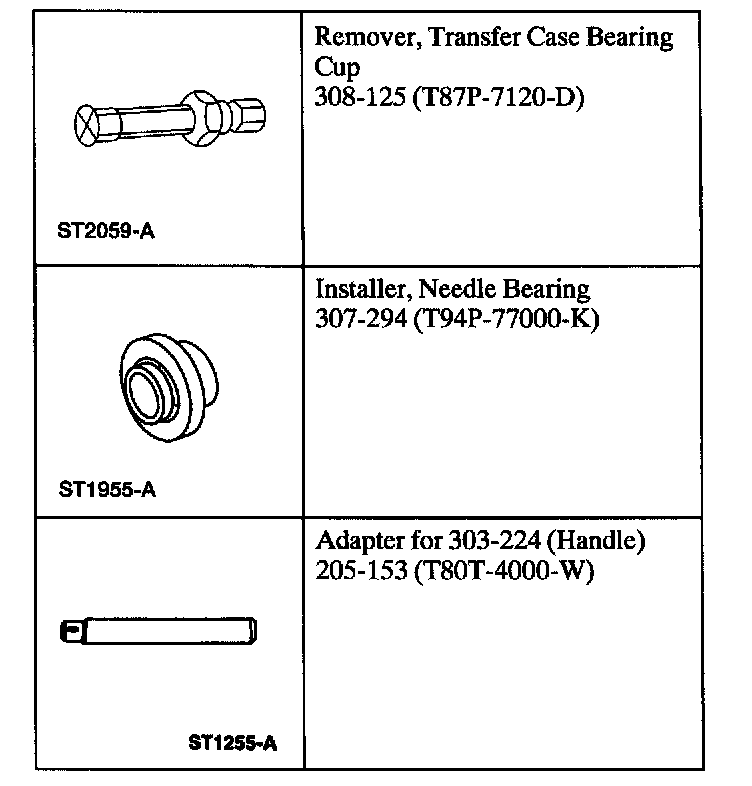

Special Tool(s)

Disassembly

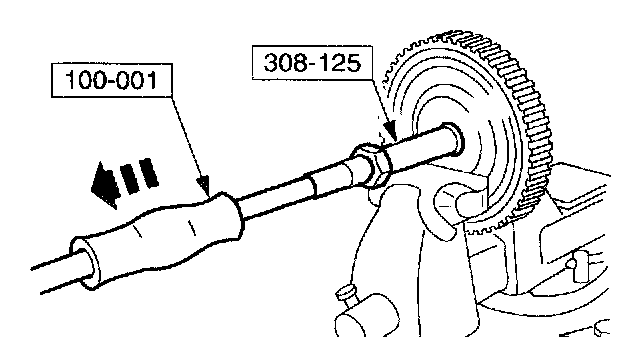

1. CAUTION: Clamp the sprocket in a soft-jawed vise.

Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.

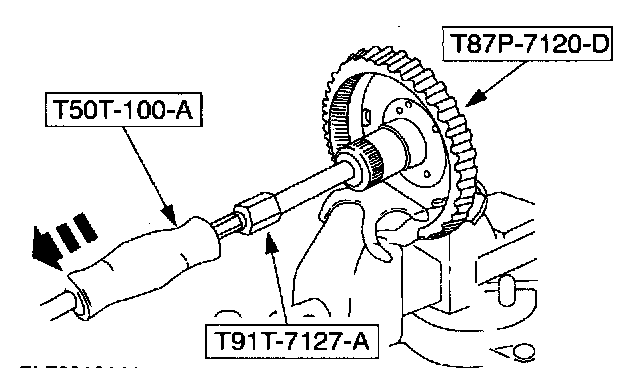

2. Using the special tools, remove the No. 17 stator support bearing, as necessary.

Assembly





1. Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
- Position the bearing with the part number facing toward the handle of the special tool.





2. NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.





3. Position the No. 17 stator support bearing on the special tools.
- Position the bearing with the part number facing toward the handle of the special tool.





4. NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
