Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations

Automatic Transmission/Transaxle: Locations

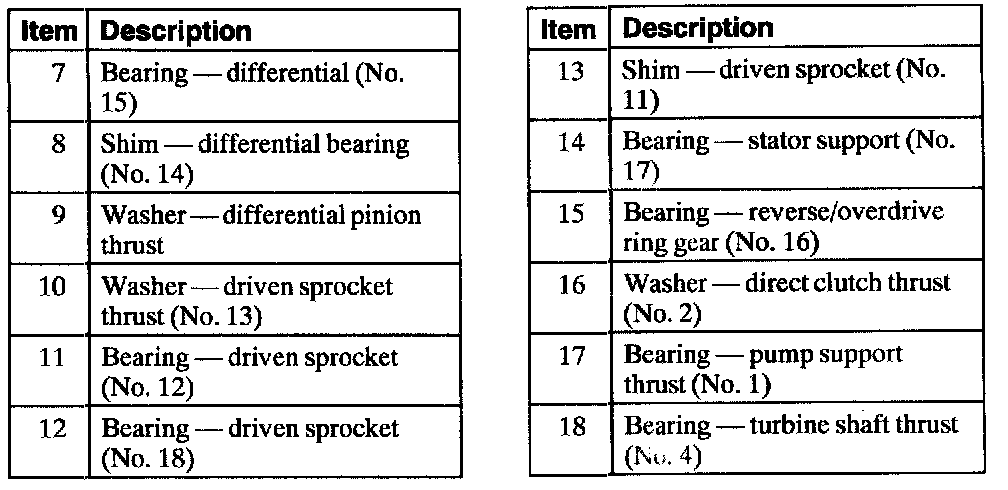

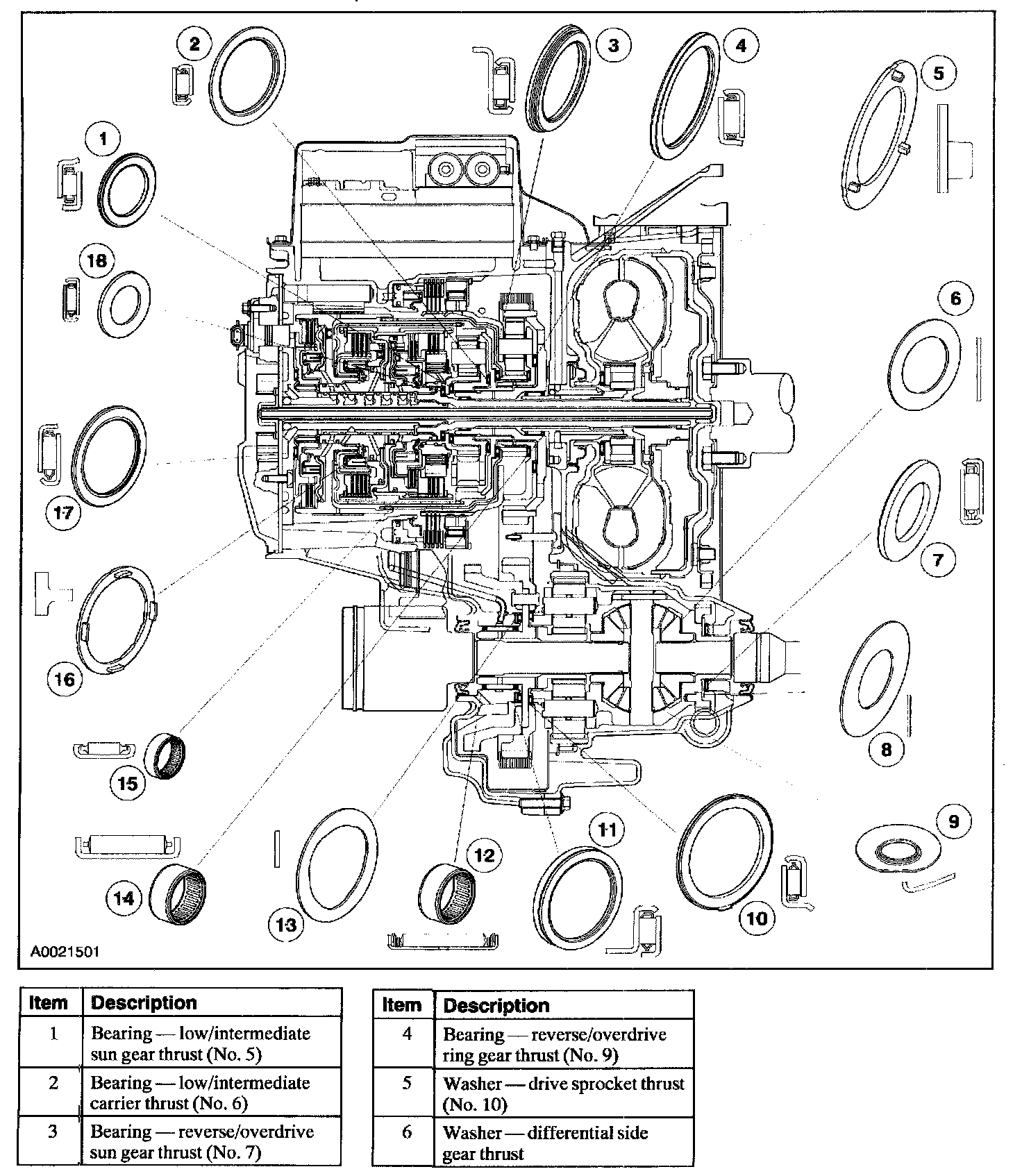

Bushings, Bearing and Thrust Washer Locator





1 of 2





2 of 2
