Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Electrical Diagrams

Electrical Diagrams

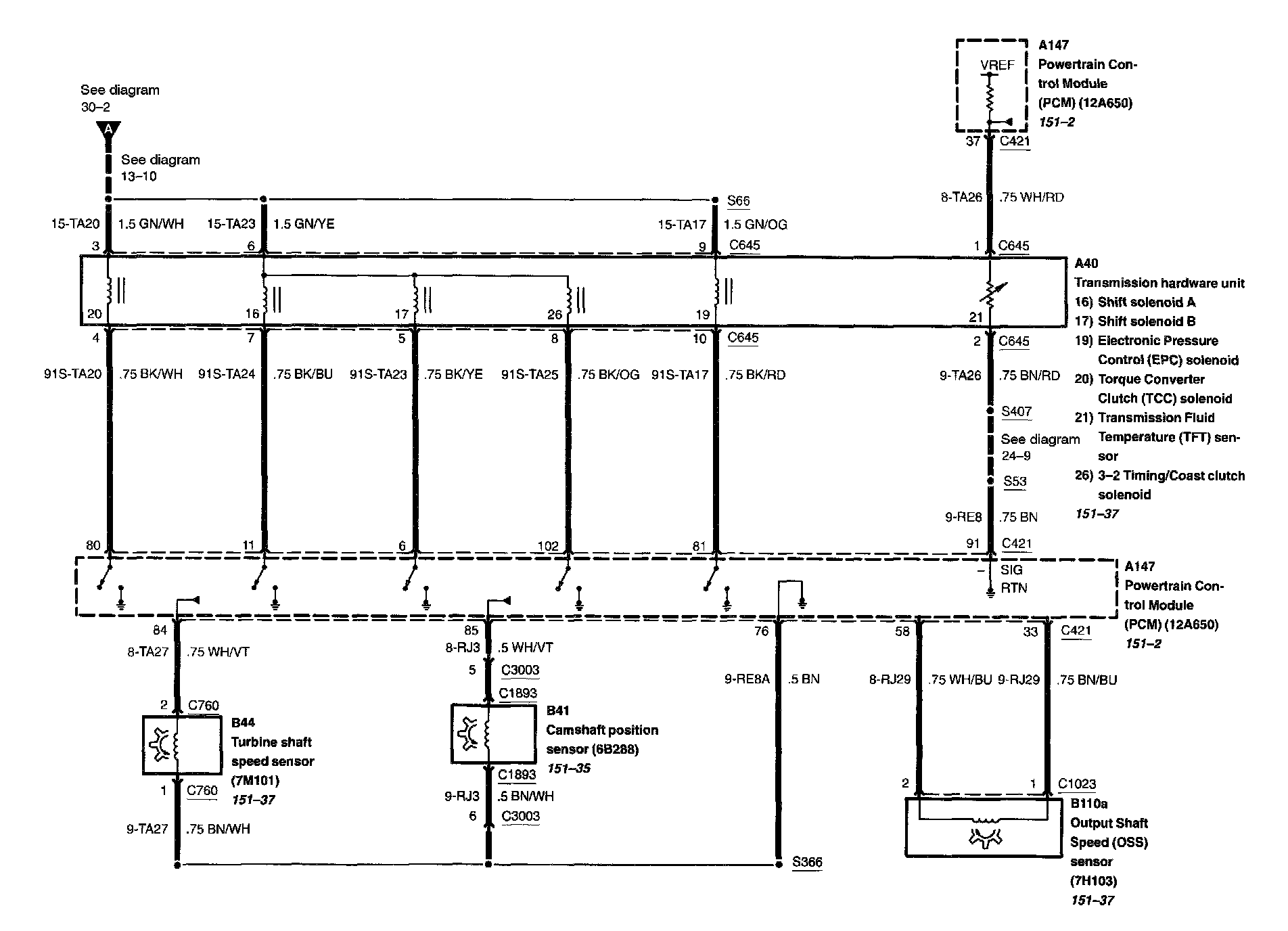

Diagram 30-1:

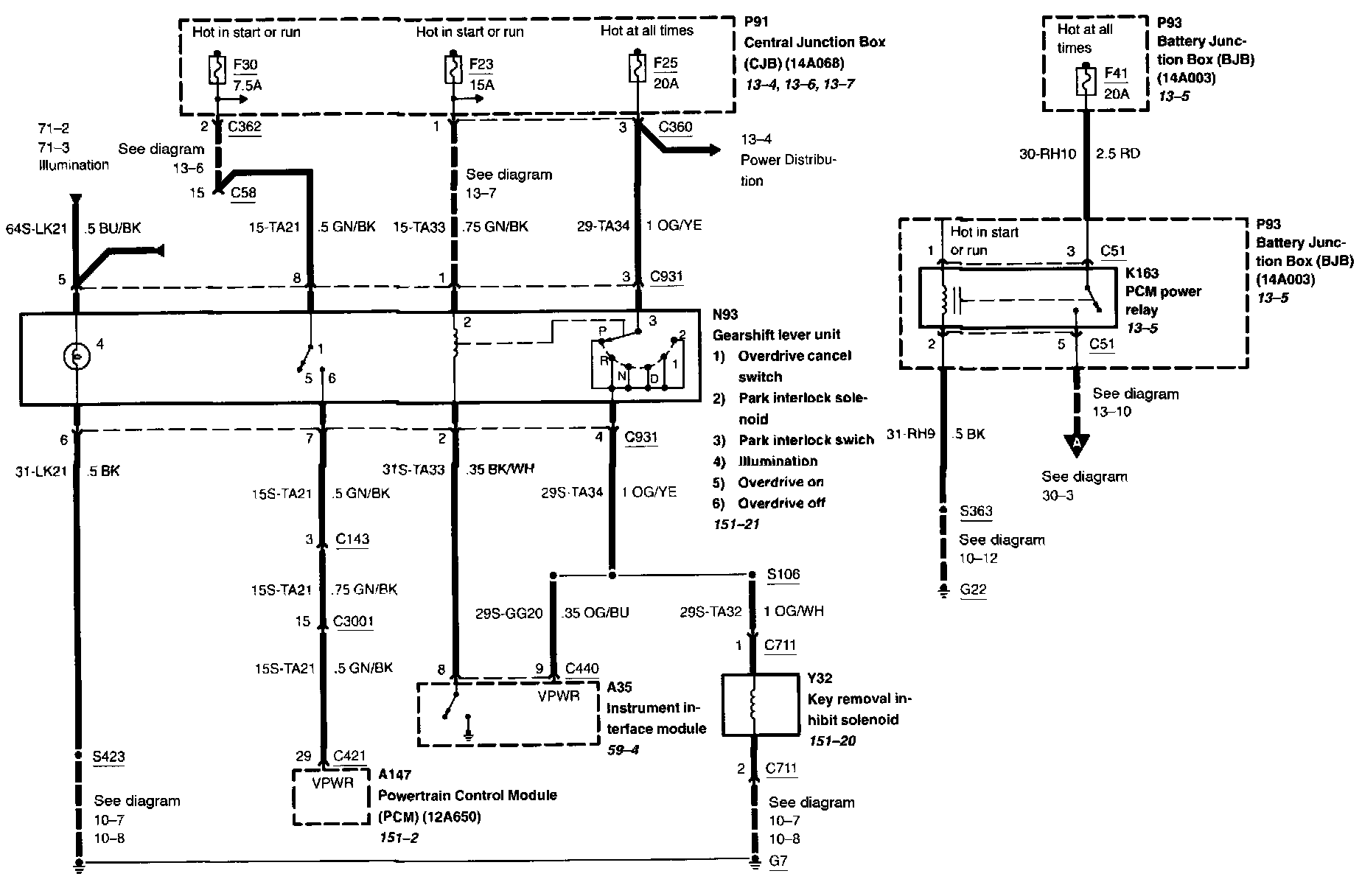

Diagram 30-2:

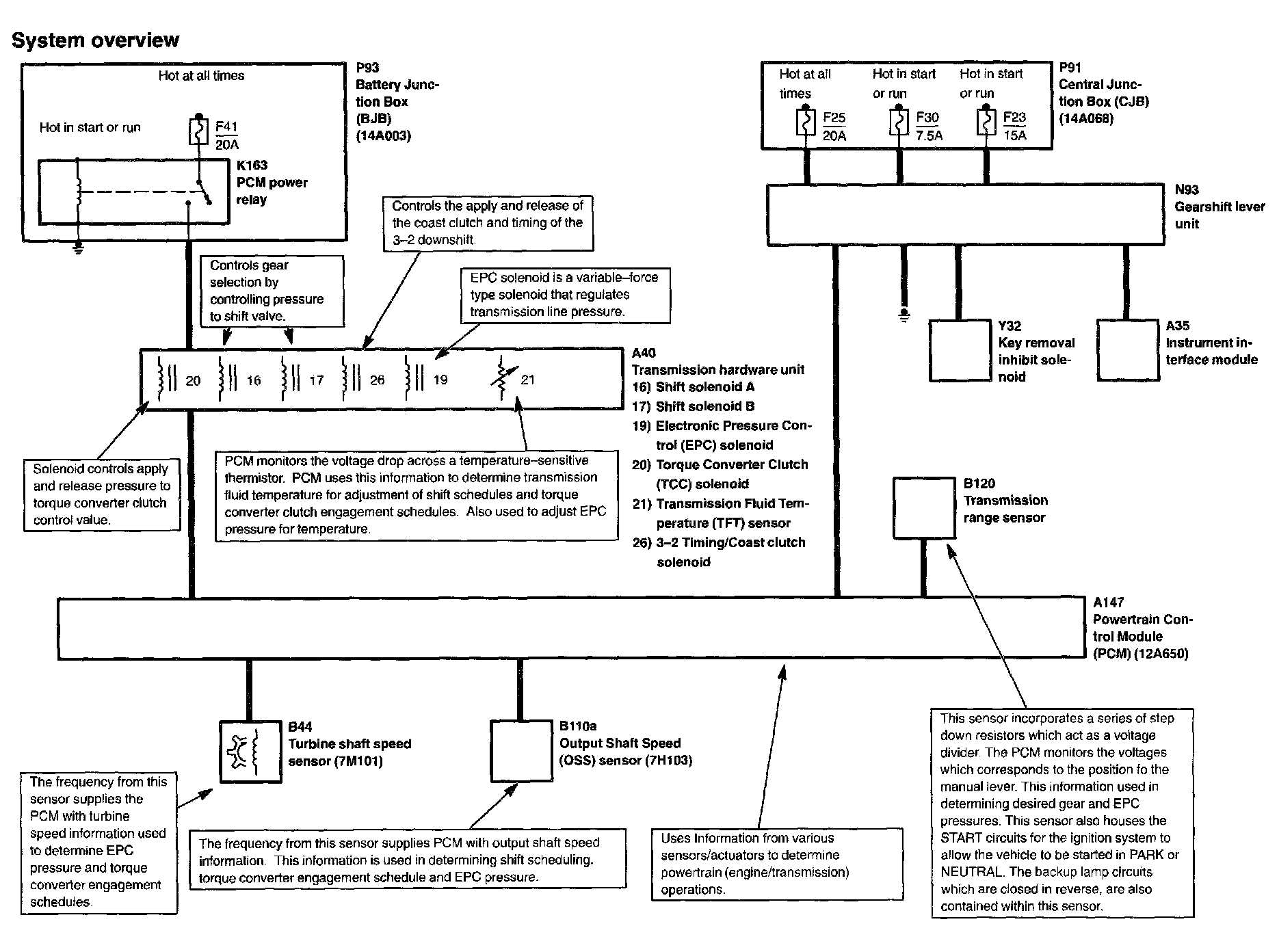

Diagram 30-3:

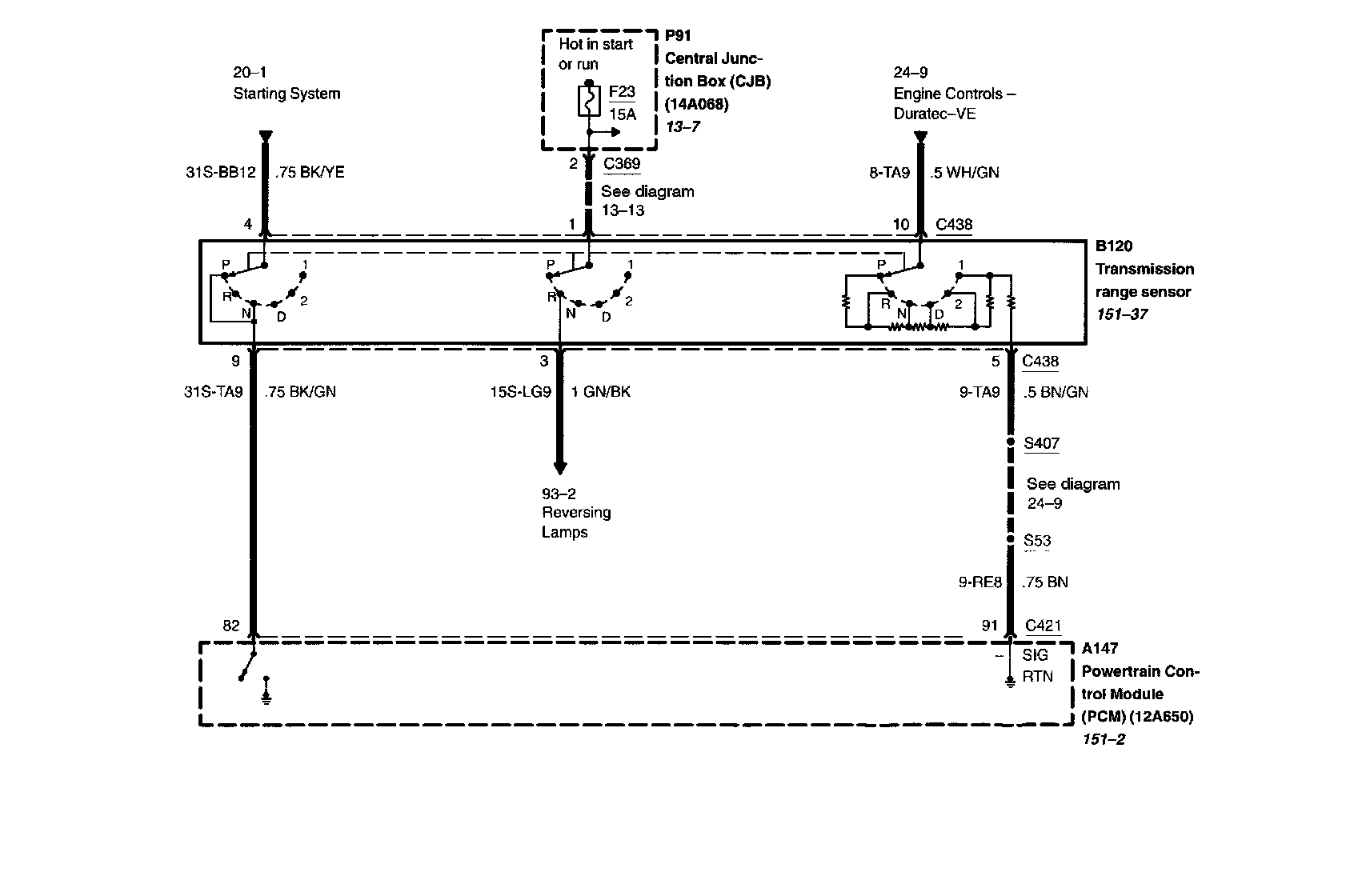

Diagram 30-4:
