Camber

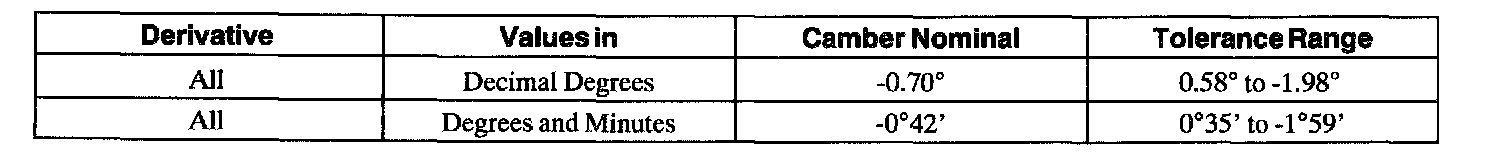

Rear Wheel Alignment-Camber





Maximum variation-left to right-hand side-camber1.25°(1°15,)
