Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Suspension System - General Information >> Alignment Specifications >> Front Wheel Alignment >> Castor and Camber

Castor and Camber

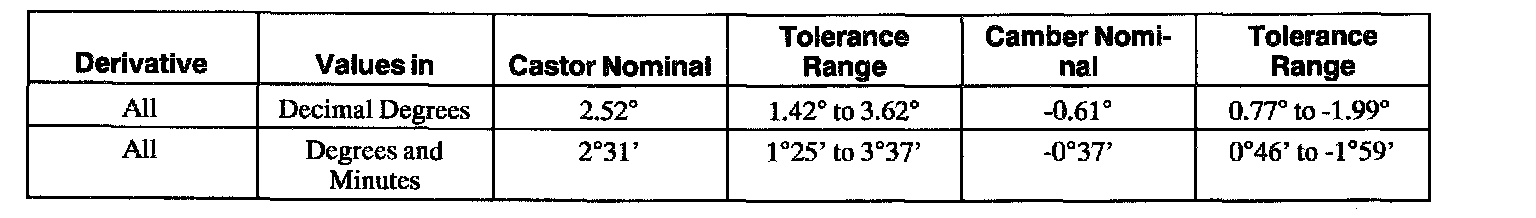

Front Wheel Alignment-Castor and Camber





Maximum variation-left to right-hand side-1.00°(100°)camber 1.25°(1°15,)
