Power Steering Pressure Switch: Service and Repair

REMOVAL

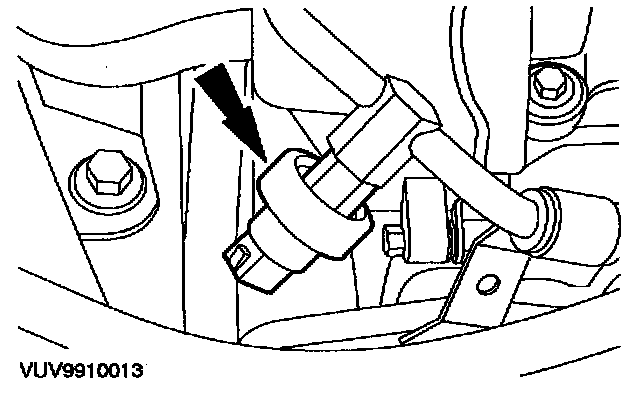

1. Disconnect the Power Steering Pressure (PSP) switch electrical connector.
1 Cut the ties.
2 Disconnect the electrical connector.







2. Remove the PSP switch.

NOTE: When removing the power steering pressure switch catch any displaced fluid in a suitable container.

INSTALLATION

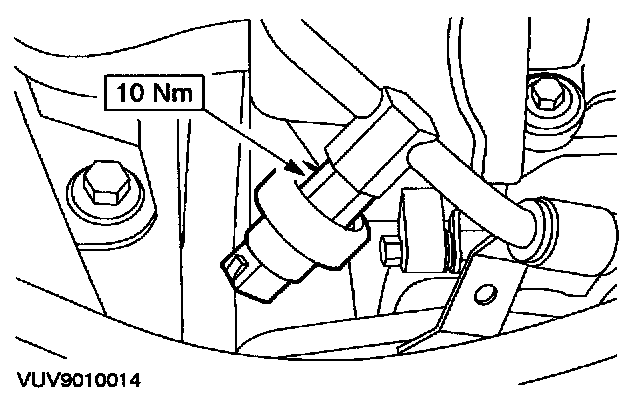

1. To install, reverse the removal procedure.

NOTE: Bleed the power steering system.
