Headlamp Switch: Service and Repair

REMOVAL







1. Remove the instrument panel lower panel.

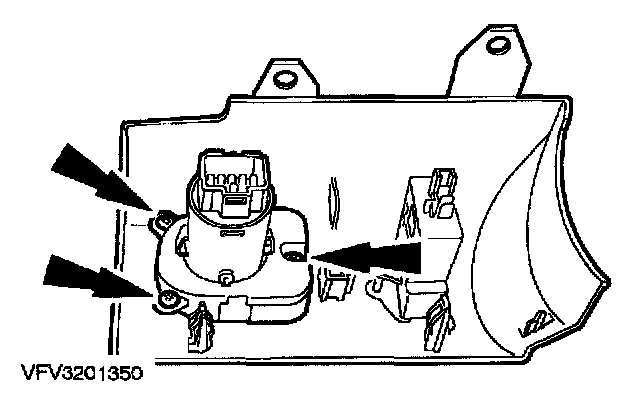

2. Remove the lamp switch panel.
1 Remove the screws.
2 Detach the instrument panel from the clips.

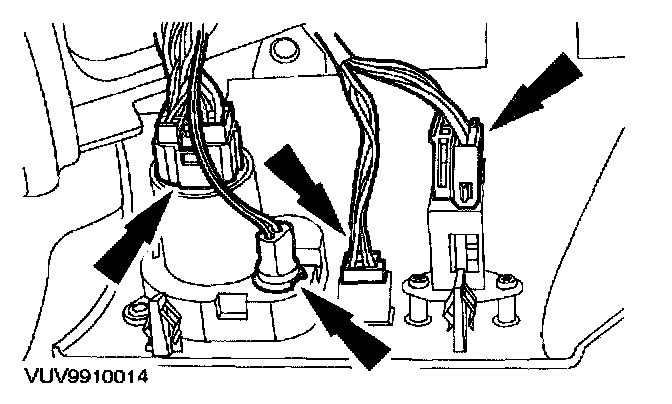

3. Disconnect the electrical connectors.







4. Remove the lamp switch.

INSTALLATION
1. To install, reverse the removal procedure.
