Air Conditioning (A/C) Cycling Switch

REMOVAL

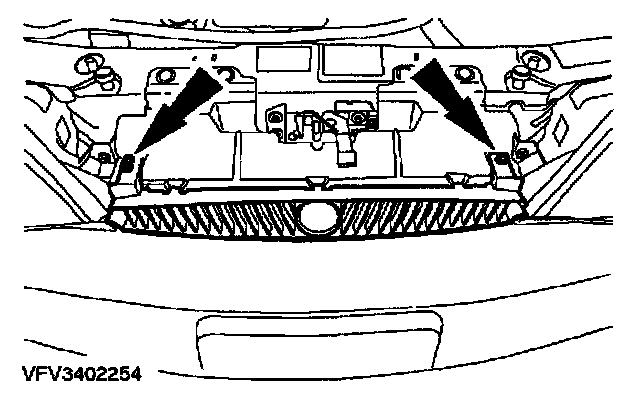

1. Remove the radiator grille.

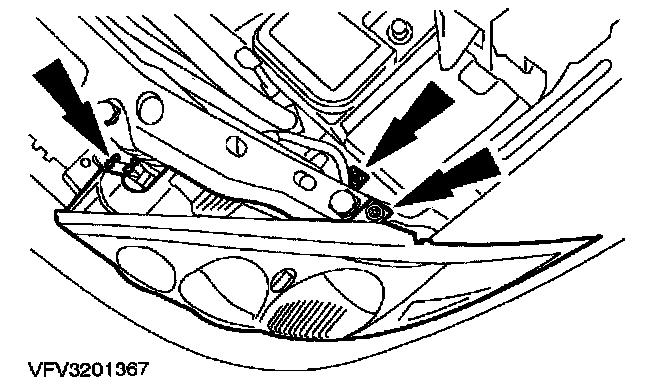

2. Remove the left-hand headlamp assembly.







3. Disconnect electrical connectors.

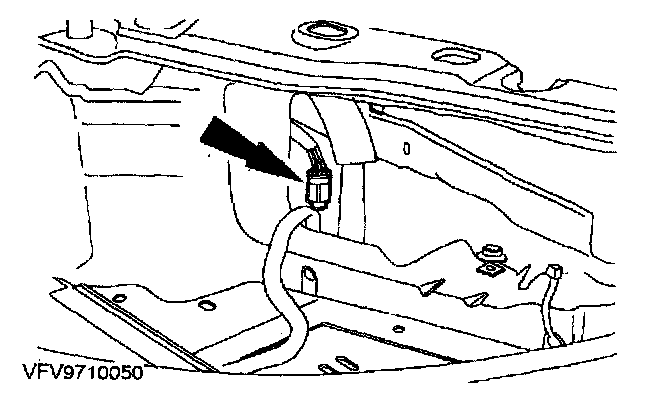

4. Remove the A/C cycling switch.
- Disconnect the electrical connector.

NOTE: Let the engine run and switch A/C on during switch removal. Cross connect the electrical connection, so that the compressor runs without the switch connection.

INSTALLATION
1. To install, reverse the removal procedure.
- Check the air conditioning system for normal operation.

NOTE: Install new O-ring seals and coat them with refrigerant oil.
