Front

REMOVAL
1. Move the seat fully forward.
2. Remove the rear quarter panel trim.

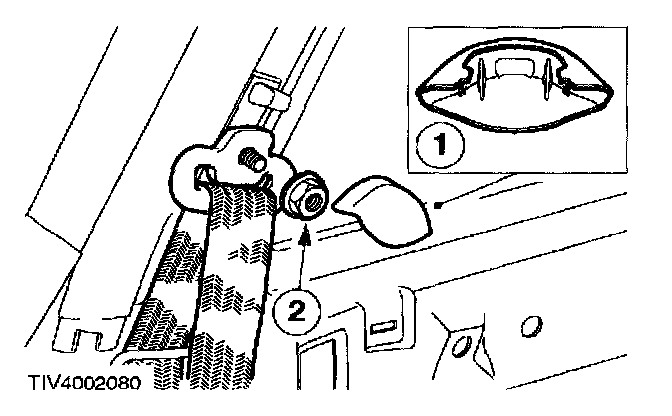

3. Detach the upper safety belt anchor.
1 Remove the cover.
2 Remove the nut.

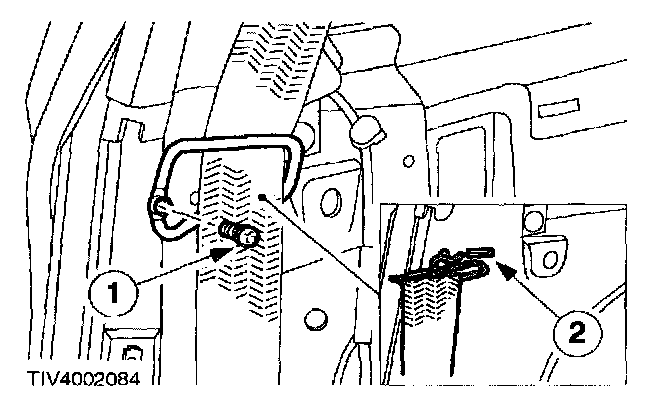

4. Detach the waist guide loop.
1 Remove the screw.
2 Detach the clip from the B-pillar.

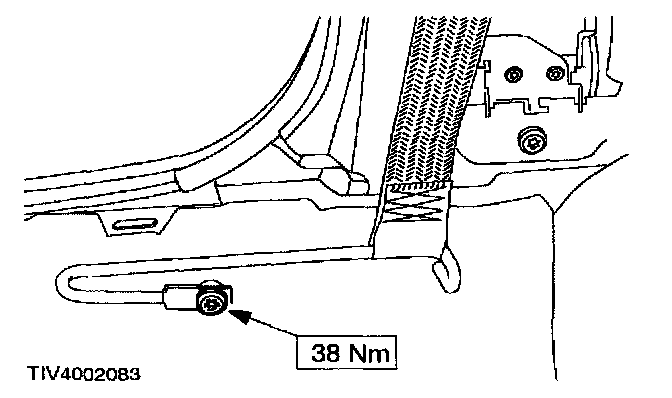

5. Detach the lower safety belt anchor rail.
1 Remove the Torx bolt.
2 Detach the lower safety belt anchor rail from the inner sill.







6. Remove the safety belt assembly.
1 Remove the screw.
2 Remove the Torx bolt.
3 Lift the retractor from the body locators.

INSTALLATION

















1. To install, reverse the removal procedure.
