Test M: Passenger Side Satellite Communication Circuit Short to Ground
Test M: Passenger Side Satellite Communication Circuit Short to Ground

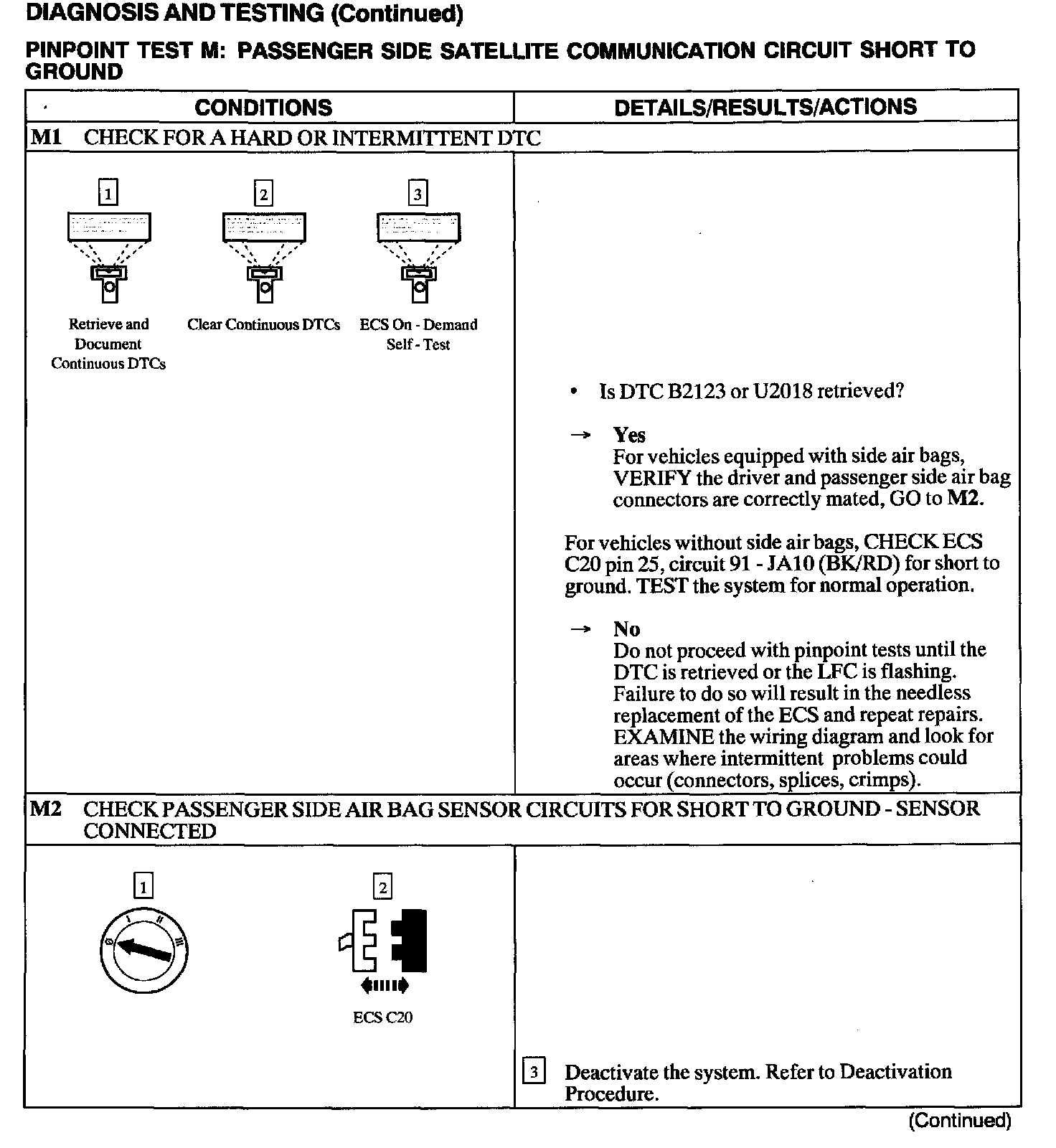

M1 - M2:

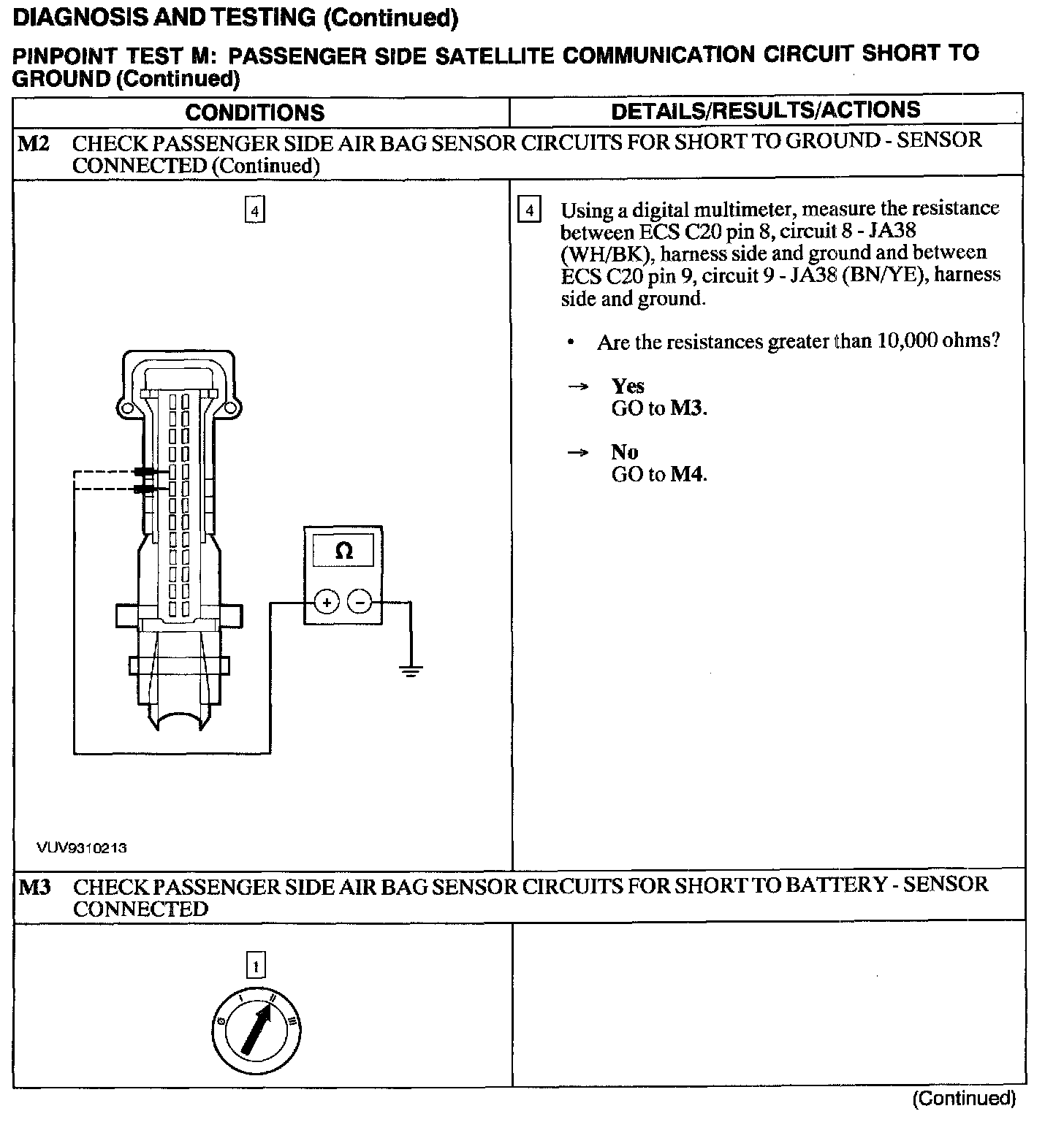

M2 - M3:

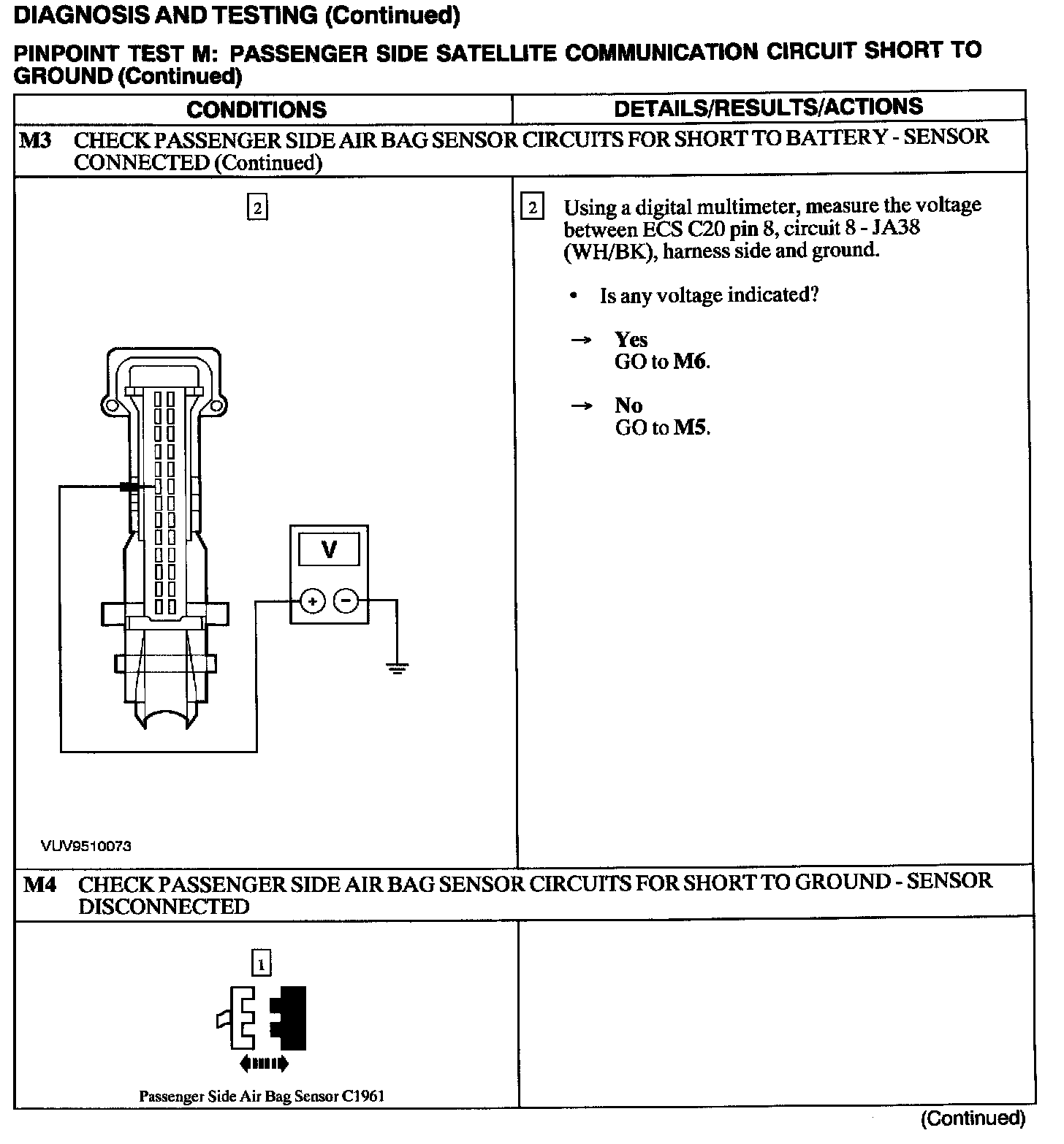

M3 - M4:

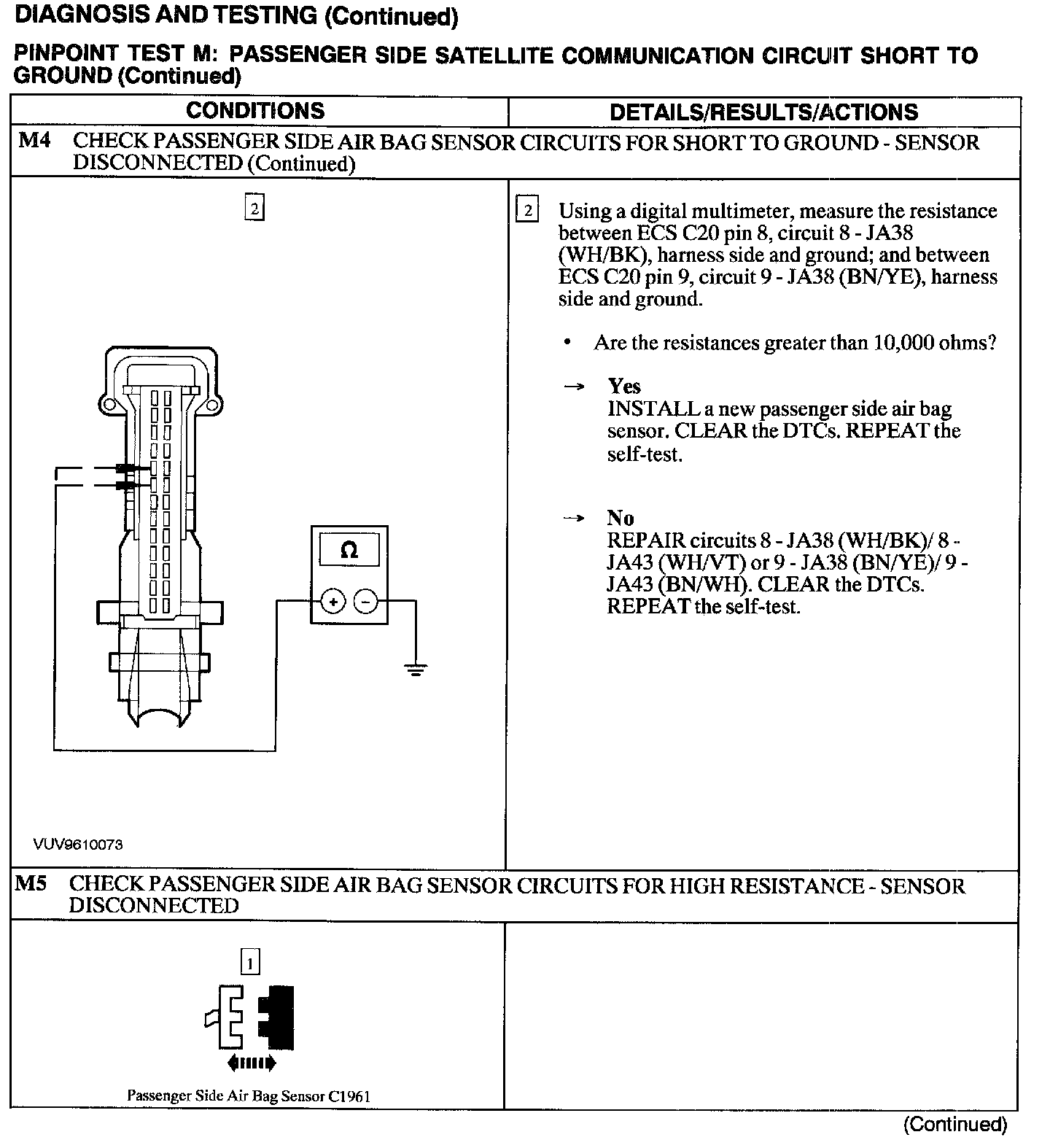

M4 - M5:

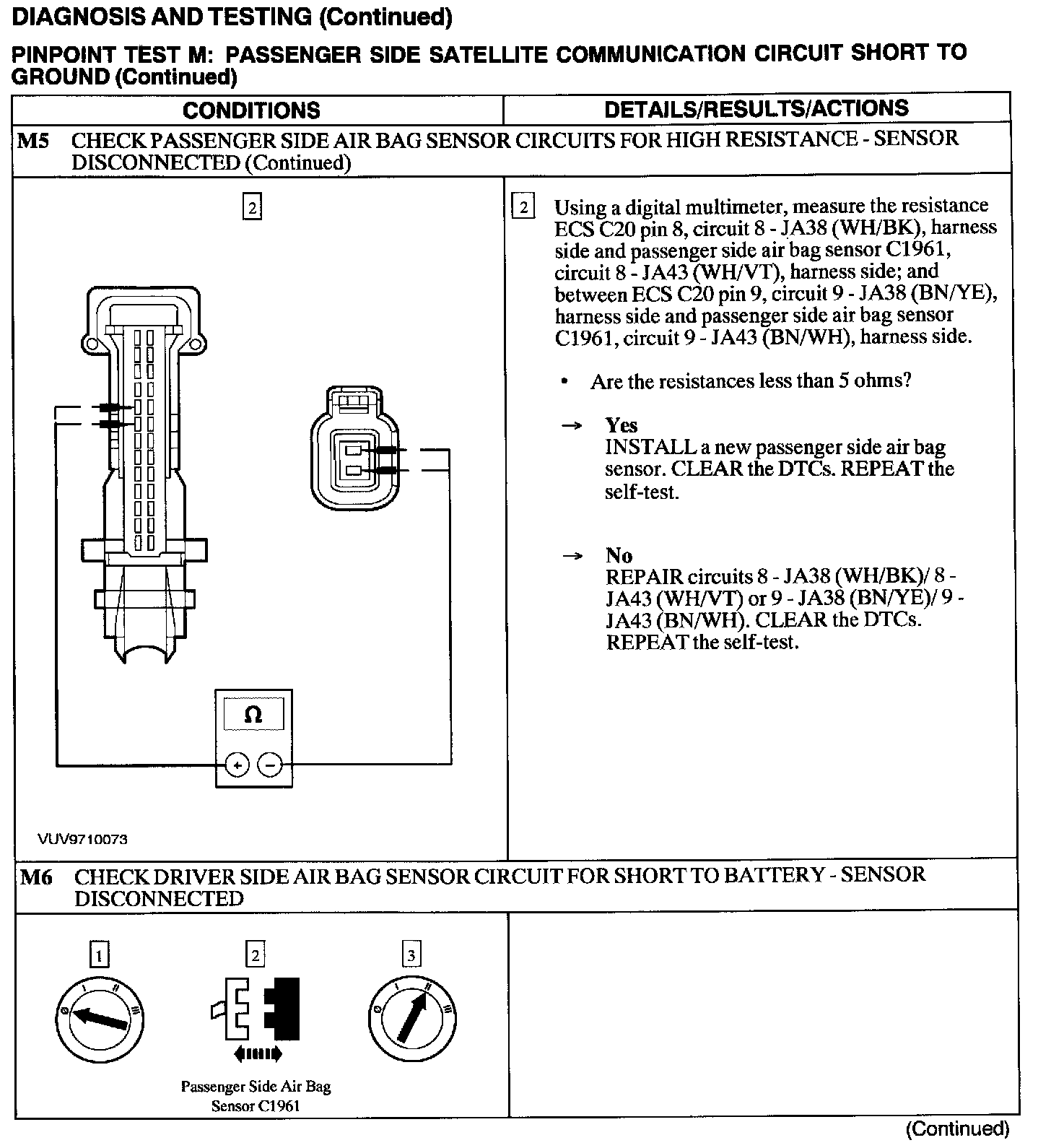

M5 - M6:

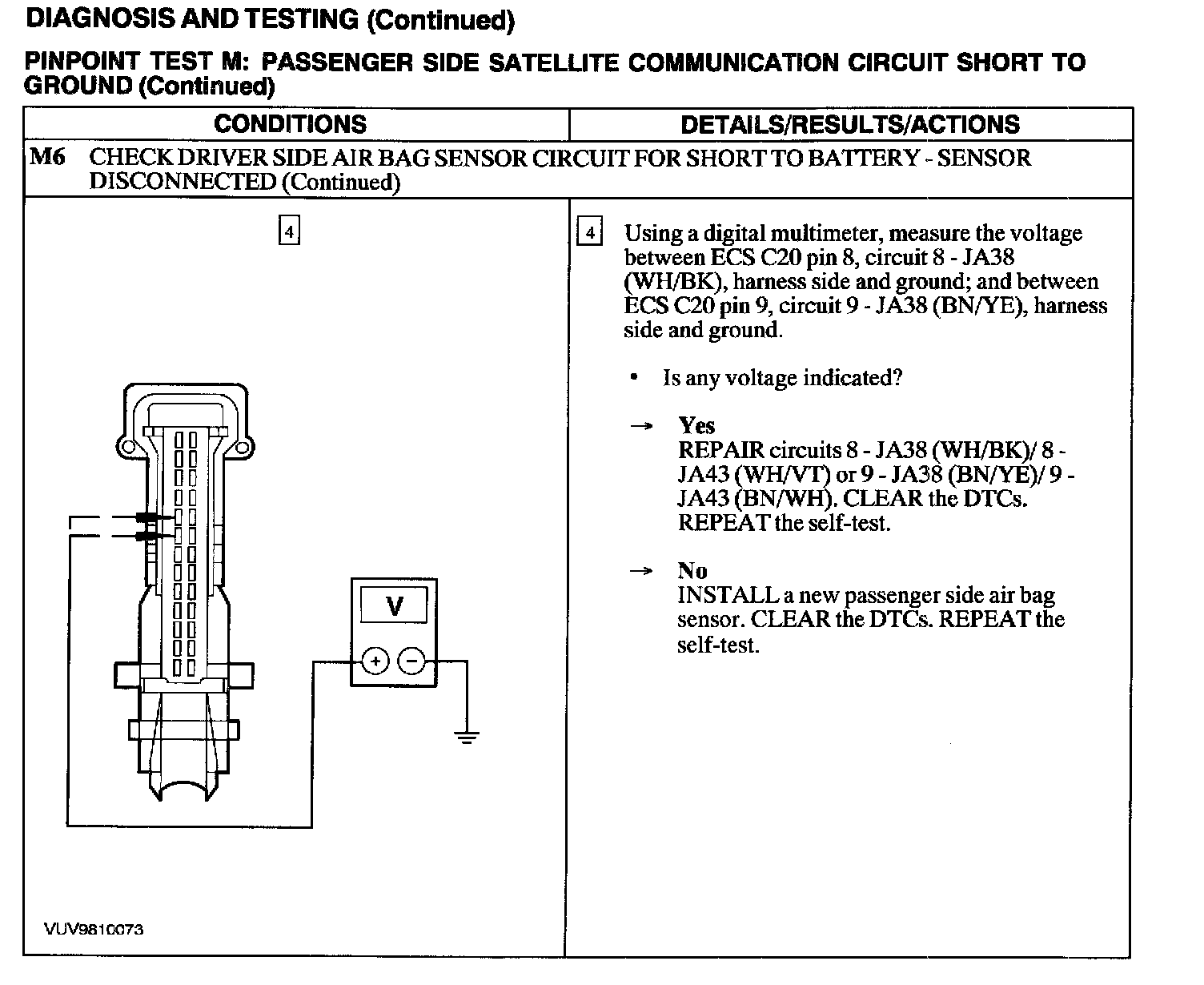

M6:
