Test J: Driver Side Impact Air Bag Circuit Short to Ground
Test J: Driver Side Impact Air Bag Circuit Short to Ground

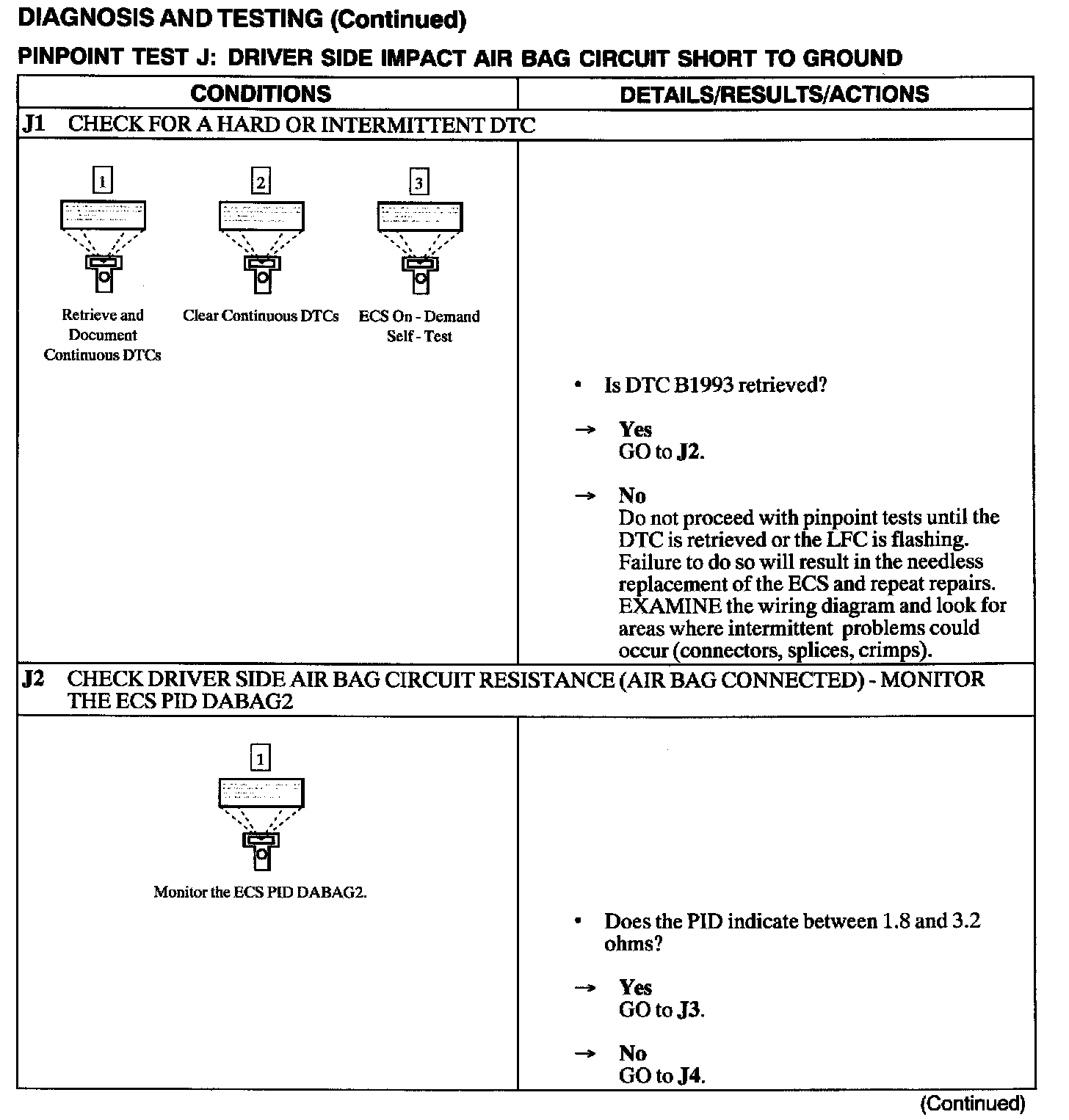

J1 - J2:

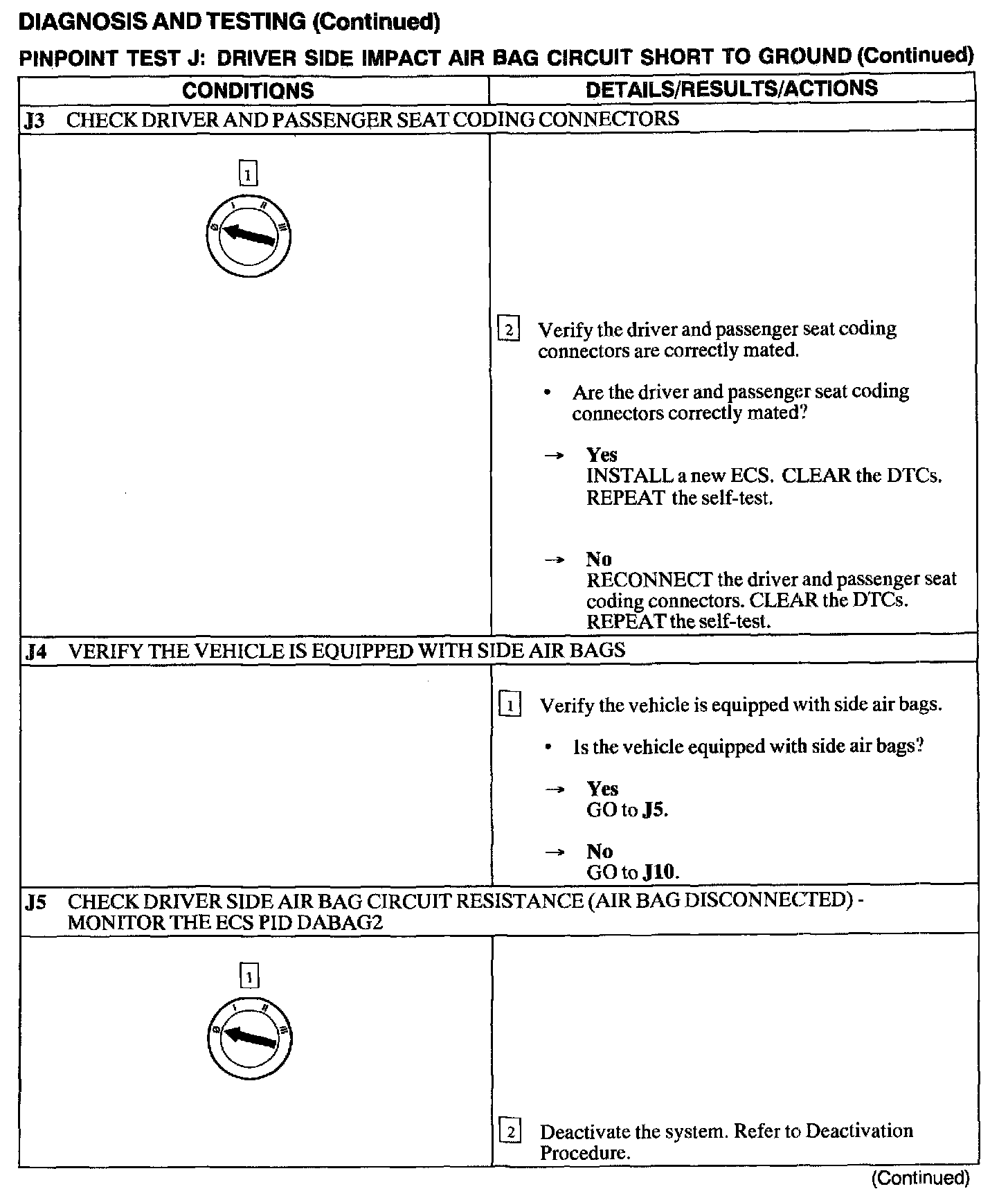

J3 - J5:

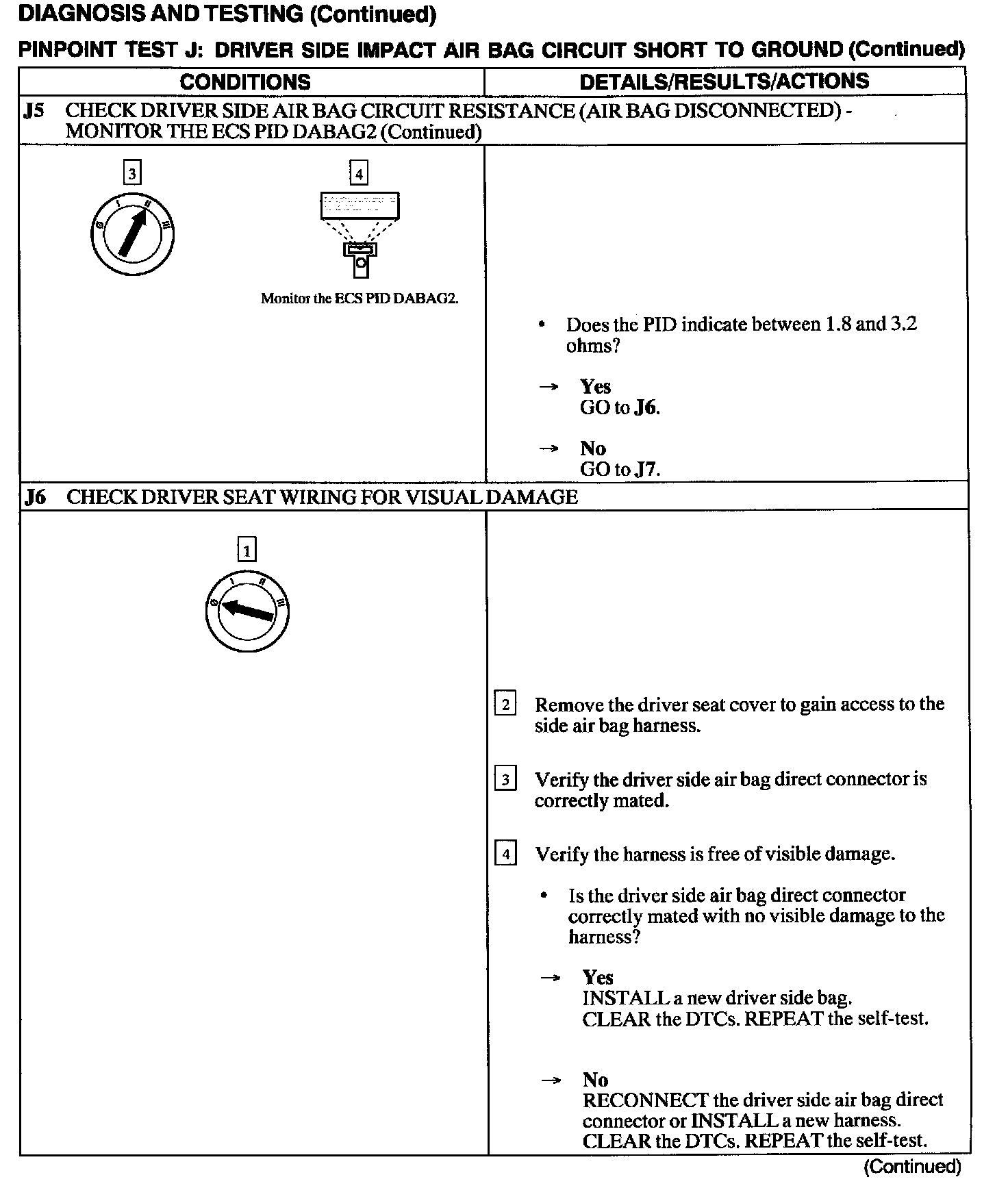

J5 - J6:

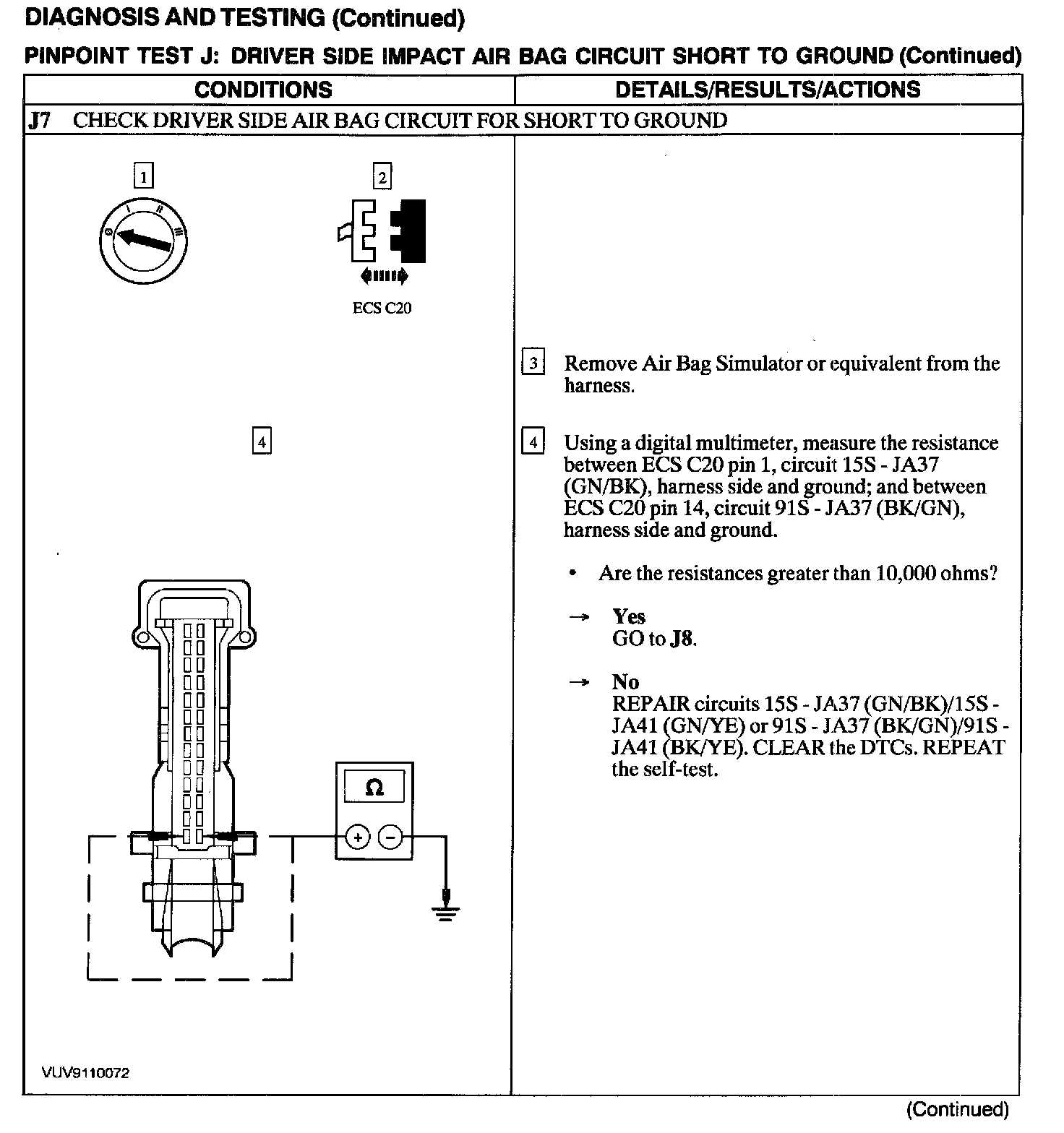

J7:

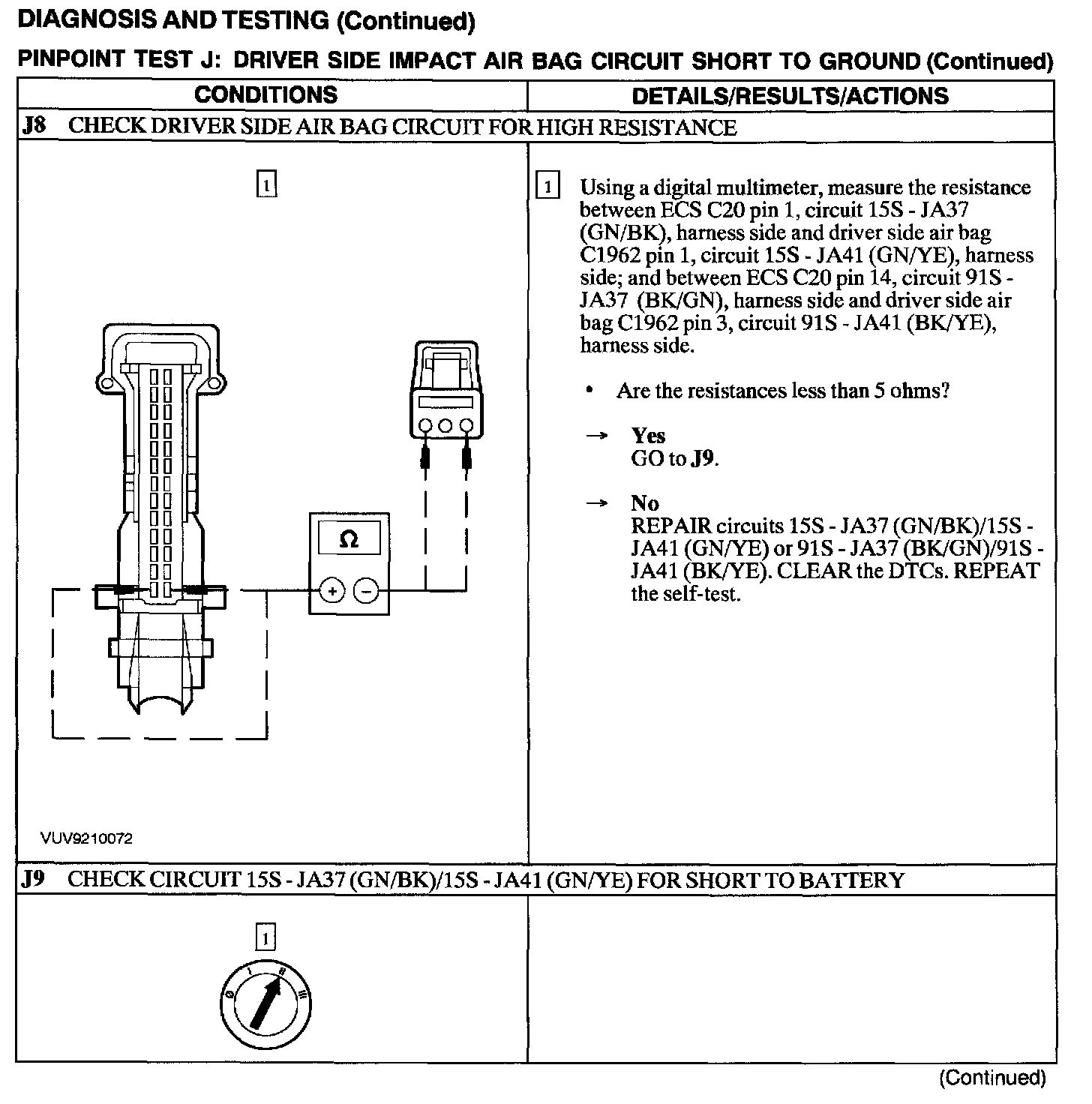

J8 - J9:

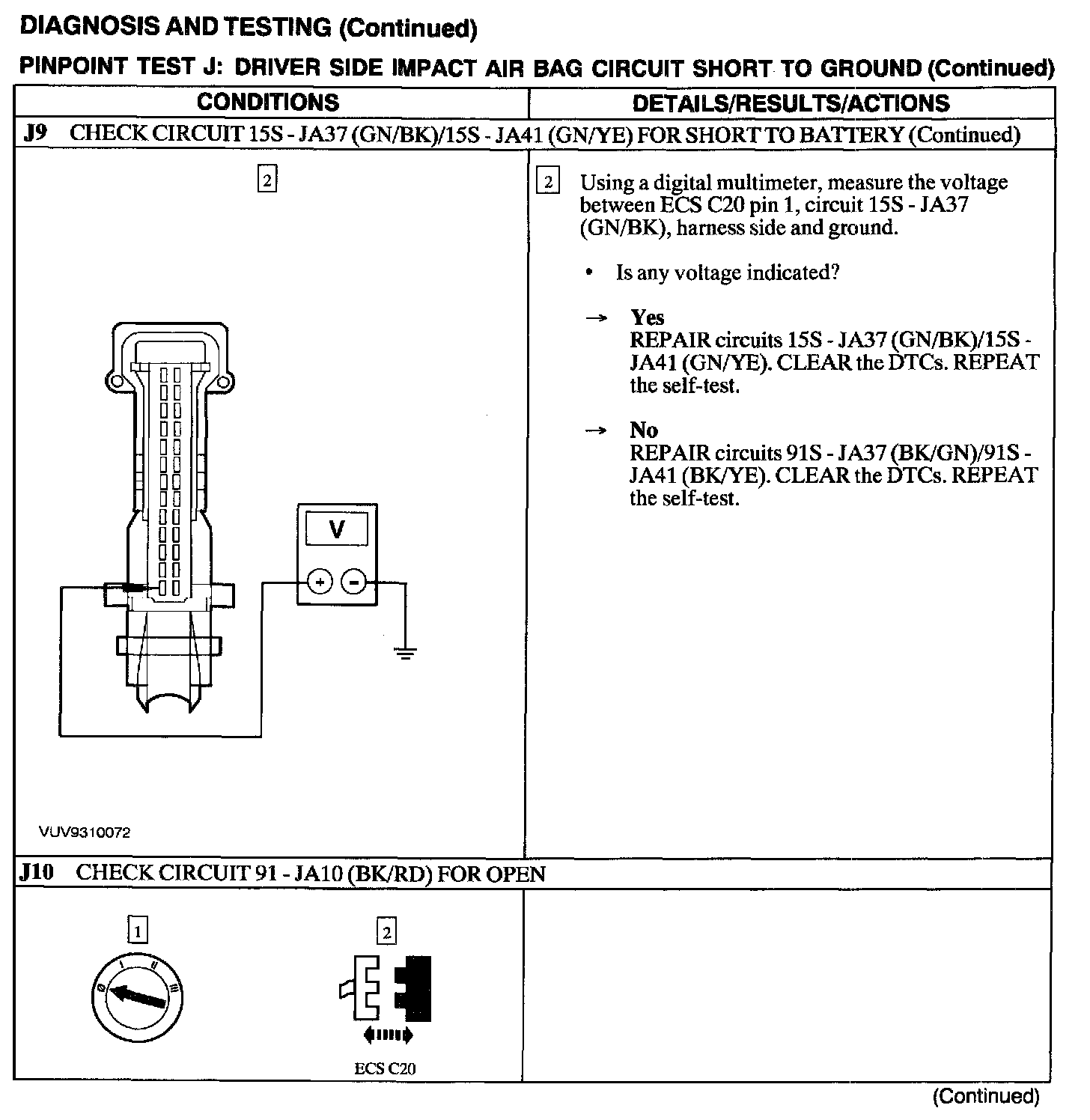

J9 - J10:

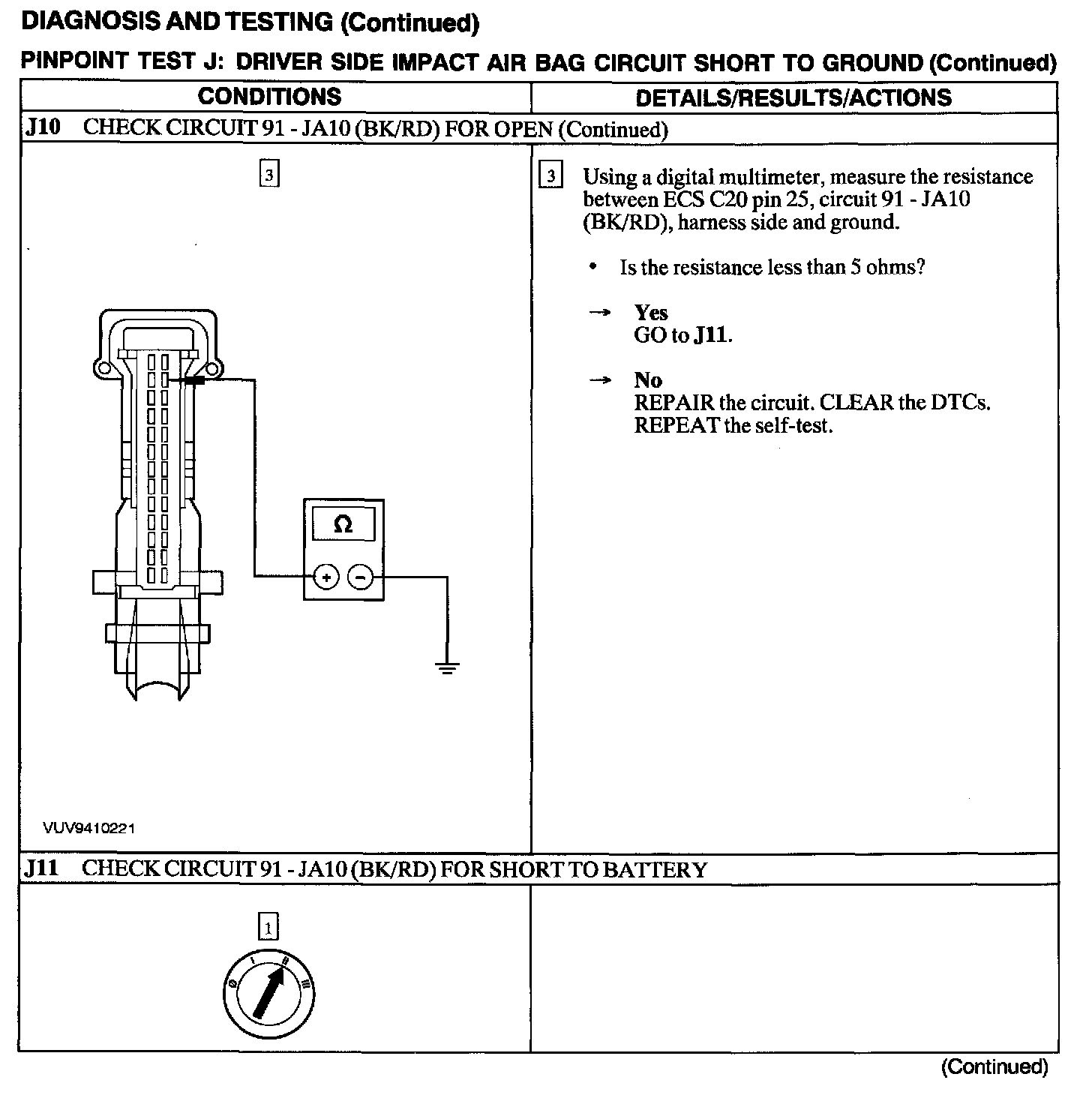

J10 - J11:

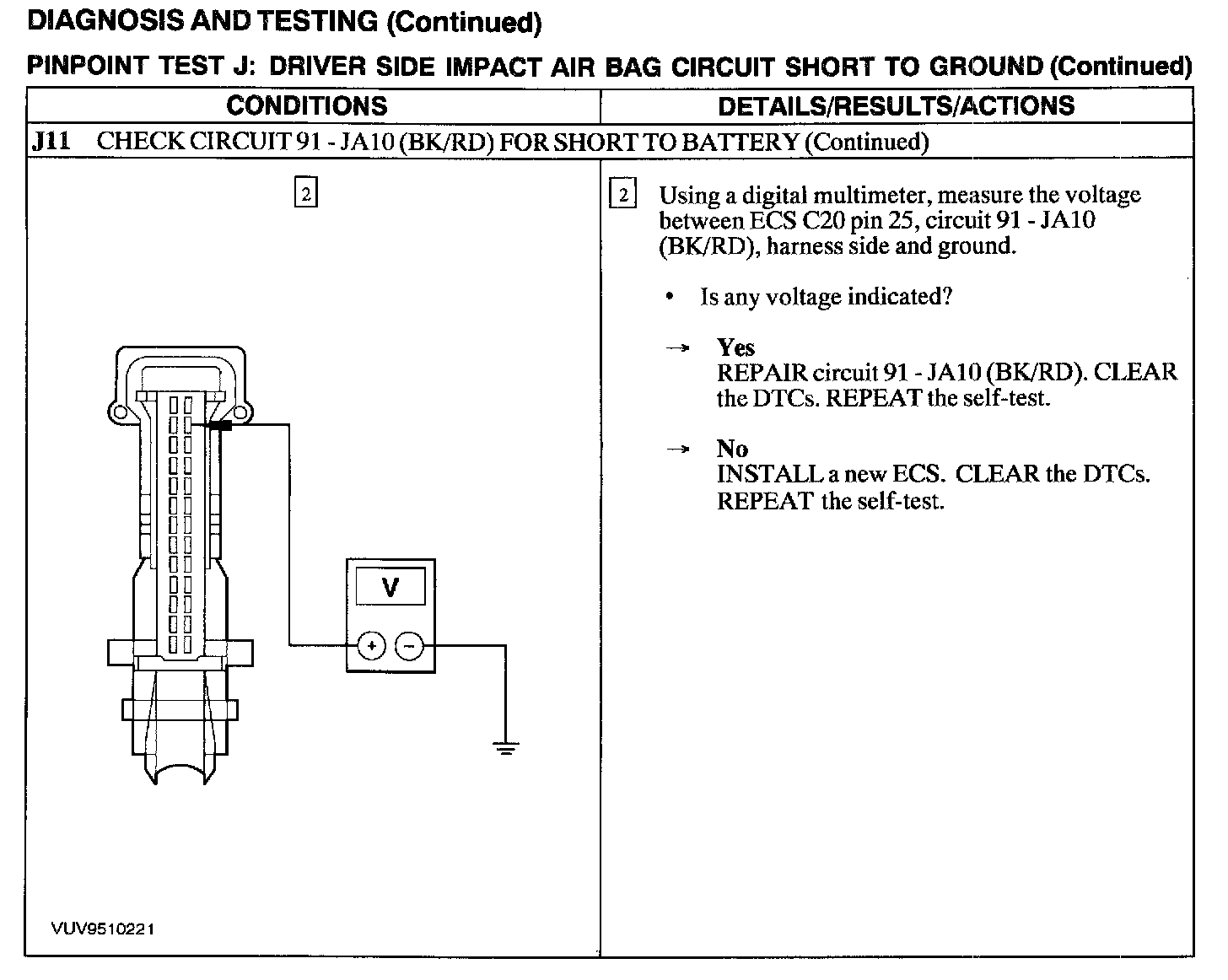

J11:
