Test B: Air Bag Warning Indicator Is Illuminated Continuously
Test B: Air Bag Warning Indicator Is Illuminated Continuously

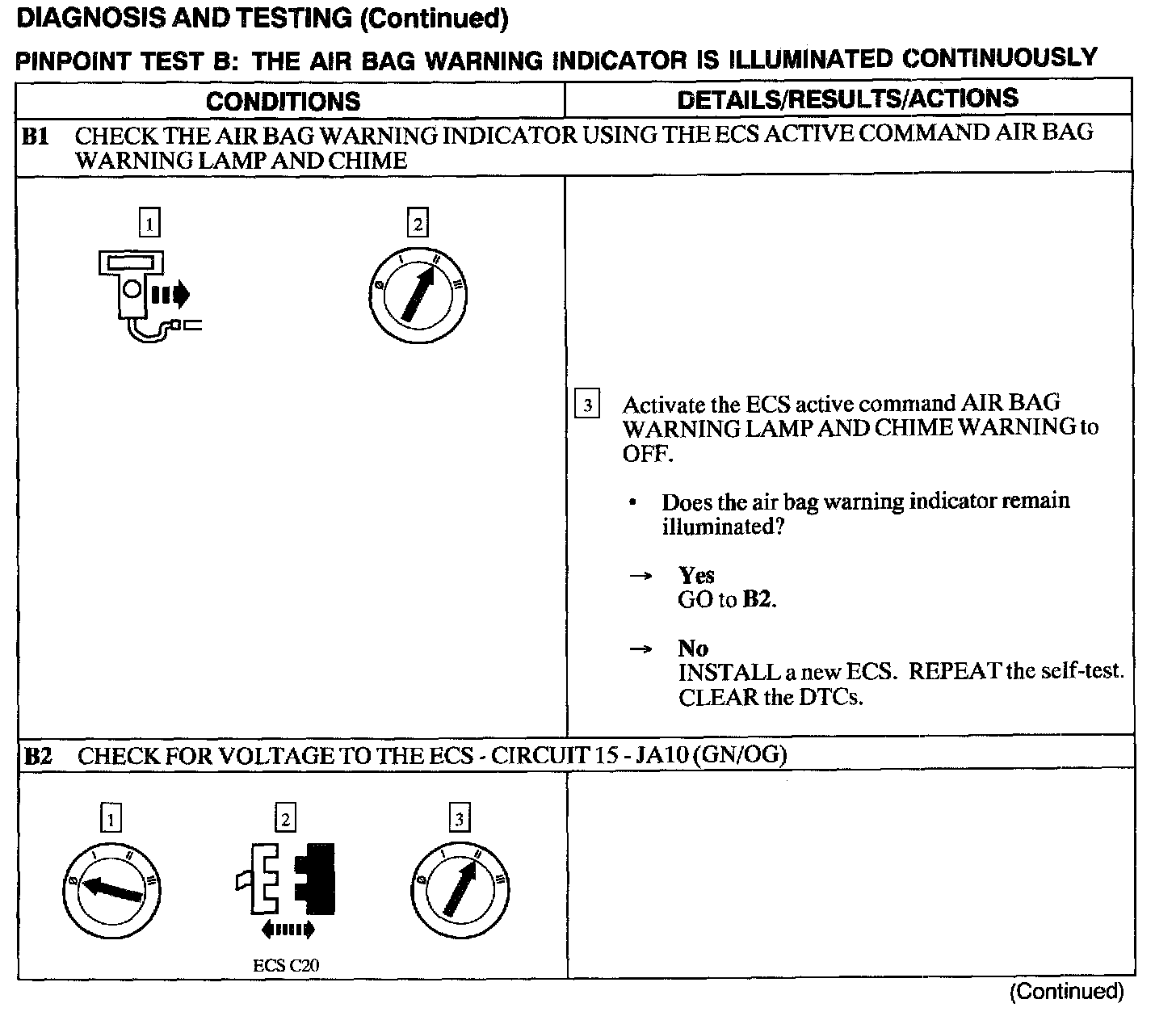

B1 - B2:

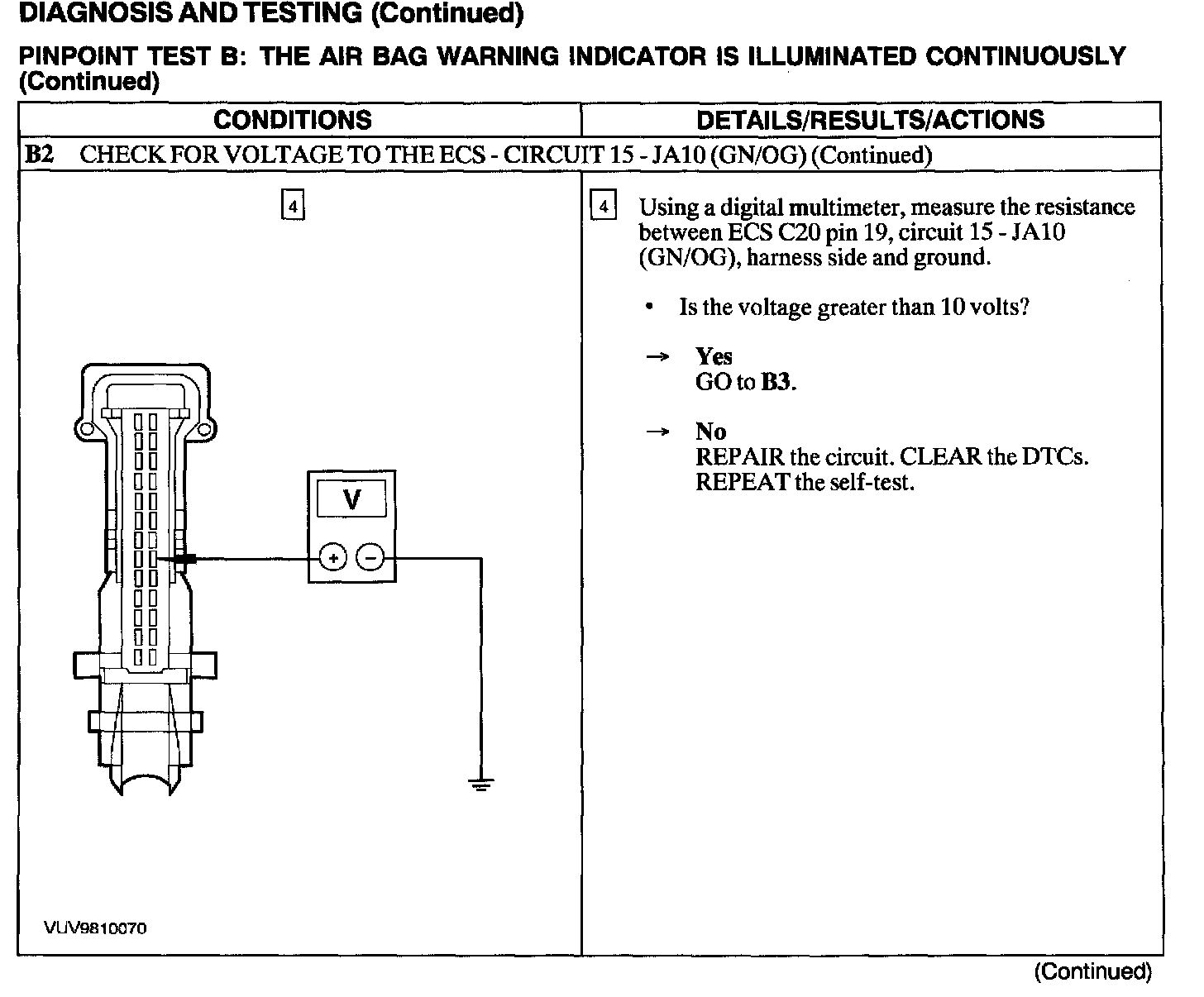

B2:

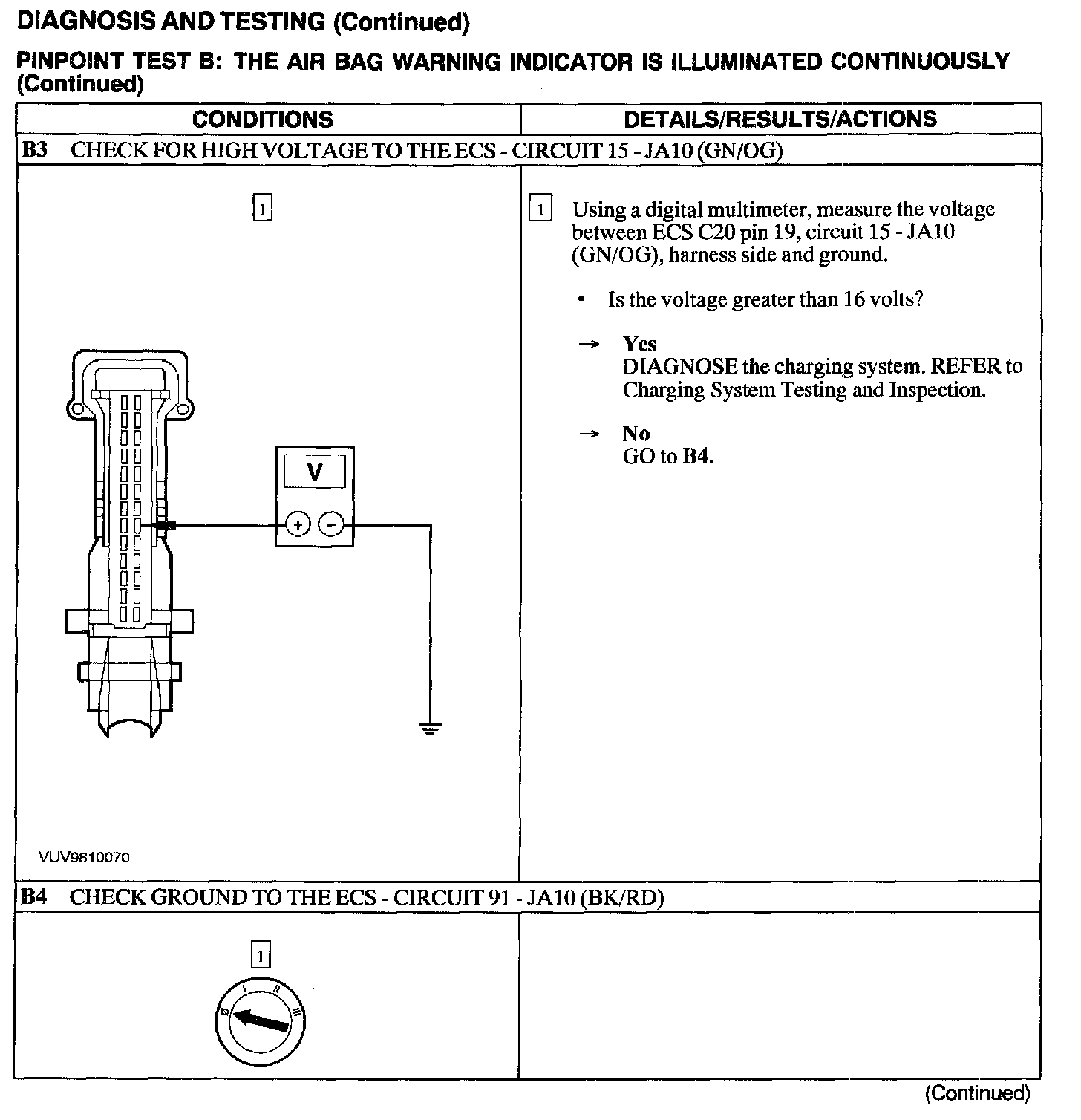

B3 - B4:

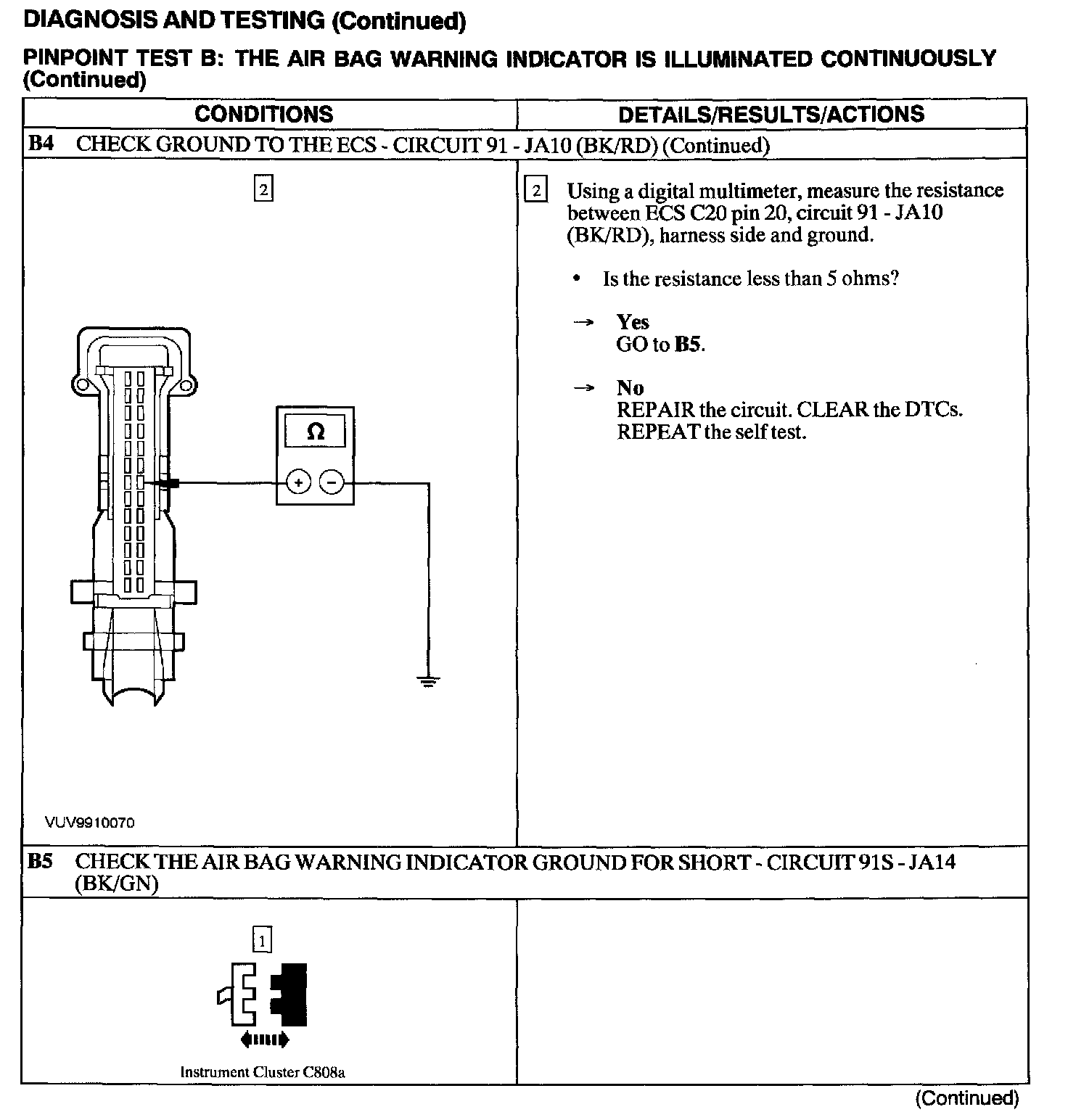

B4 - B5:

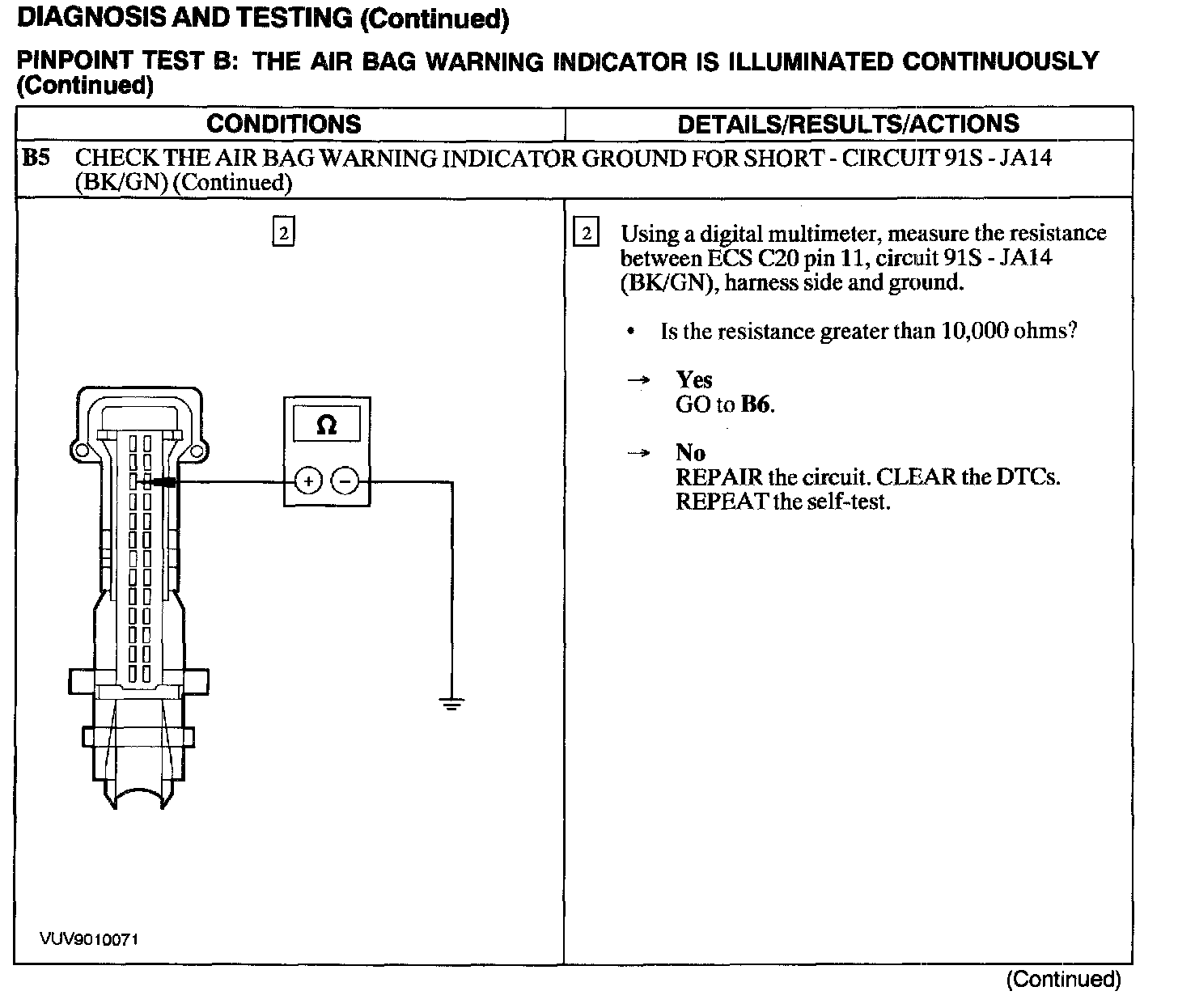

B5:

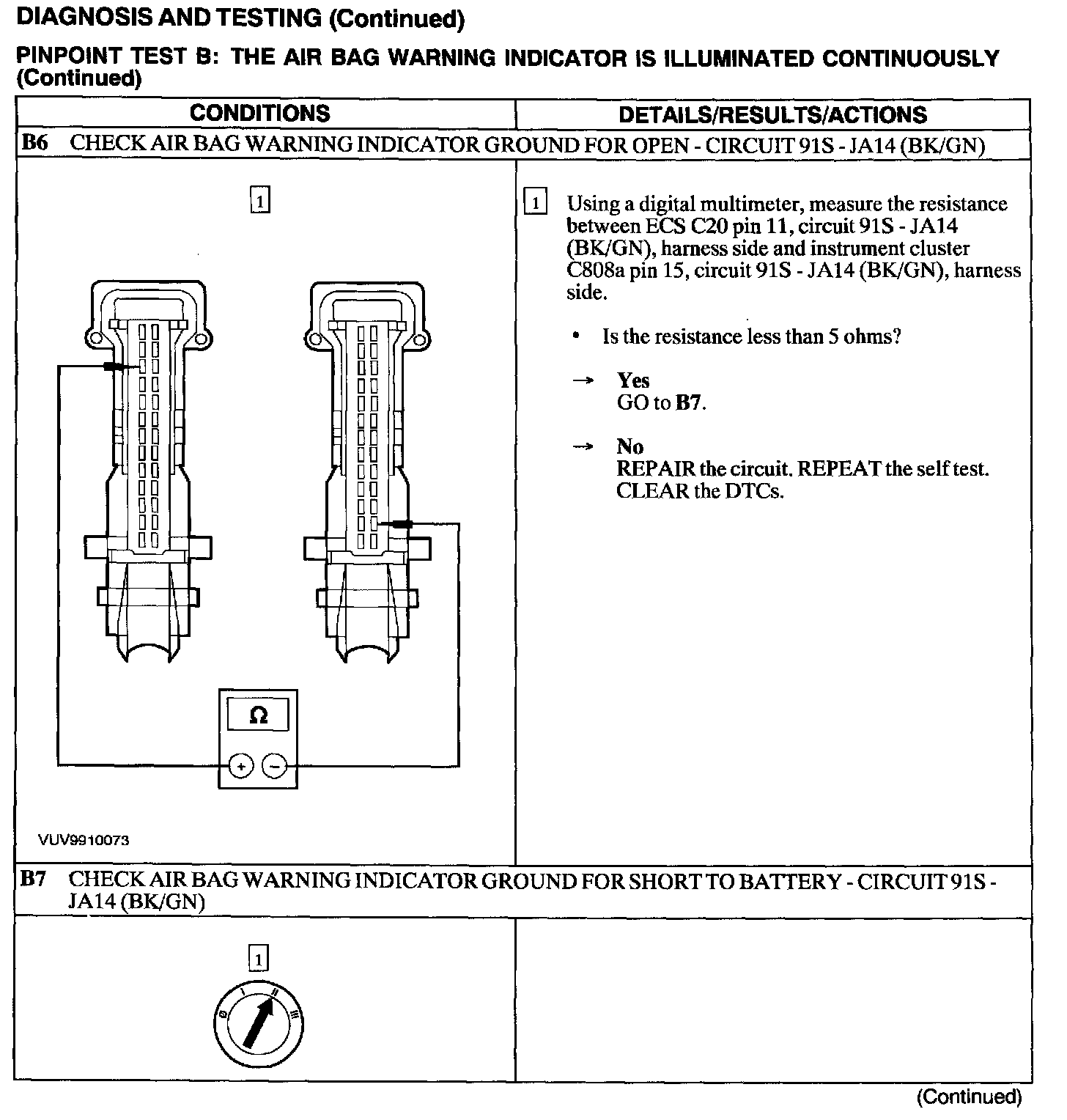

B6 - B7:

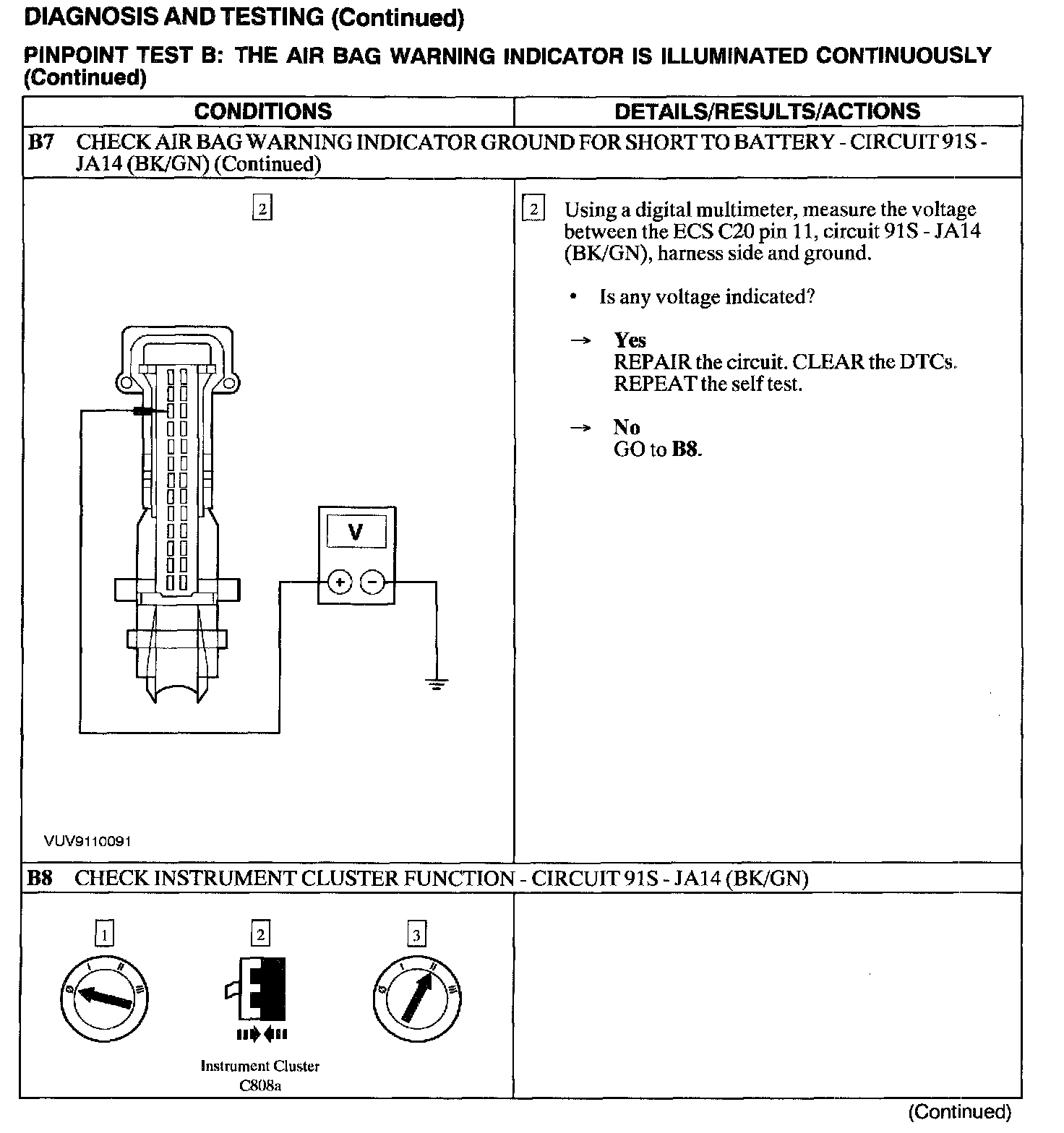

B7 - B8:

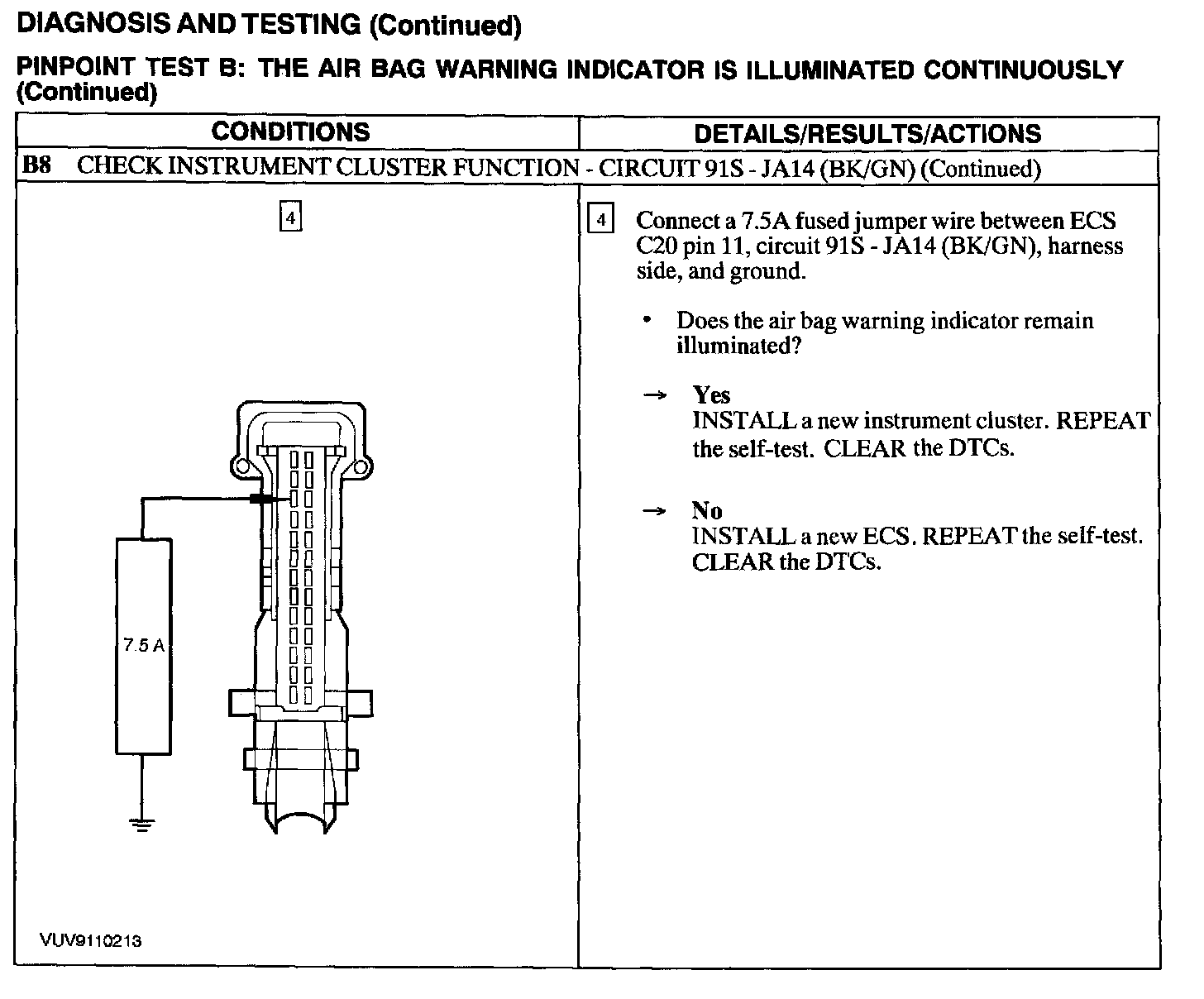

B8:
