Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> Test A: No Communication With the Module - Electronic Crash Sensor (ECS)

Test A: No Communication With the Module - Electronic Crash Sensor (ECS)

A1:

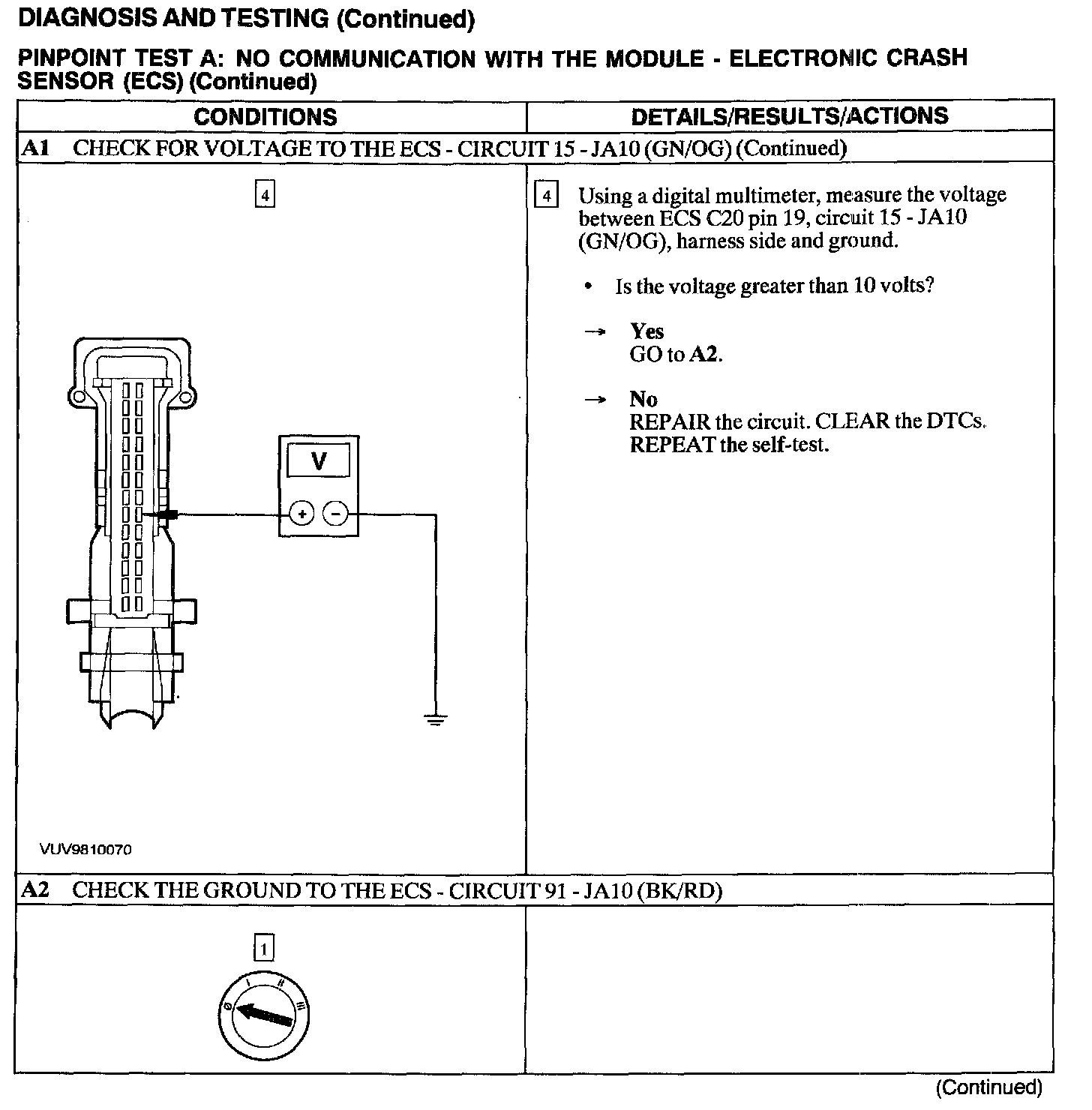

A1 - A2:






A2:
