Oxygen Sensor: Service and Repair

REMOVAL

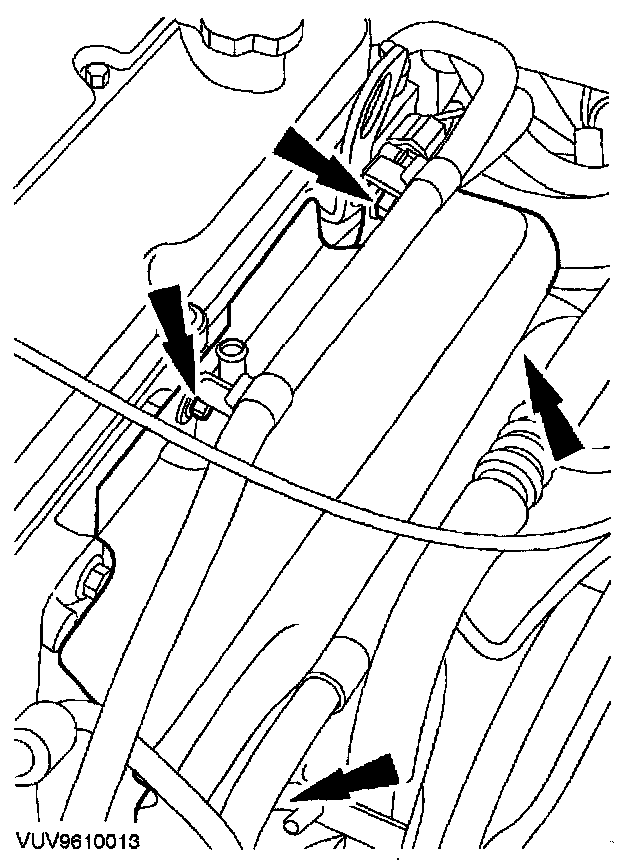

1. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
1 Detach the electrical connector.
2 Disconnect the electrical connector.







2. Remove the dipstick.







3. Remove the exhaust manifold heat shield.







4. Remove the HO2S.

INSTALLATION







1. To install, reverse the removal procedure.
