Cable

REMOVAL







1. Detach the accelerator cable from the engine cover.







2. Detach the intake air resonator.

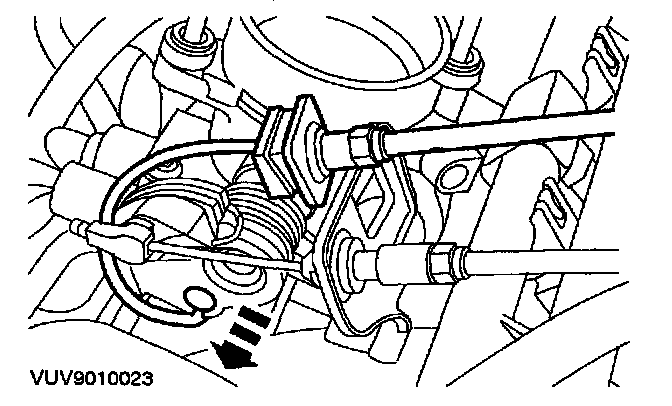

3. Remove the accelerator cable retaining clip.







4. Detach the accelerator cable from the bracket.

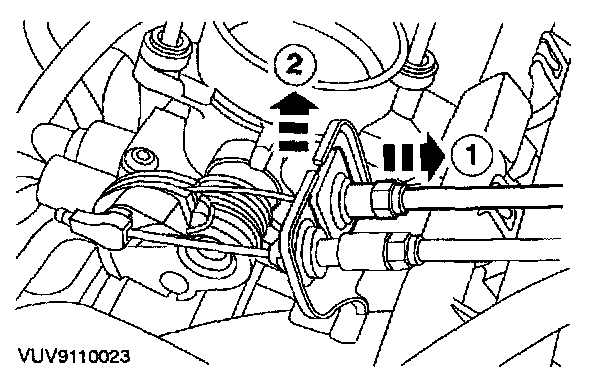

1 Pull the accelerator cable out of the bracket.
2 Detach the accelerator cable from the bracket.

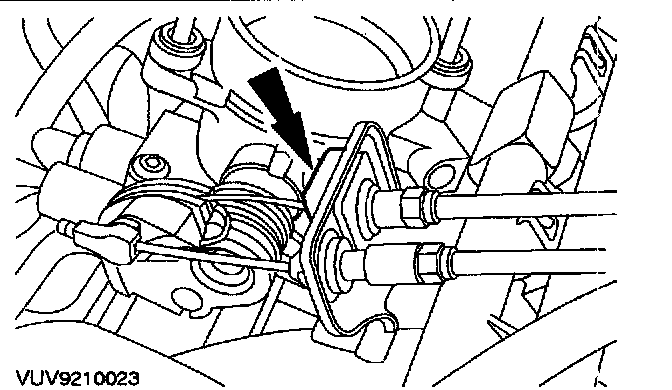

5. Disconnect the accelerator cable from the throttle body.







6. Disconnect the accelerator cable from the pedal.







7. Release the accelerator cable housing from the bulkhead and remove the accelerator cable assembly.

NOTE: Attach a draw cord to the accelerator cable to aid installation.

INSTALLATION
1. To install, reverse the removal procedure.
