Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Testing and Inspection >> Pinpoint Tests >> Test A: Hiss When Opening Fuel Flap

Test A: Hiss When Opening Fuel Flap

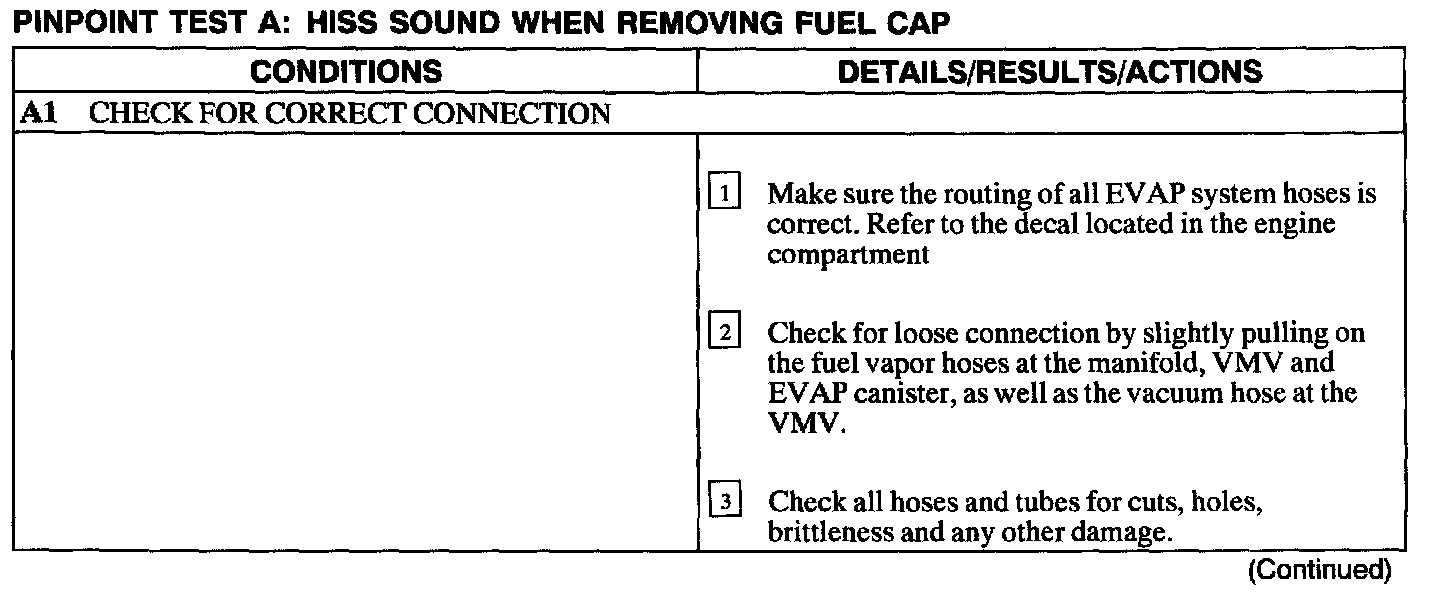

A1:

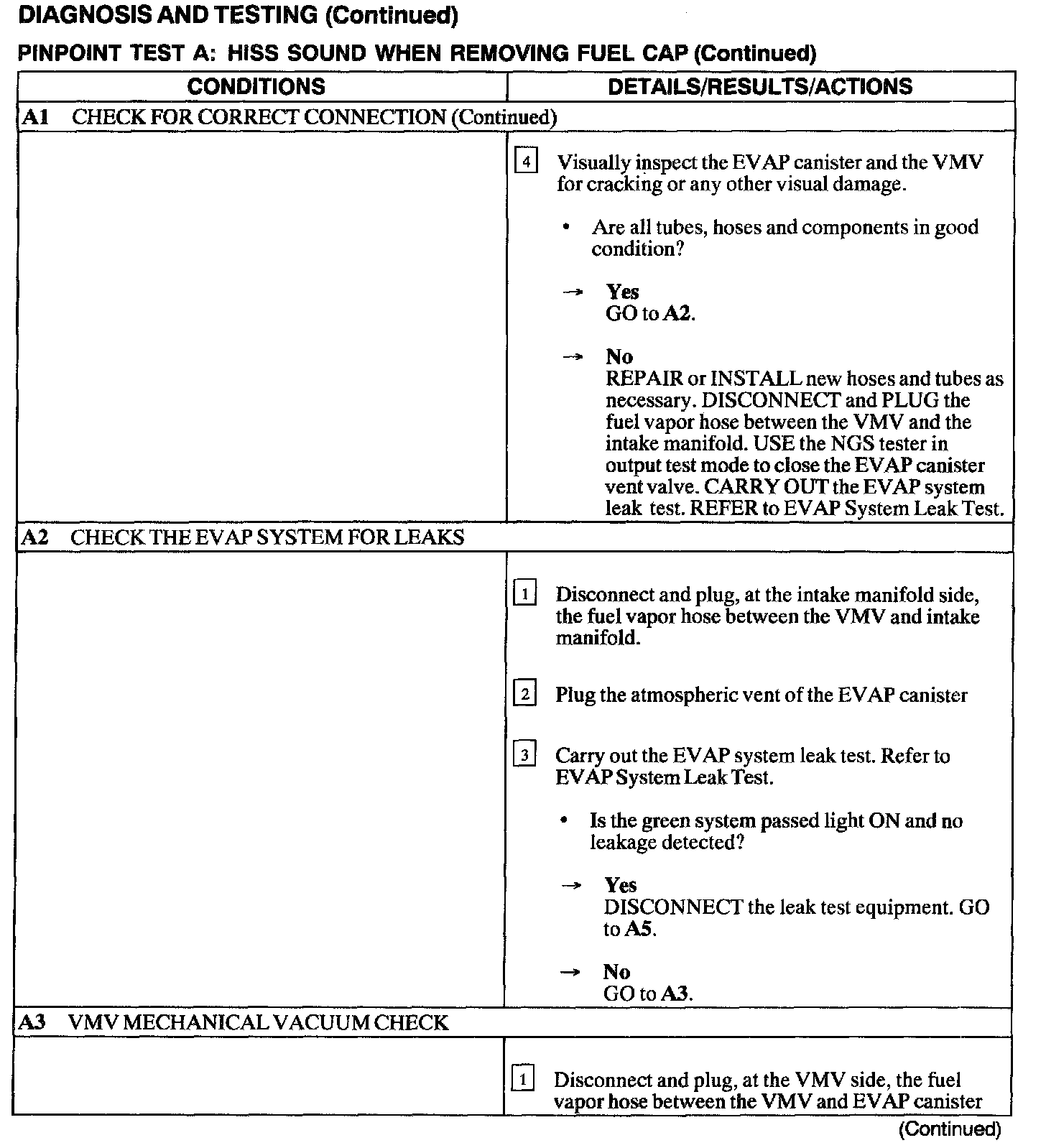

A1 - A3:

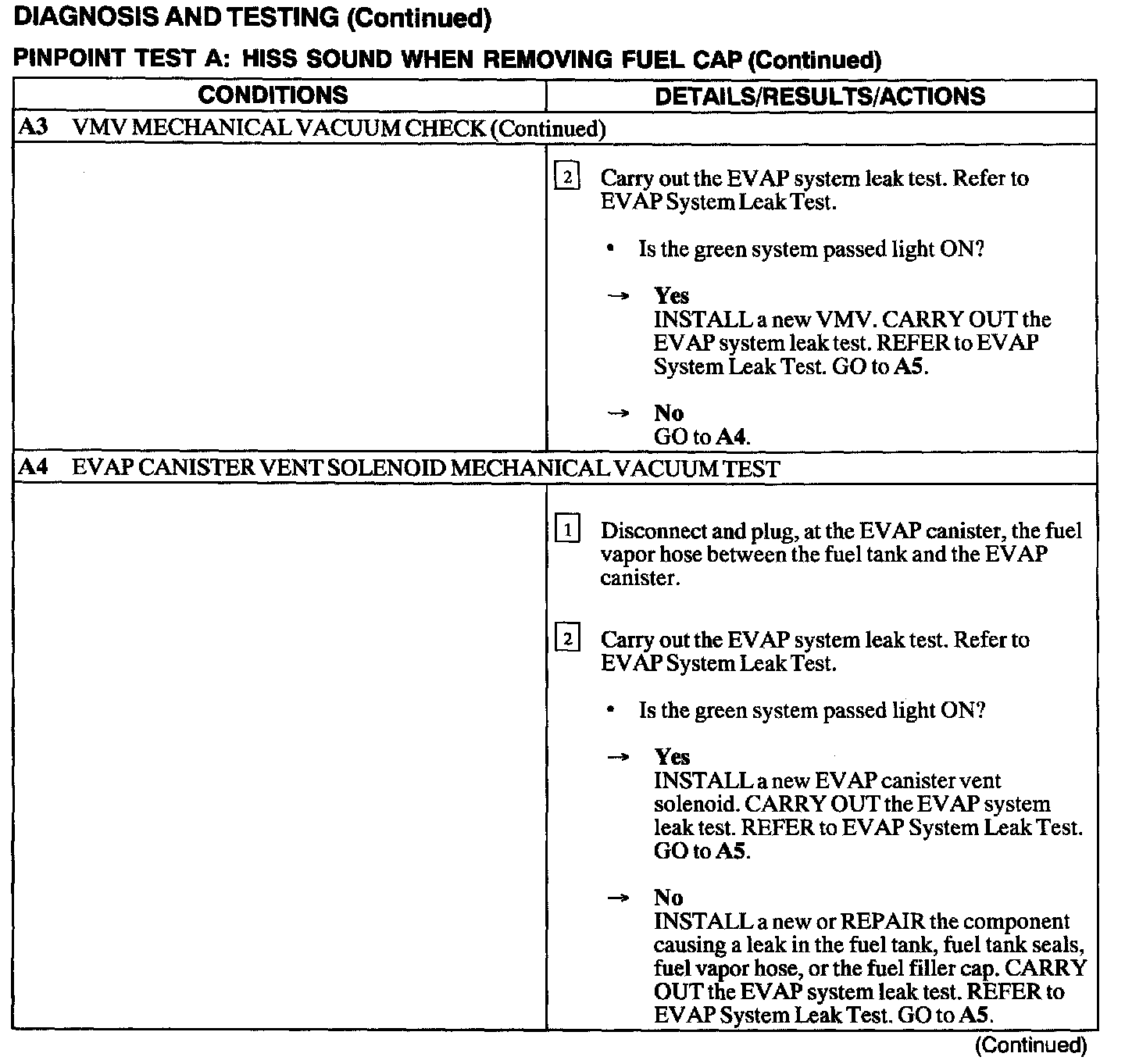

A3 - A4:






A5:
