Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test H: Battery Saver Does Not Operate Correctly
Test H: Battery Saver Does Not Operate Correctly

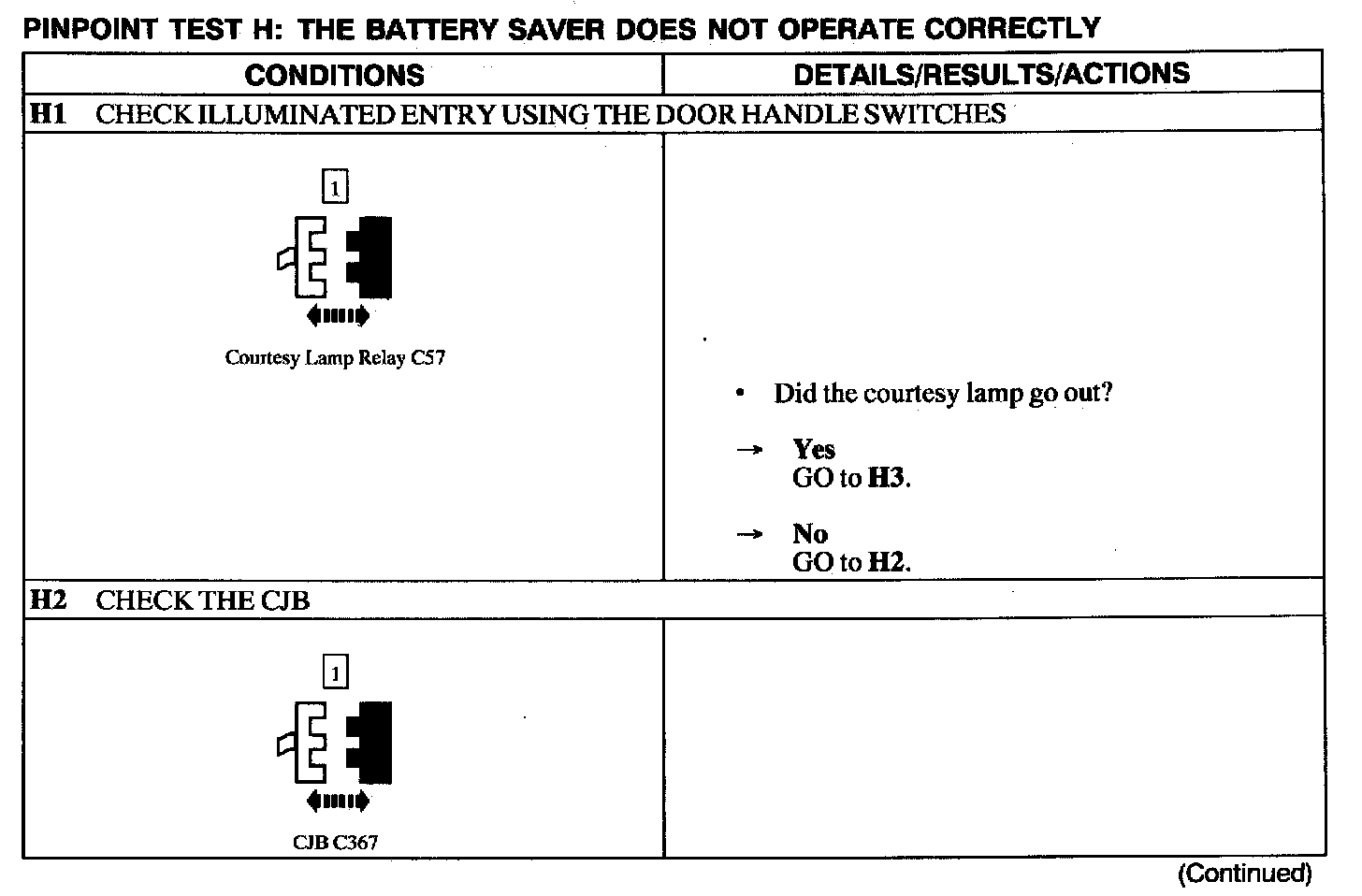

H1 - H2:

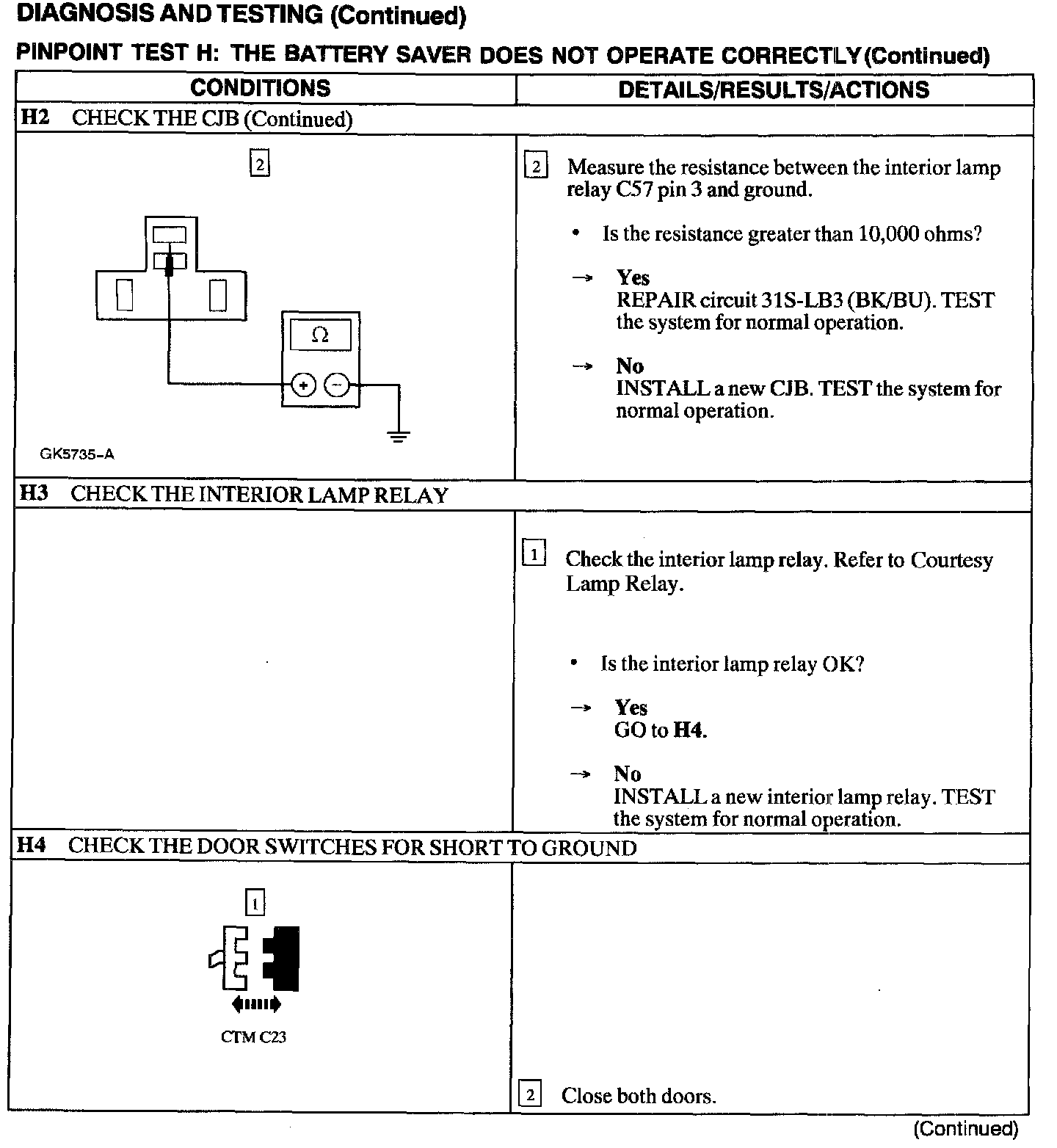

H2 - H4:

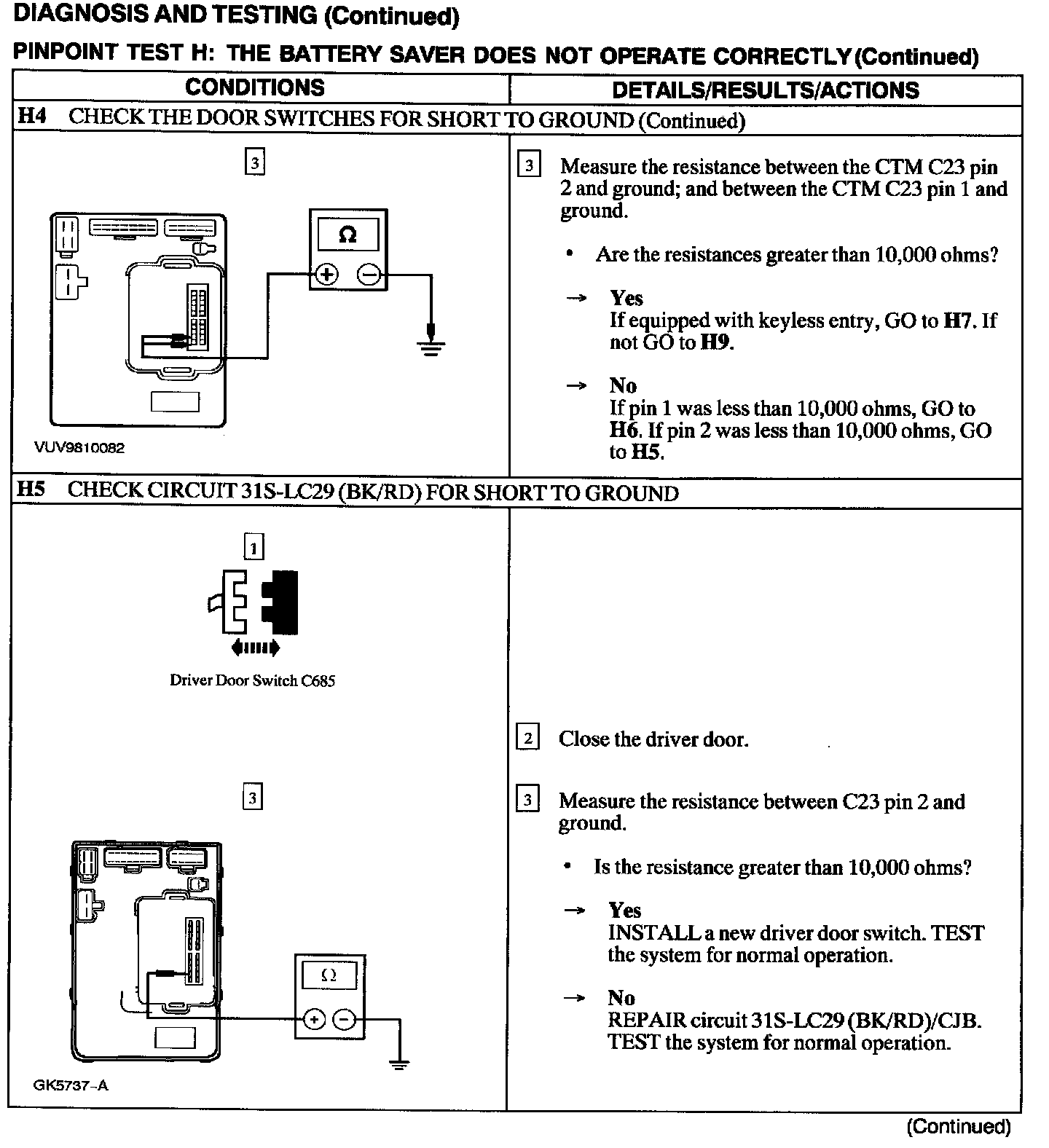

H4 - H5:

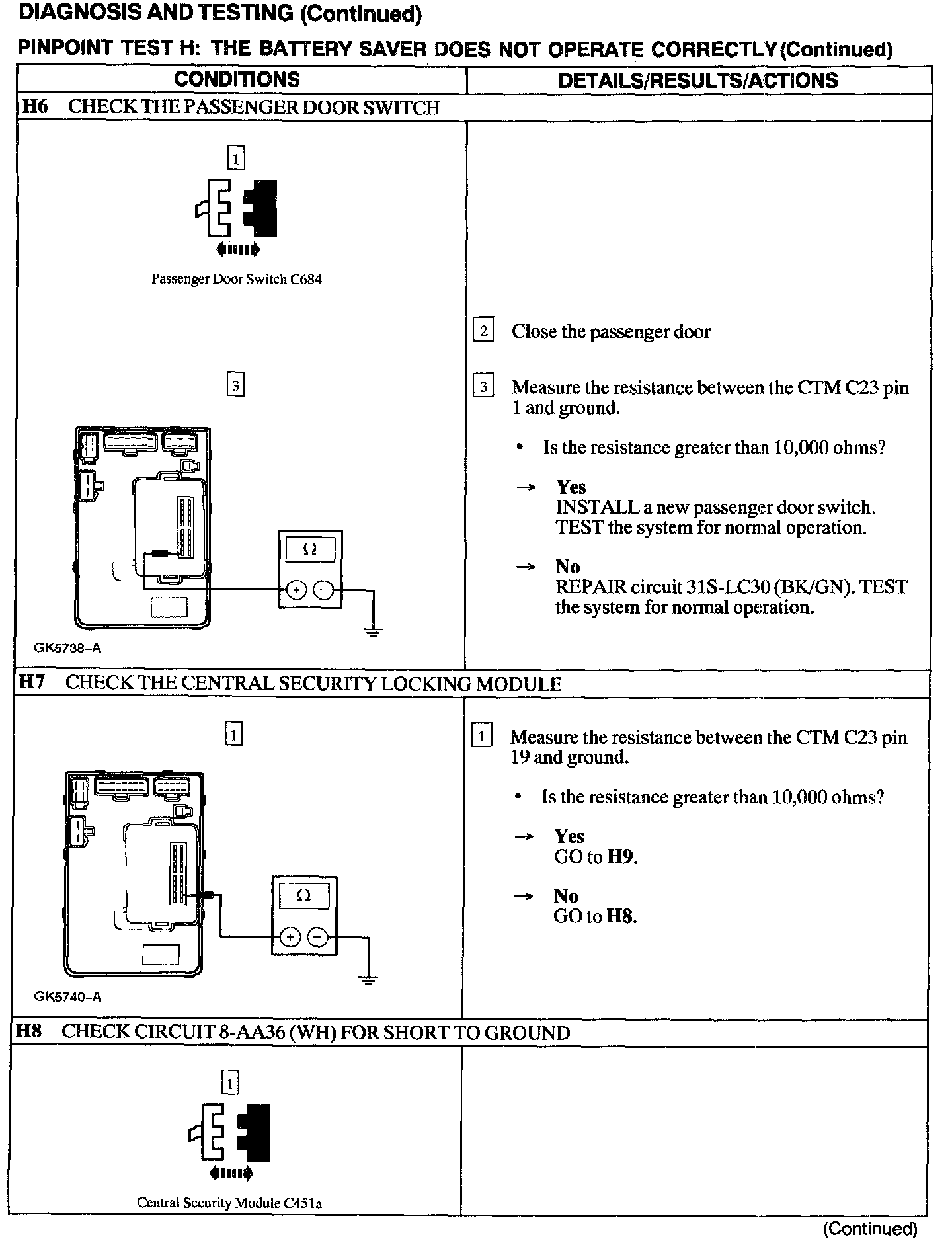

H6 - H8:

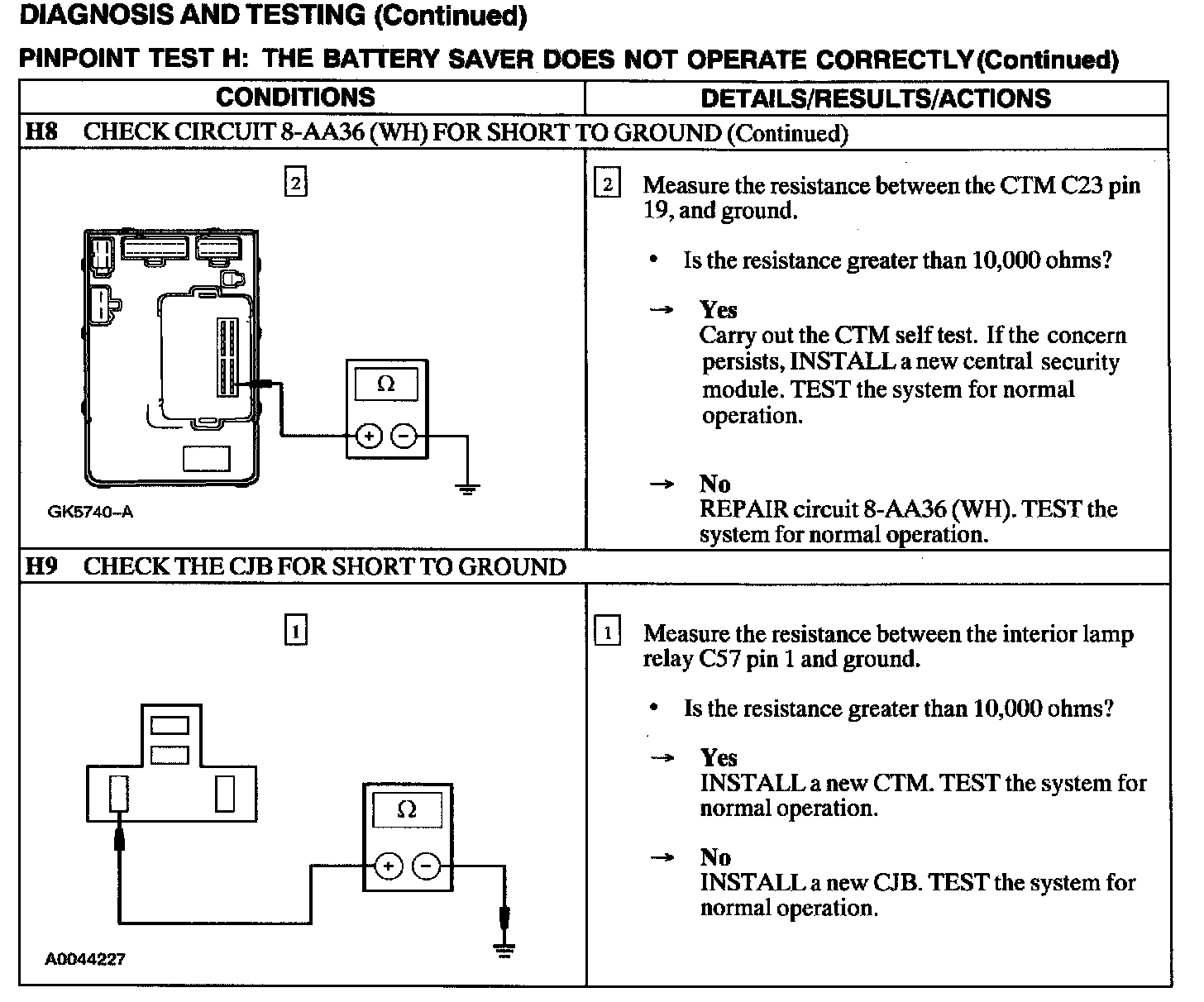

H8 - H9:
