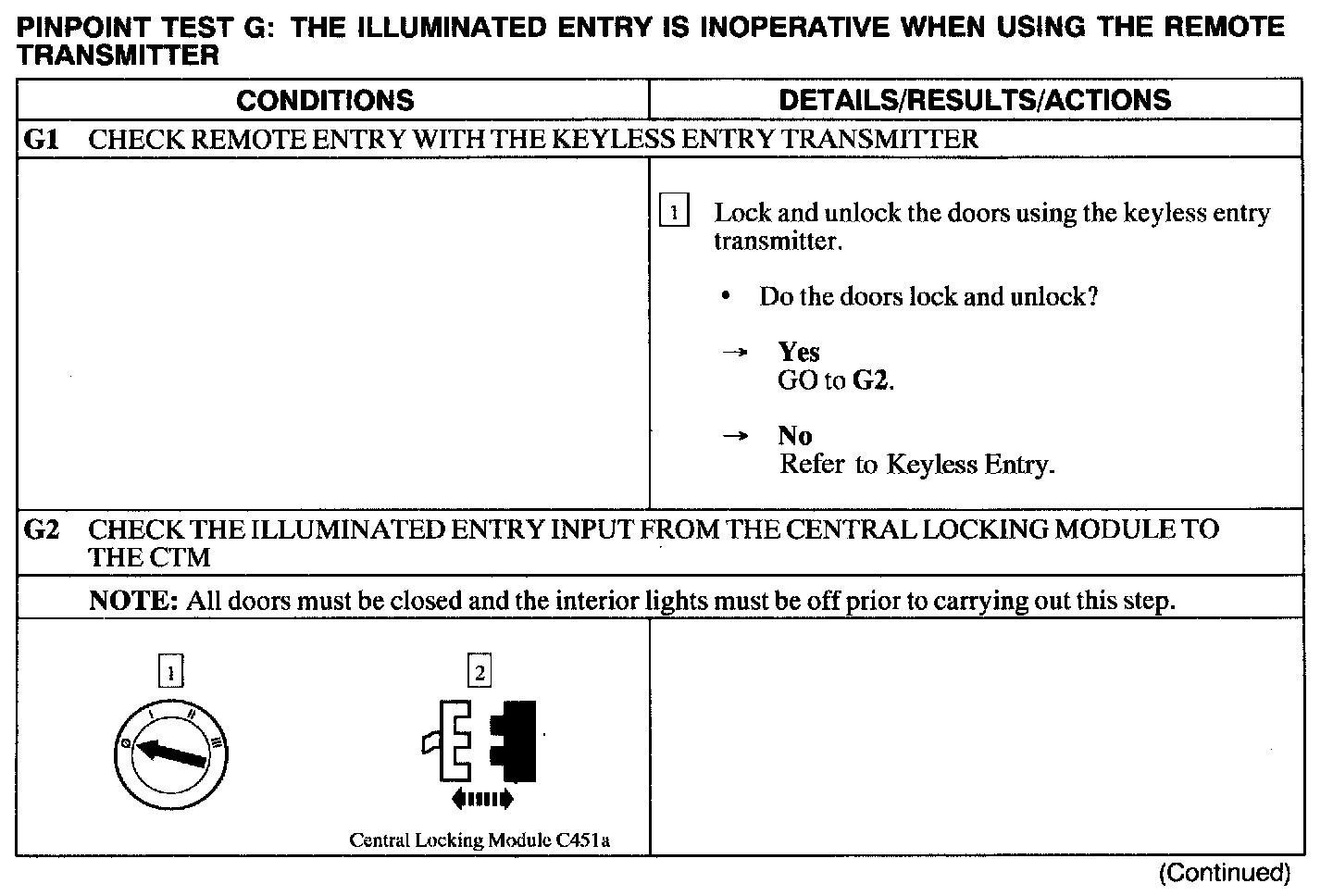

Test G: Illum. Entry Is Inop. When Using the Remote Transmitter
Test G: Illum. Entry Is Inop. When Using the Remote Transmitter

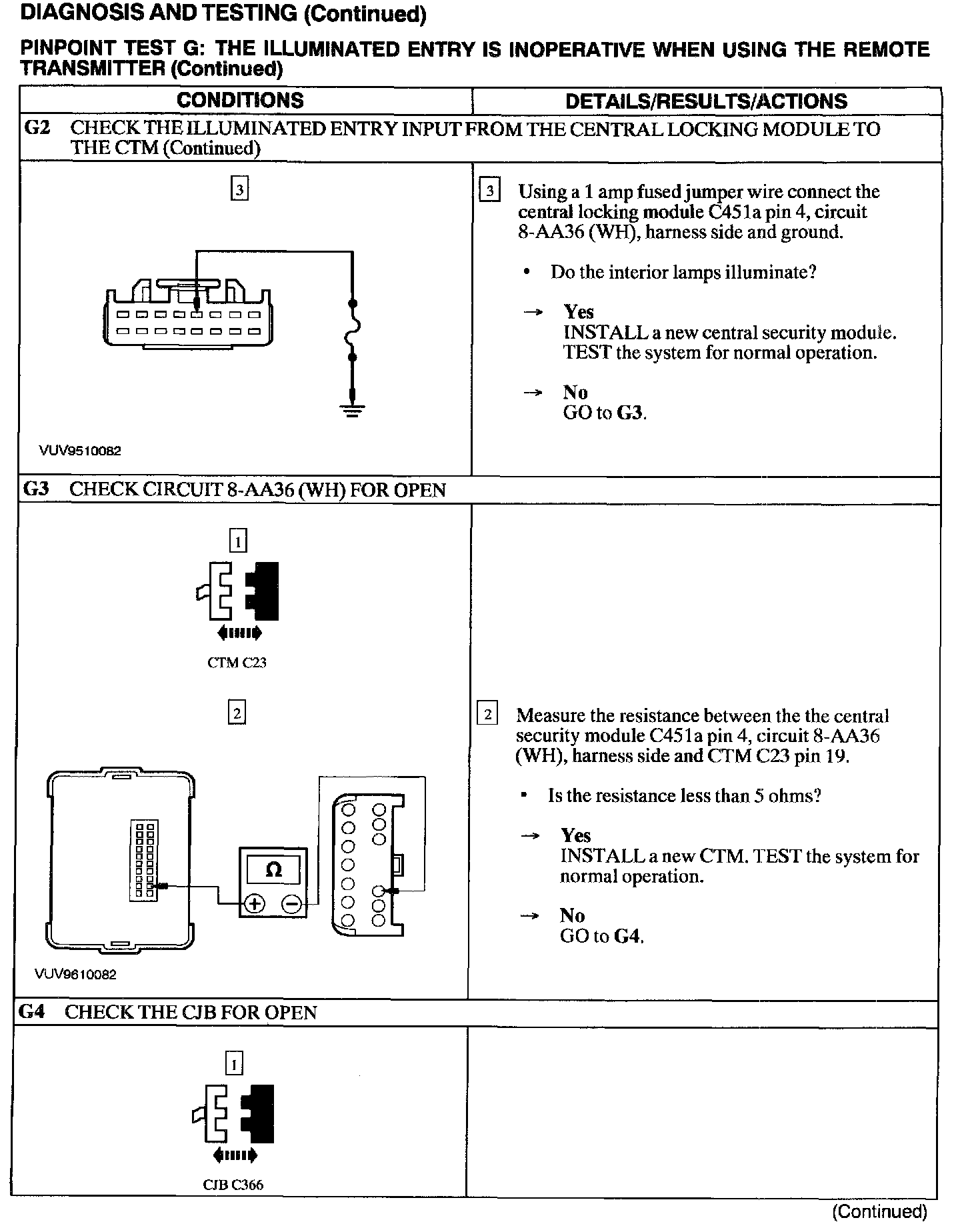

G1 - G2:
G2 - G4:

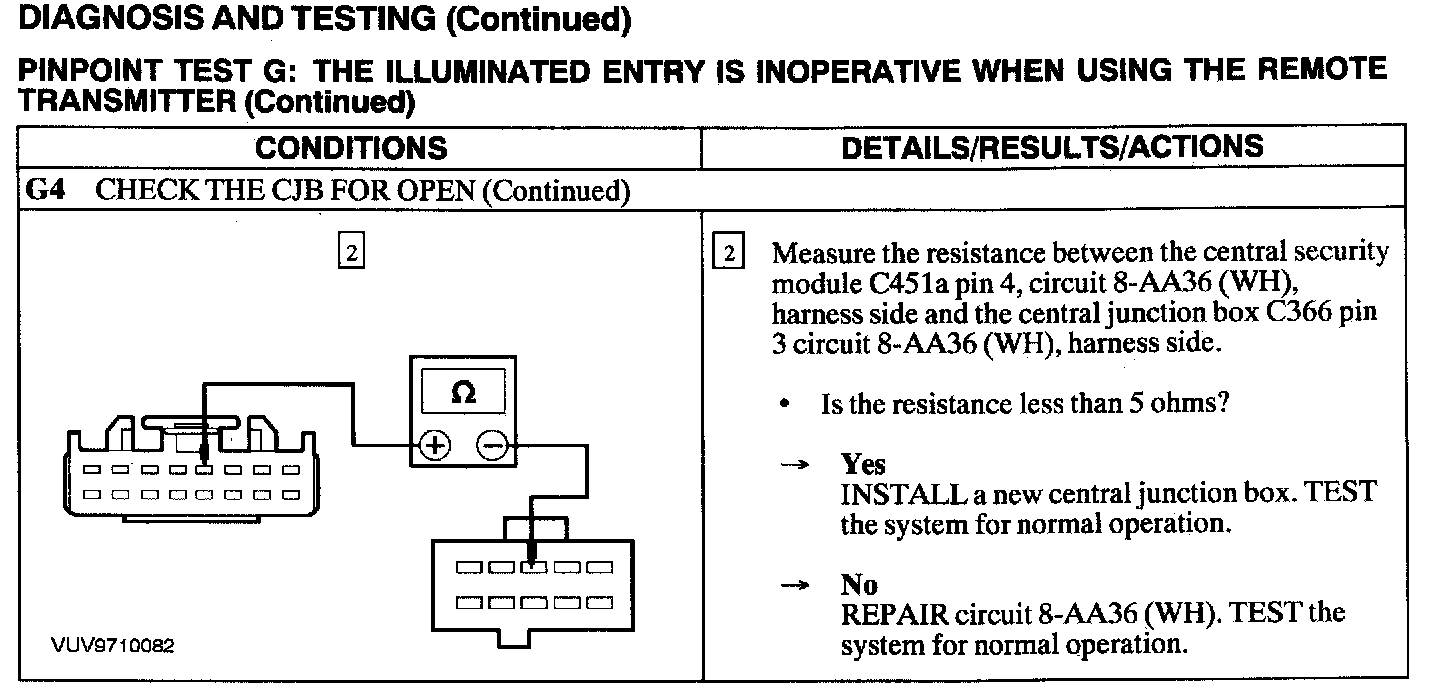

G4:
