Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test F: An Individual Demand Lighting Lamp Is Inoperative - MAP Reading Lamp

Test F: An Individual Demand Lighting Lamp Is Inoperative - MAP Reading Lamp

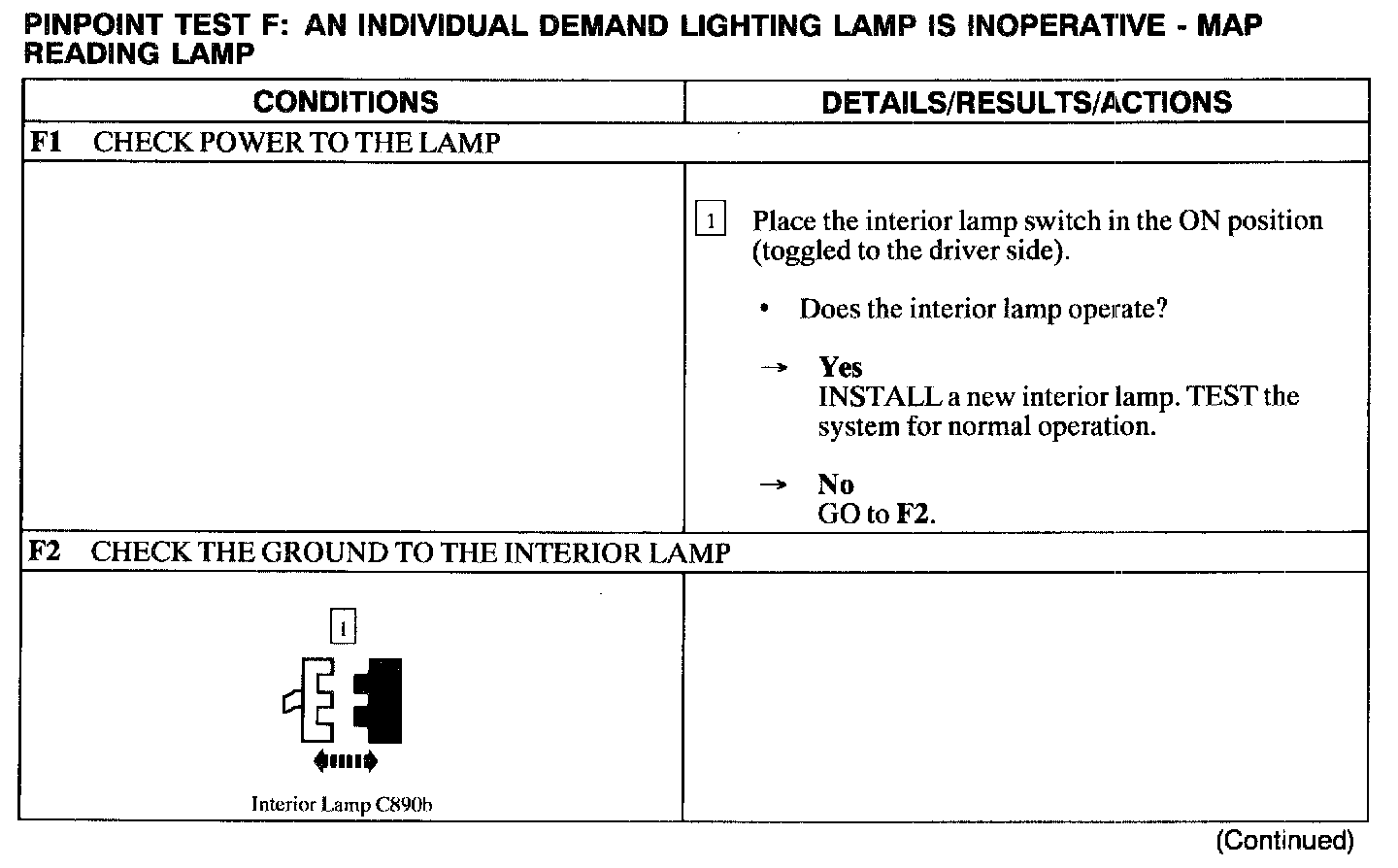

F1 - F2:

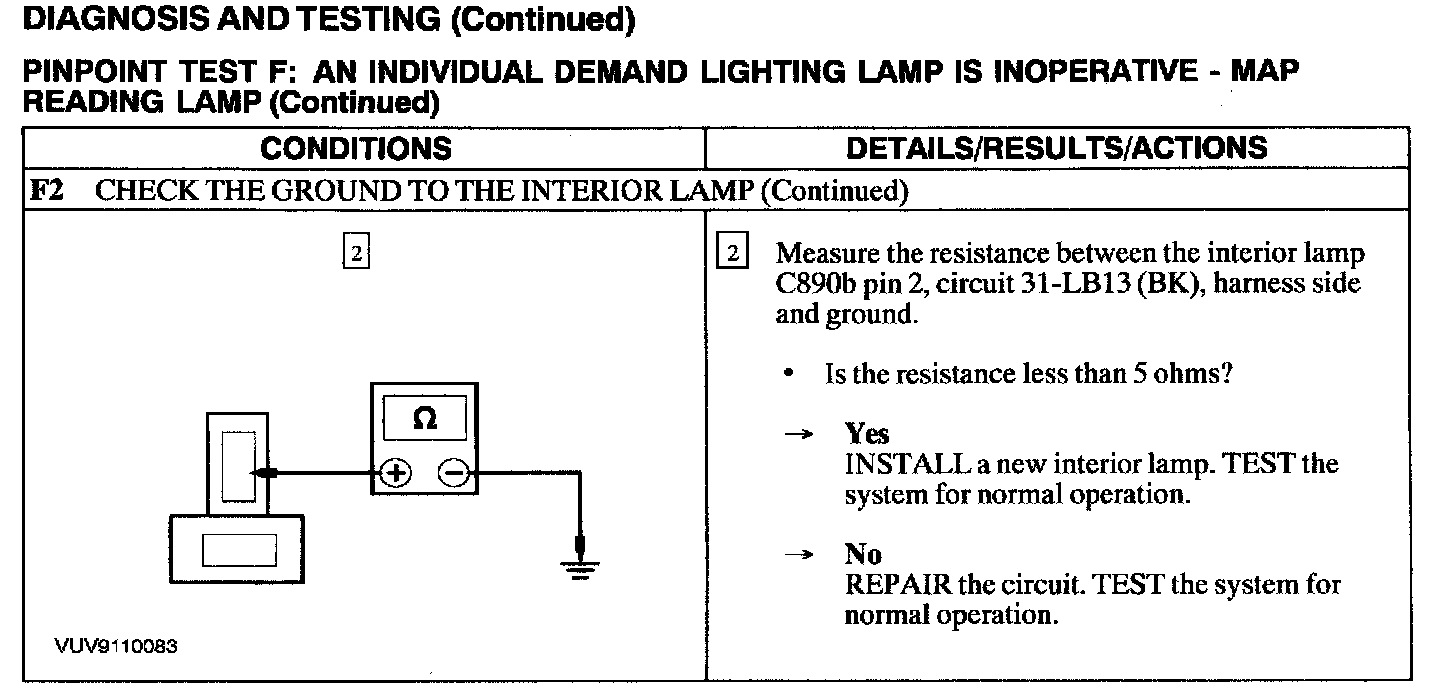

F2:
