Test A: Interior Lamps Are Inoperative

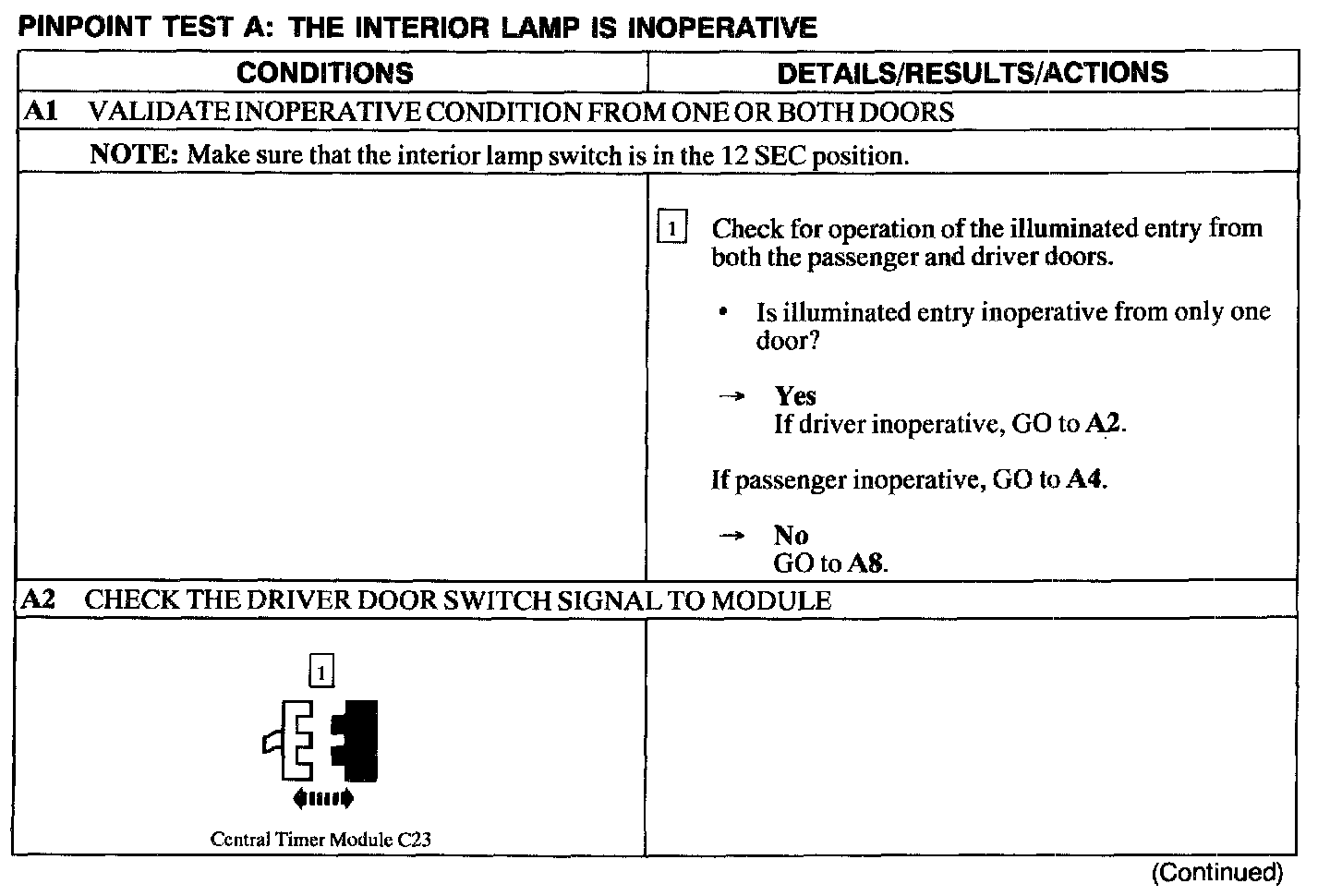

A1 - A2:

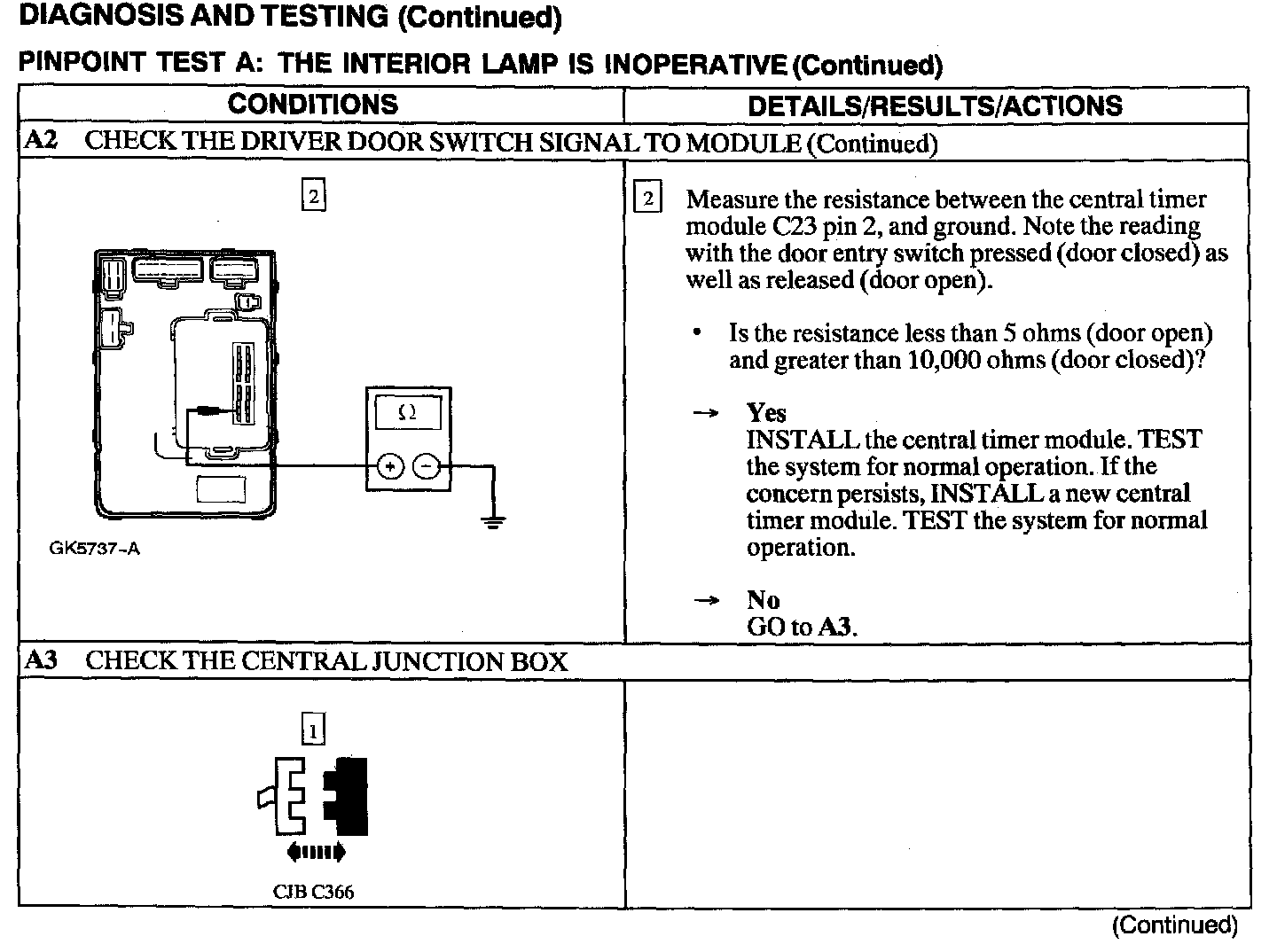

A2 - A3:

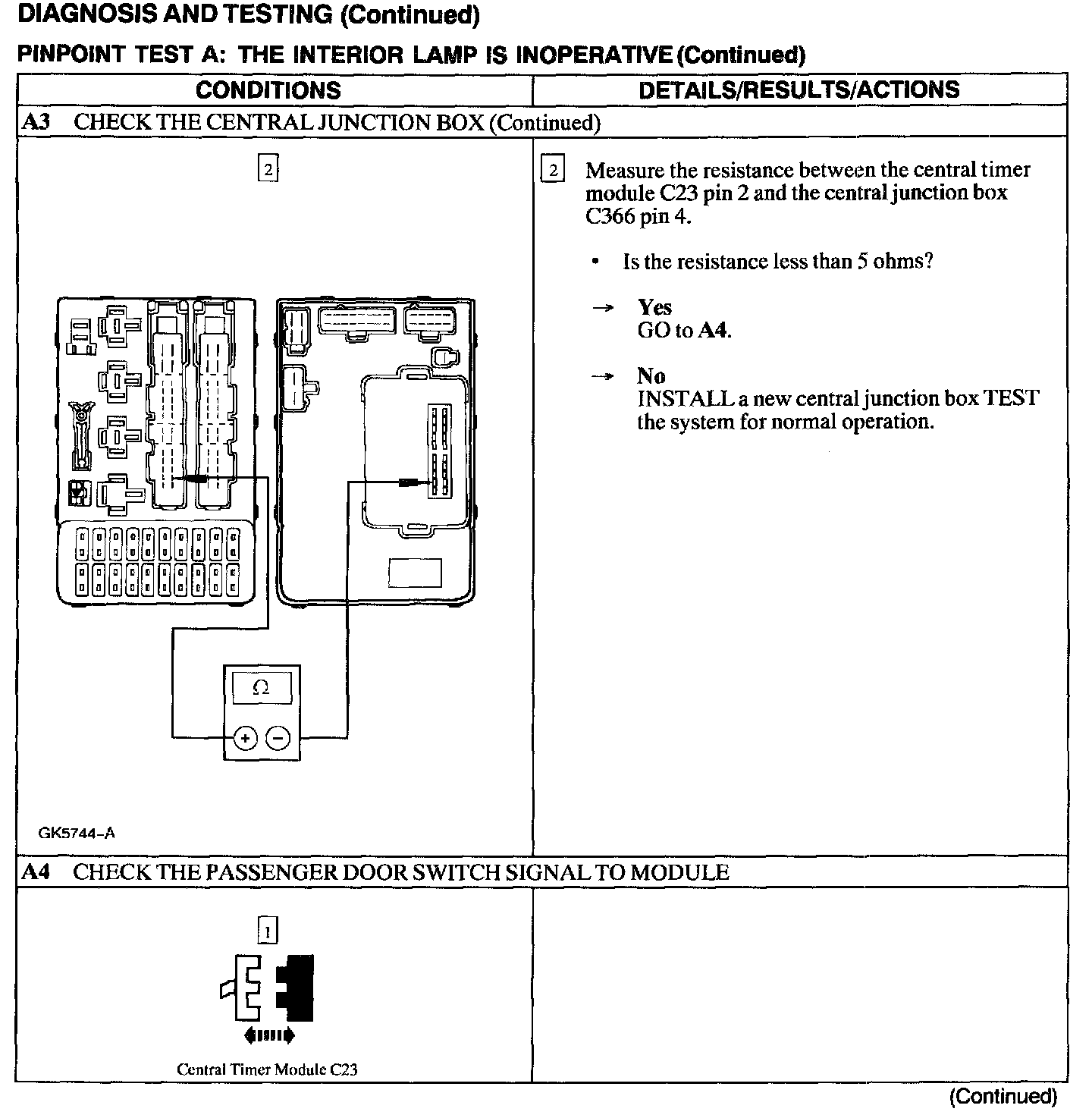

A3 - A4:

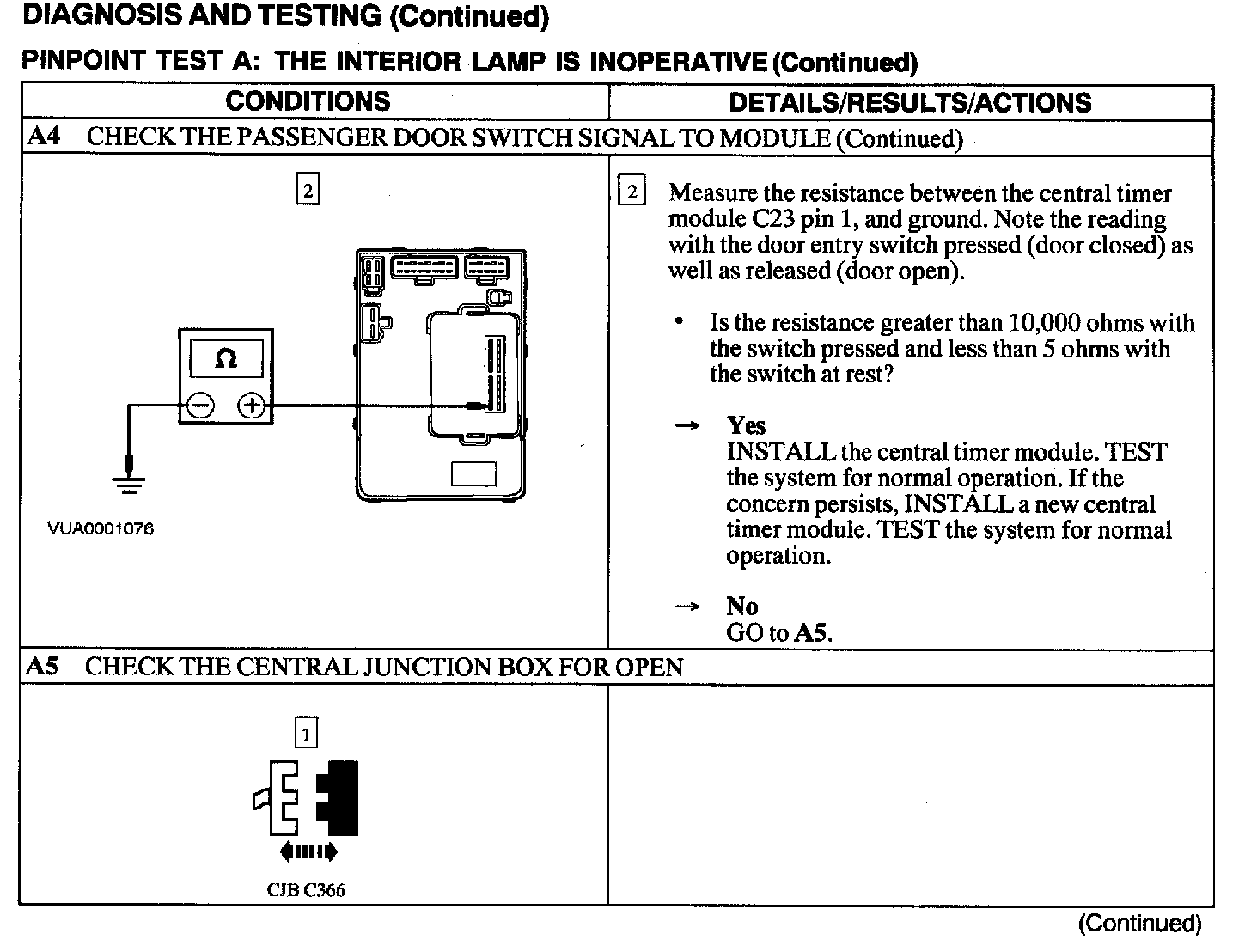

A4 - A5:

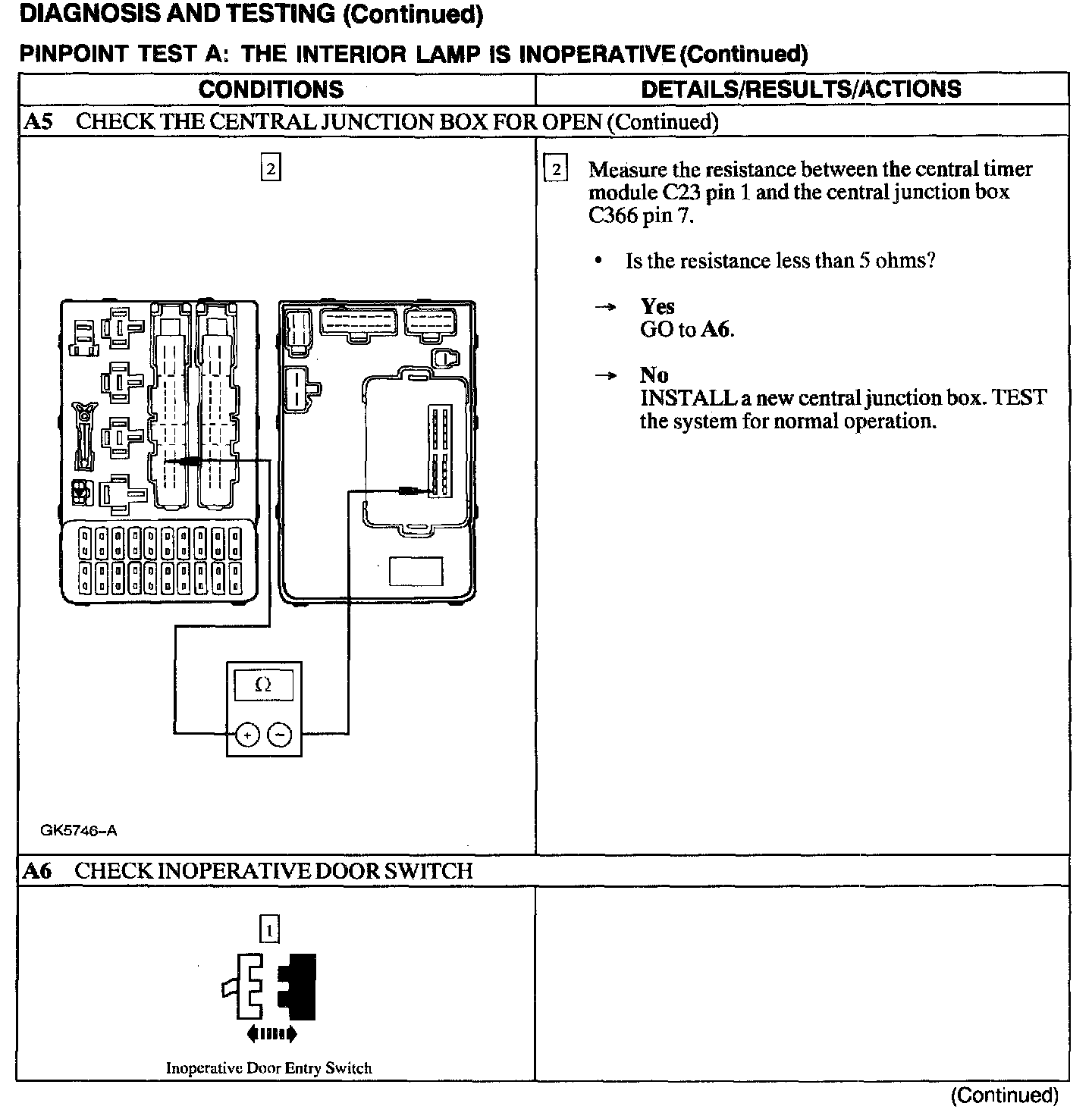

A5 - A6:

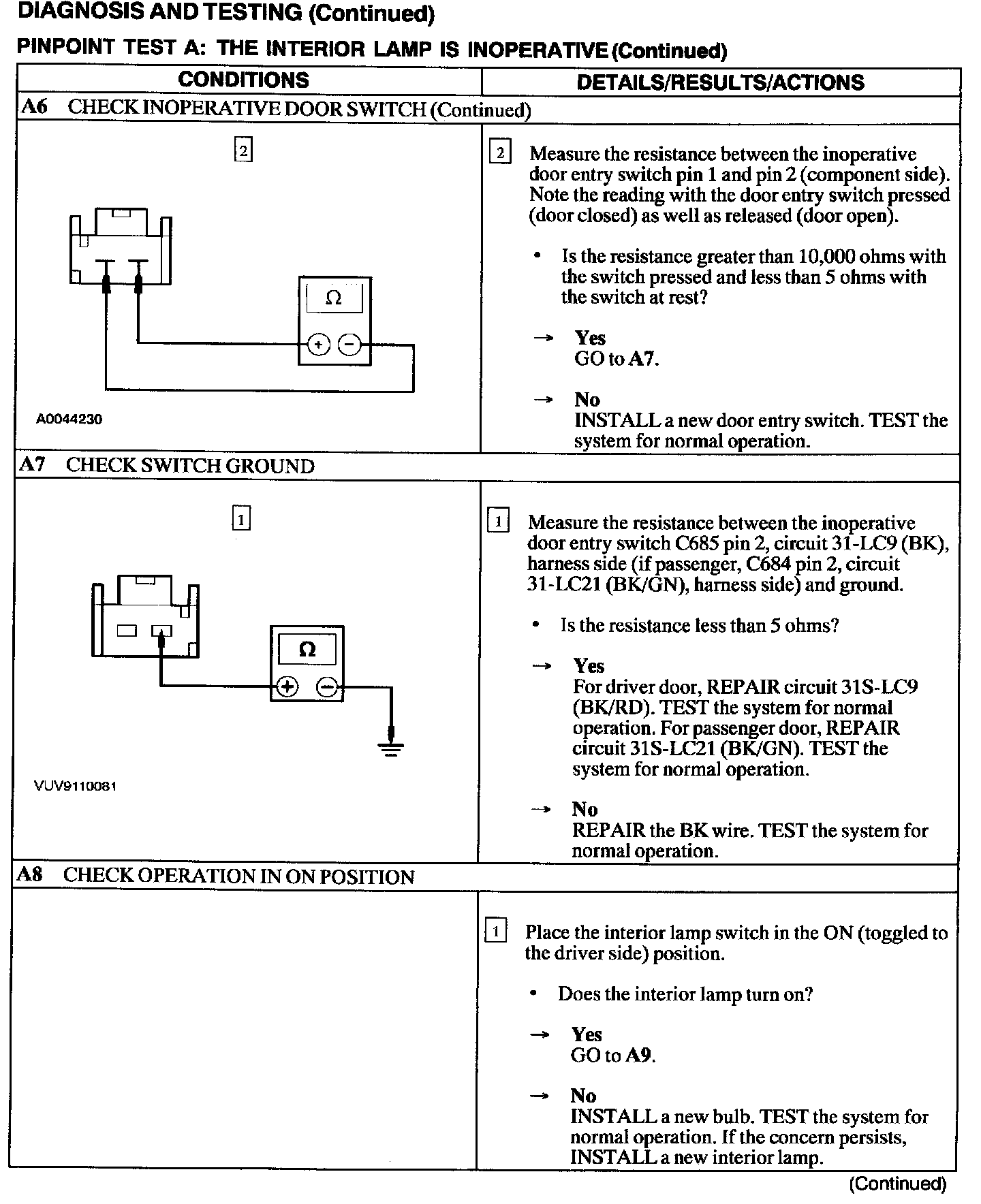

A6 - A8:

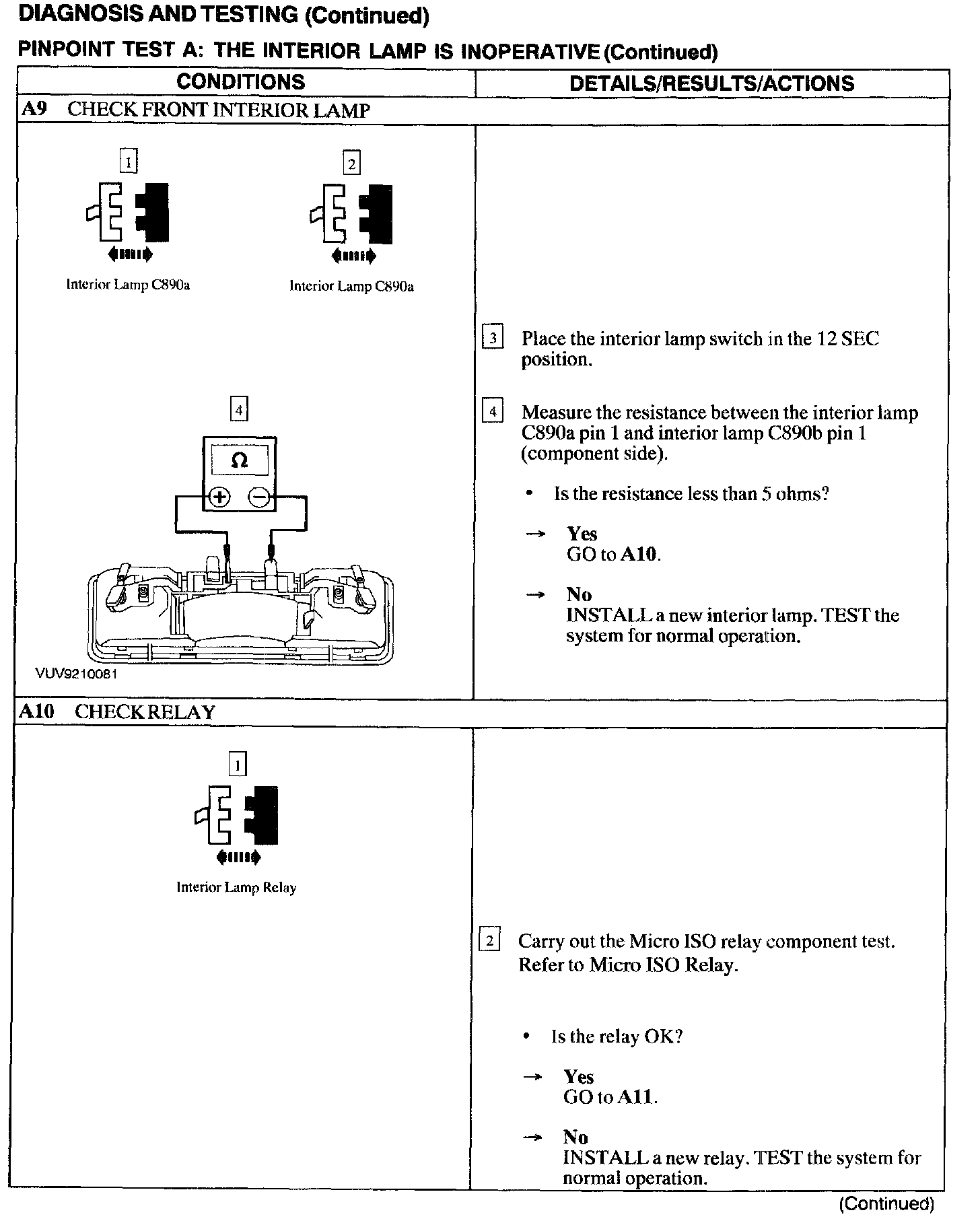

A9 - A10:

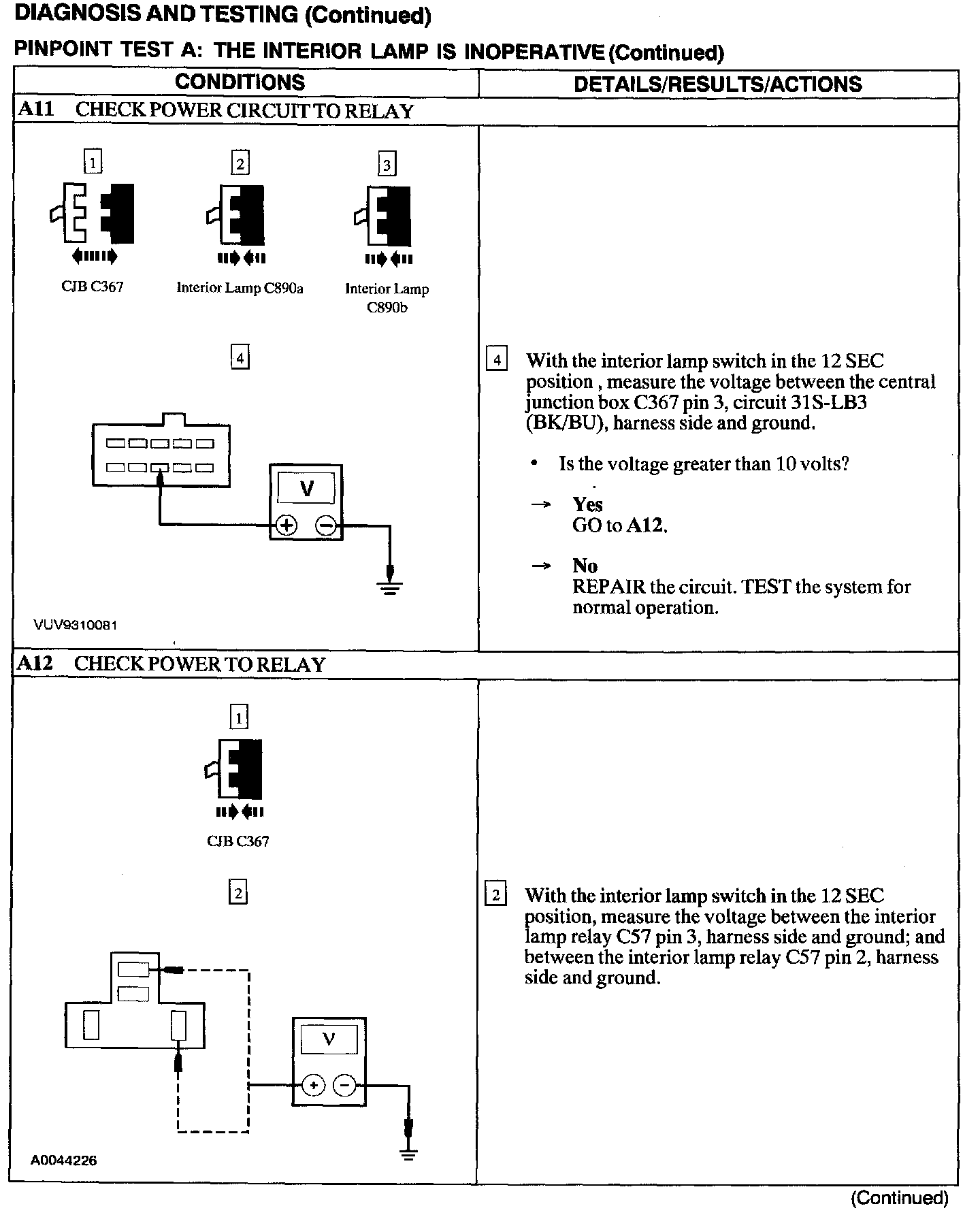

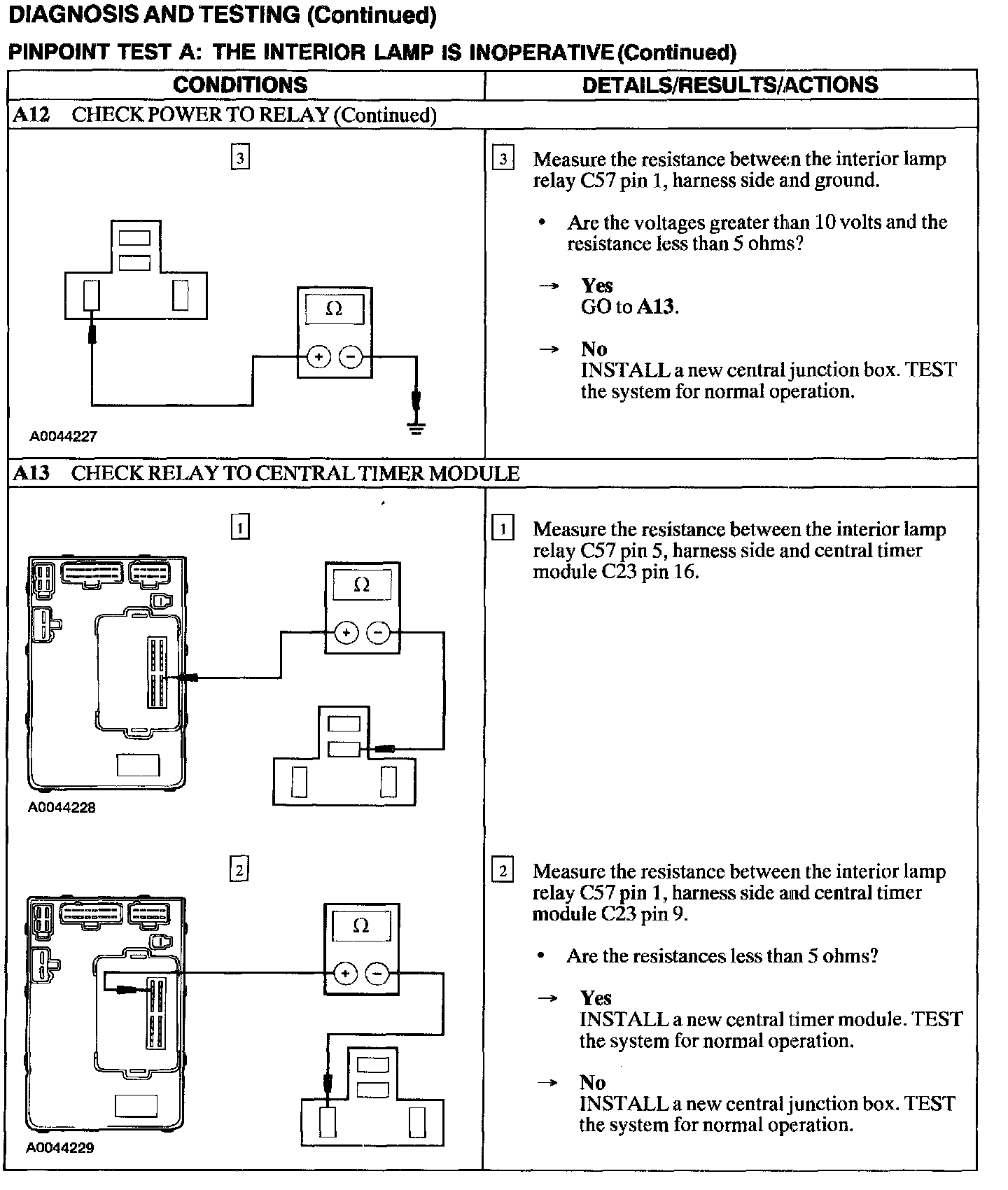

A11 - A12:






A12 - A13:
