Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test V: An Indicator Is Inoperative - Low Engine Coolant

Test V: An Indicator Is Inoperative - Low Engine Coolant

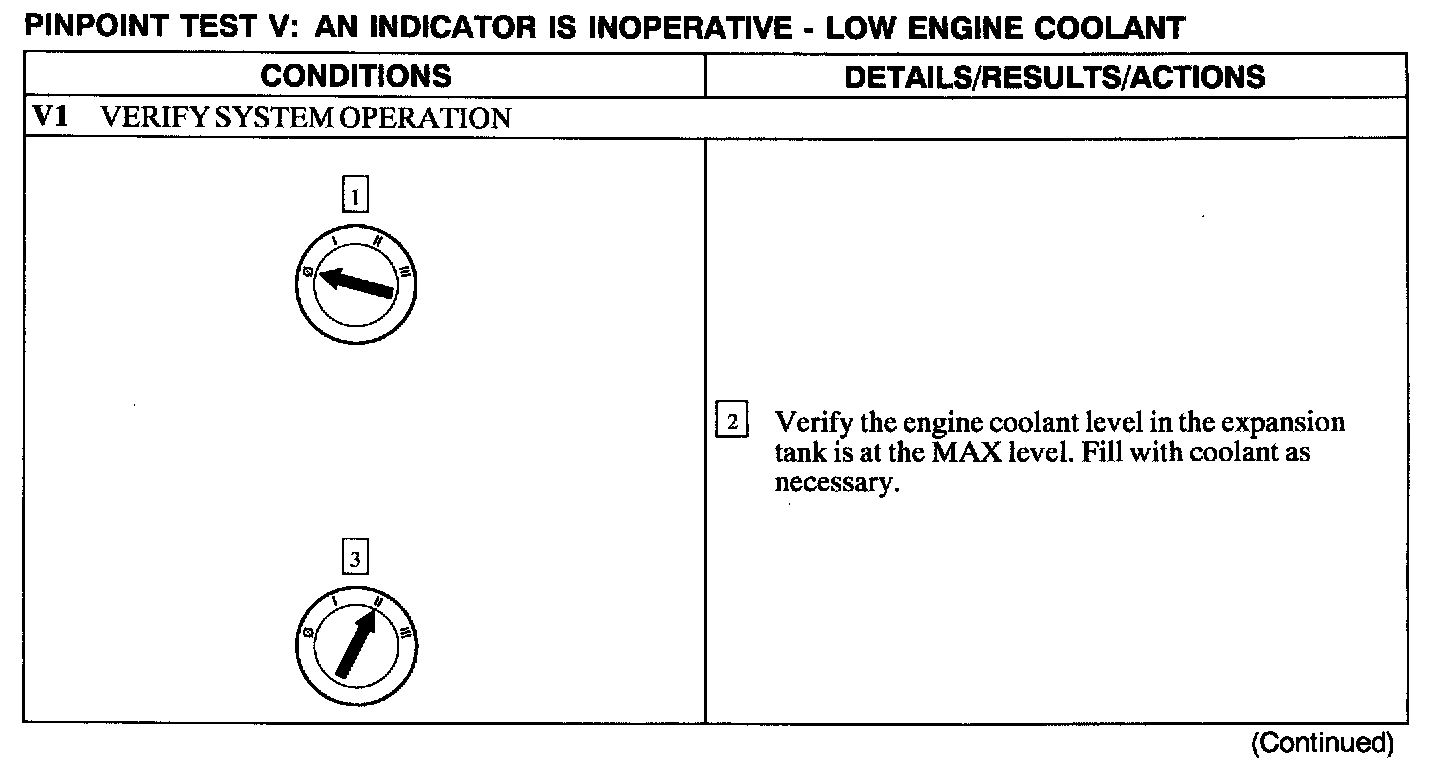

V1:

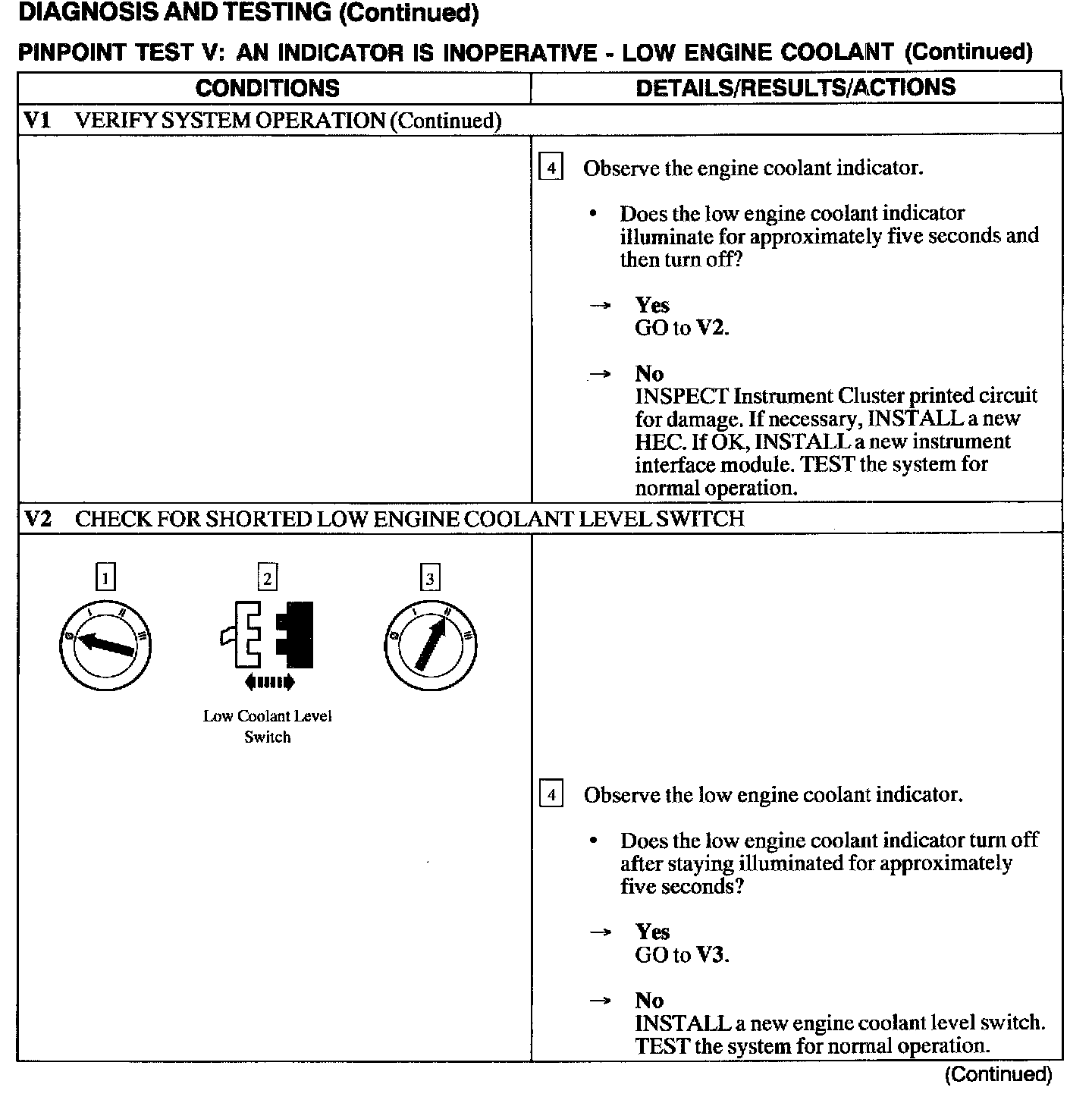

V1 - V2:

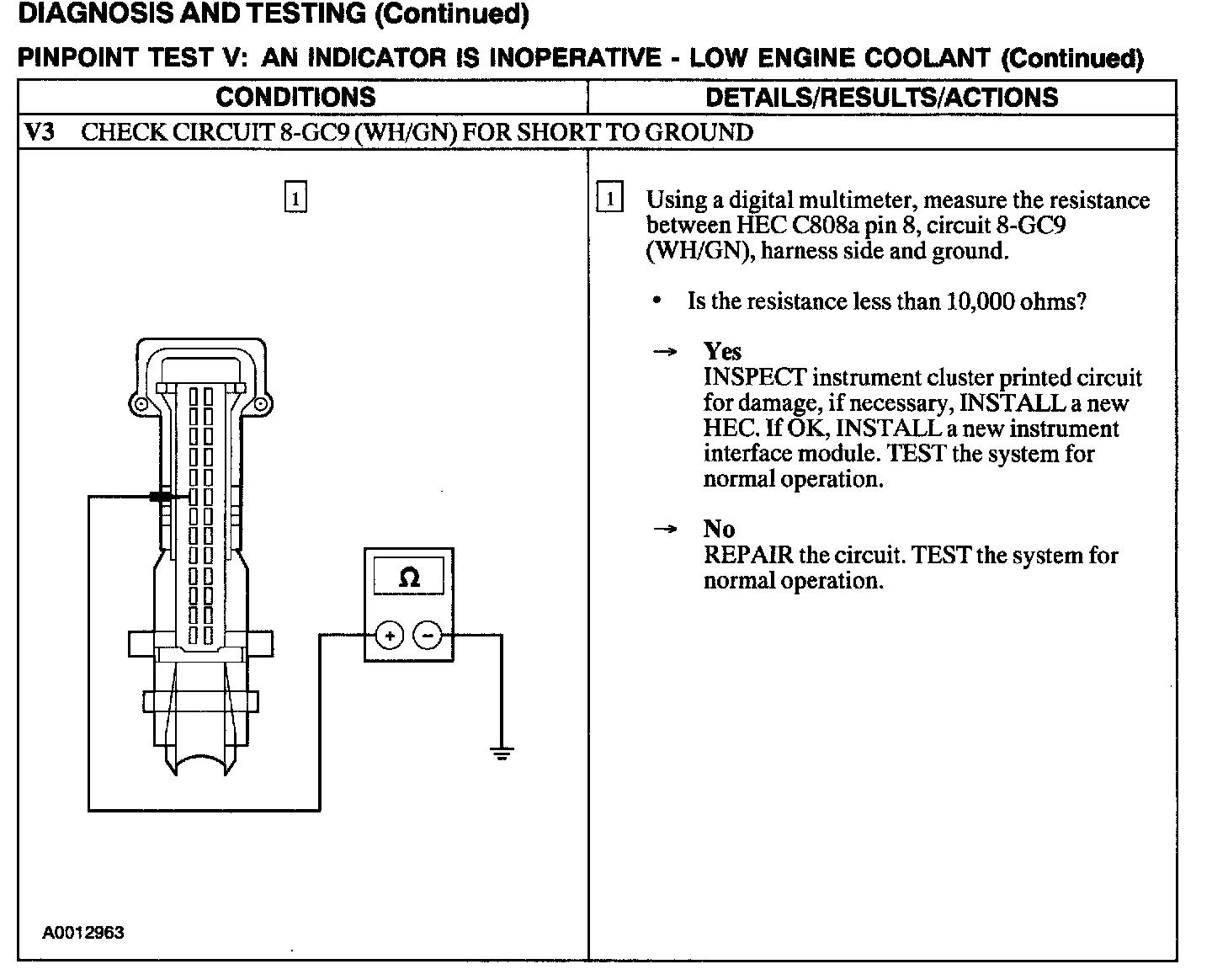

V3:
