Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test Q: Safety Belt Indicator Is Always On (Chime Is Operative)

Test Q: Safety Belt Indicator Is Always On (Chime Is Operative)

Q1 - Q2:

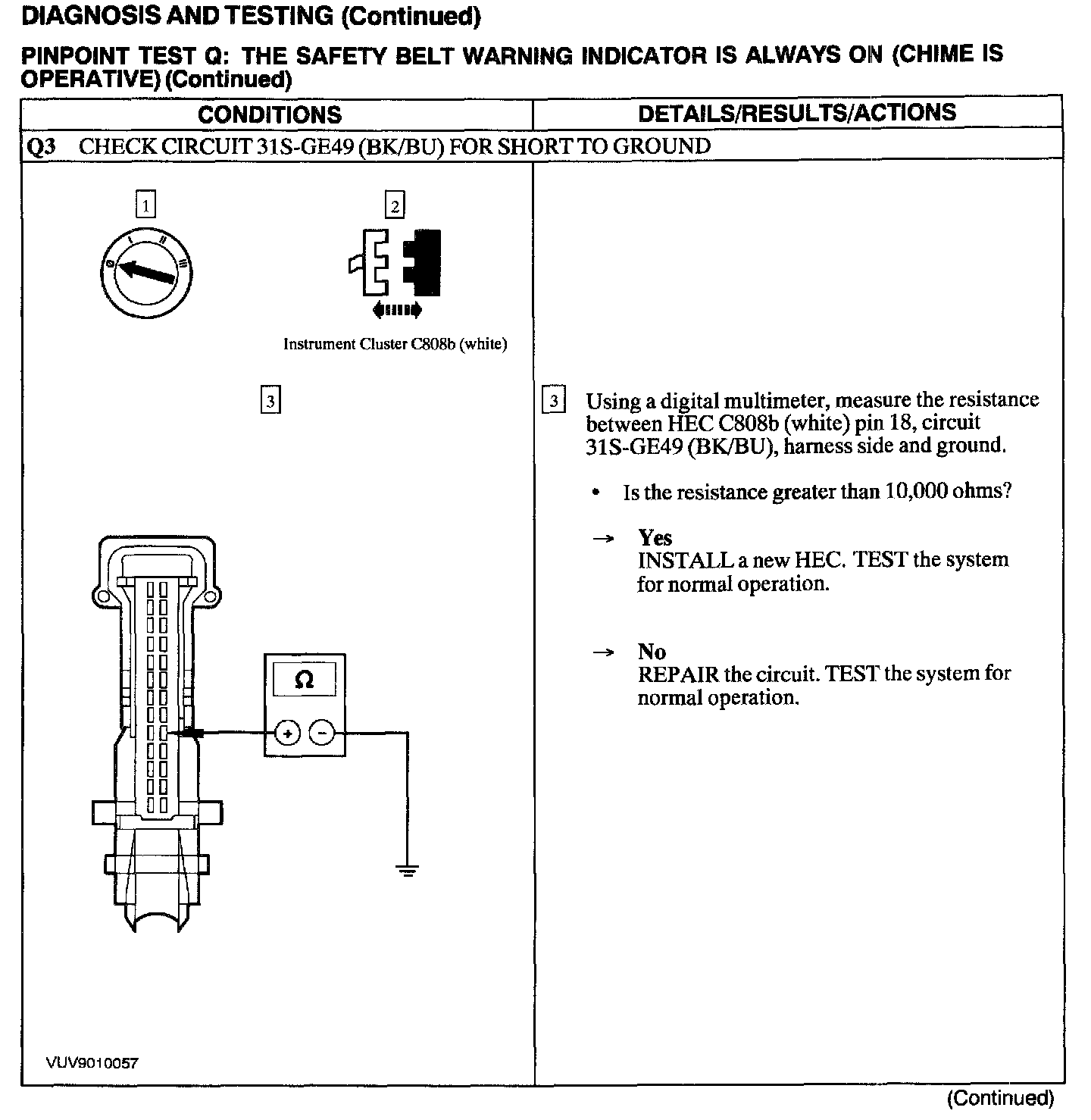

Q3:

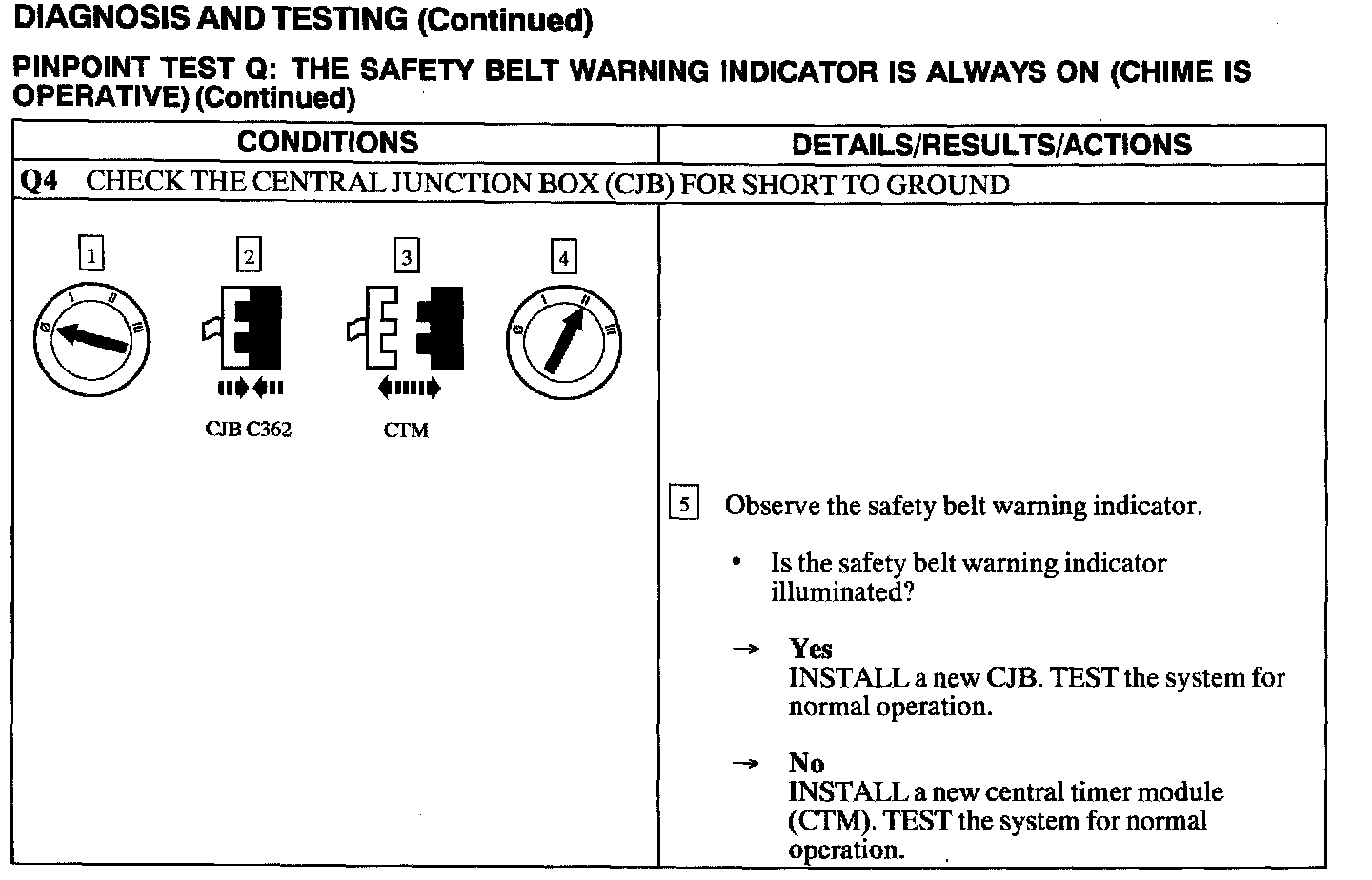

Q4:
