Test L: Indicator Inop/Always On - Door Ajar Warning Indicator
Test L: Indicator Inop/Always On - Door Ajar Warning Indicator

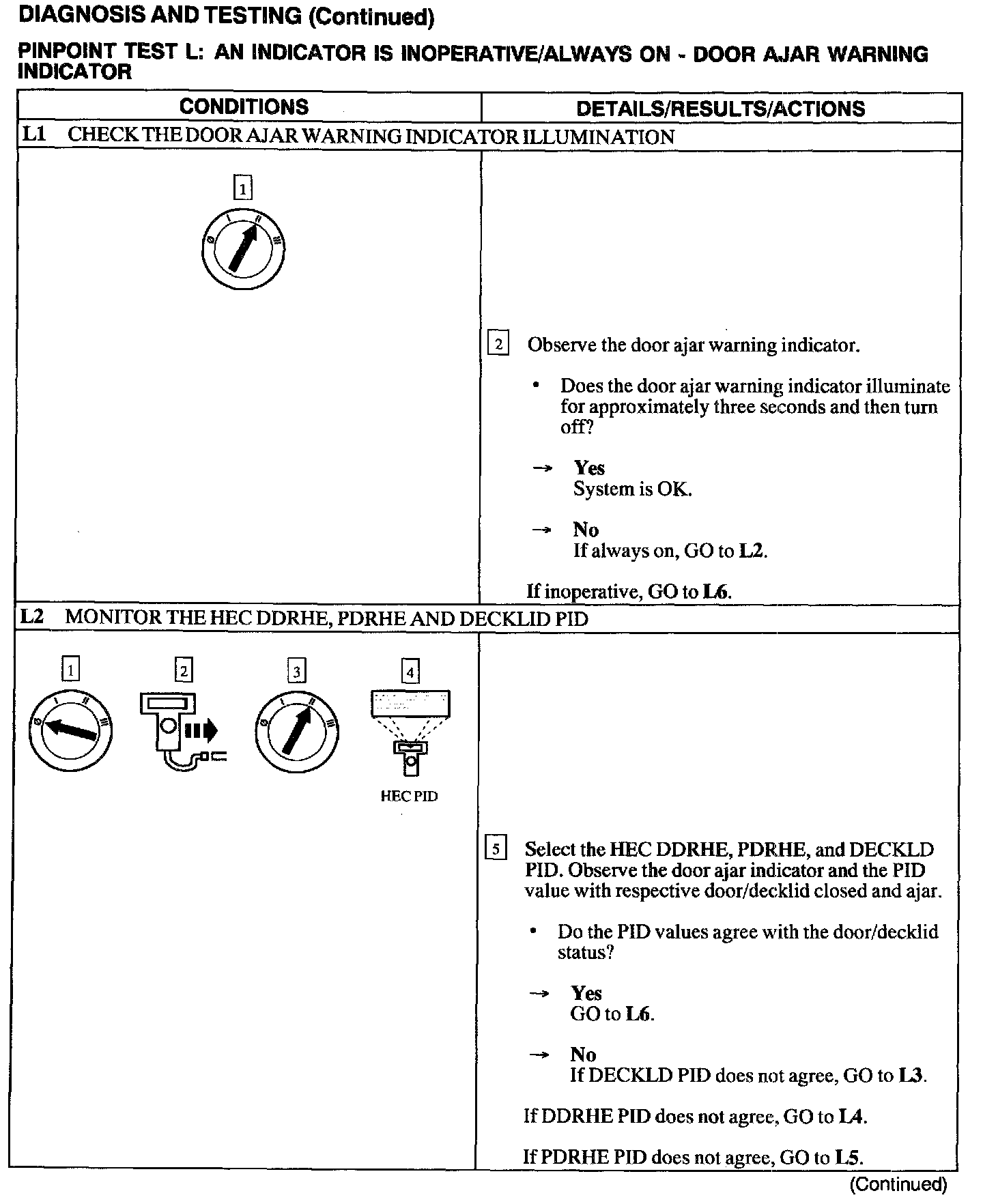

L1 - L2:

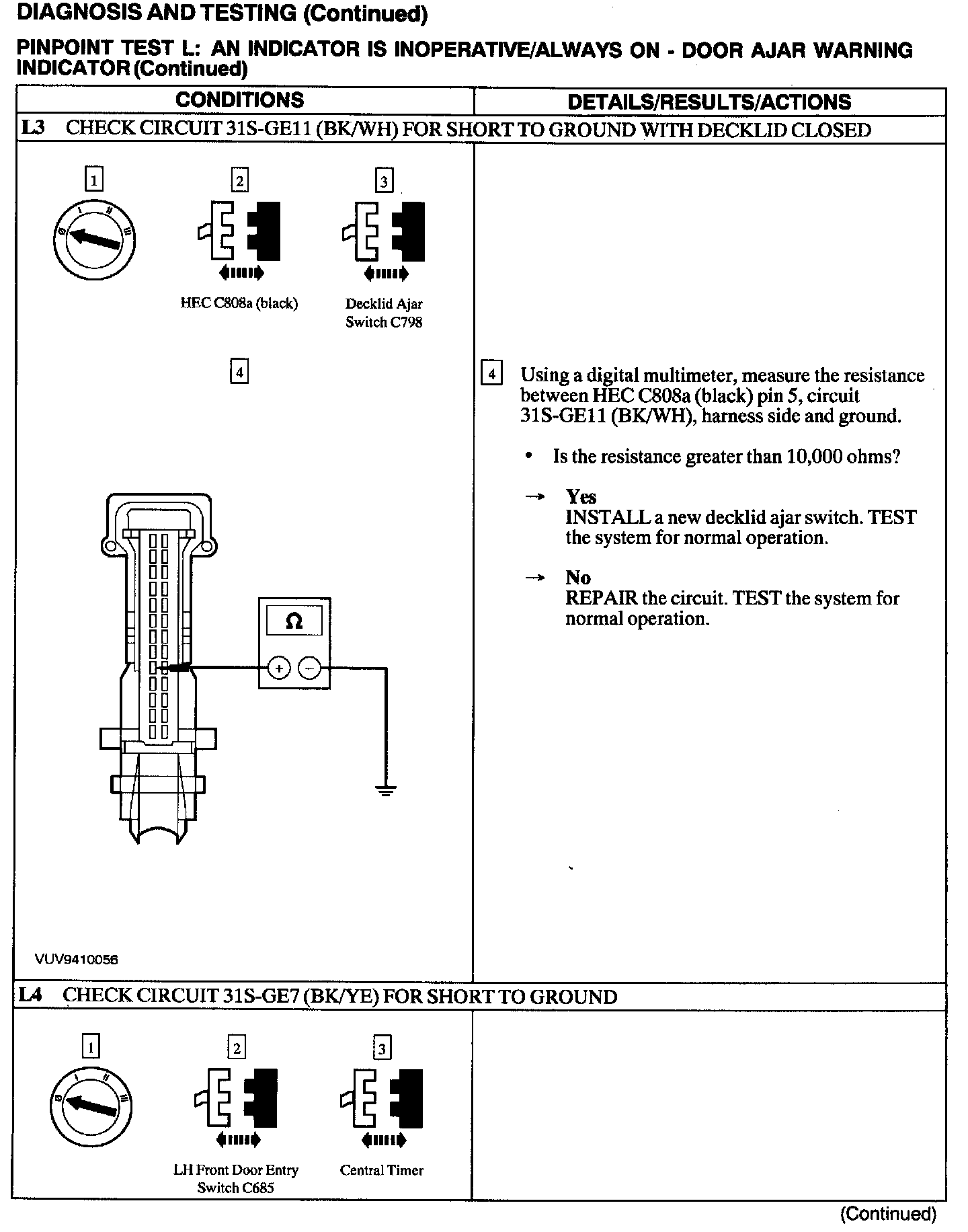

L3 - L4:

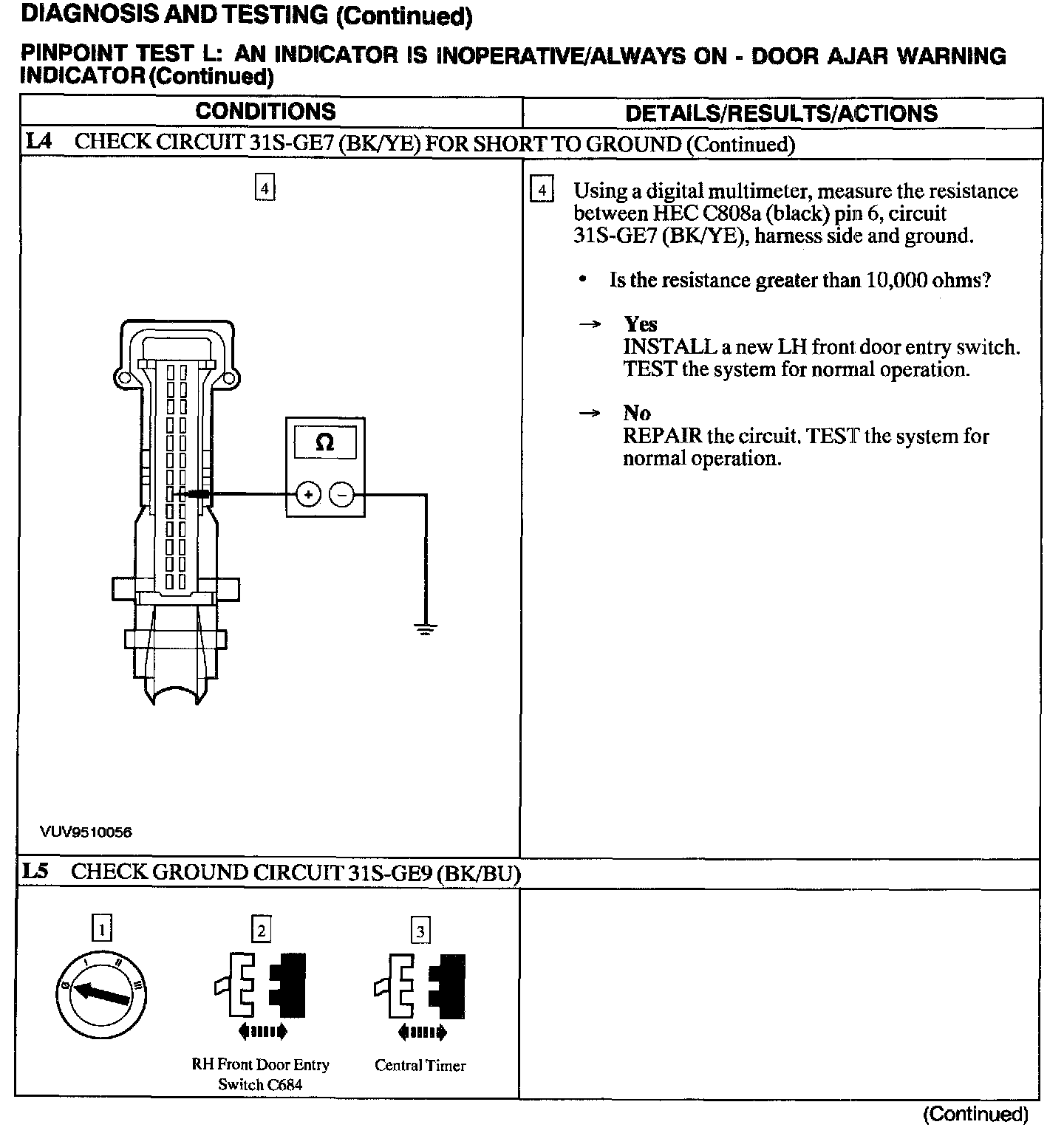

L4 - L5:

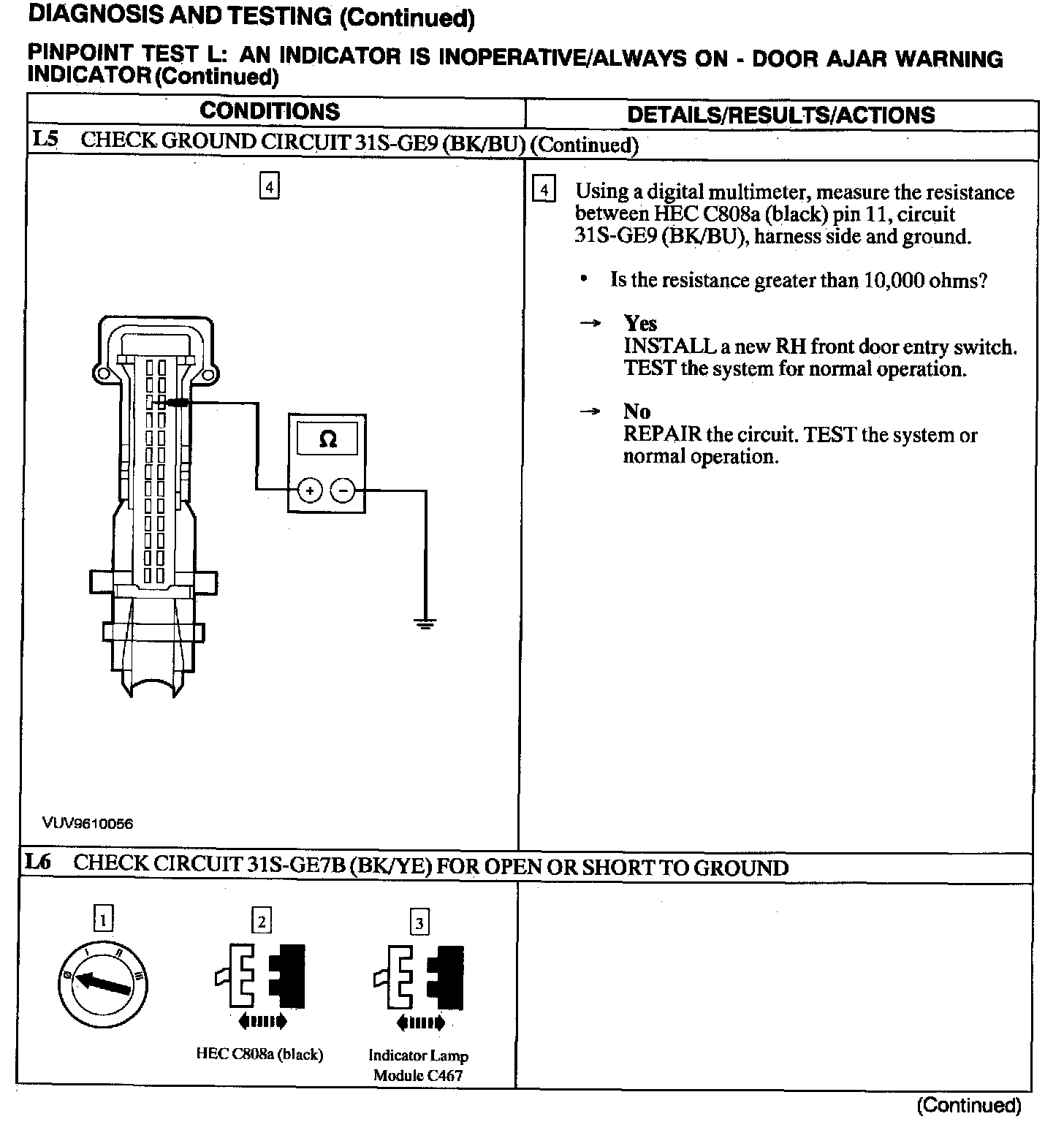

L5 - L6:

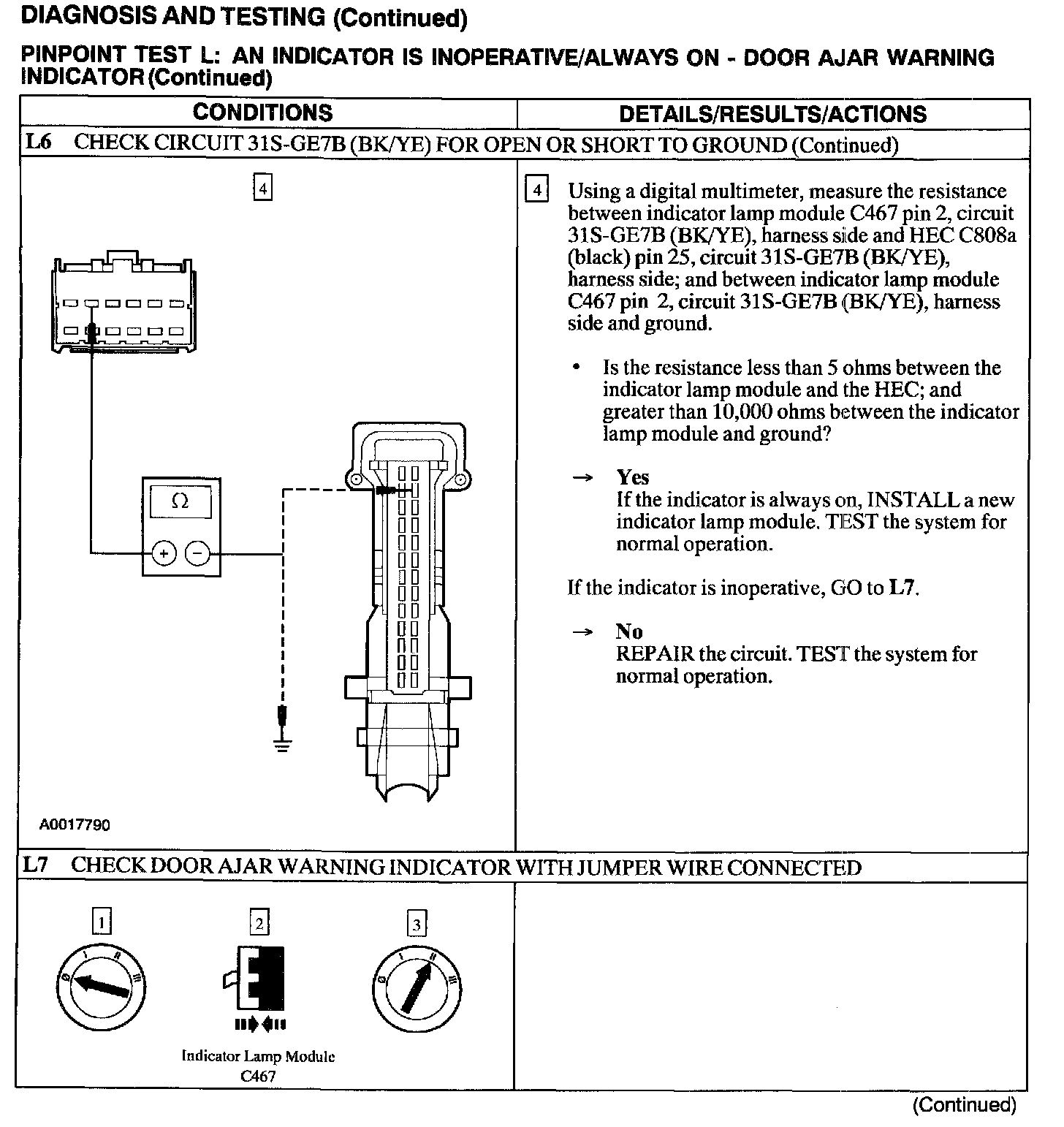

L6 - L7:

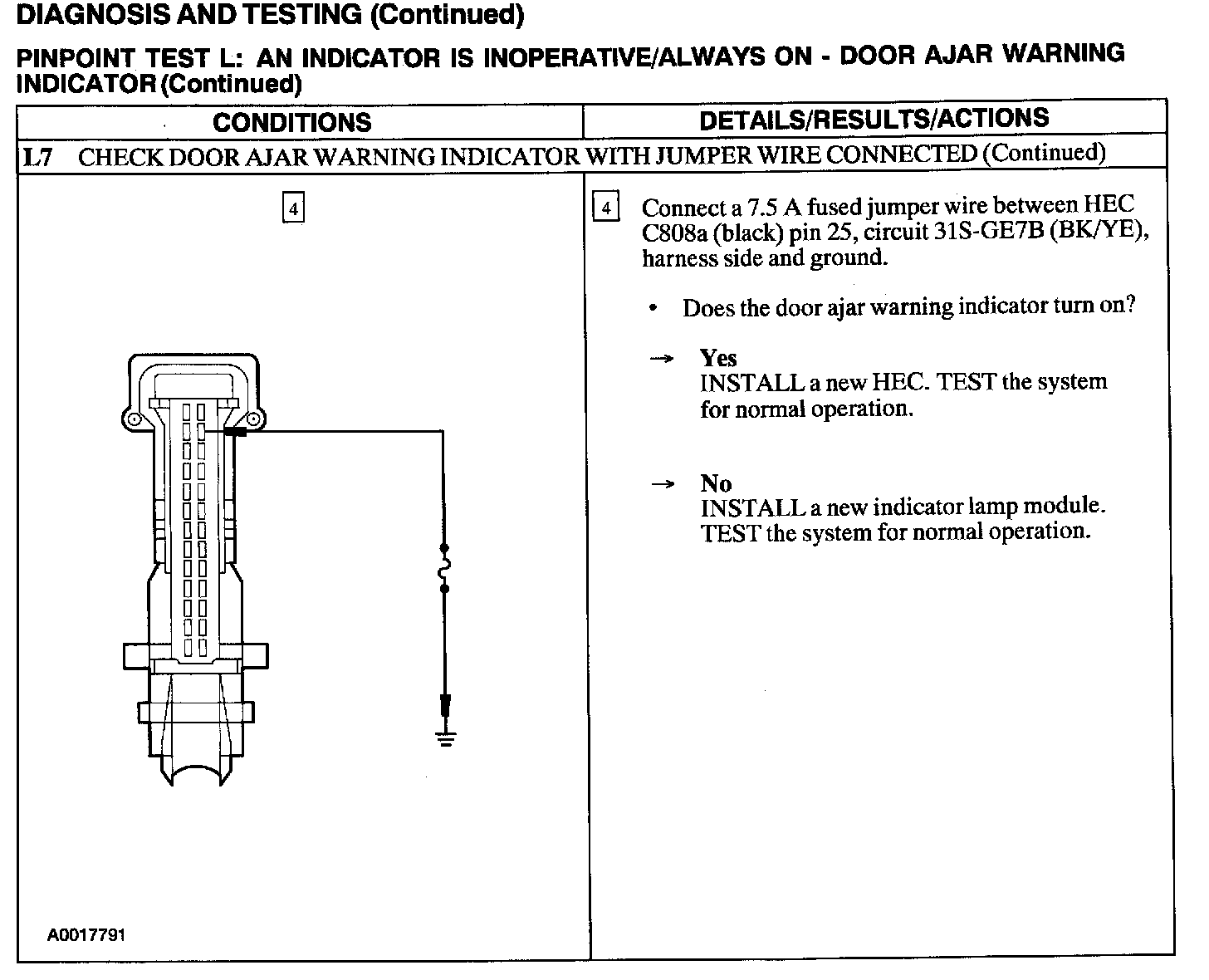

L7:
