Test J: Indicator Inop/Always On - Brake Pad Wear Indicator

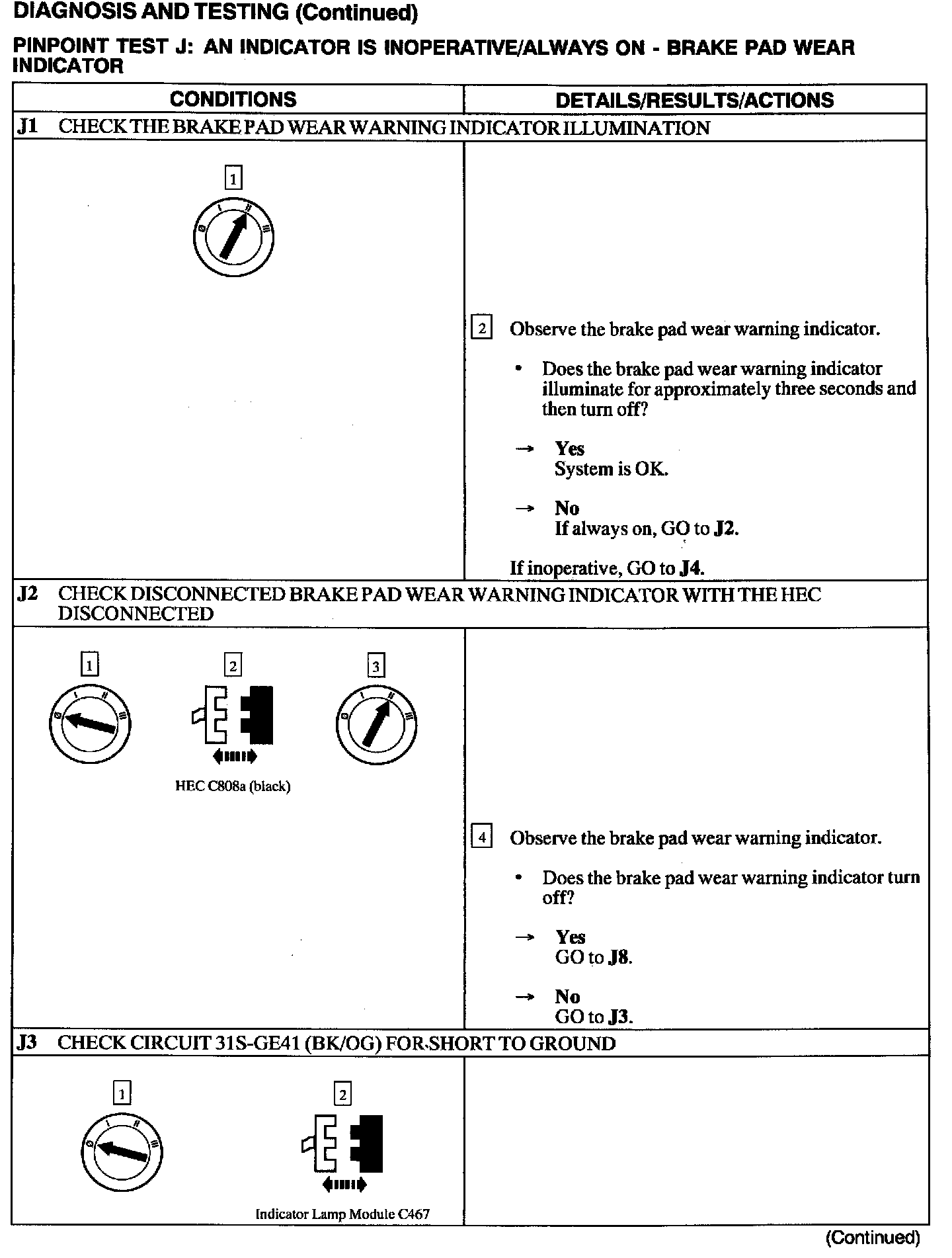

J1 - J3:

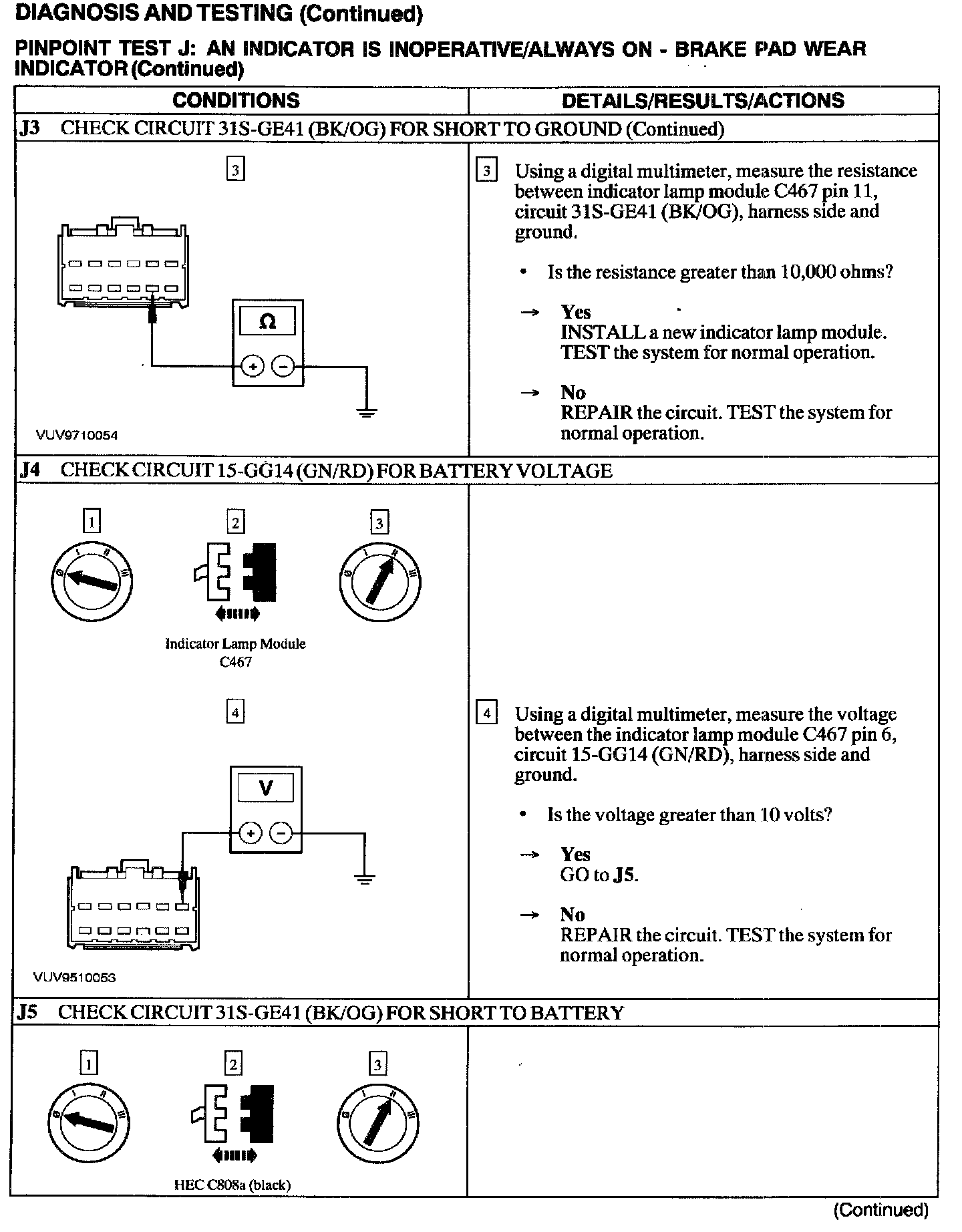

J3 - J5:






J5 - J6:

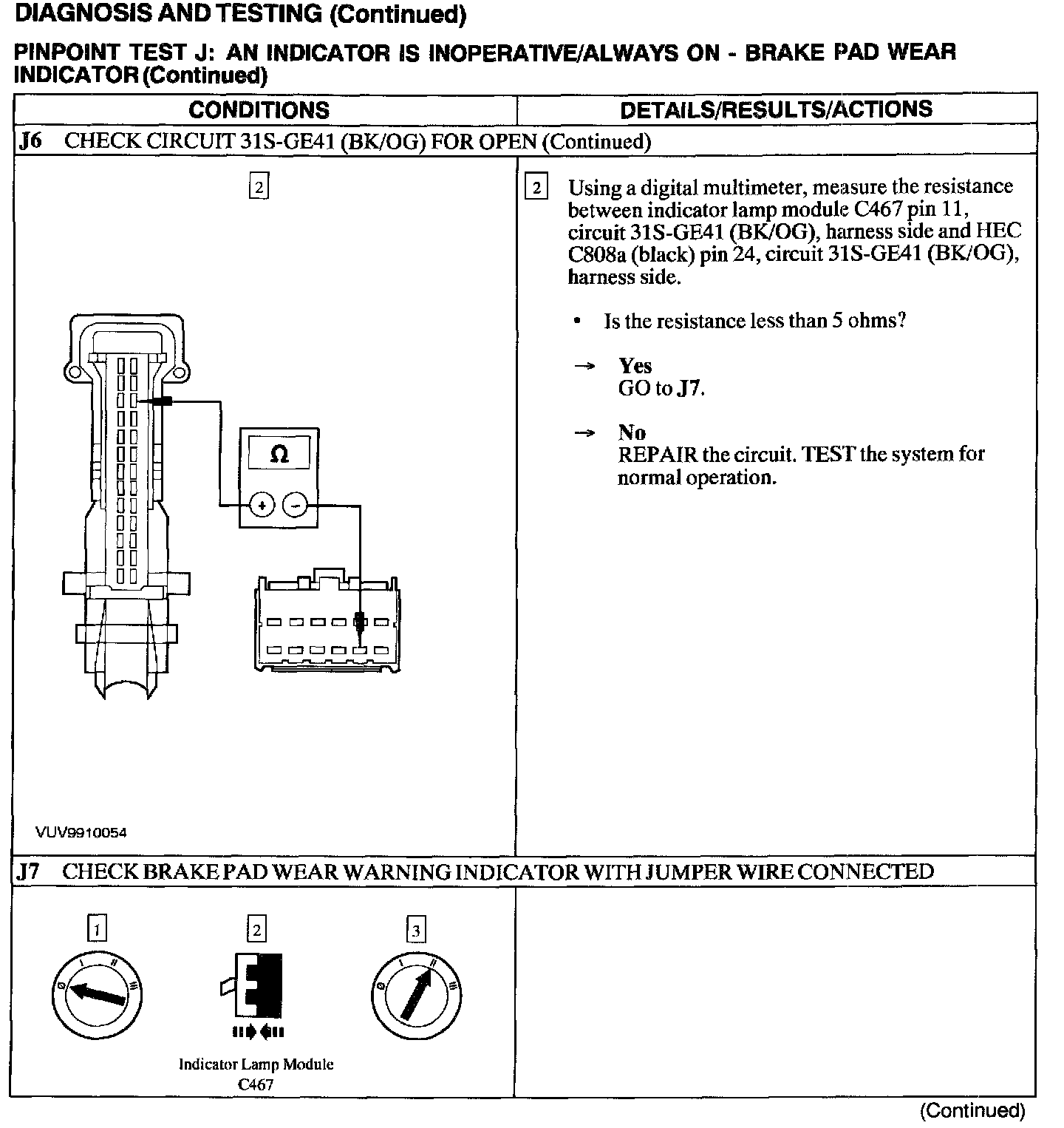

J6 - J7:

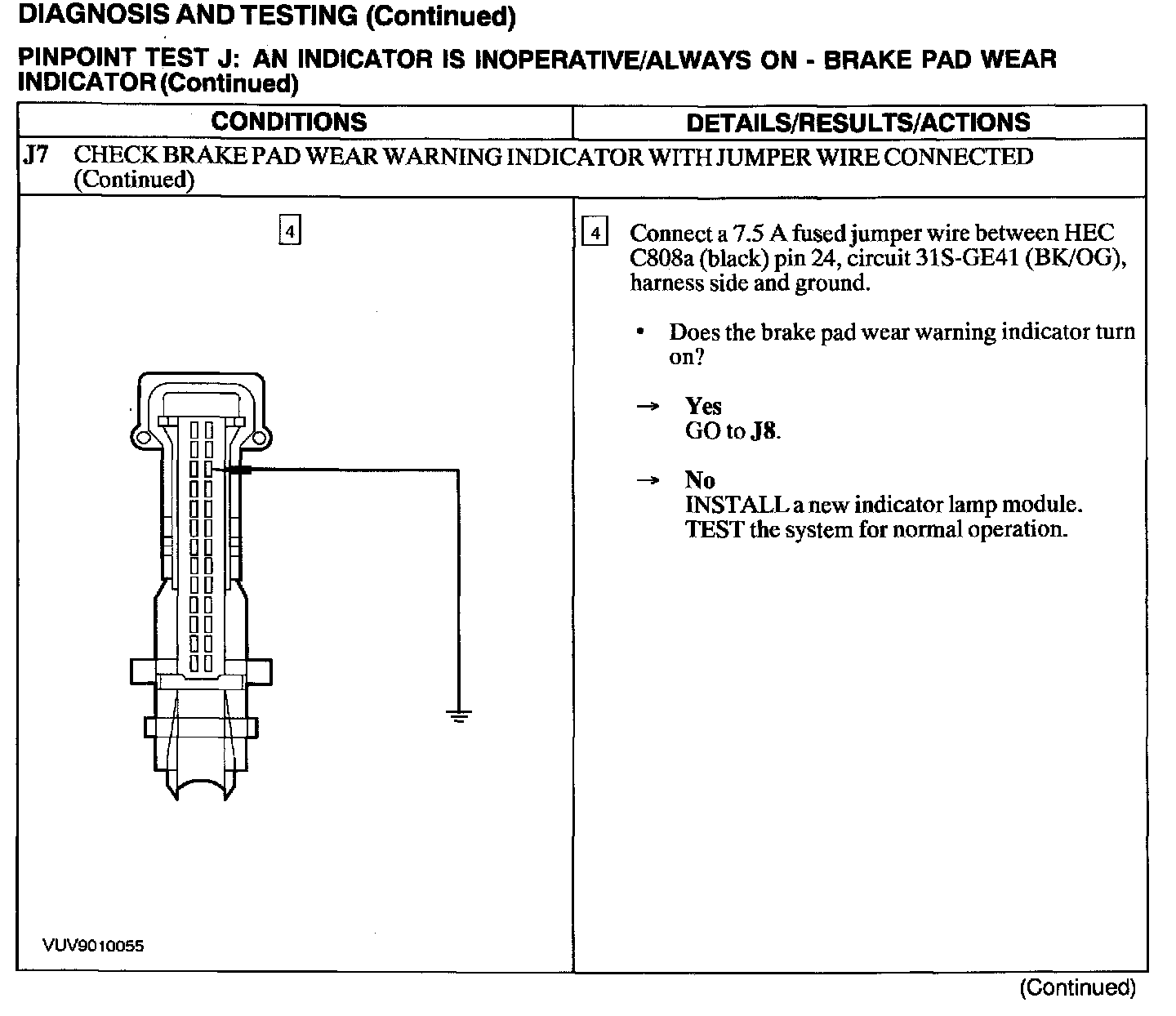

J7:

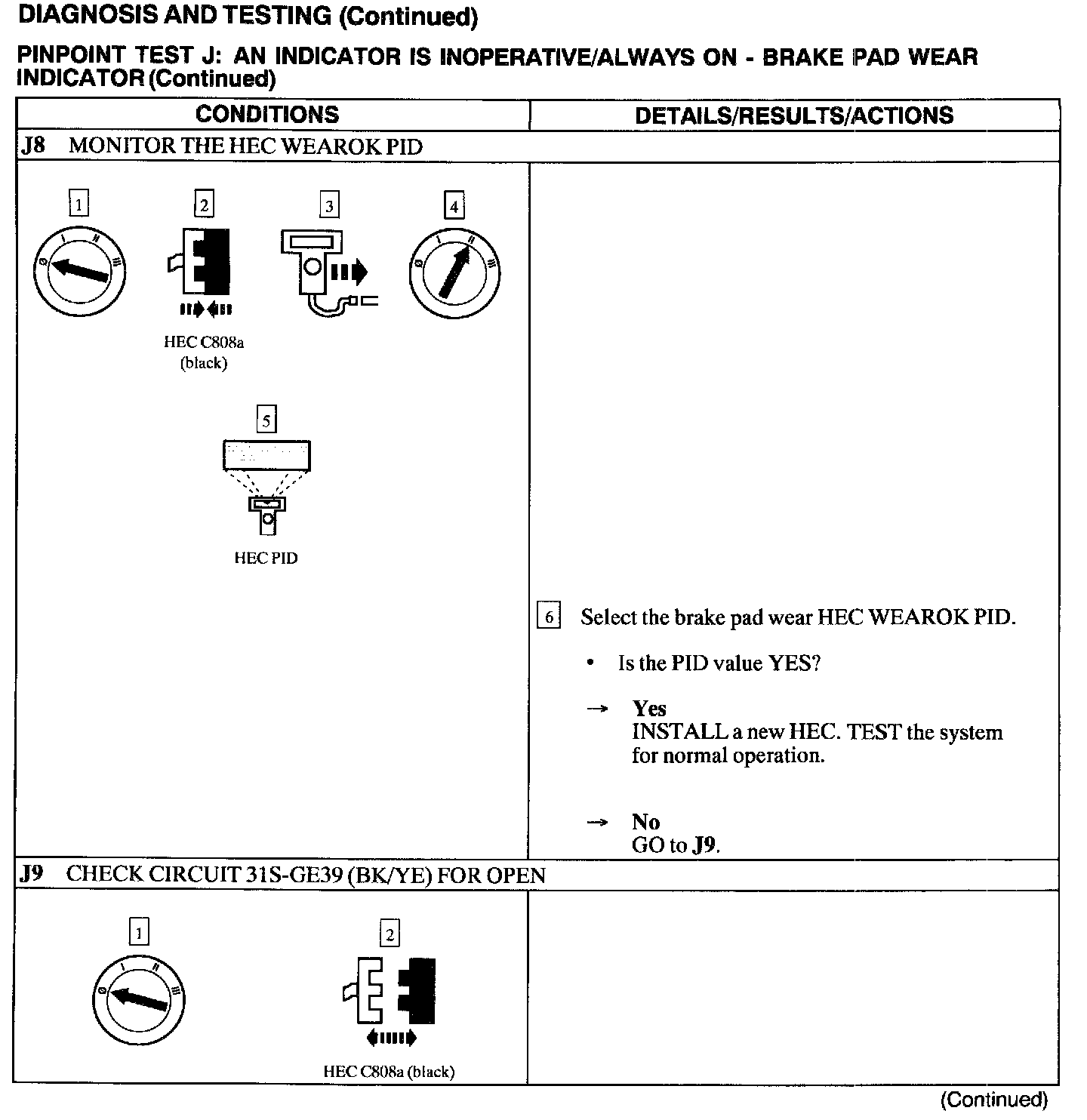

J8 - J9:






J9 - J10:

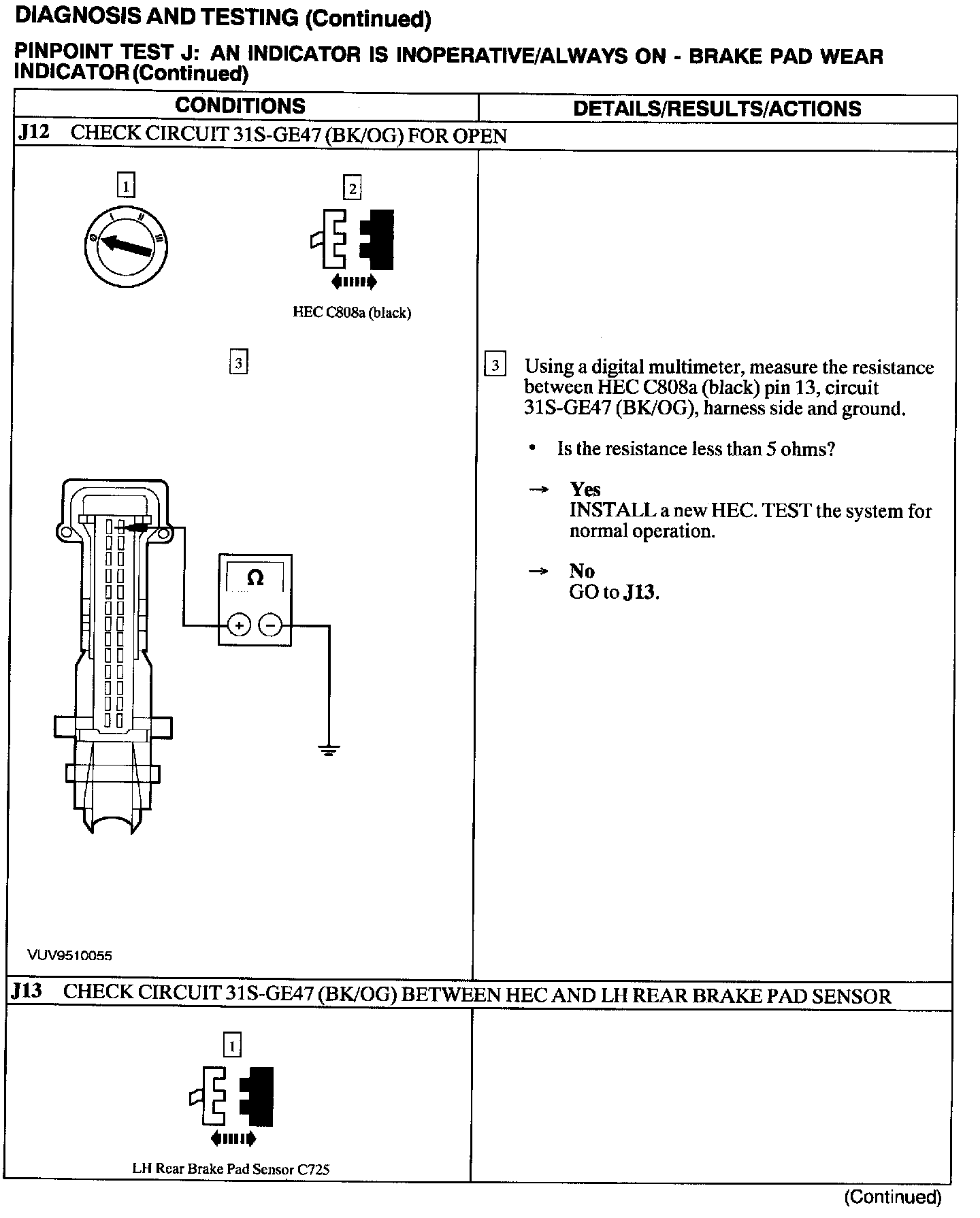

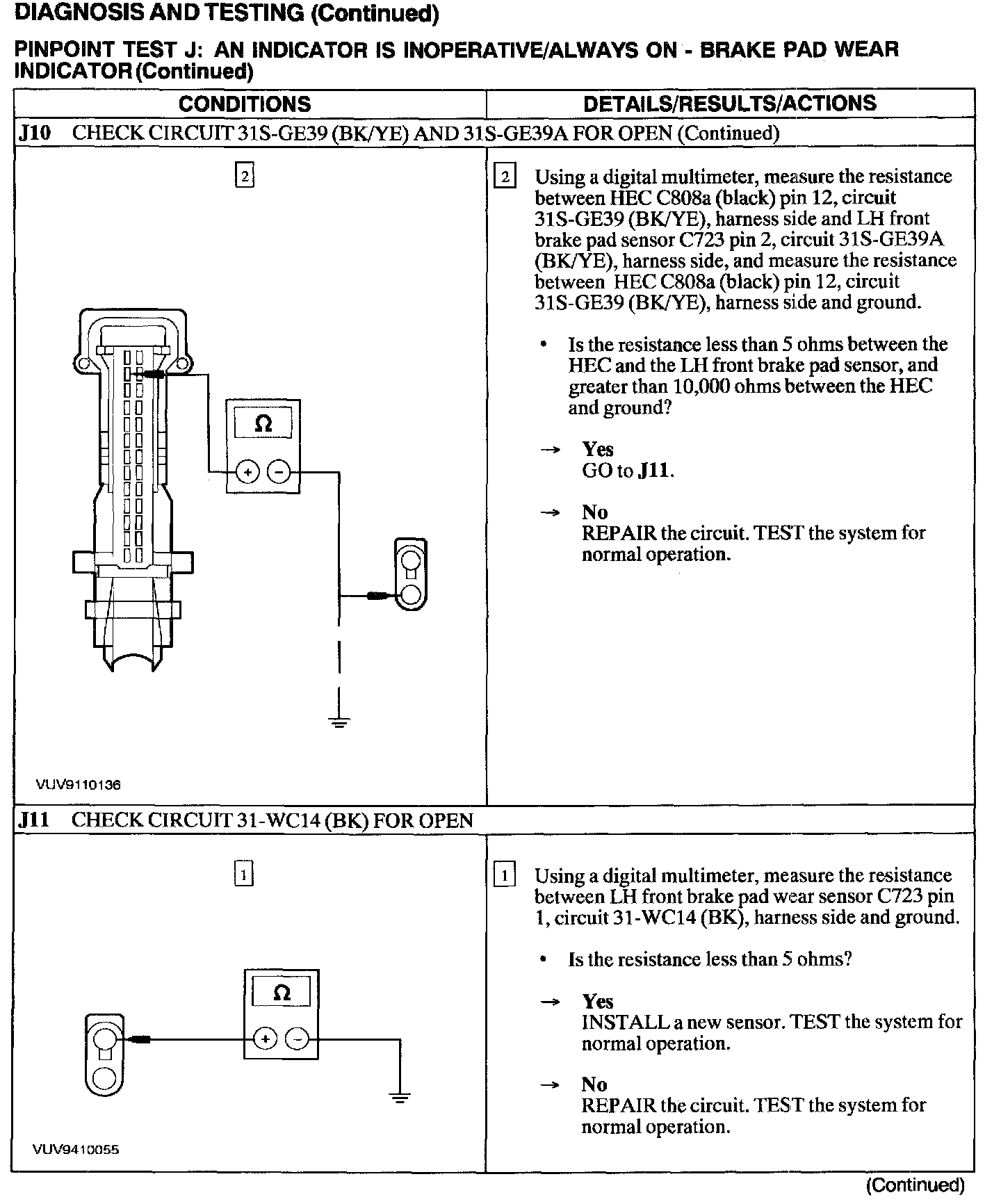

J10 - J11:






J12 - J13:

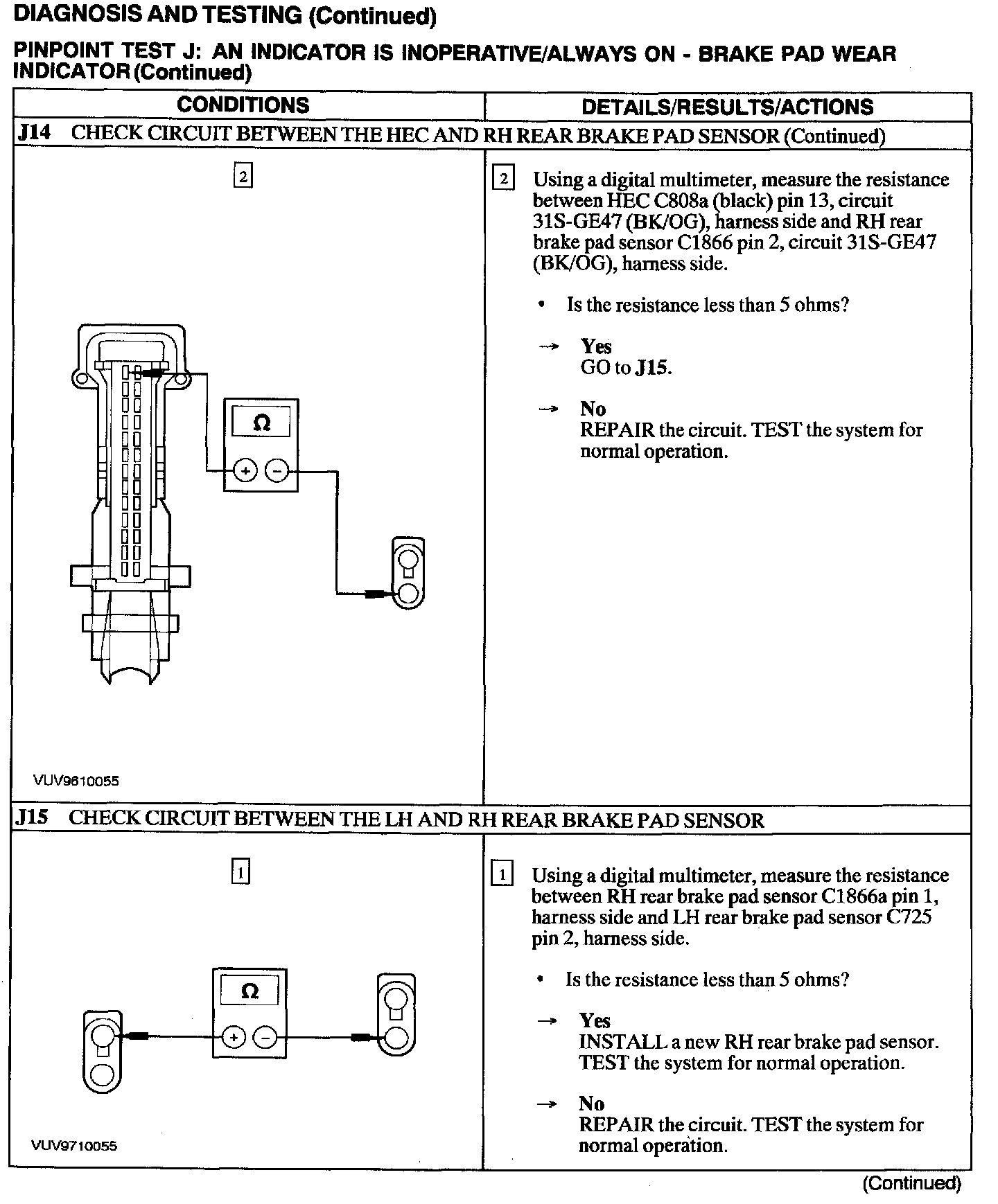

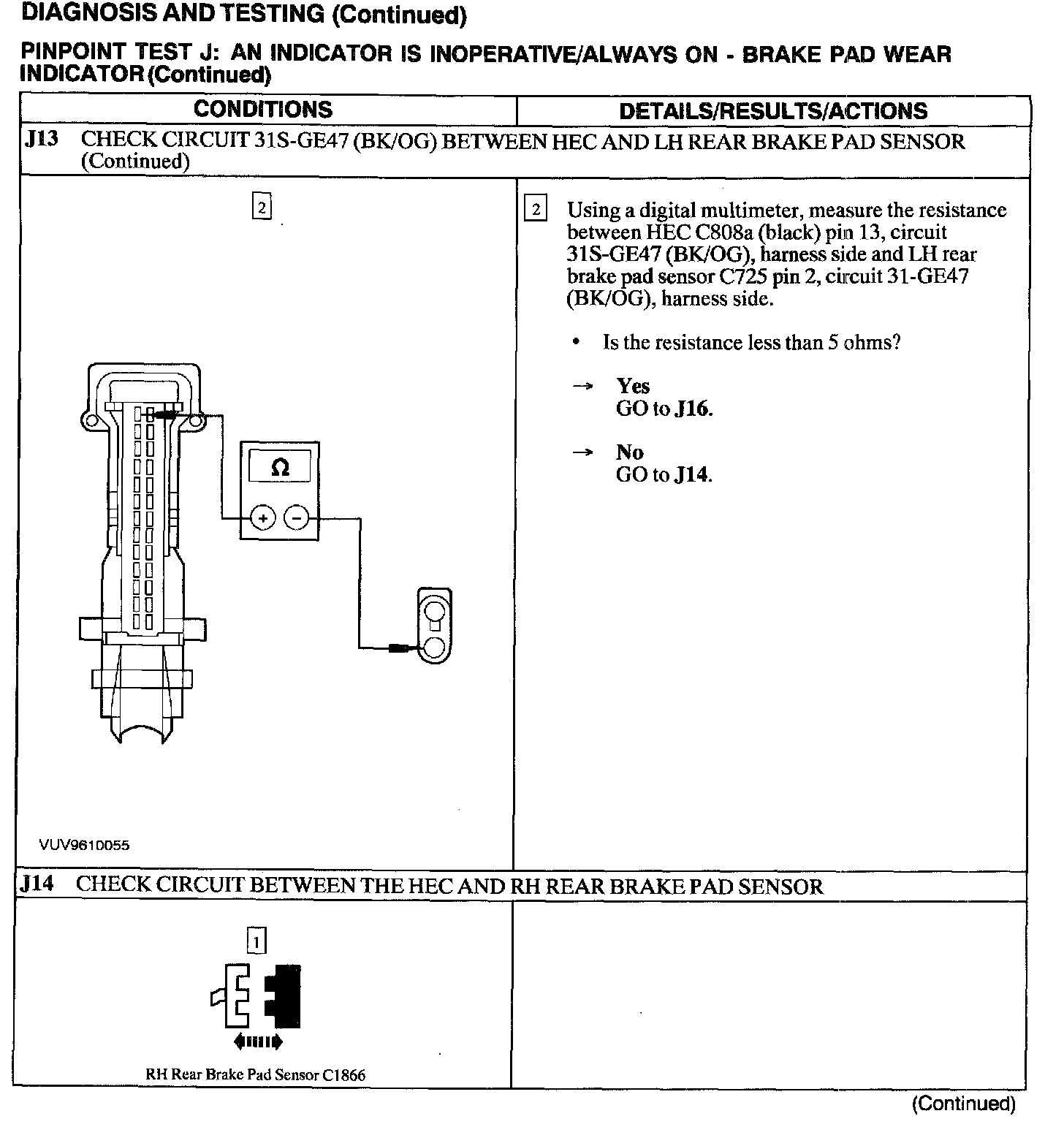

J13 - J14:






J14 - J15:

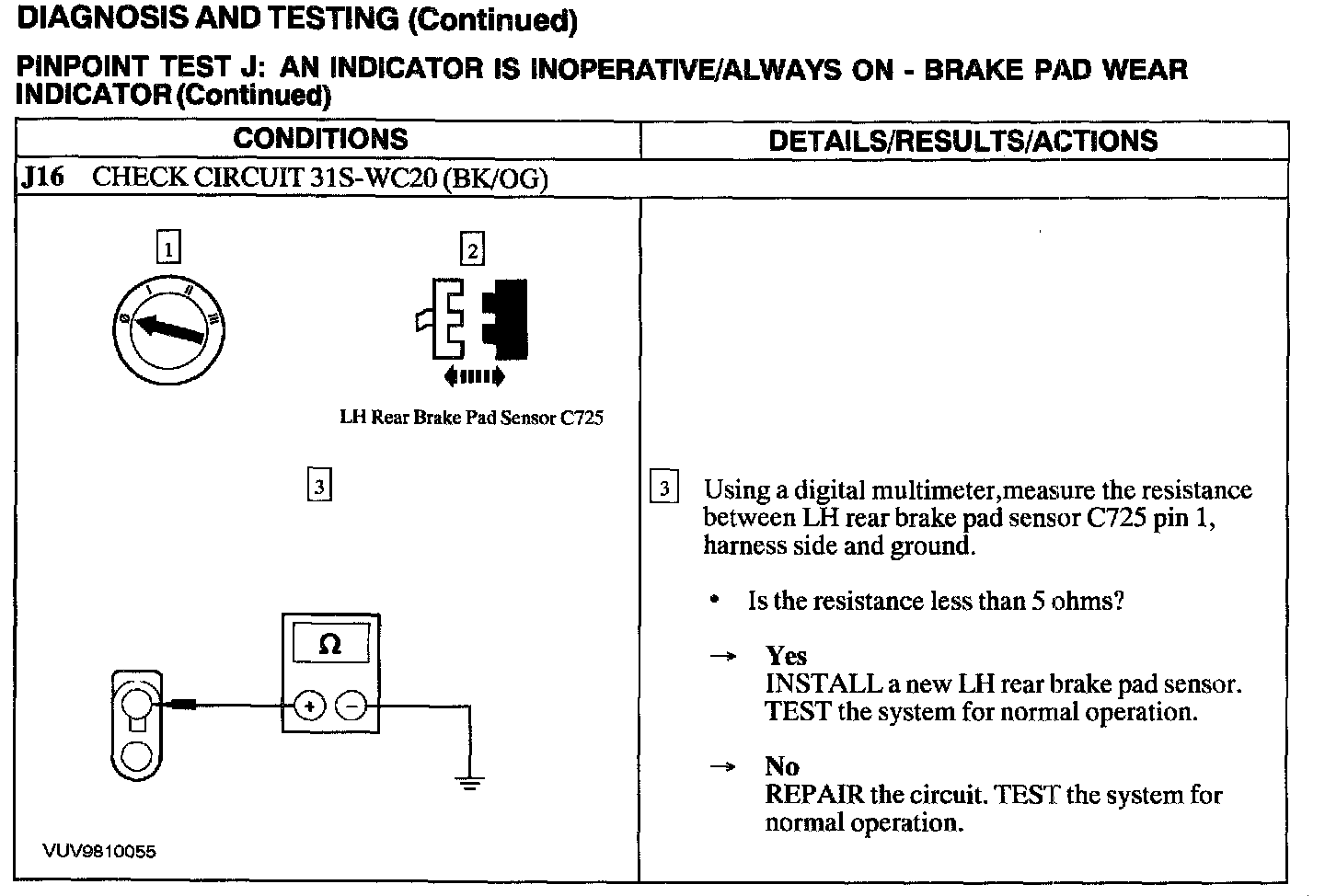

J16:
