Test I: Indicator Inop/Always On - Frost Warning Indicator
Test I: Indicator Inop/Always On - Frost Warning Indicator

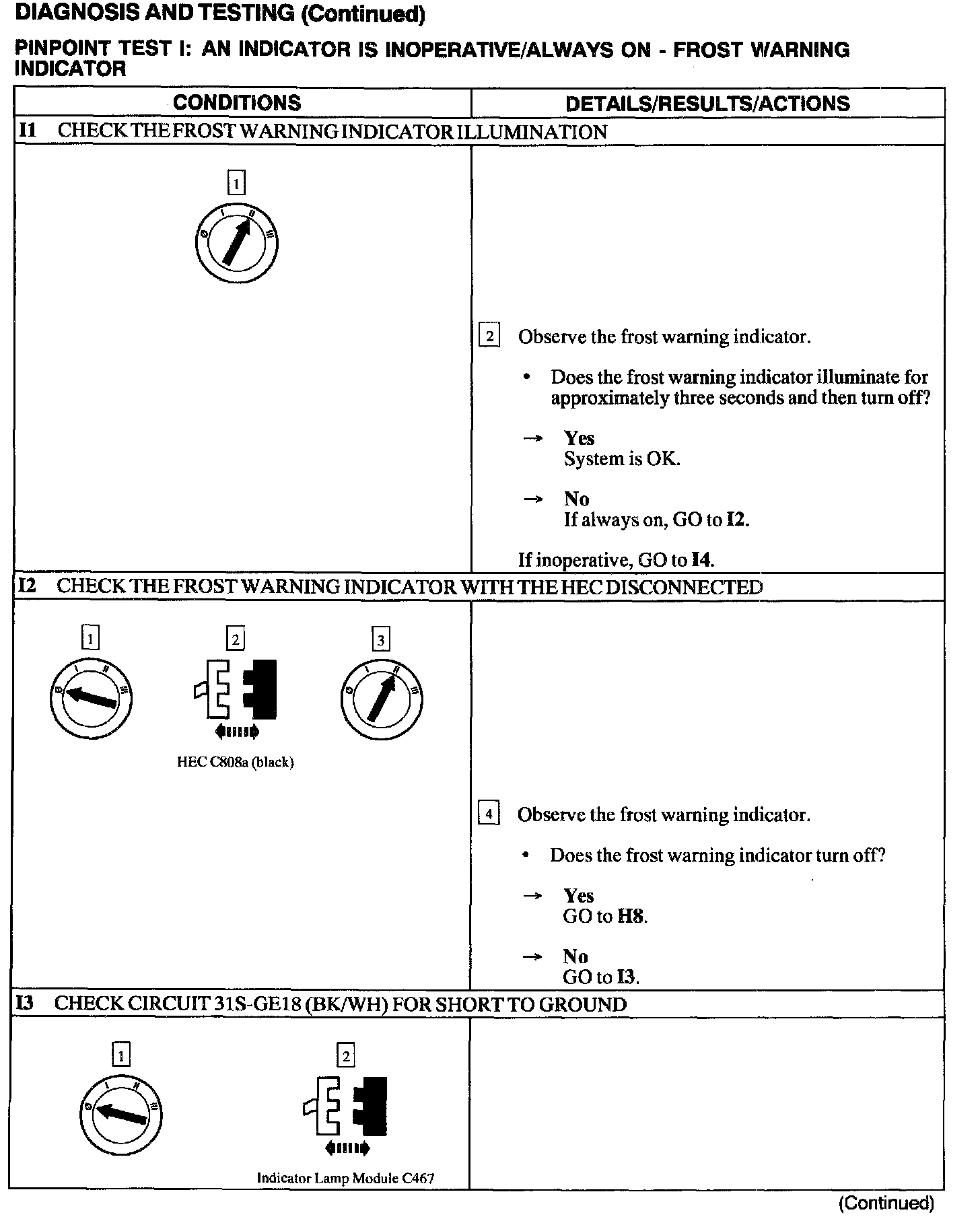

I1 - I3:

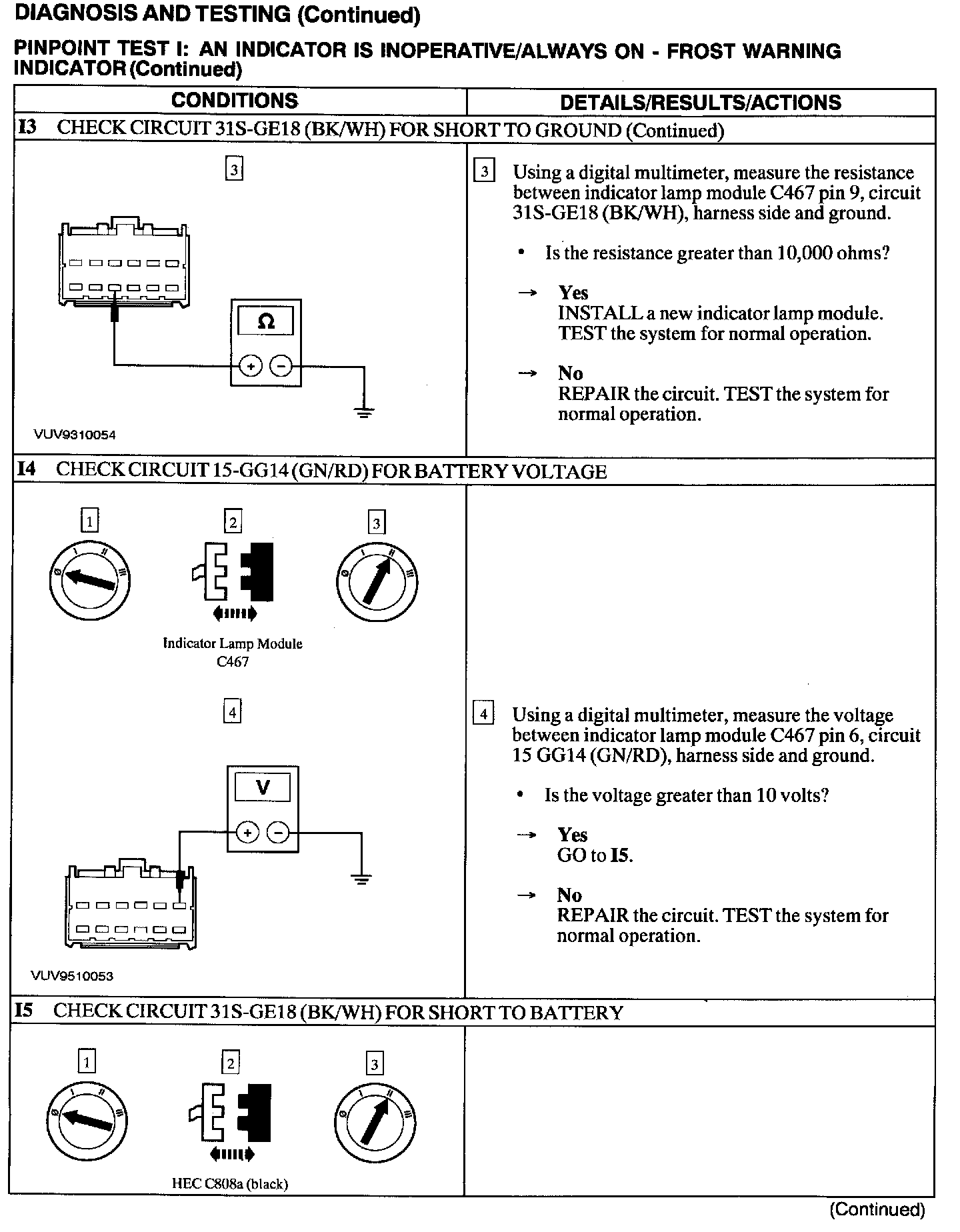

I3 - I5:

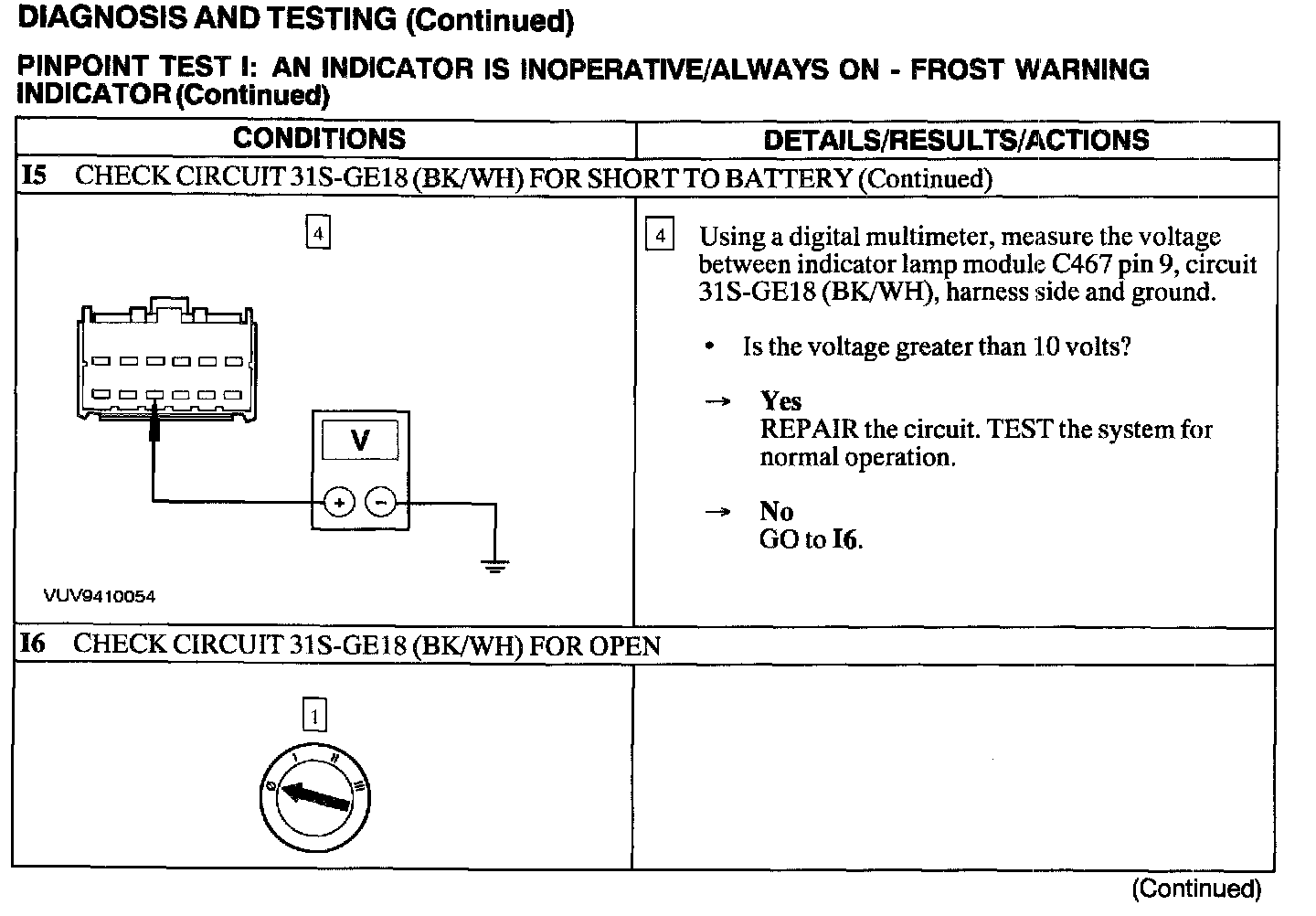

I5 - I6:

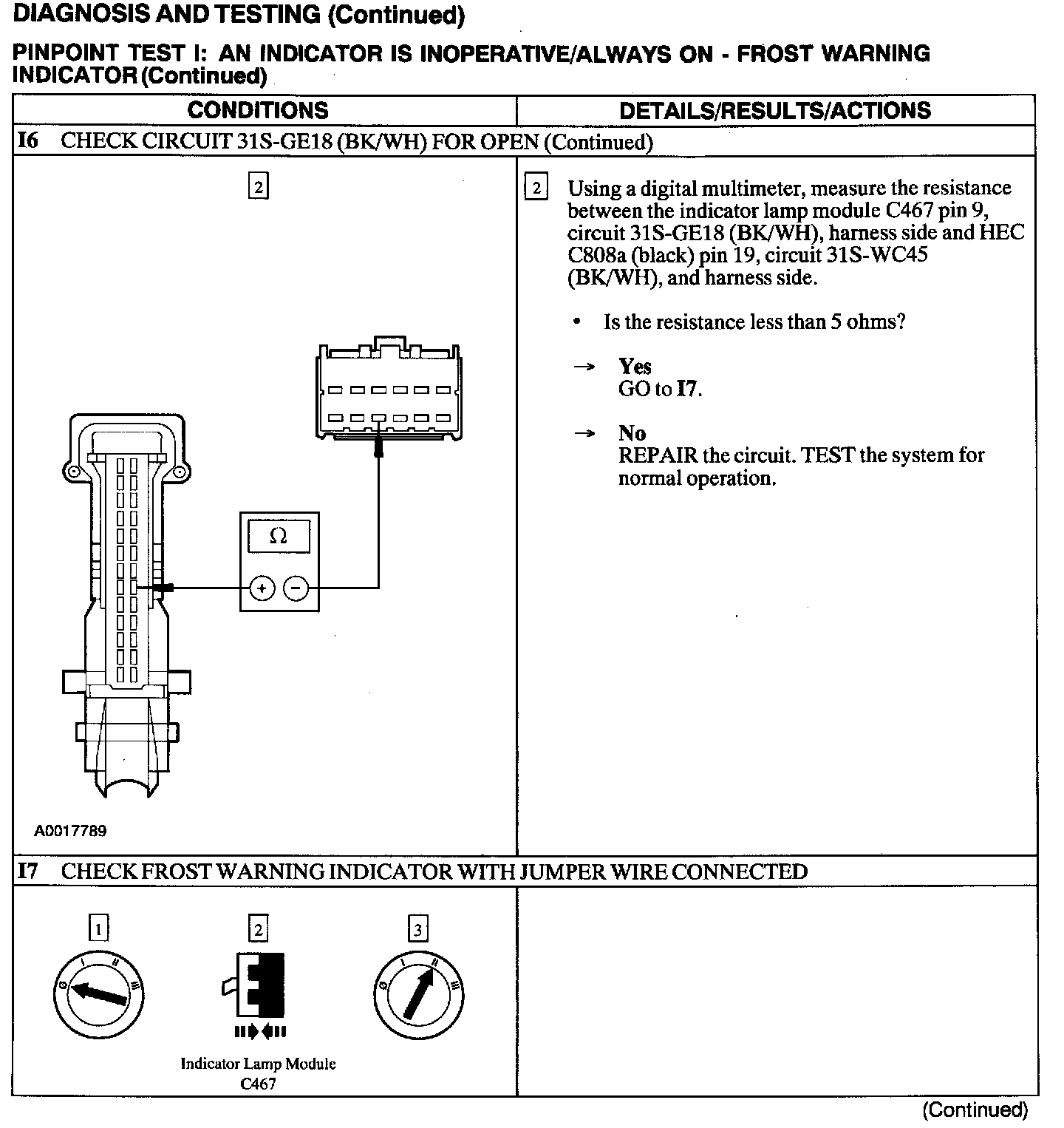

I6 - I7:

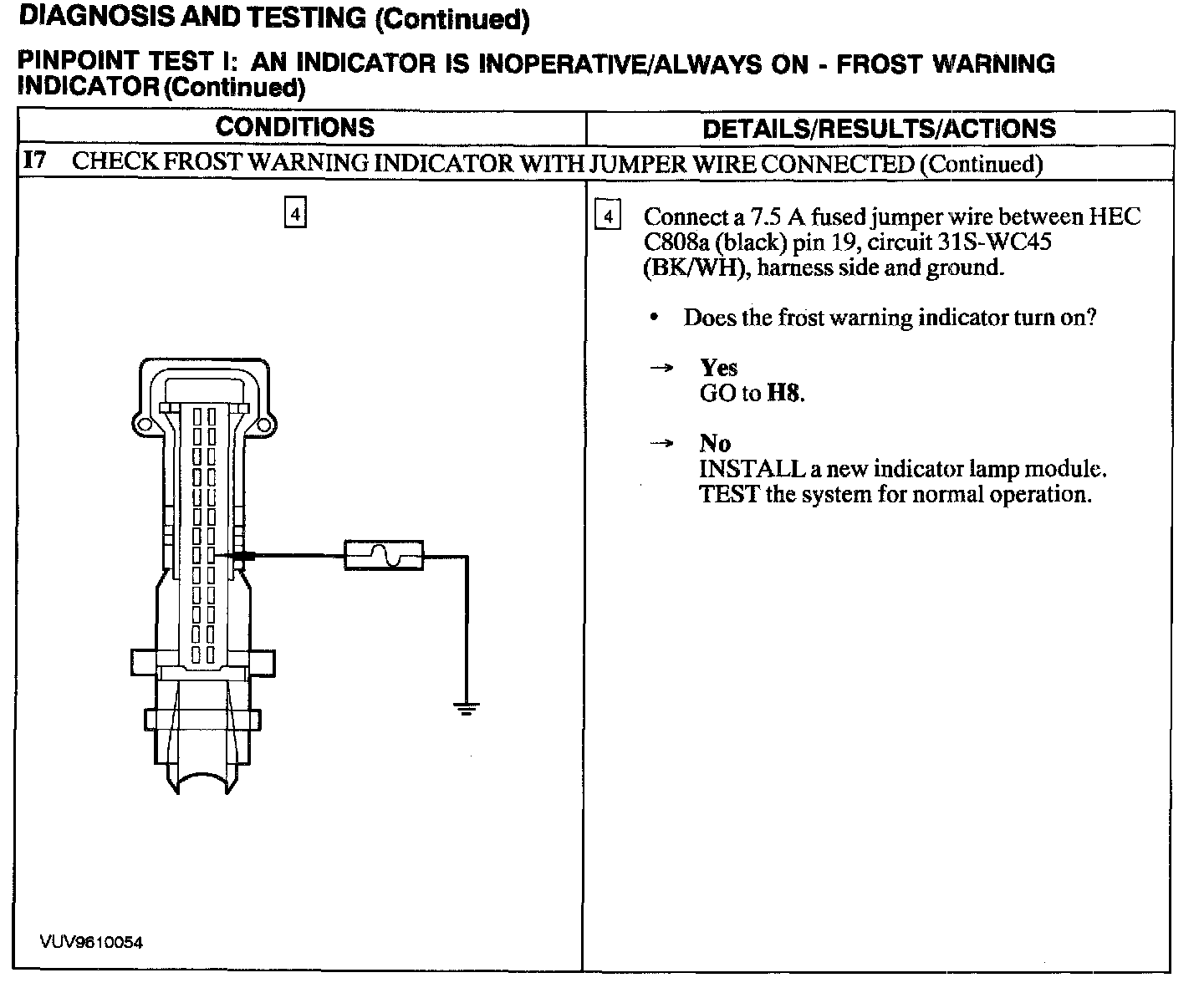

I7:
