Test G: Indicator Inop/Always On Maintenance Interval Warning

G1 - G2:

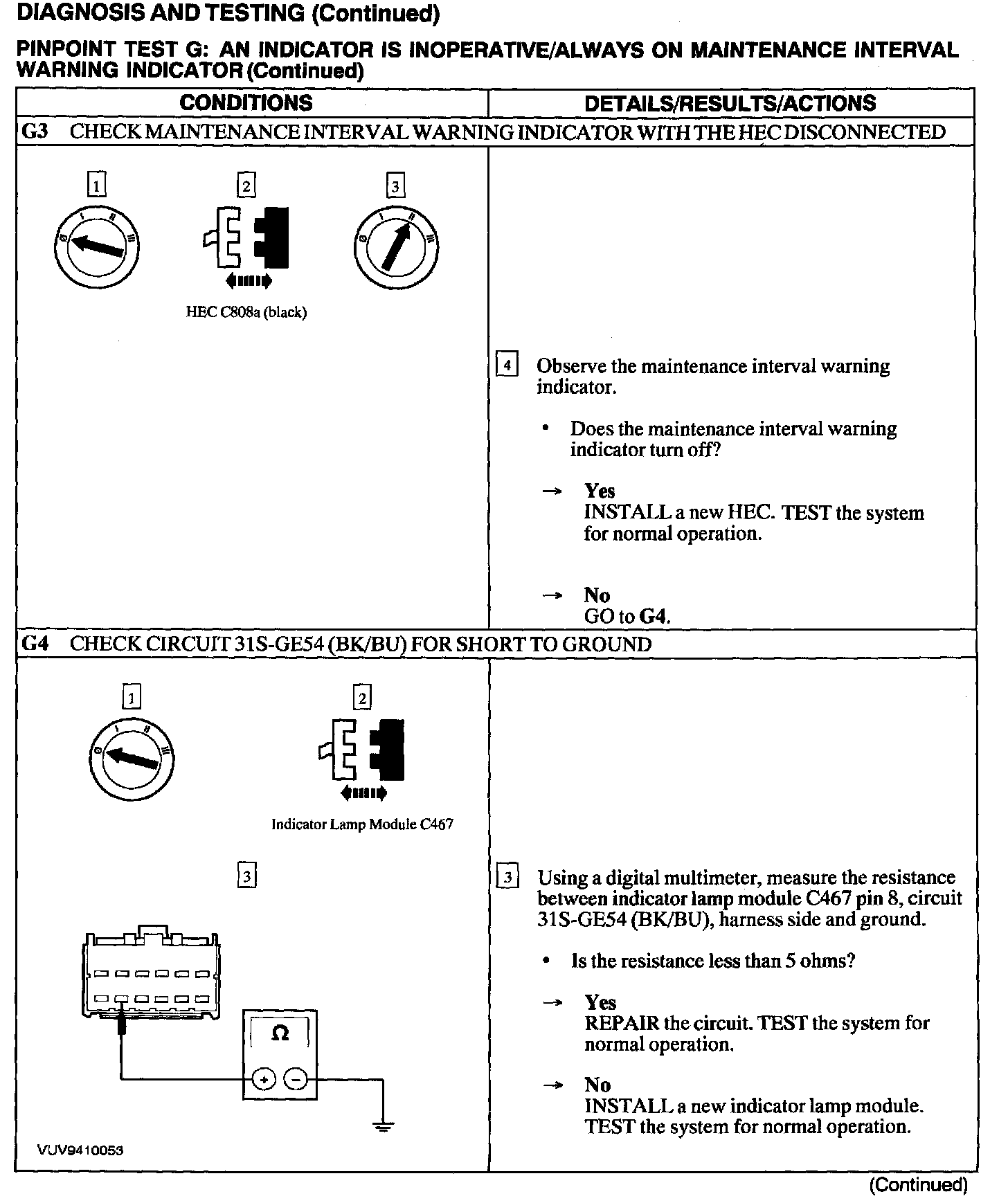

G3 - G4:

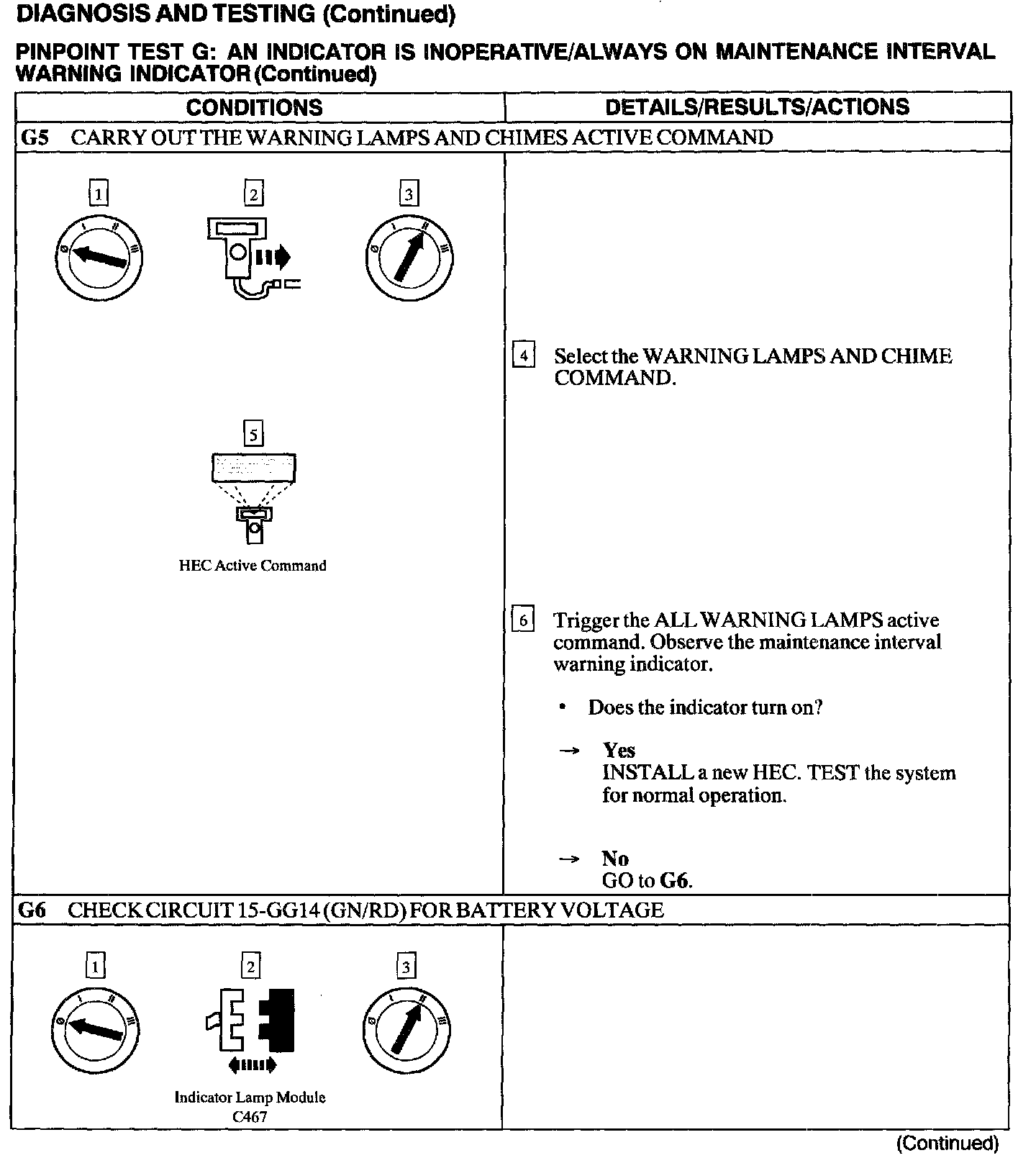

G5 - G6:

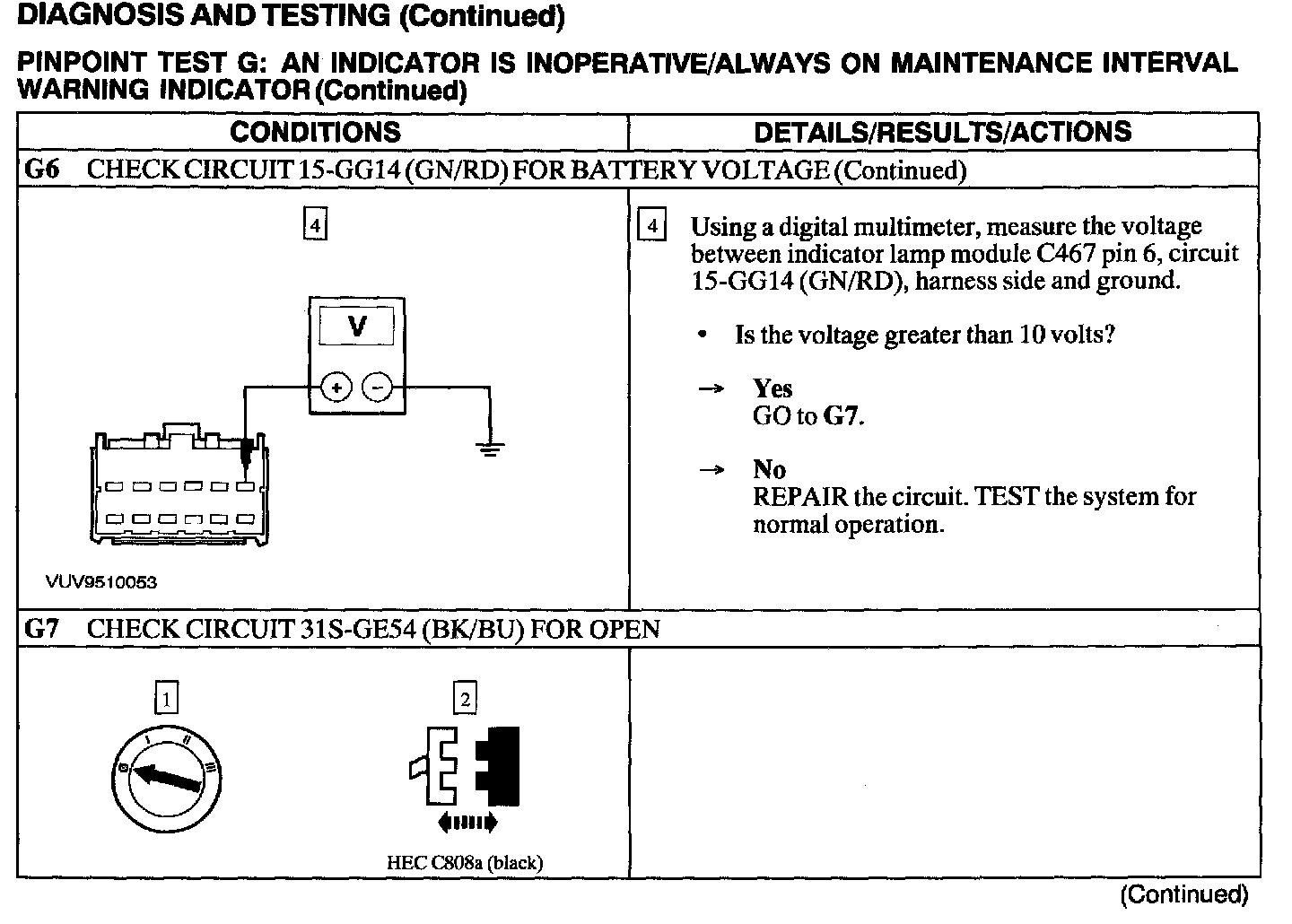

G6 - G7:

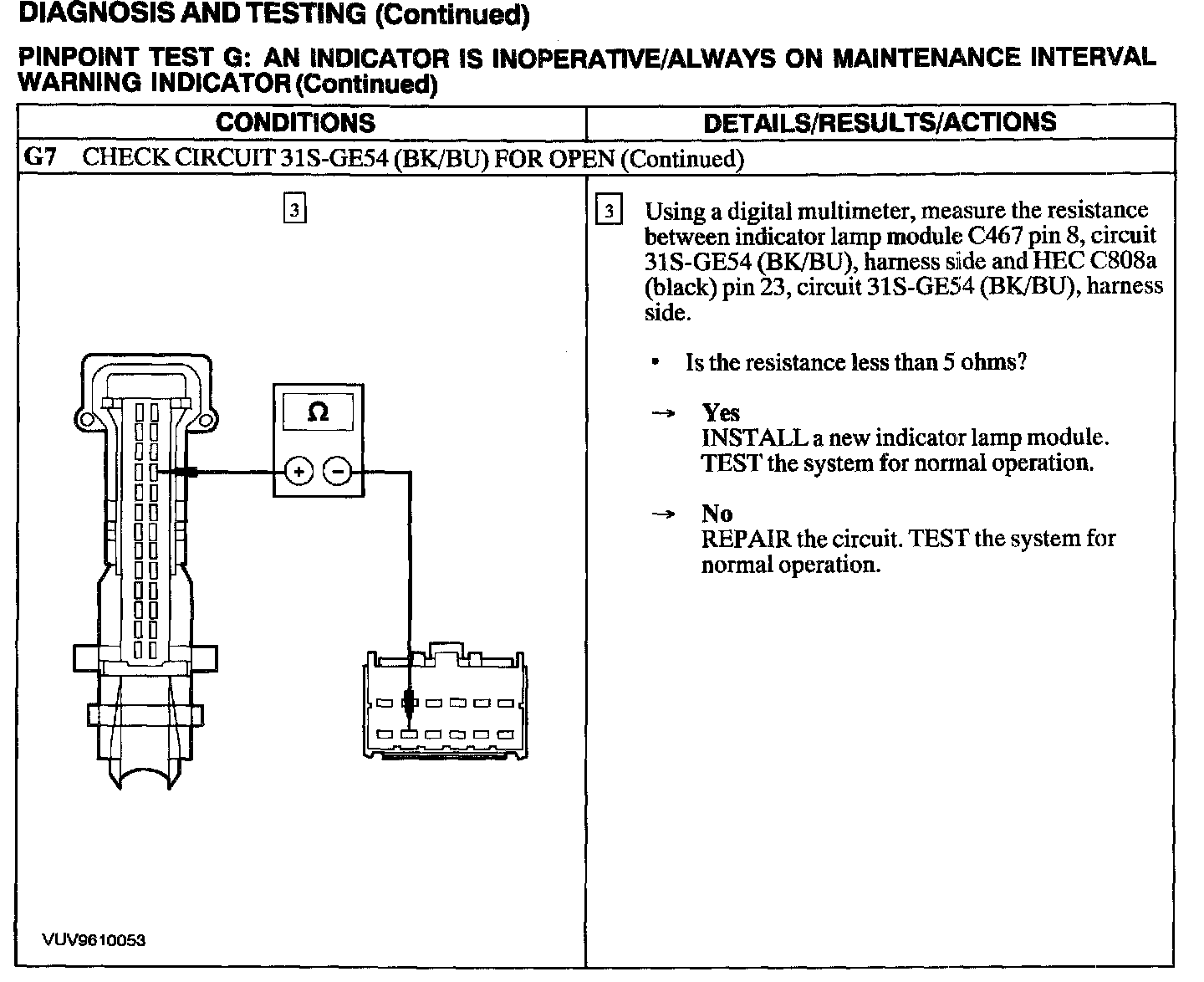

G7:
