Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Information and Message Center >> Test A: No Comm. With Hybrid Electronic Instrument Cluster

Test A: No Comm. With Hybrid Electronic Instrument Cluster

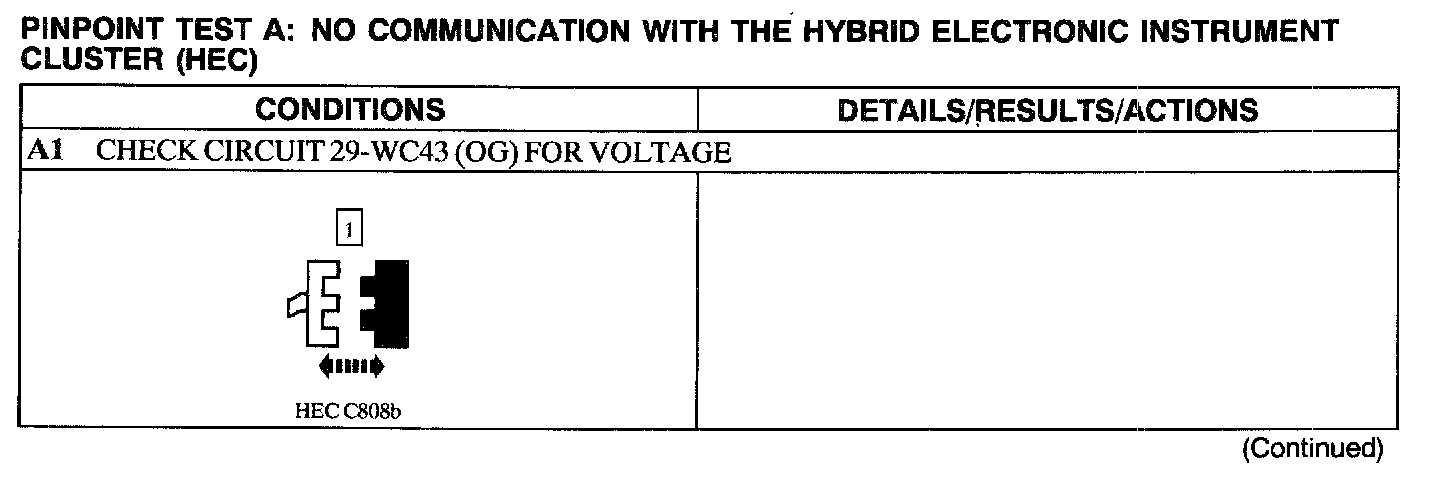

A1:

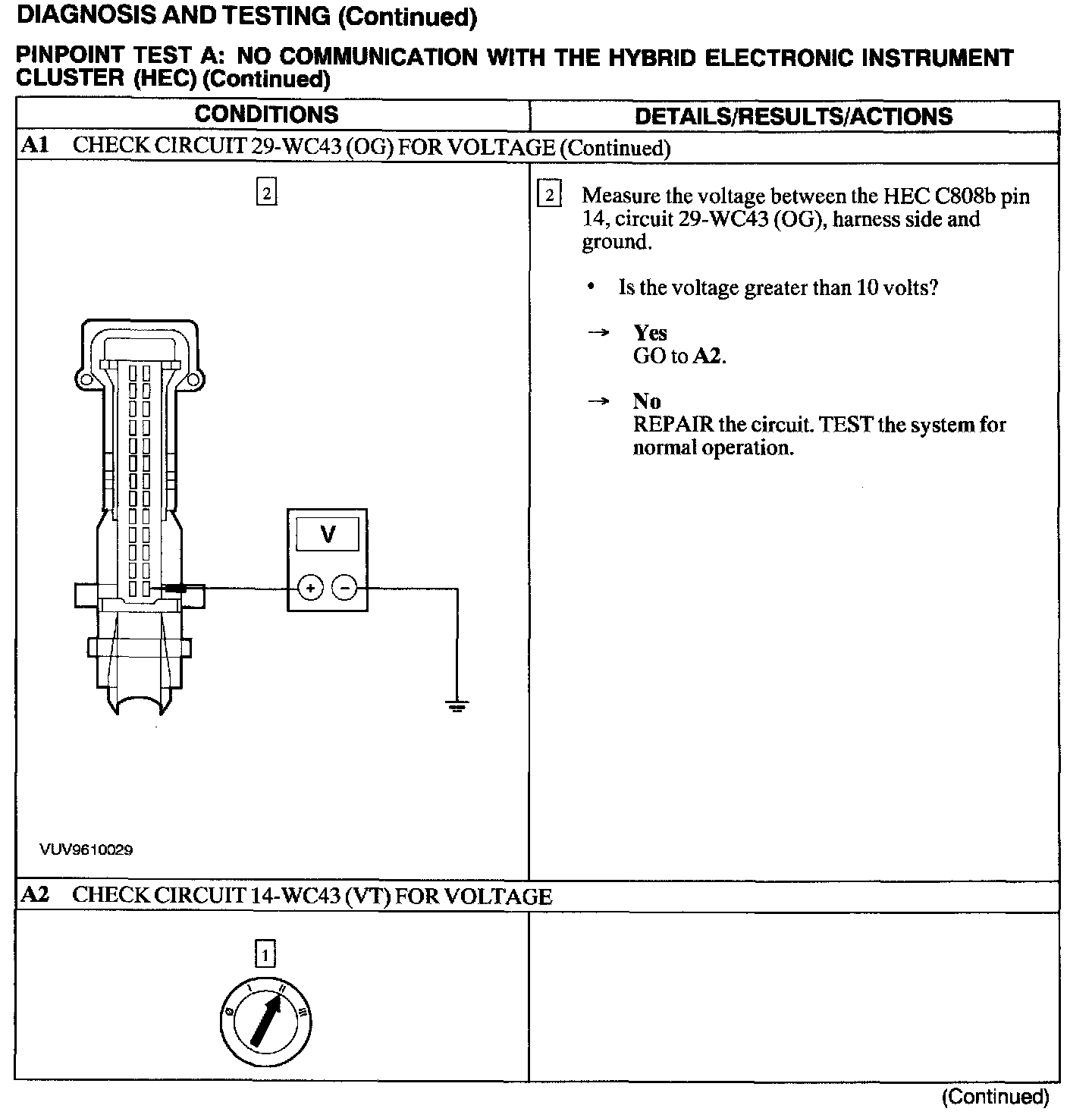

A1 - A2:

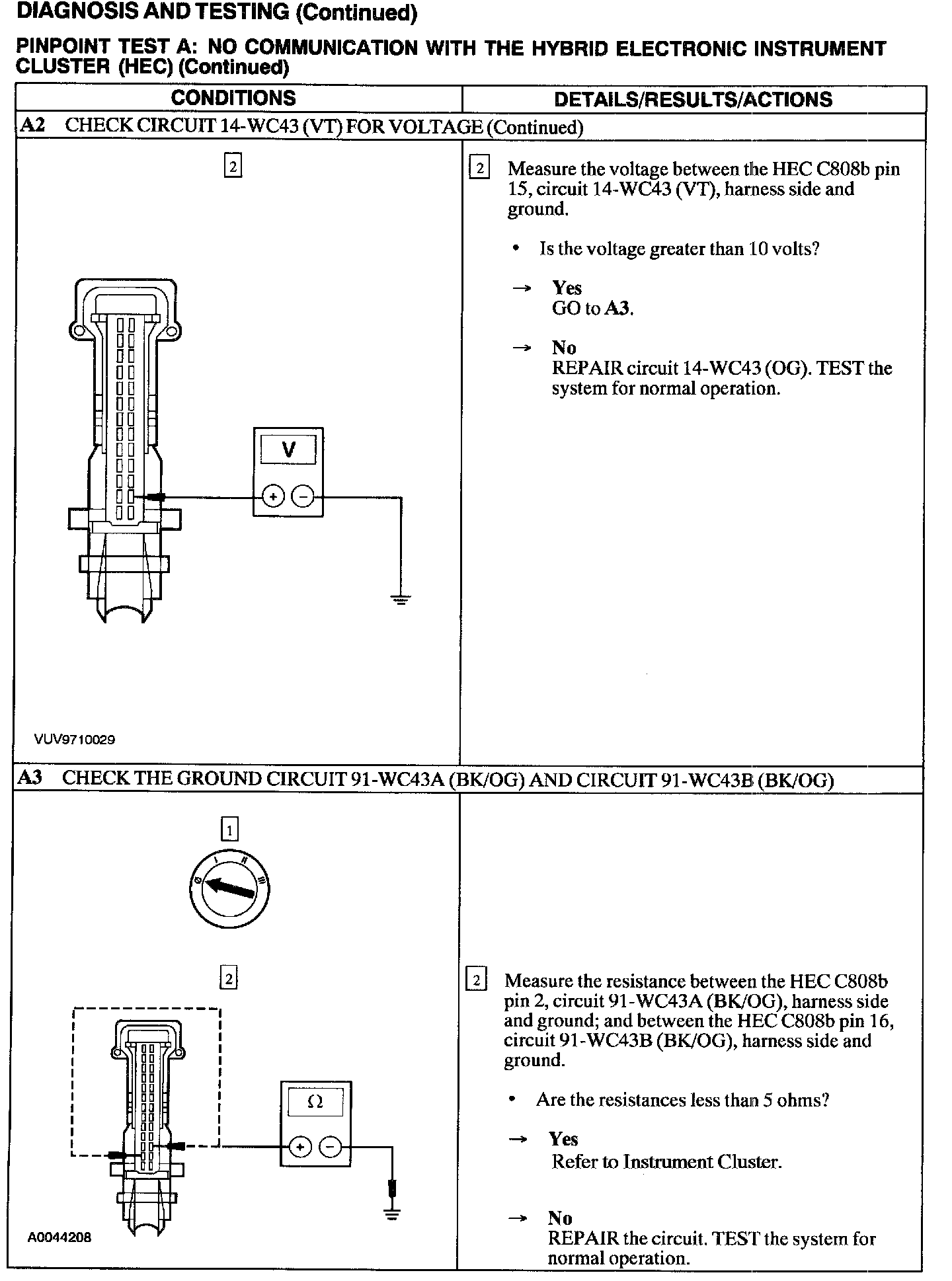

A2 - A3:
