Symptom Chart - Refrigerant Circuit

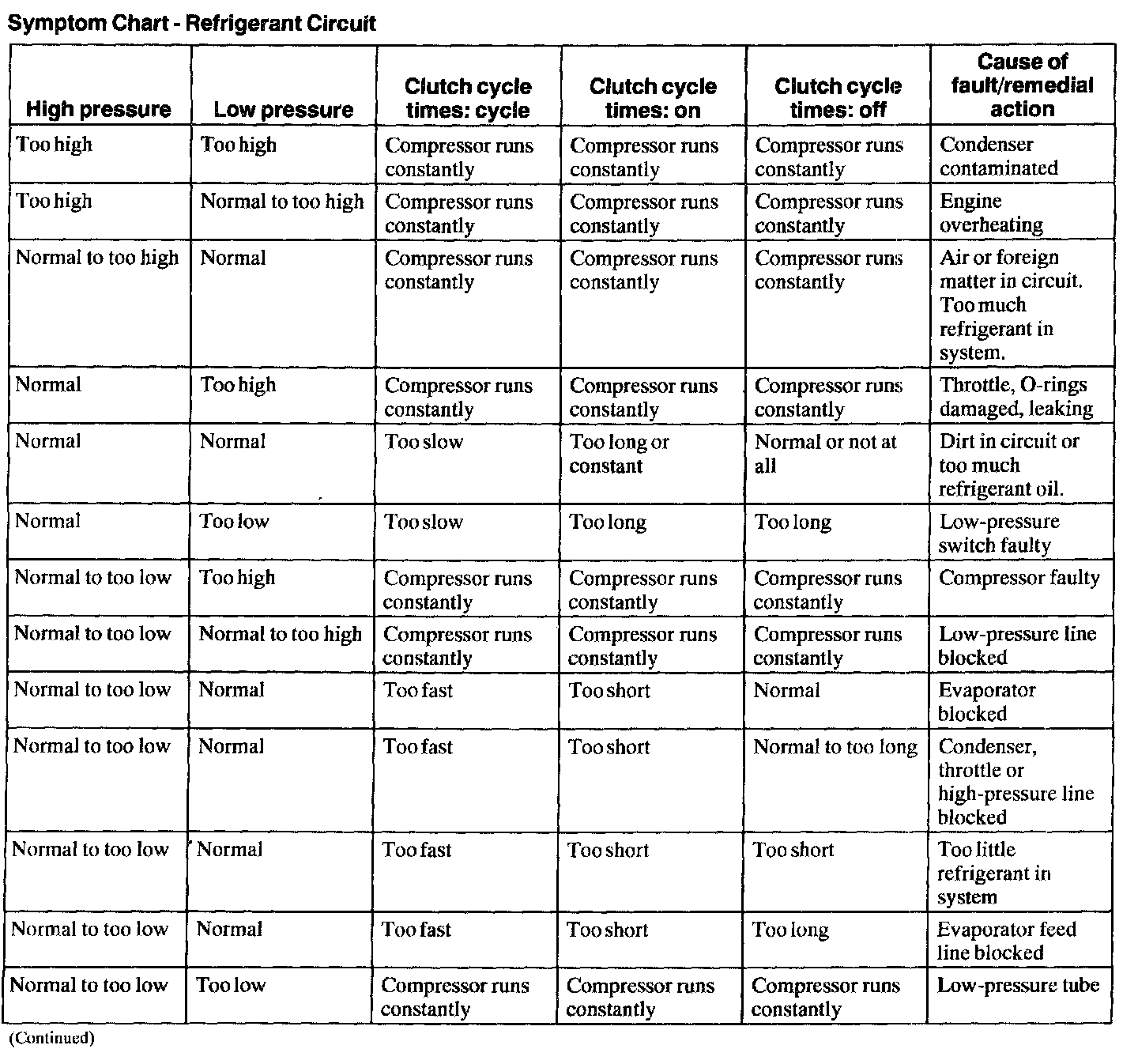

Symptom Chart - Refrigerant Circuit, Part 1:

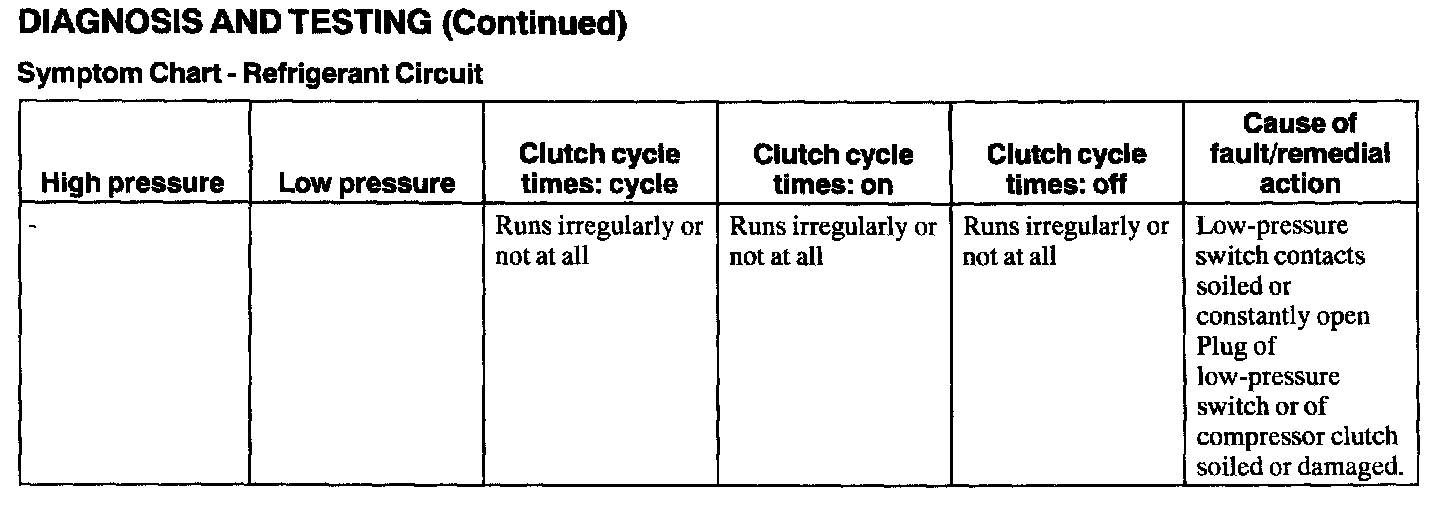

Symptom Chart - Refrigerant Circuit, Part 2:
