Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D: Incorrect/Erratic Direction Of Air Flow From Outlet
Test D: Incorrect/Erratic Direction Of Air Flow From Outlet

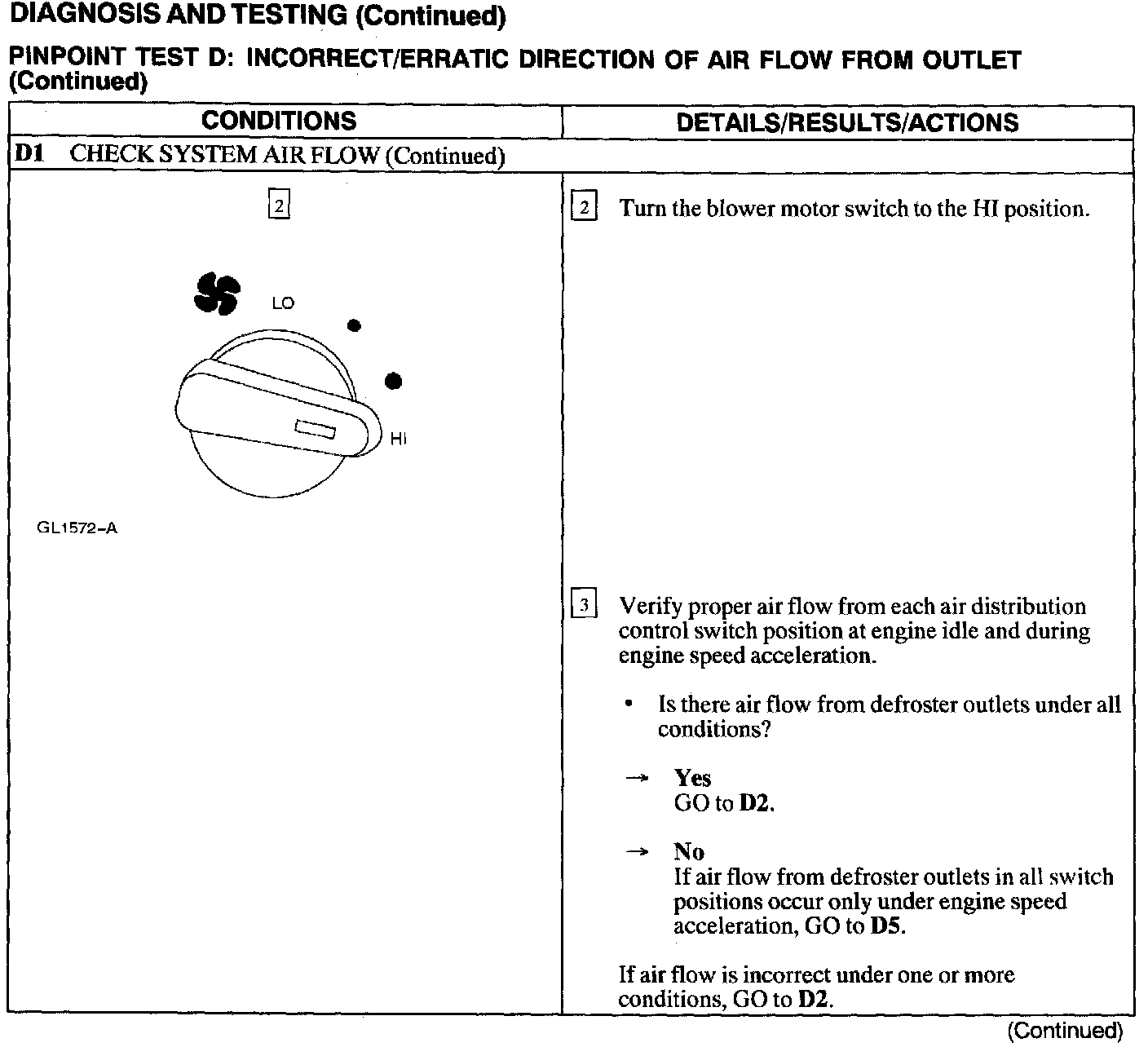

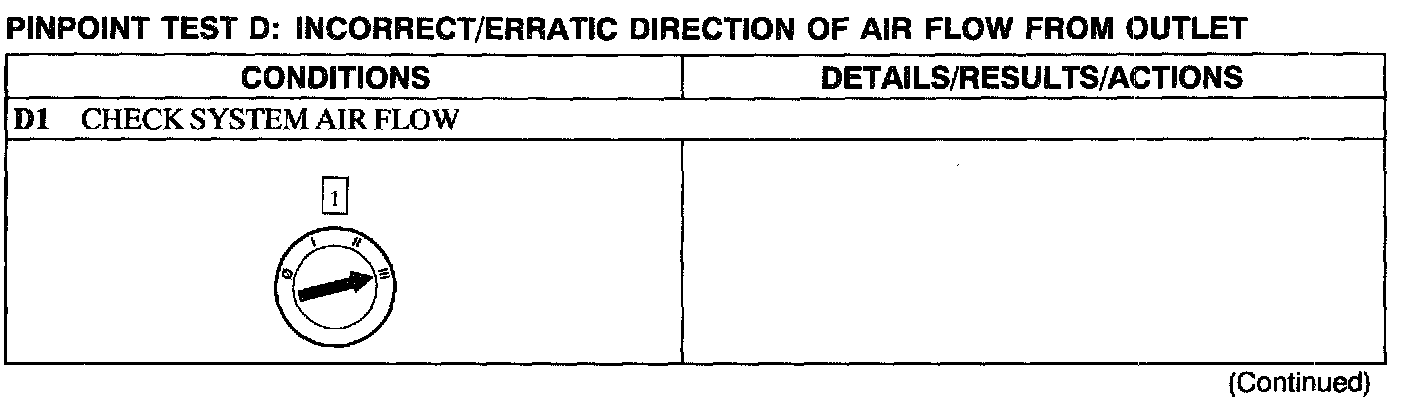

D1:
D1:

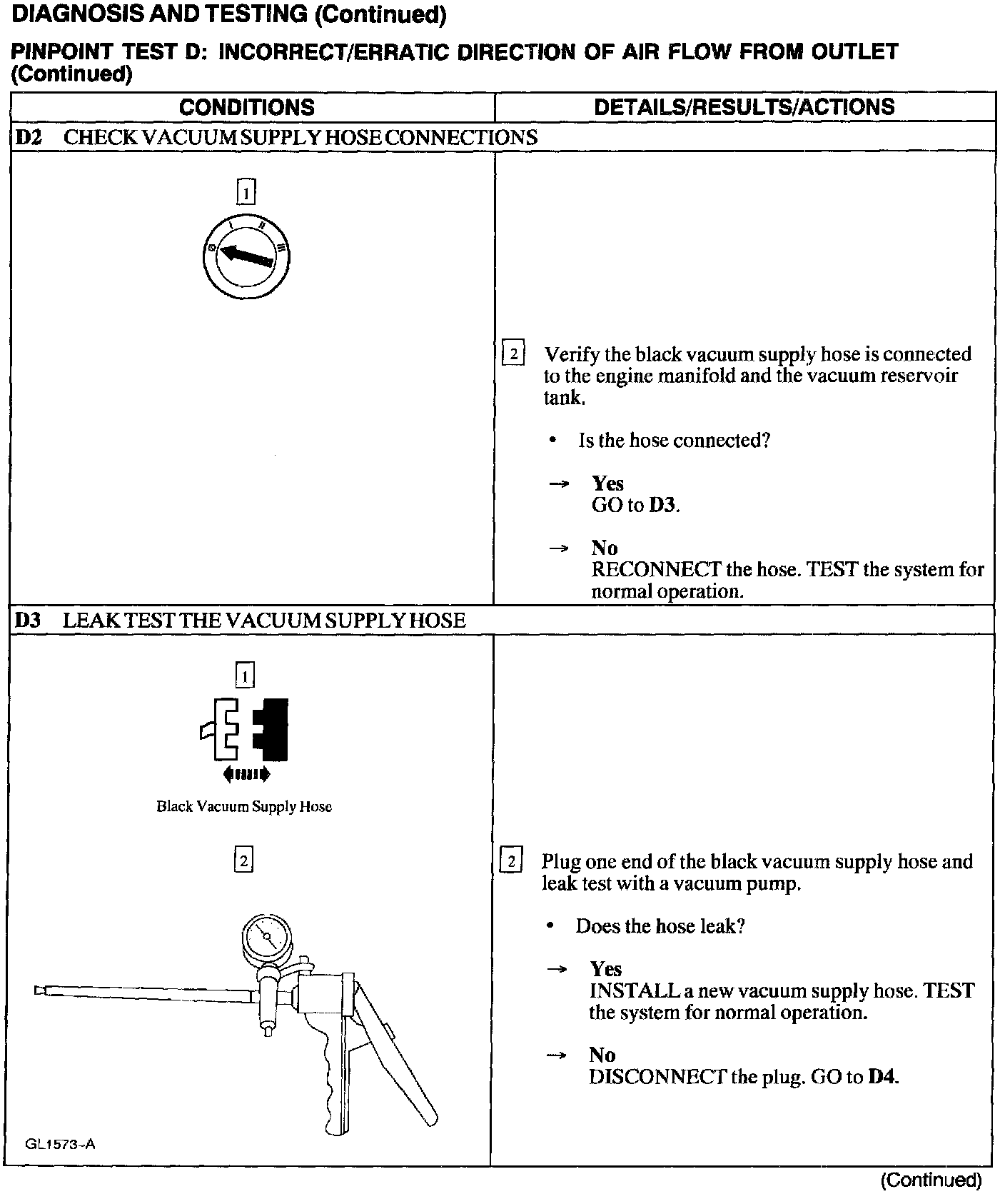

D2 - D3:

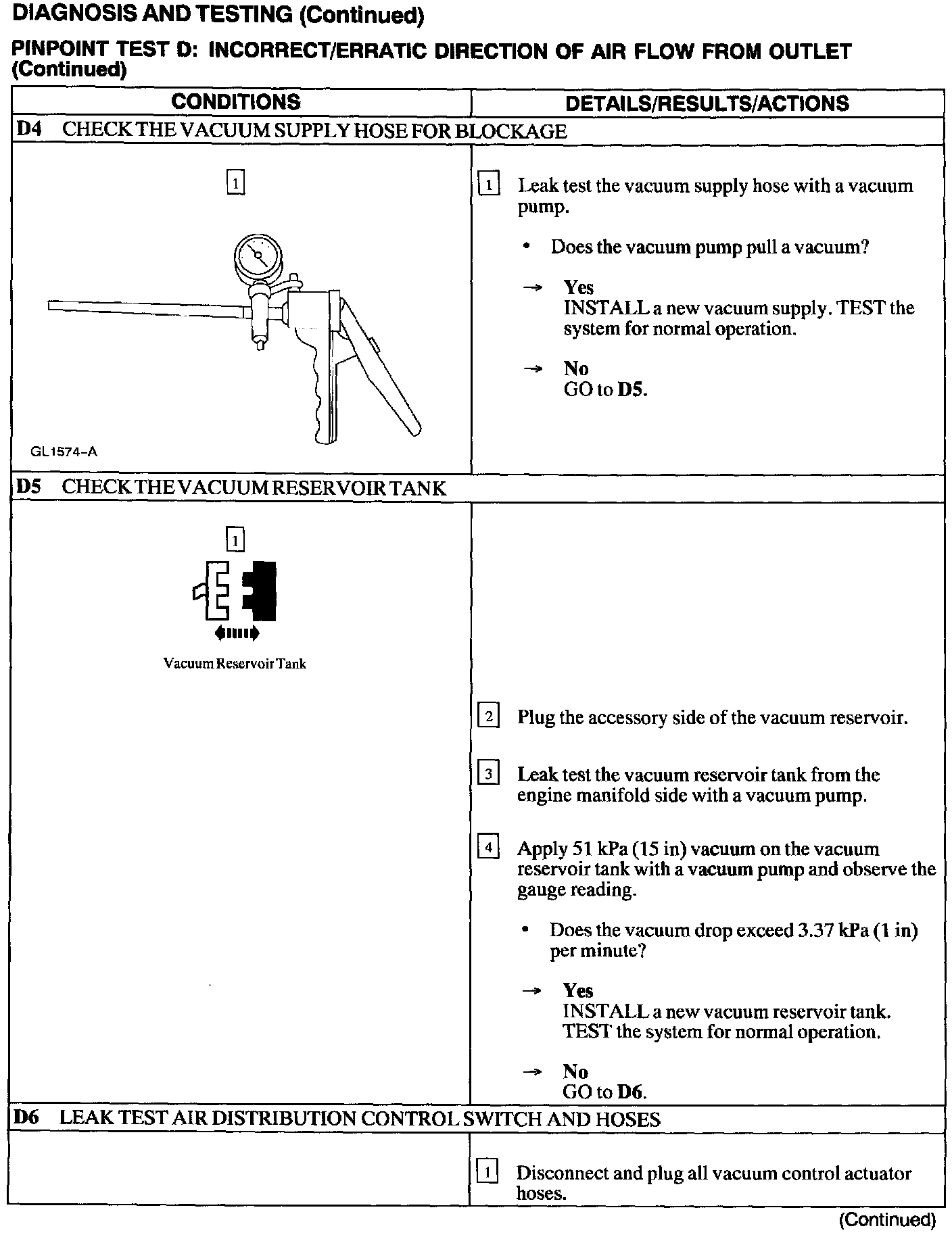

D4 - D6:

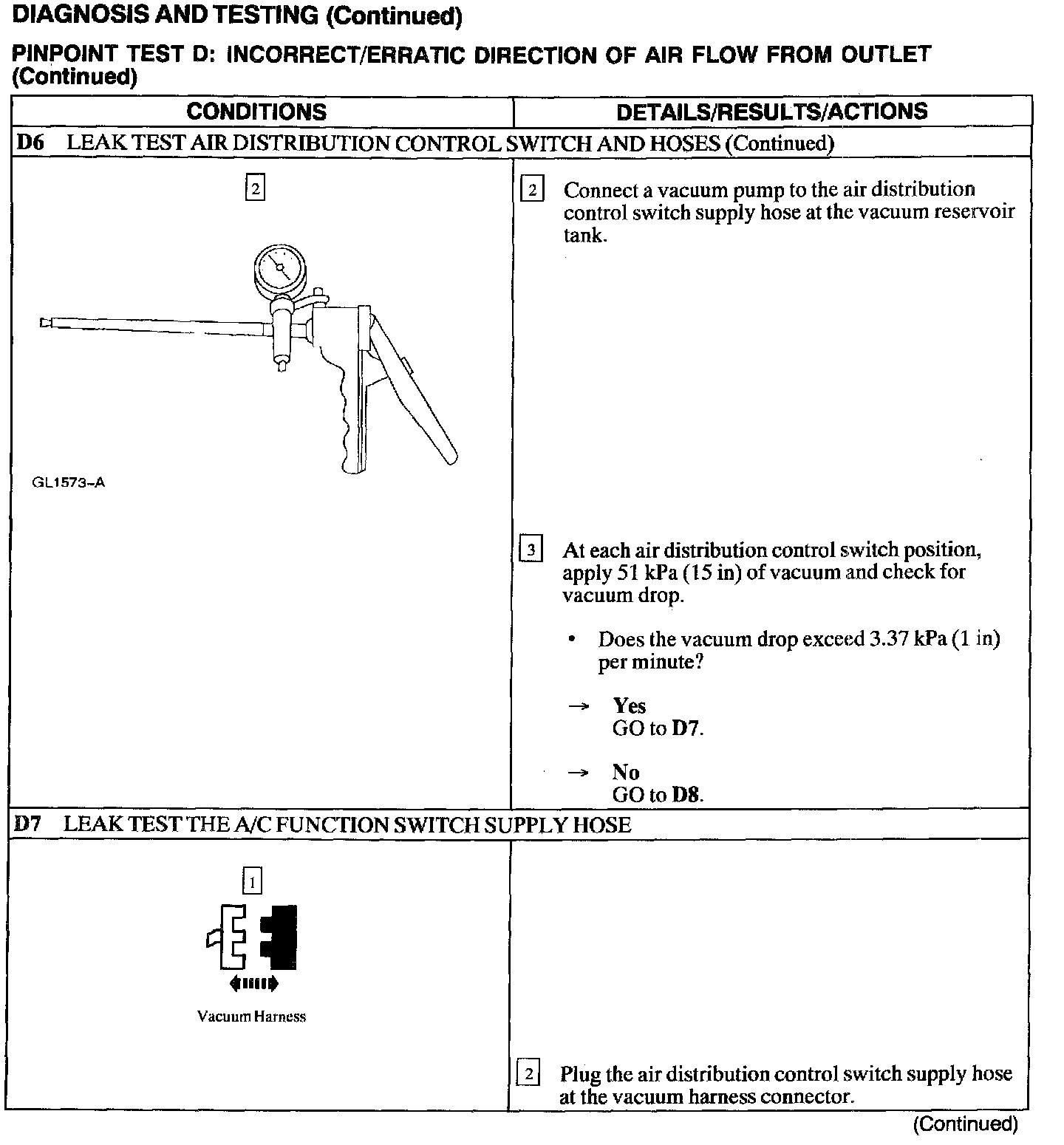

D6 - D7:

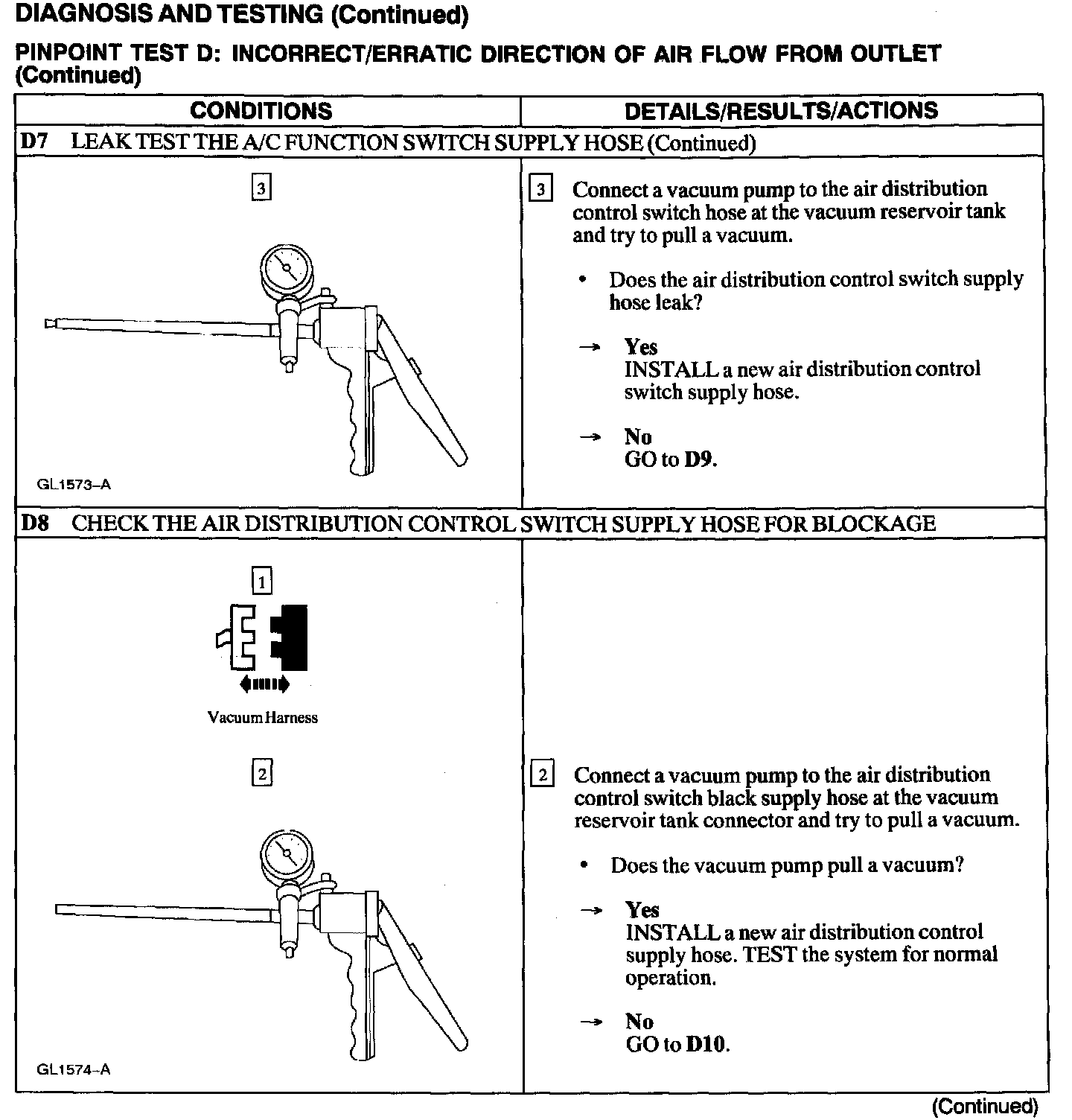

D7 - D8:

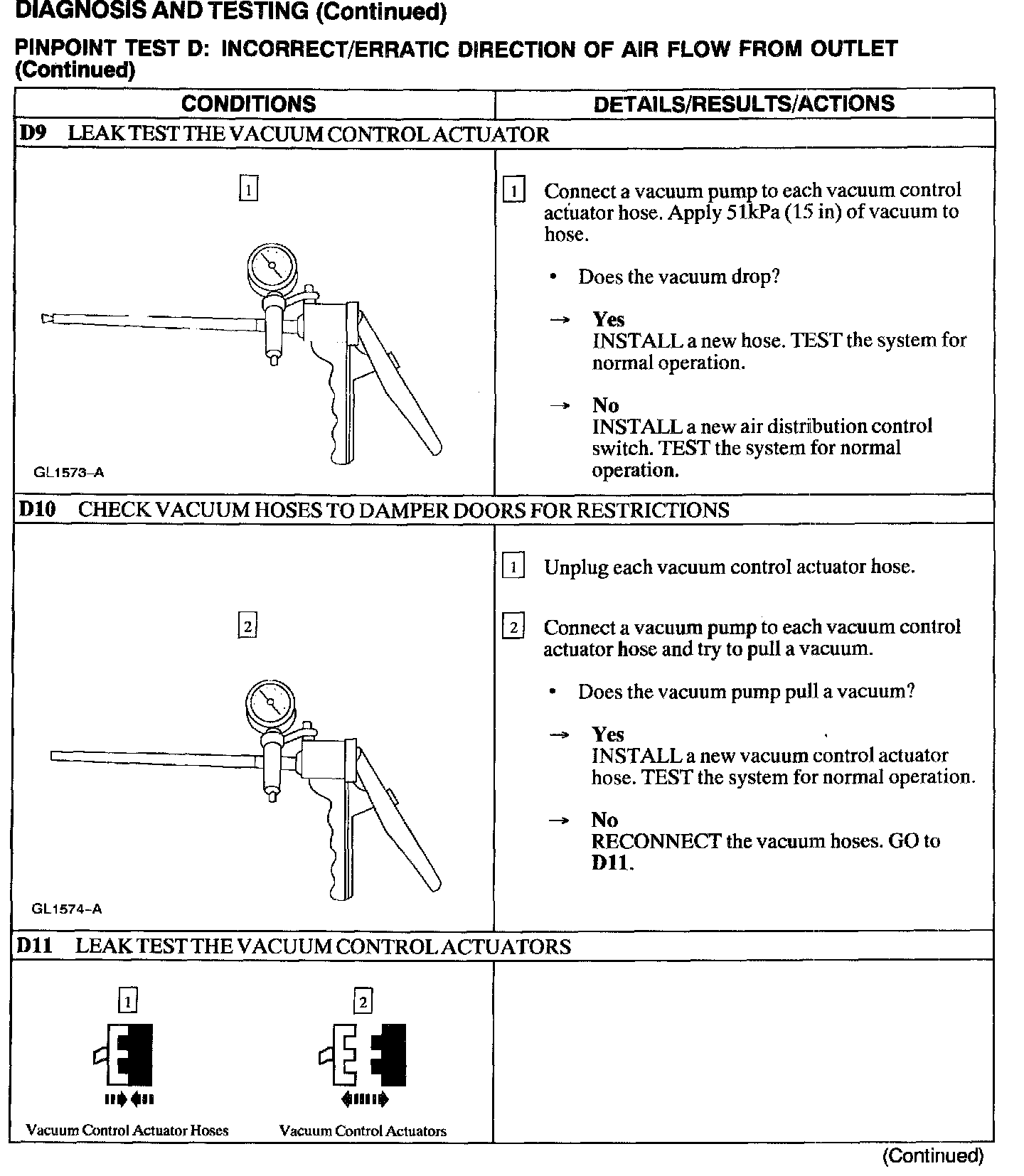

D9 - D11:

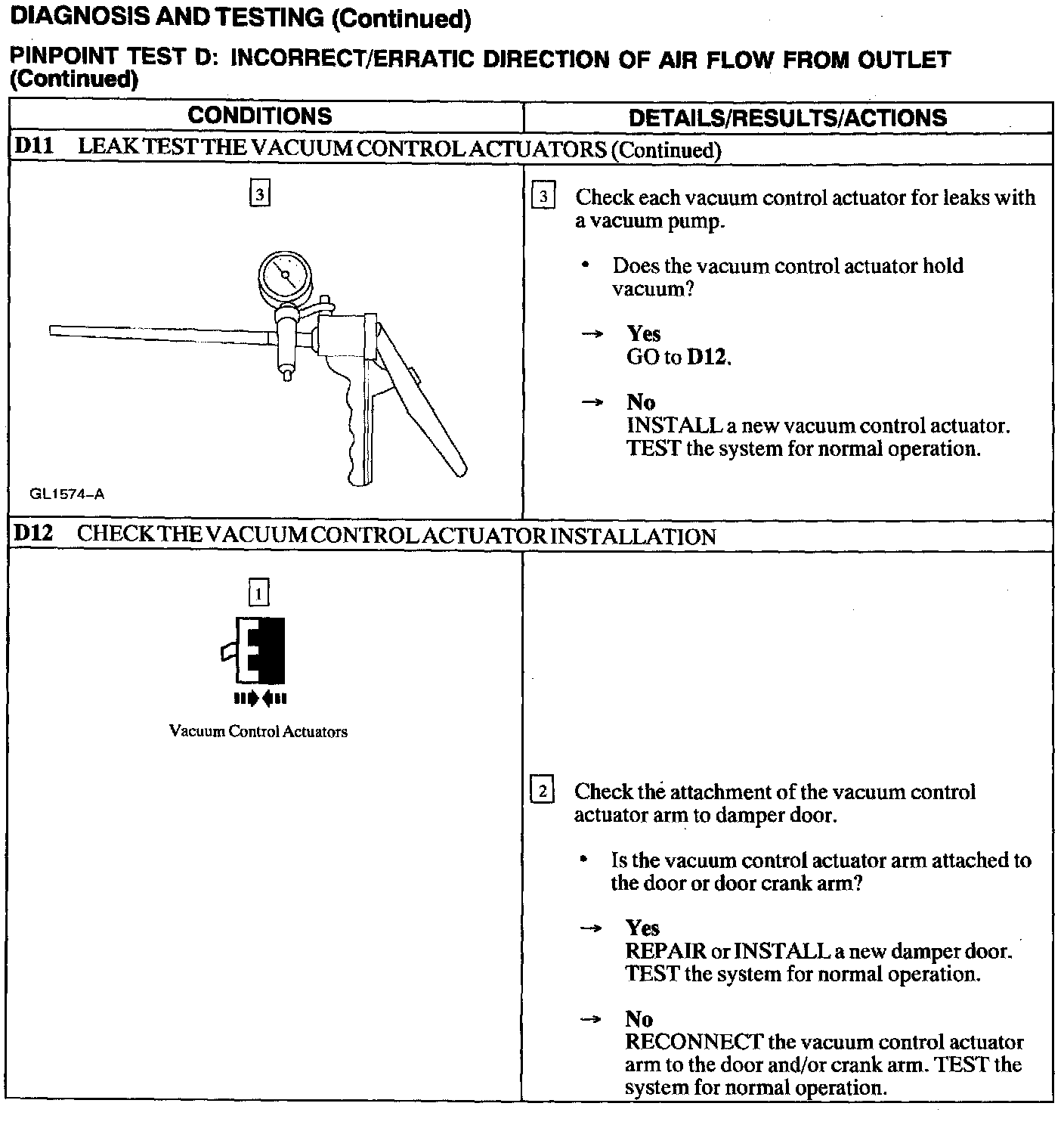

D11 - D12:
