Test C: Blower Motor Does Not Operate
Test C: Blower Motor Does Not Operate

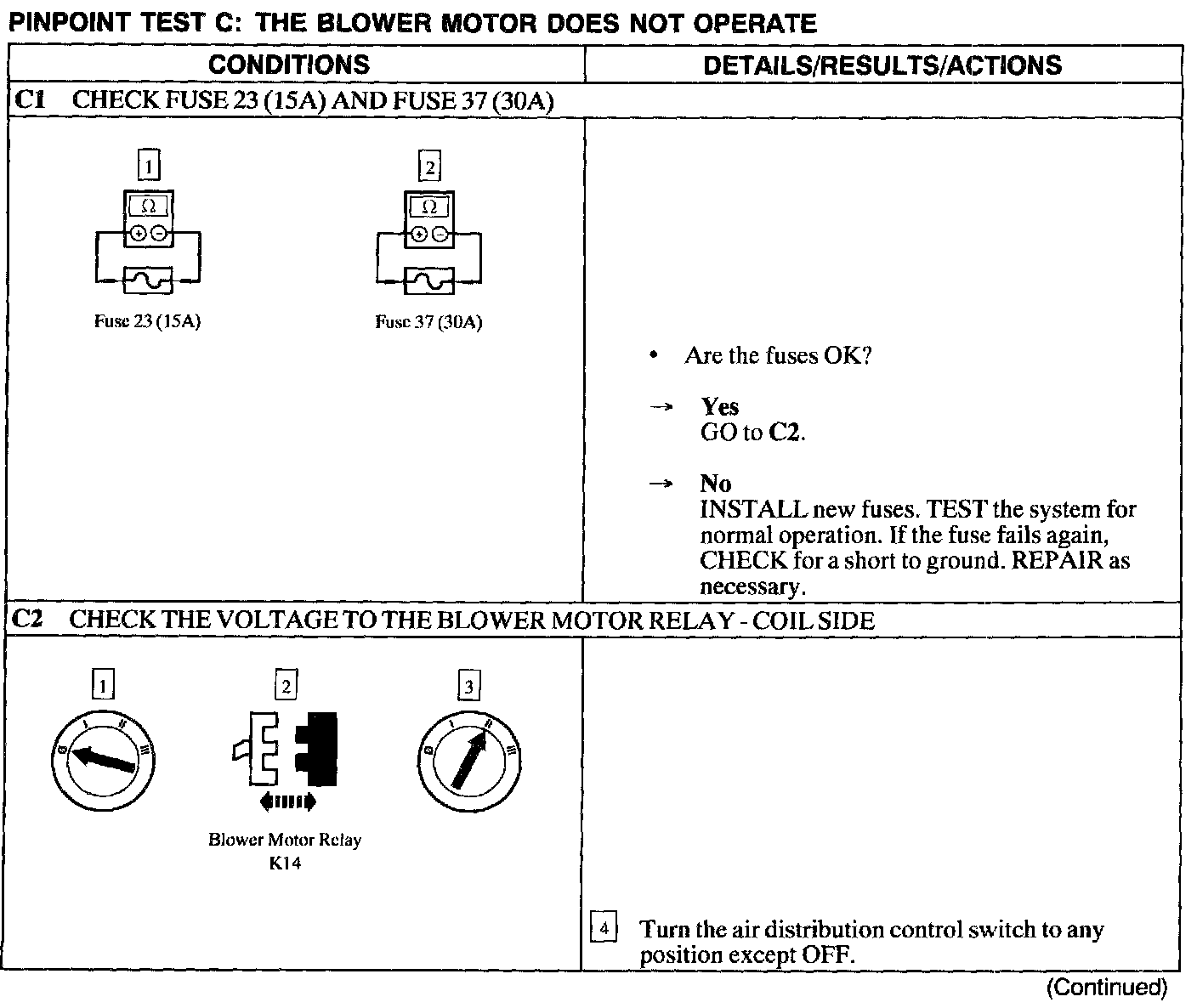

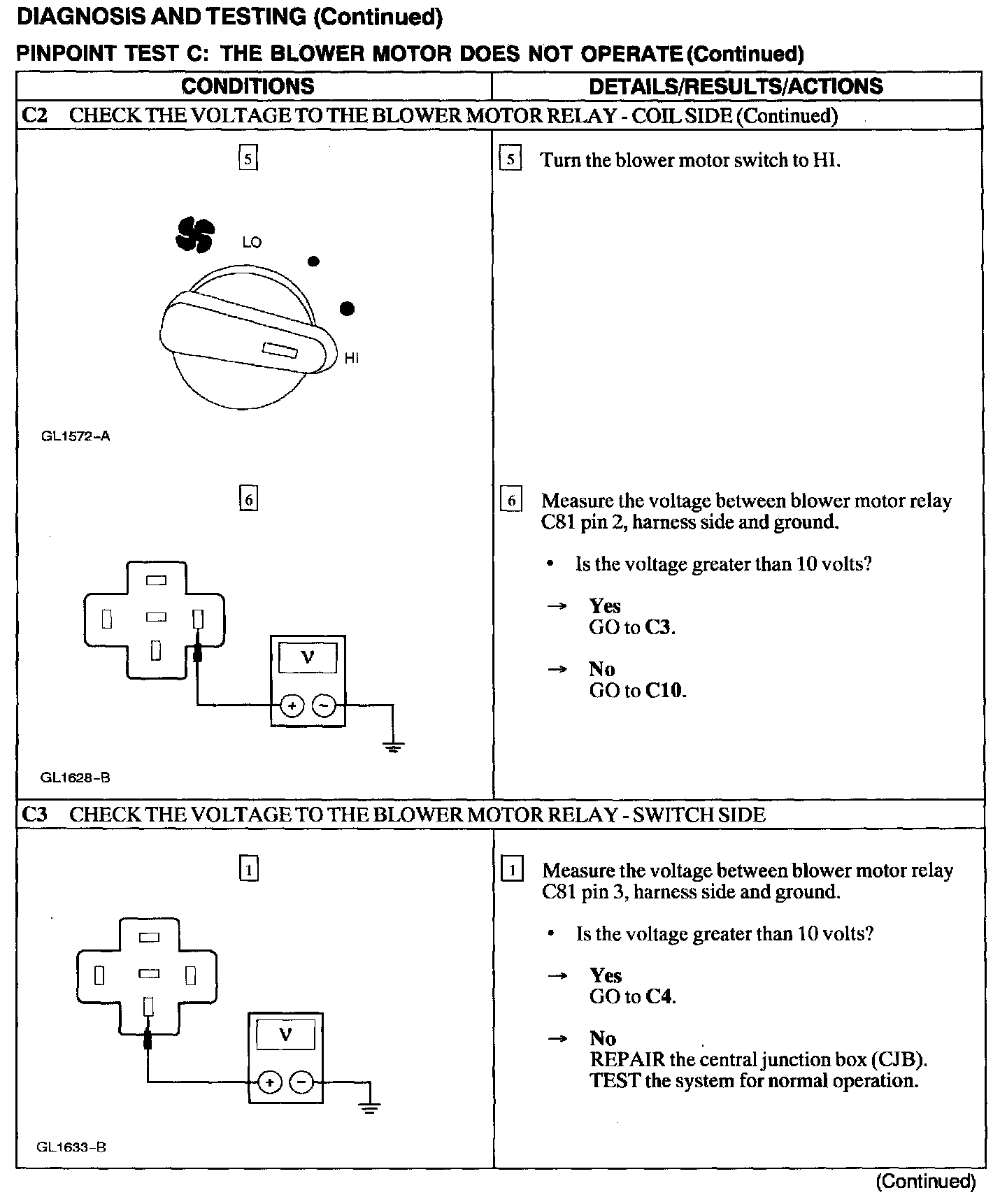

C1 - C2:
C2 - C3:

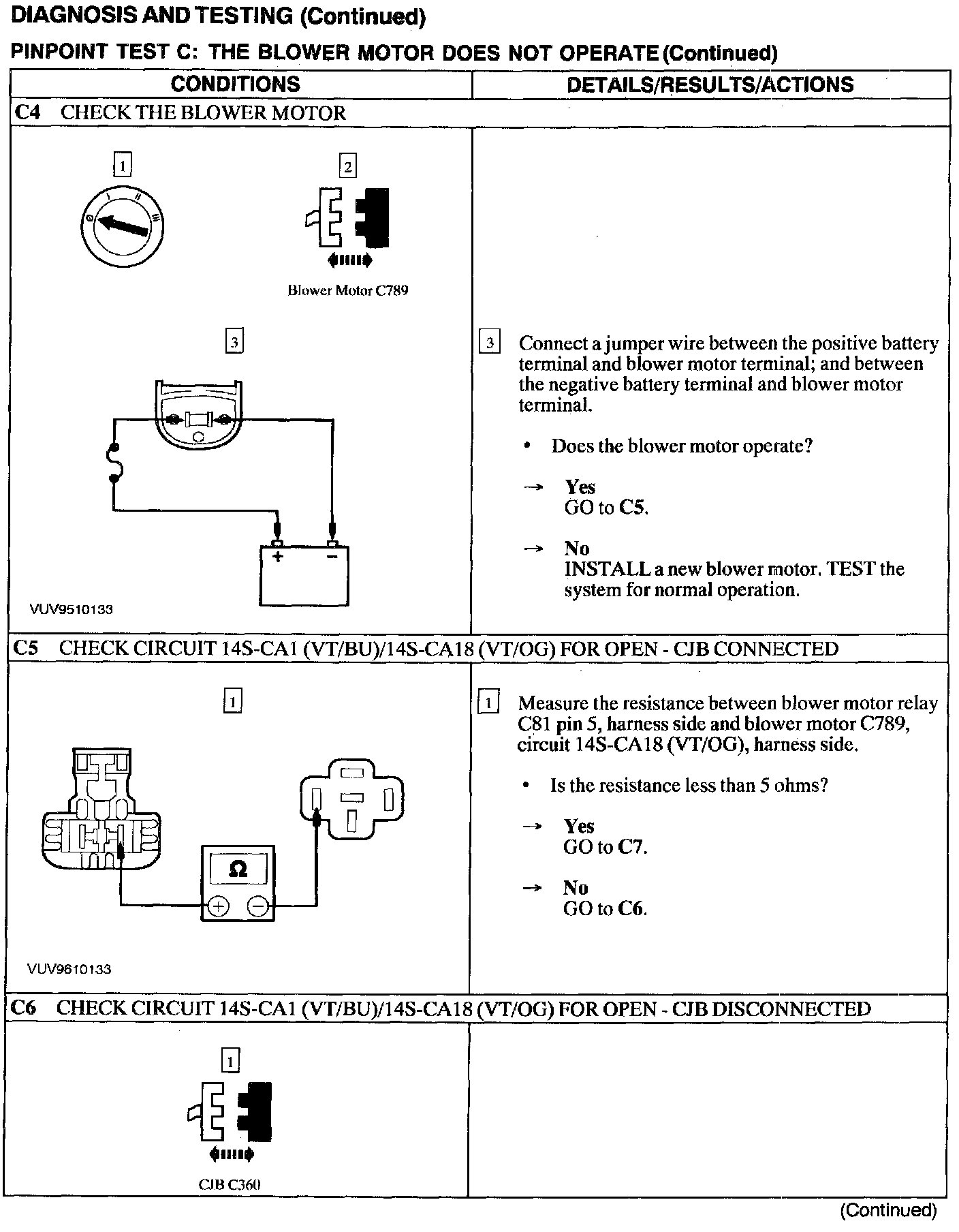

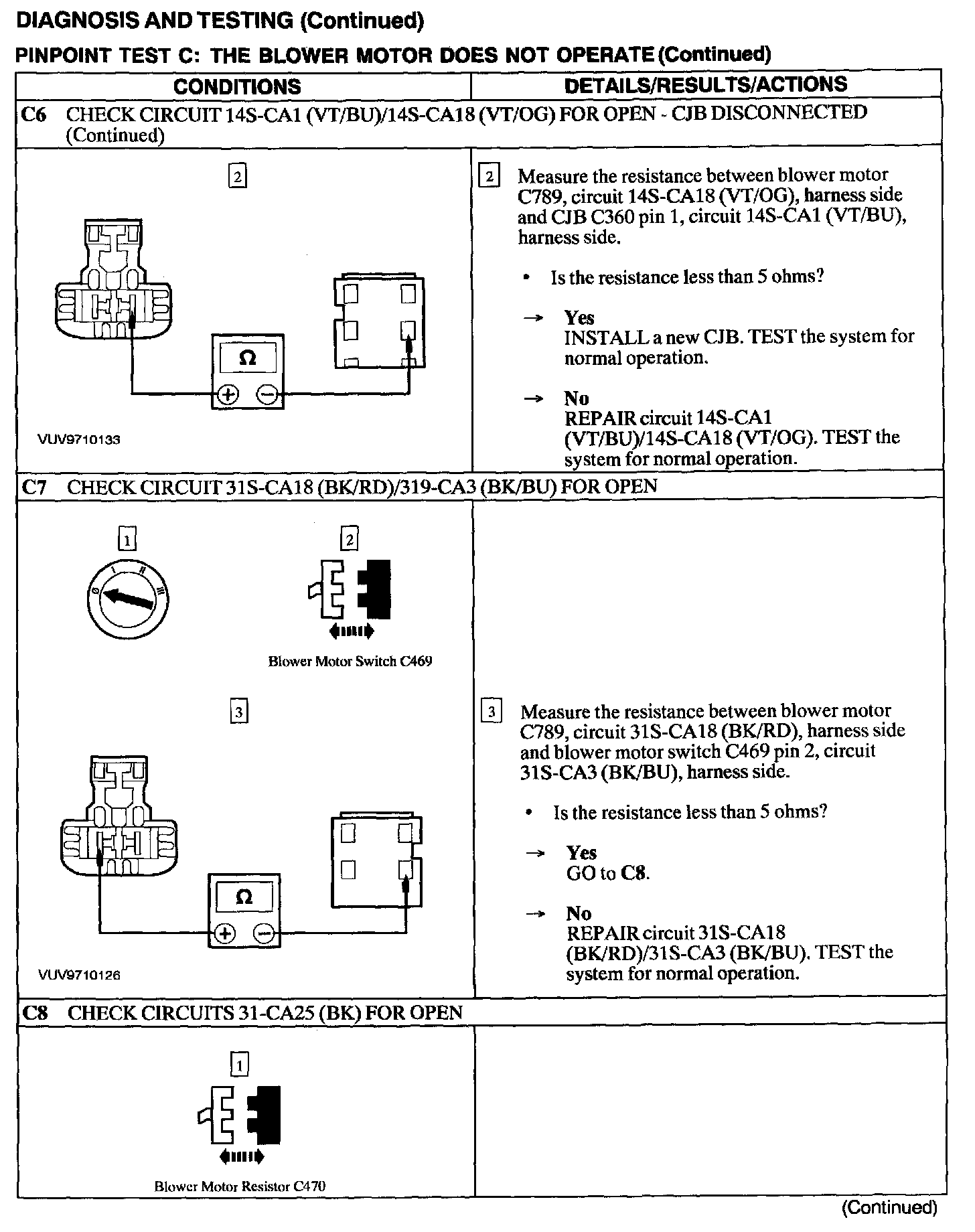

C4 - C6:

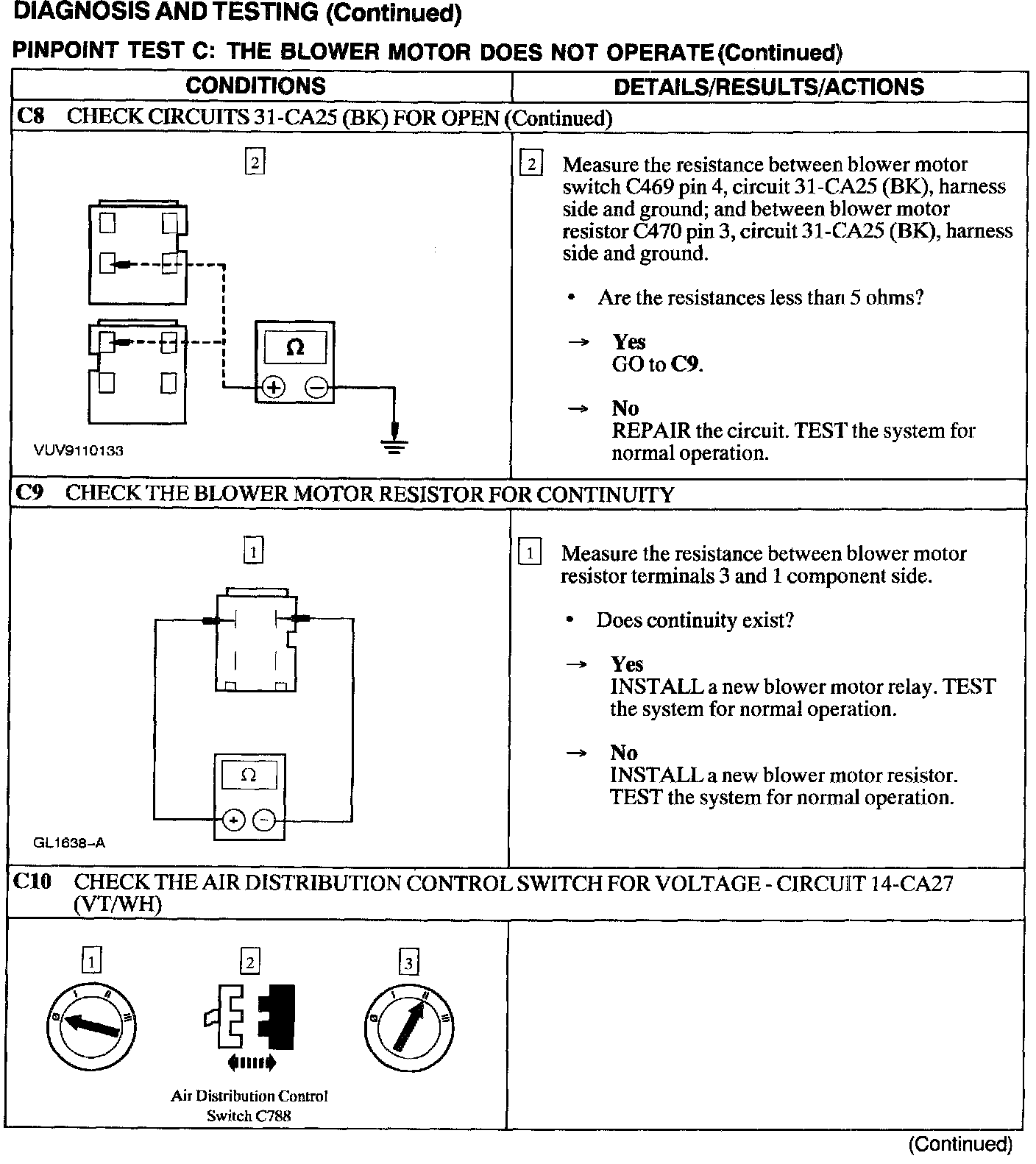

C6 - C8:

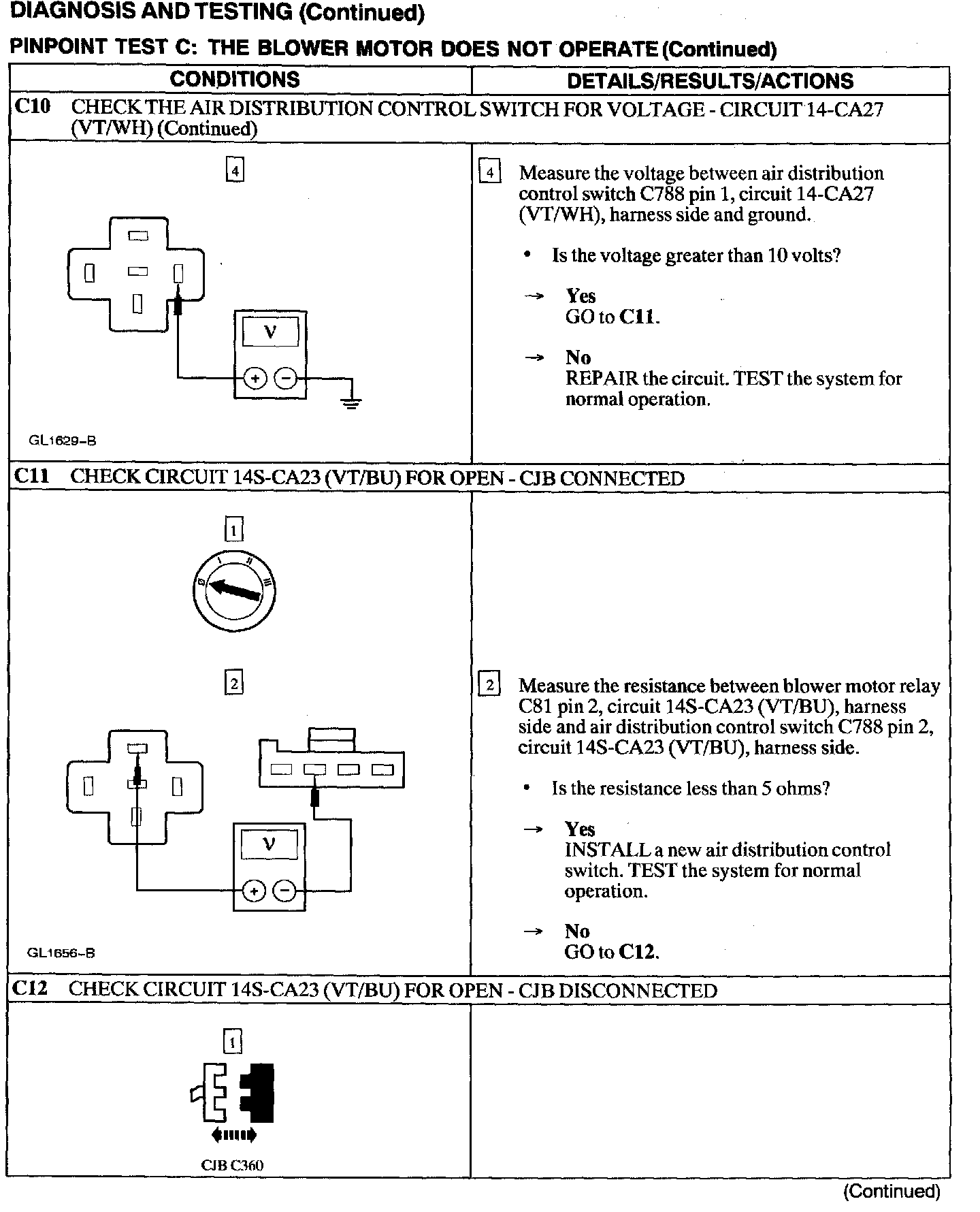

C8 - C10:
C10 - C12:

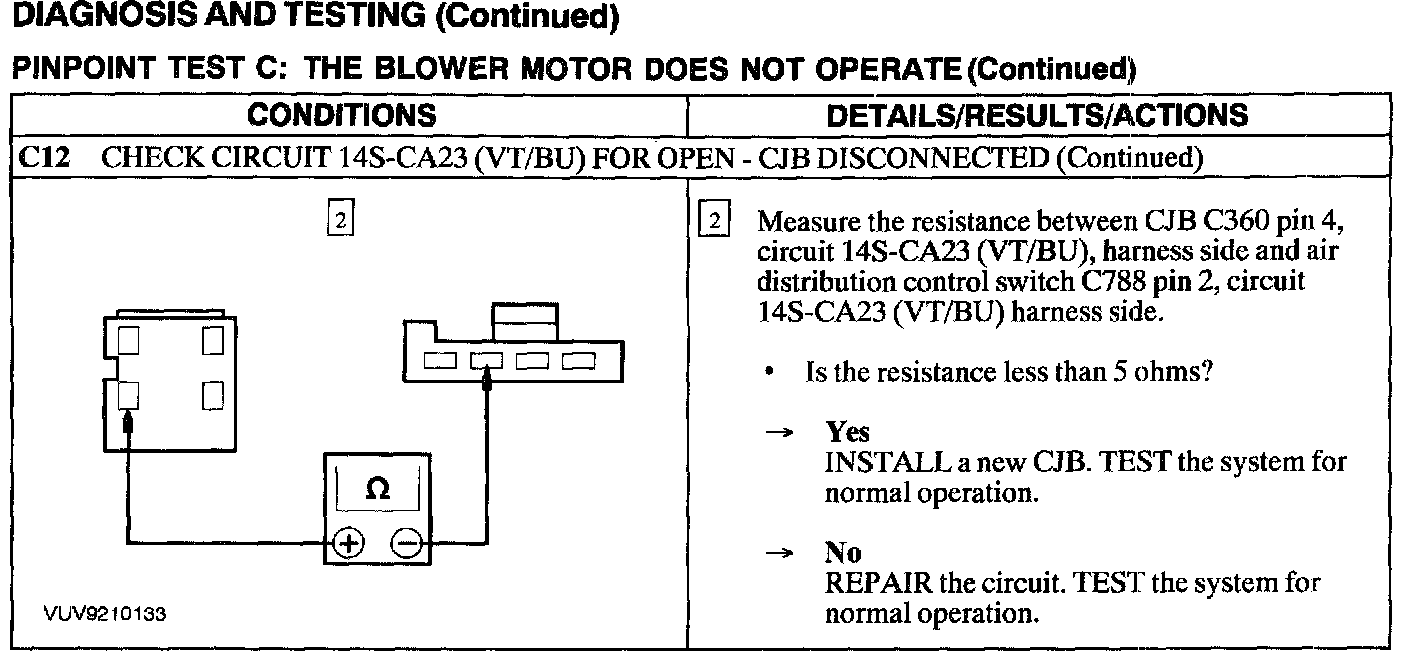

C12:
