FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2002
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test A: A/C Does Not Operate/Does Not Operate Correctly
Test A: A/C Does Not Operate/Does Not Operate Correctly

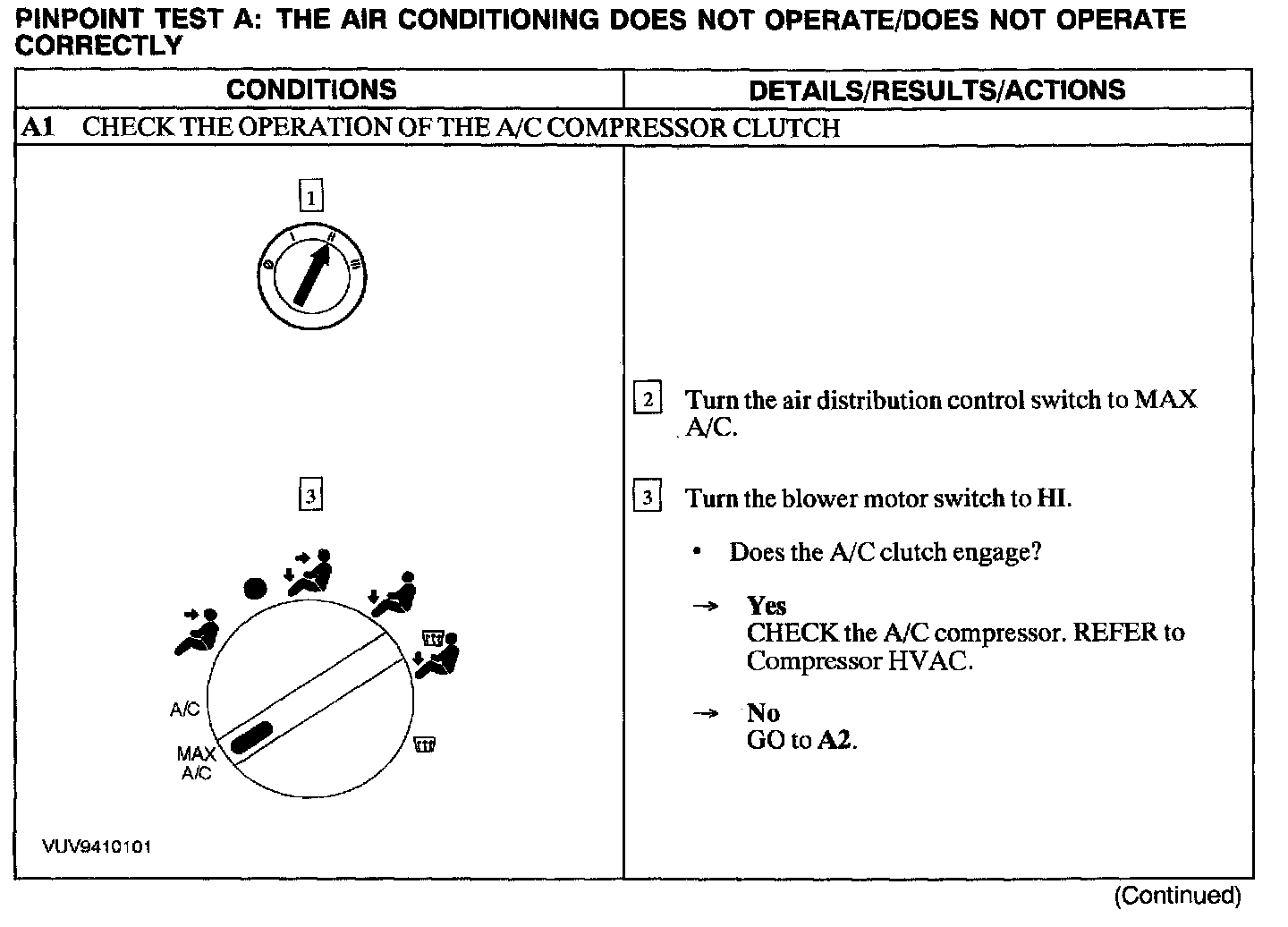

A1:

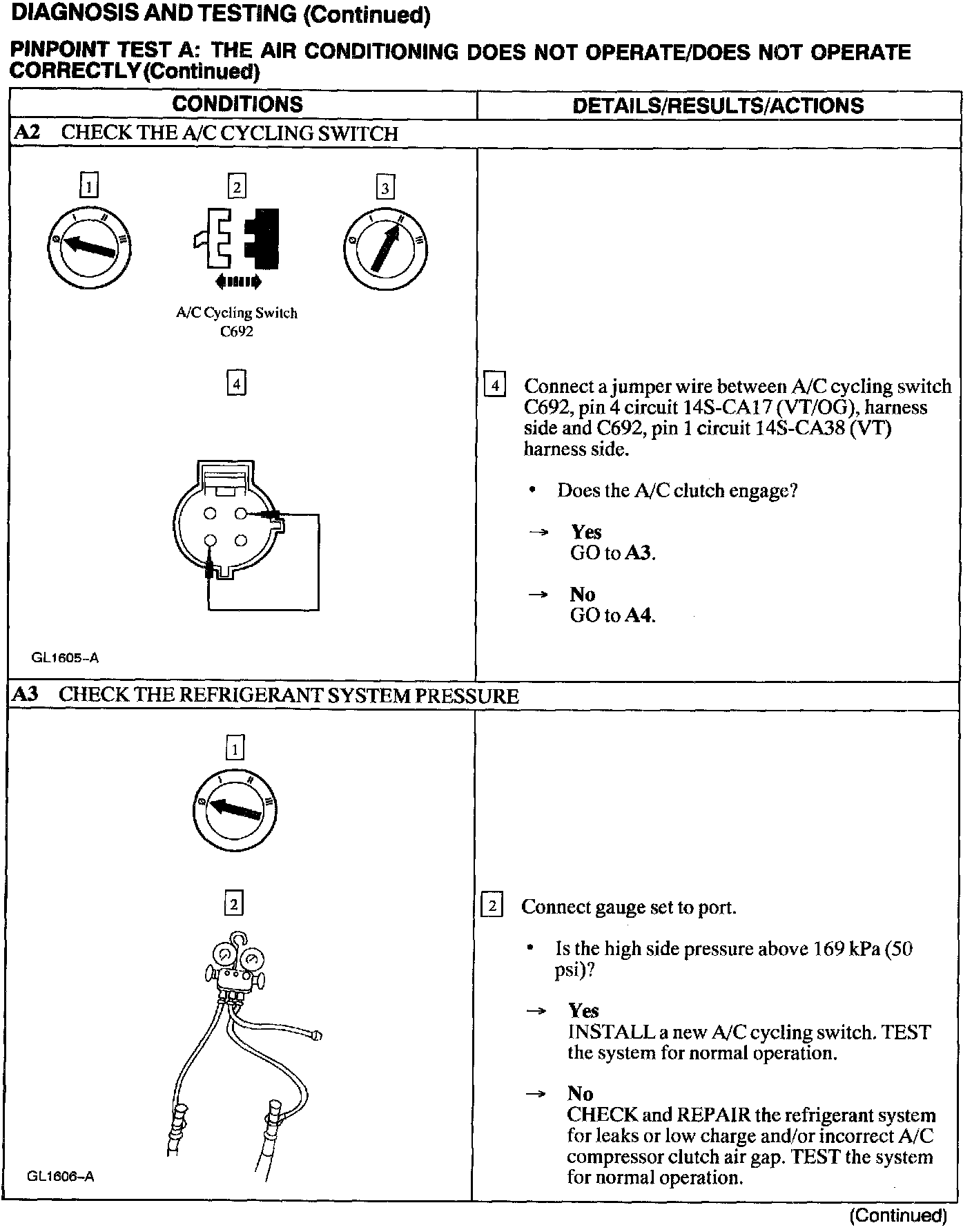

A2 - A3:

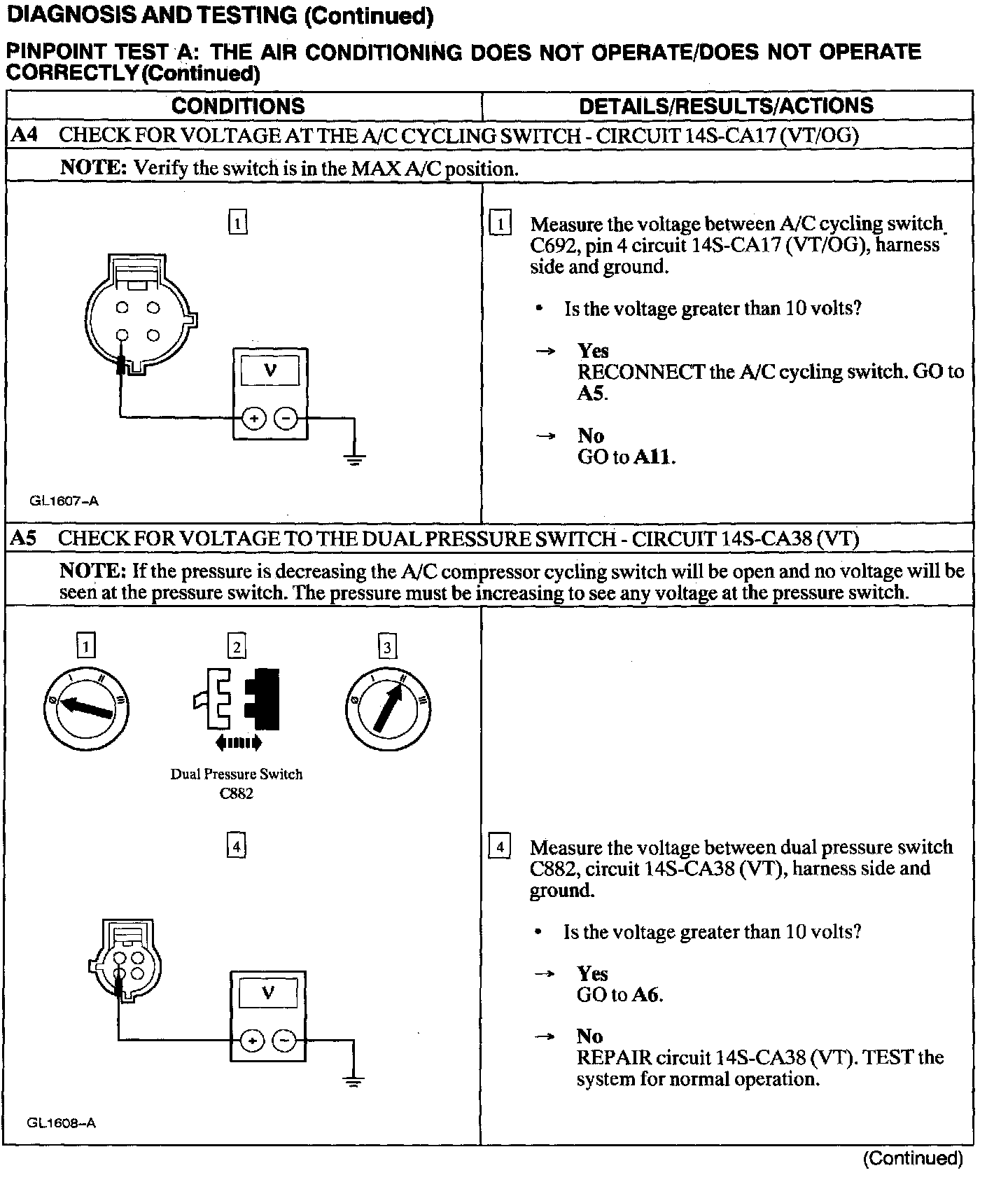

A4 - A5:

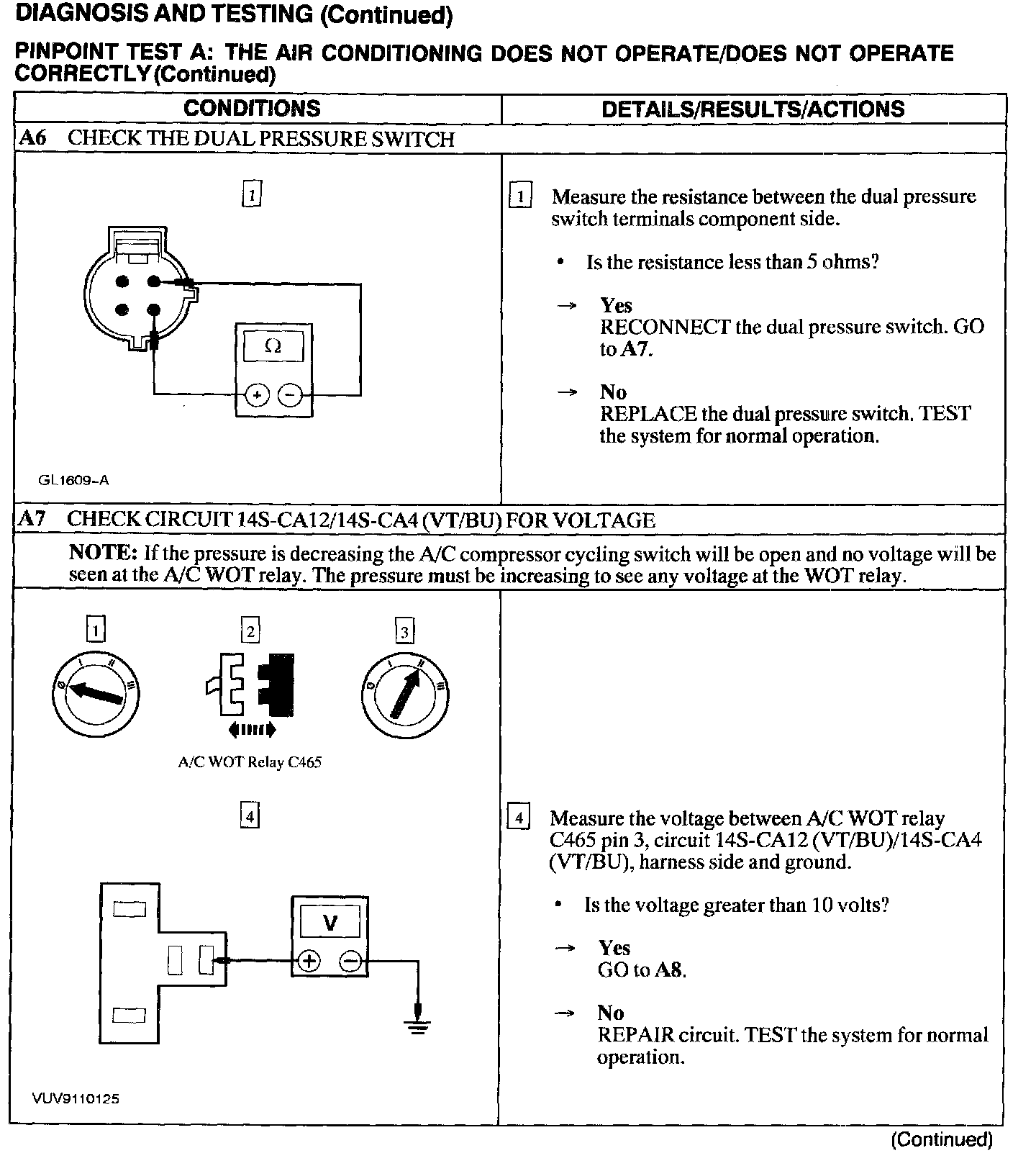

A6 - A7:

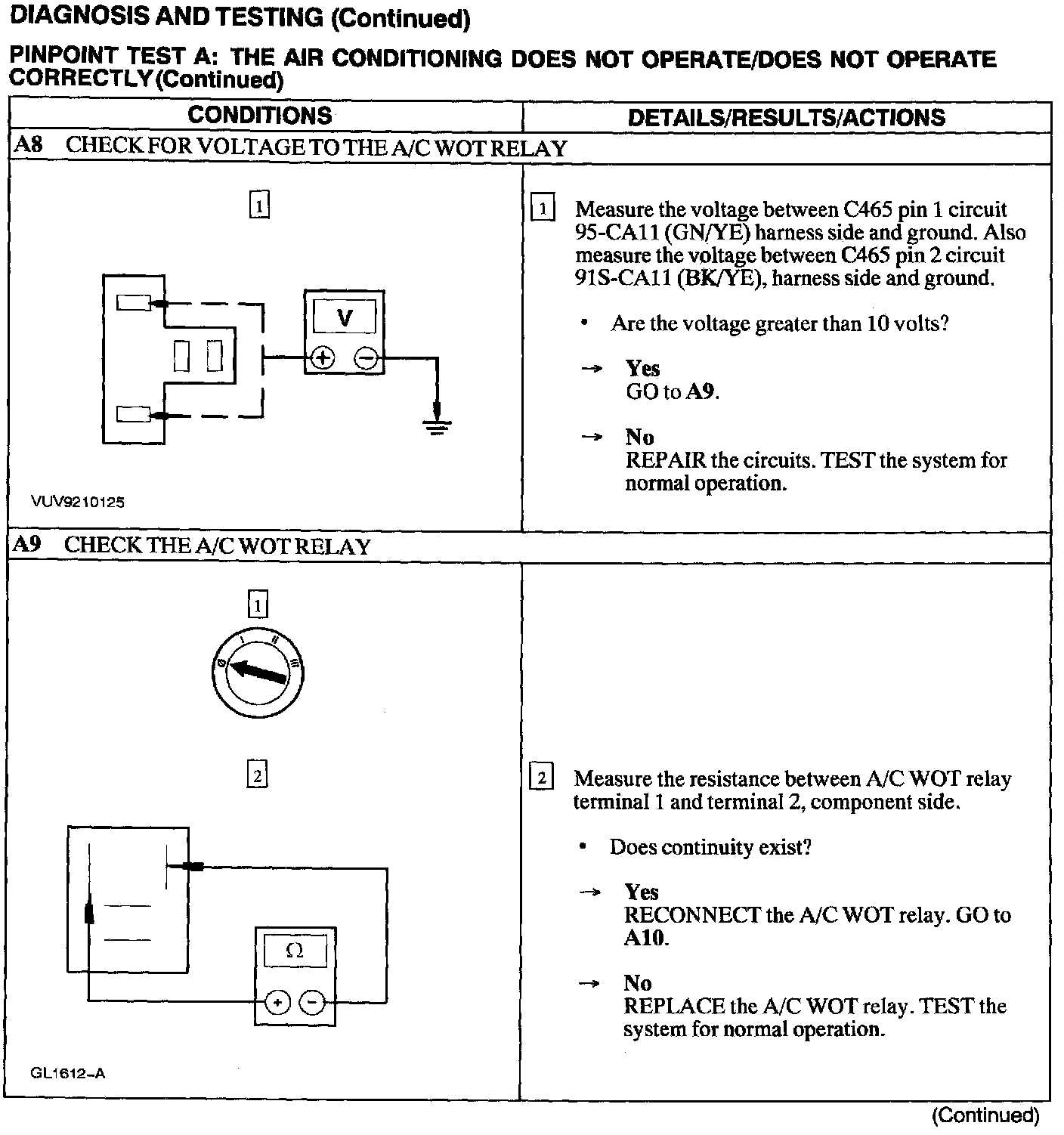

A8 - A9:

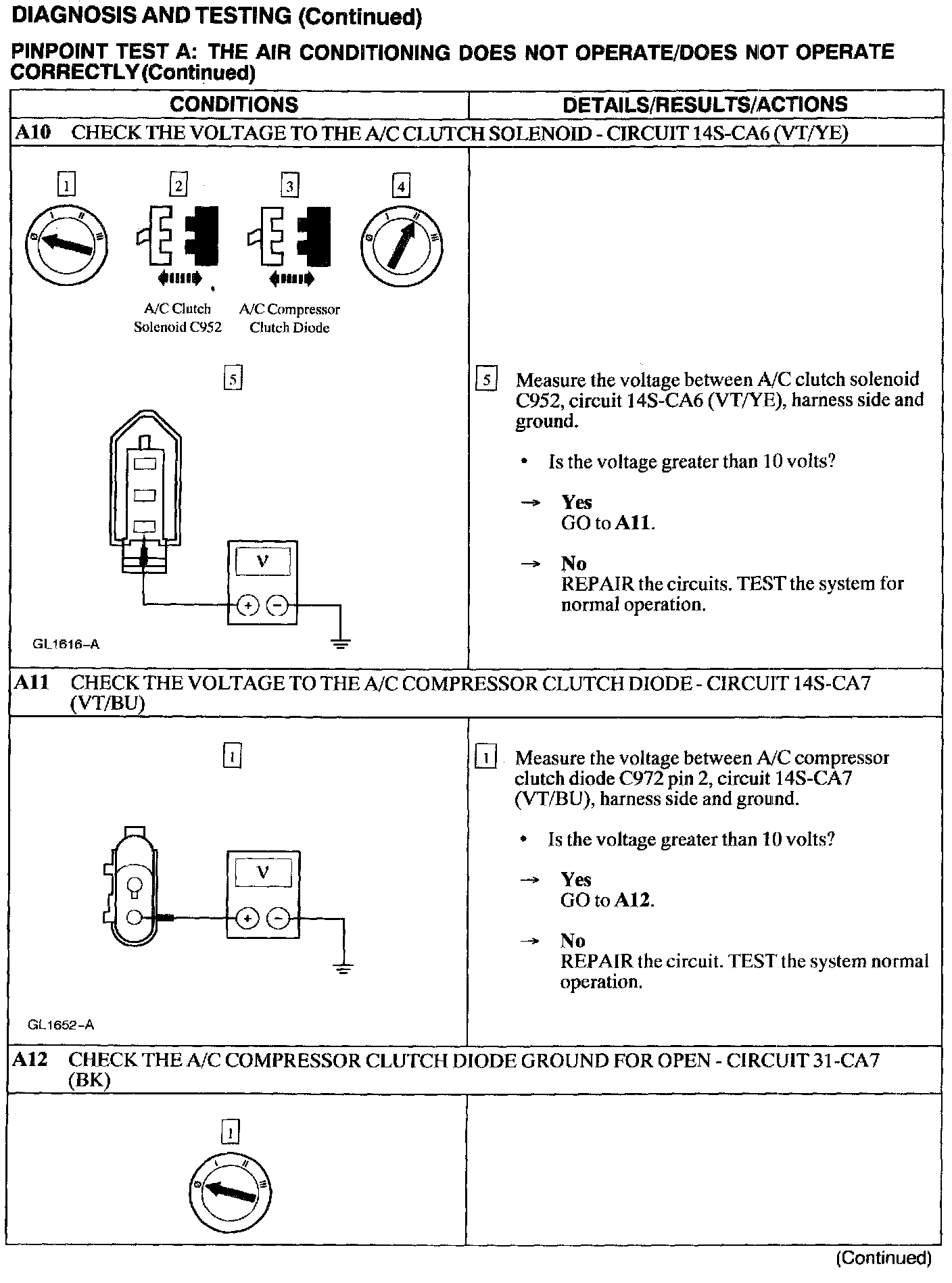

A10 - A12:

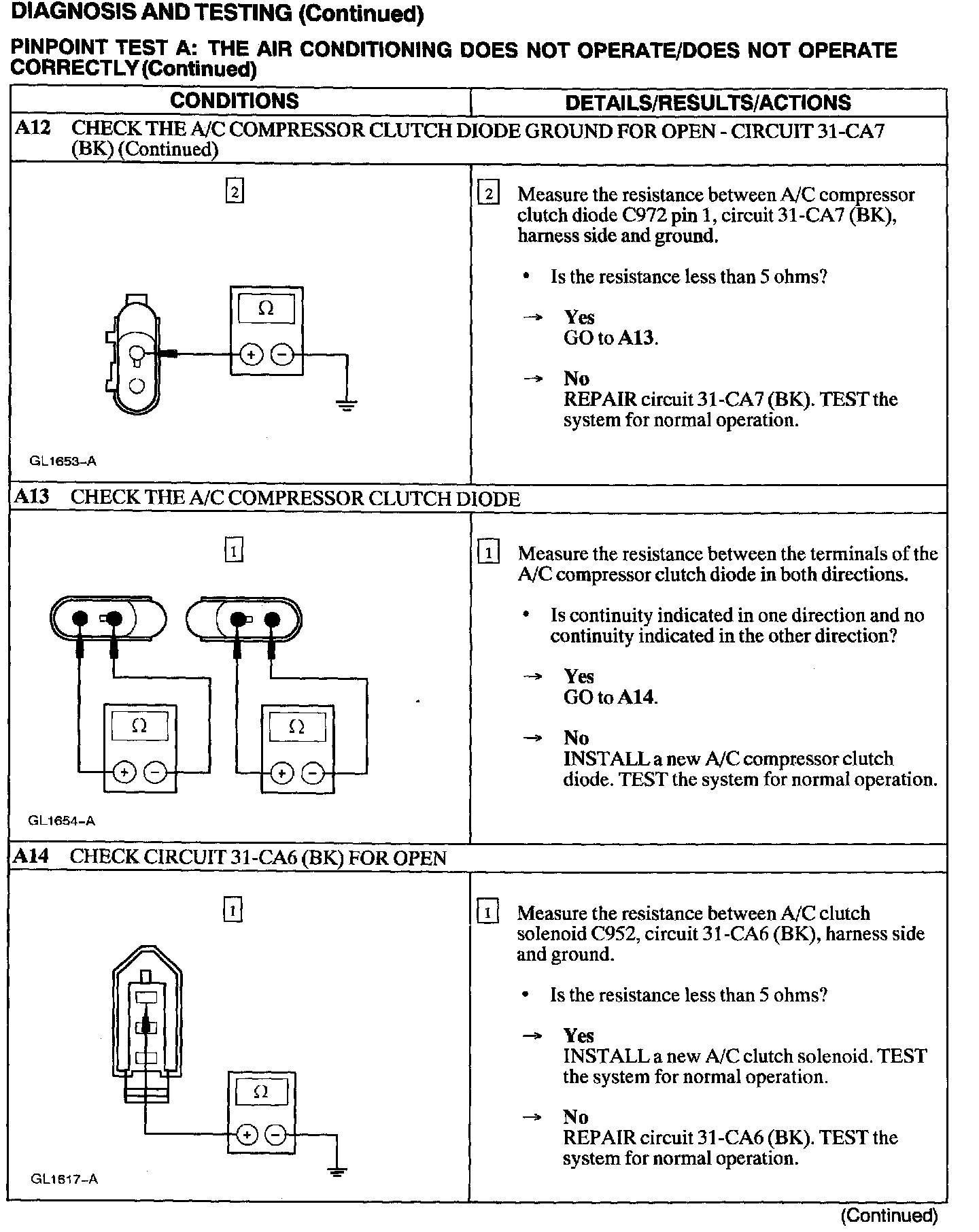

A12 - A14:
A15 - A16:
