Accumulator HVAC: Service and Repair

SPECIAL TOOL(S)

REMOVAL
1. Reclaim the refrigerant.

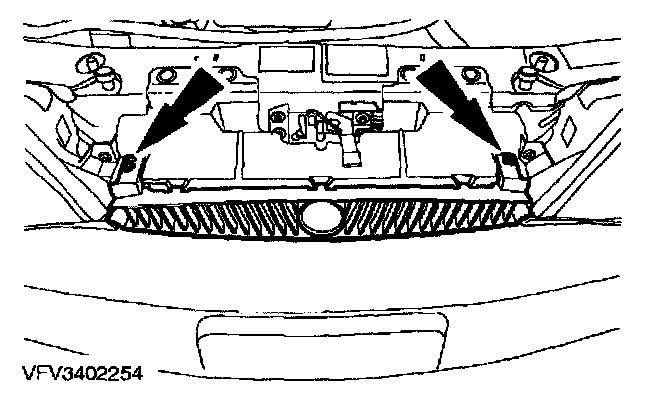

2. Remove the radiator grille.

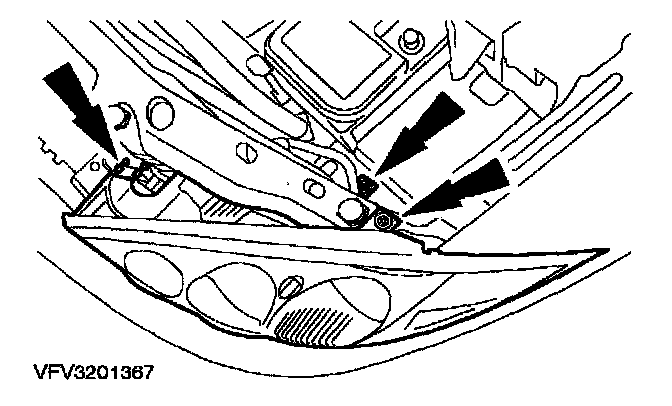

3. Remove the left-hand headlamp assembly.

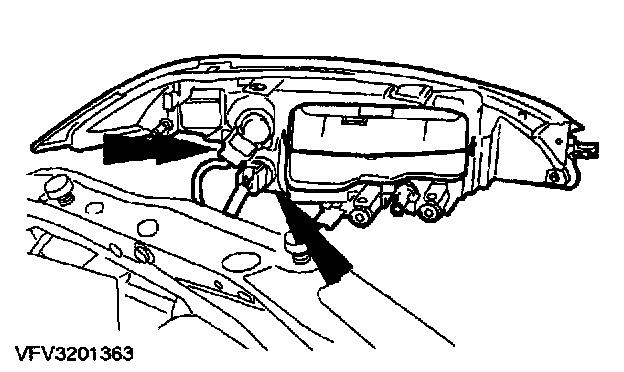

4. Disconnect electrical connectors.

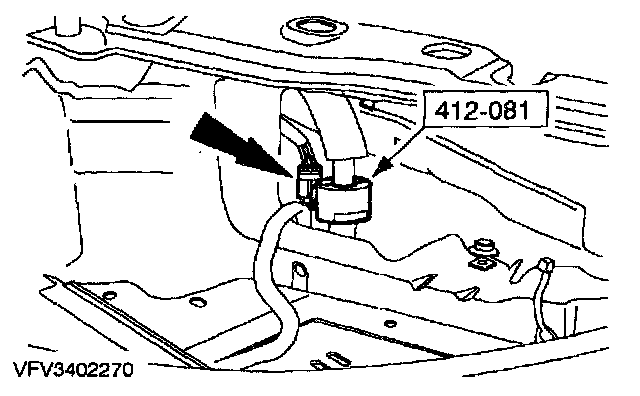

5. Using the special tool disconnect the upper tube from the suction accumulator to the A/C compressor.
- Disconnect the electrical connector.

NOTE: Seal the tube and the connection with plugs.







6. Support the radiator with pins (left-hand side shown).
7. Raise and support the vehicle.

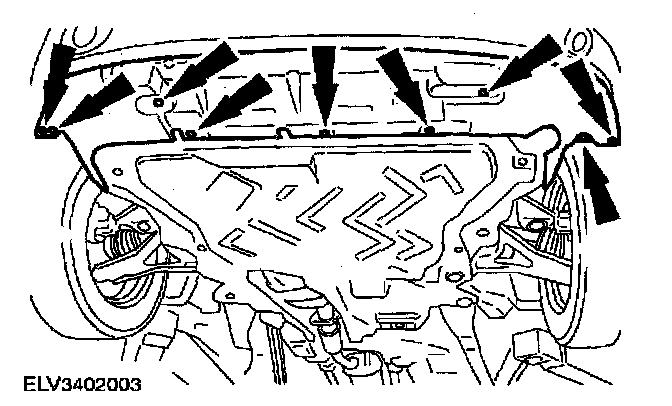

8. Remove the radiator splash shield.

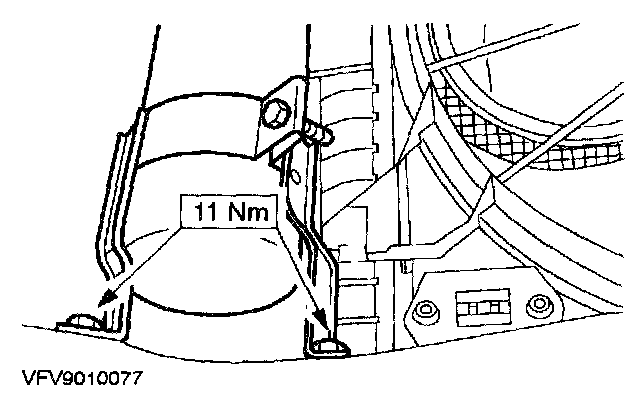

9. Remove the radiator bracket (left-hand side only).
- Rotate the radiator bracket clockwise 90 degrees.

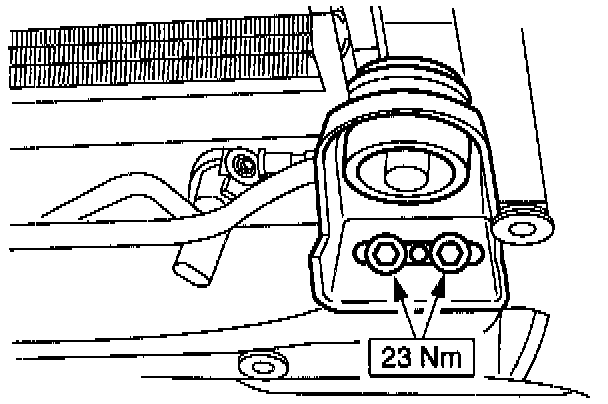

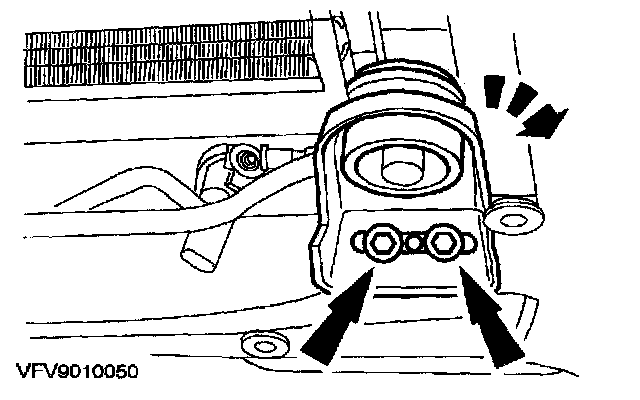

10. Detach the suction accumulator bracket from the subframe.
11. Remove the suction accumulator.

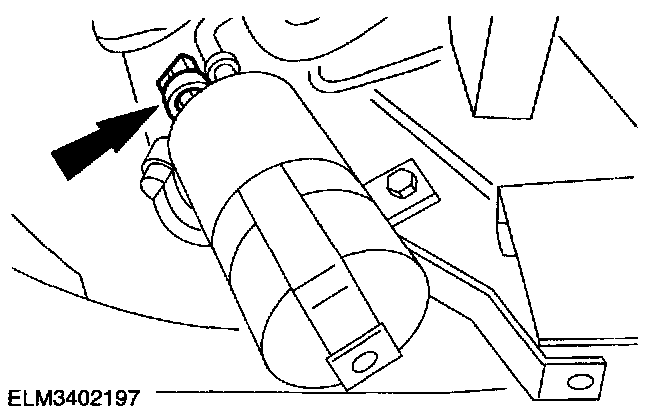

12. Remove the A/C cycling switch.

INSTALLATION

NOTE: Install new O-ring seals and coat them with refrigerant oil.












1. To install, reverse the removal procedure.
- Check the air conditioning system for normal operation.
