Water Pump: Service and Repair

Water Pump-Vehicles with 2.0L Engine

Removal
1. Drain the cooling system.

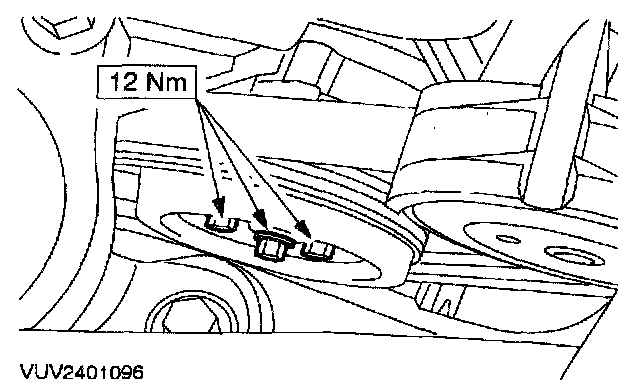

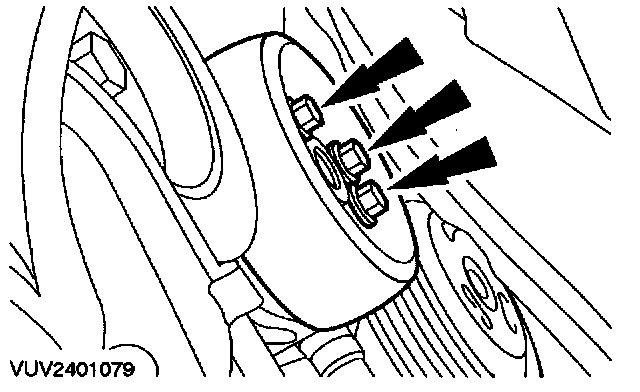

2. Loosen the water pump pulley bolts.
3. Remove the accessory drive belt.

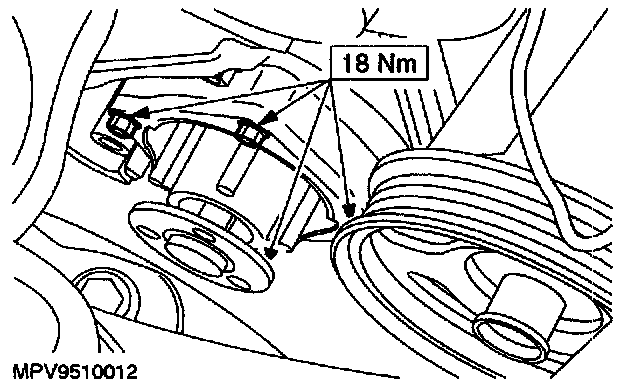

4. Remove the water pump bolts.
5. Raise and support the vehicle.

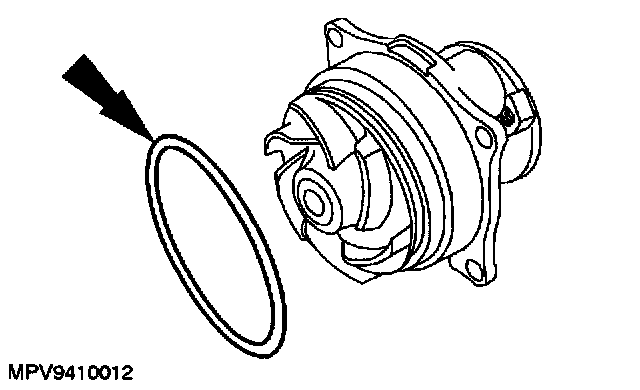

6. Remove the water pump.

Installation











1. To install, reverse the removal procedure.
2. Fill the cooling system.
