Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test A: Speed Control Is Inoperative
Test A: Speed Control Is Inoperative

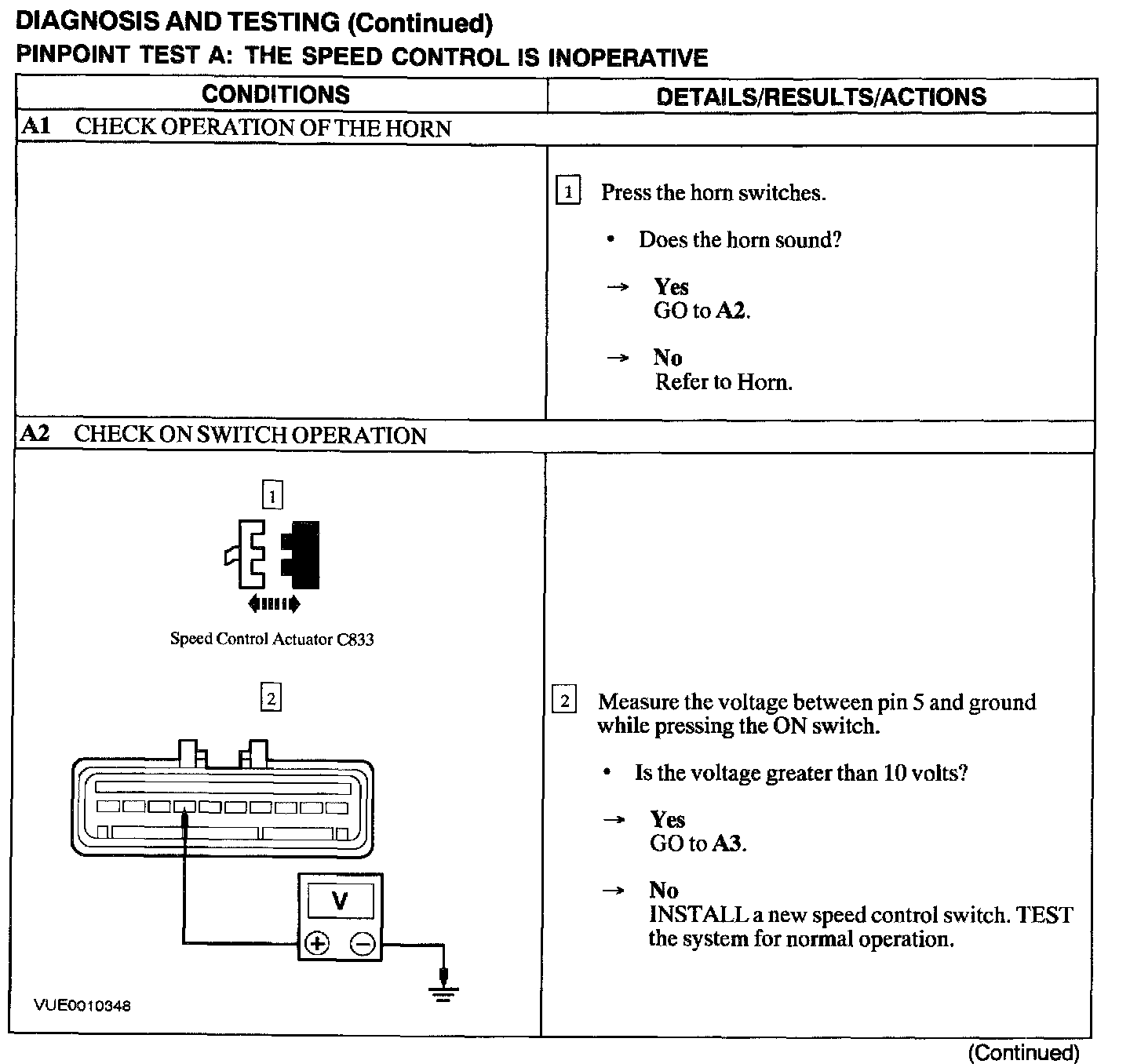

A1 - A2:

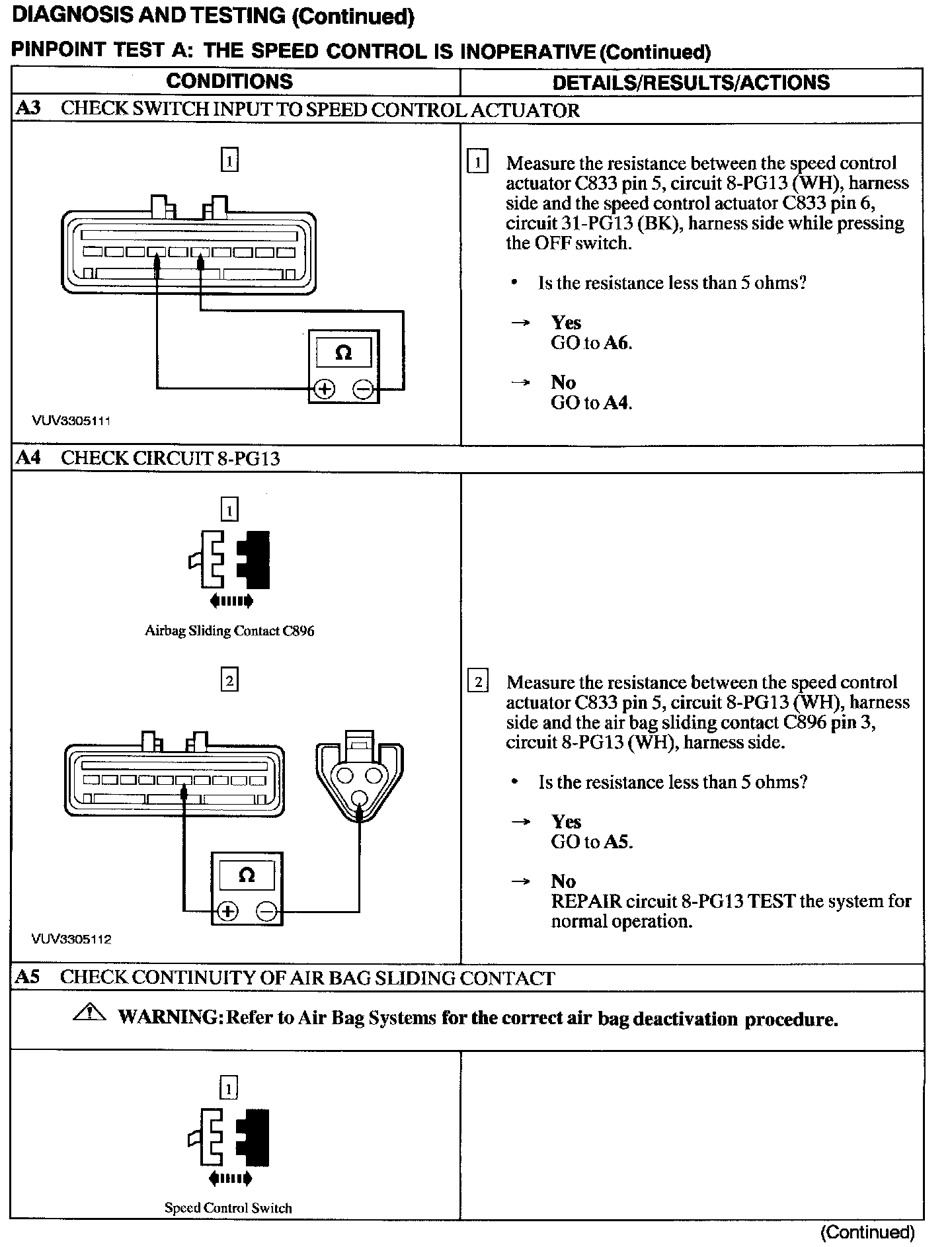

A3 - A5:

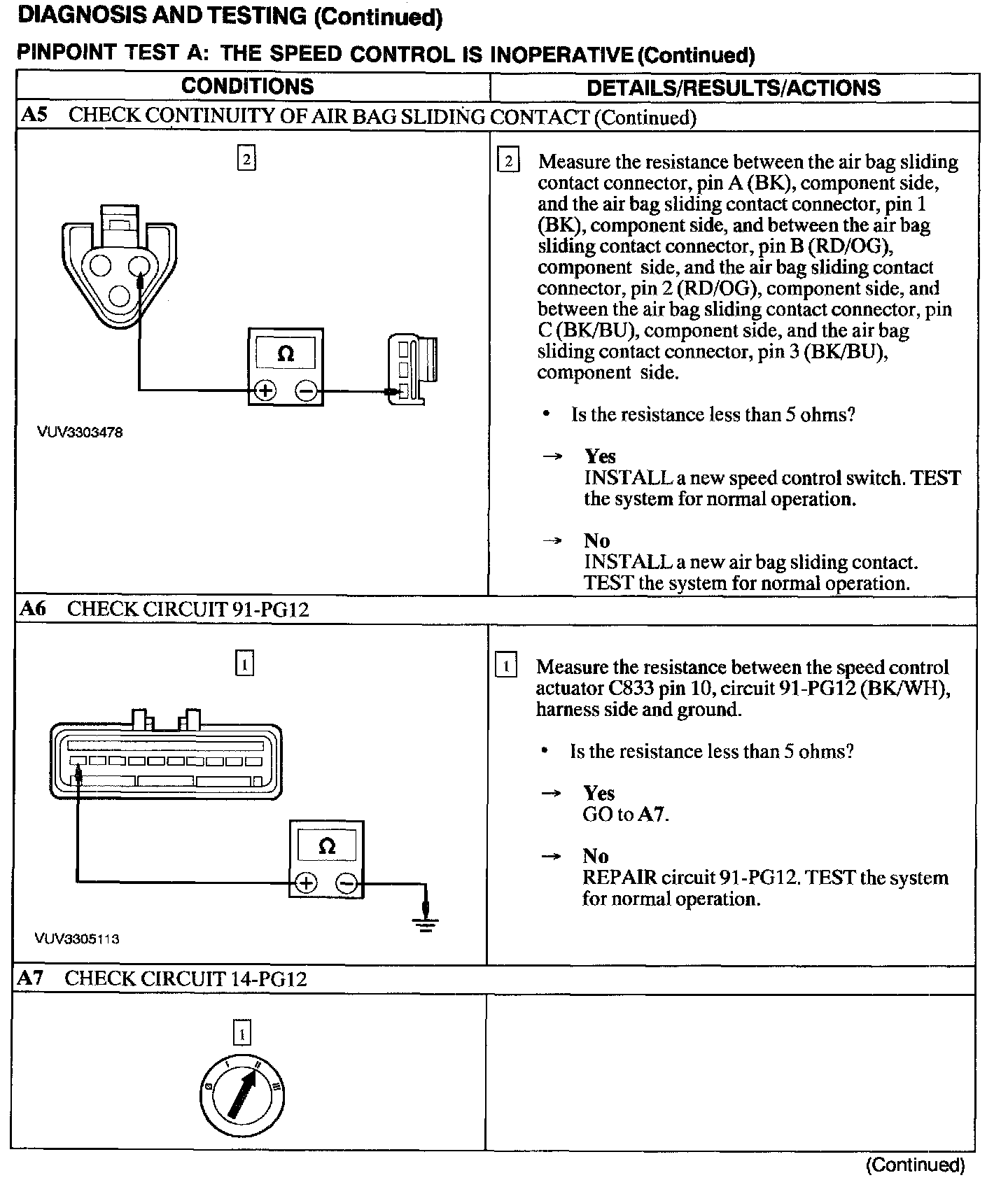

A5 - A7:

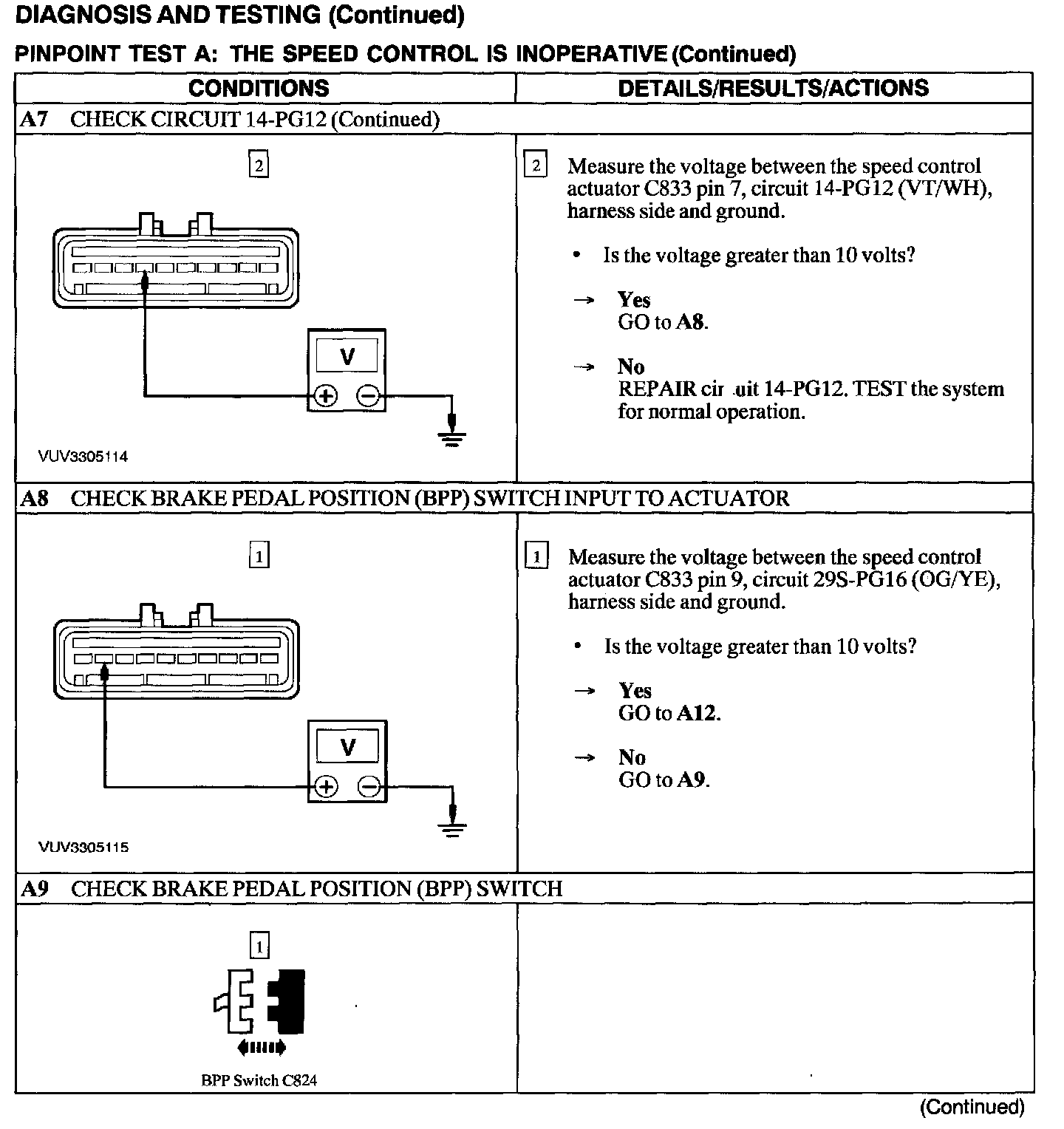

A7 - A9:

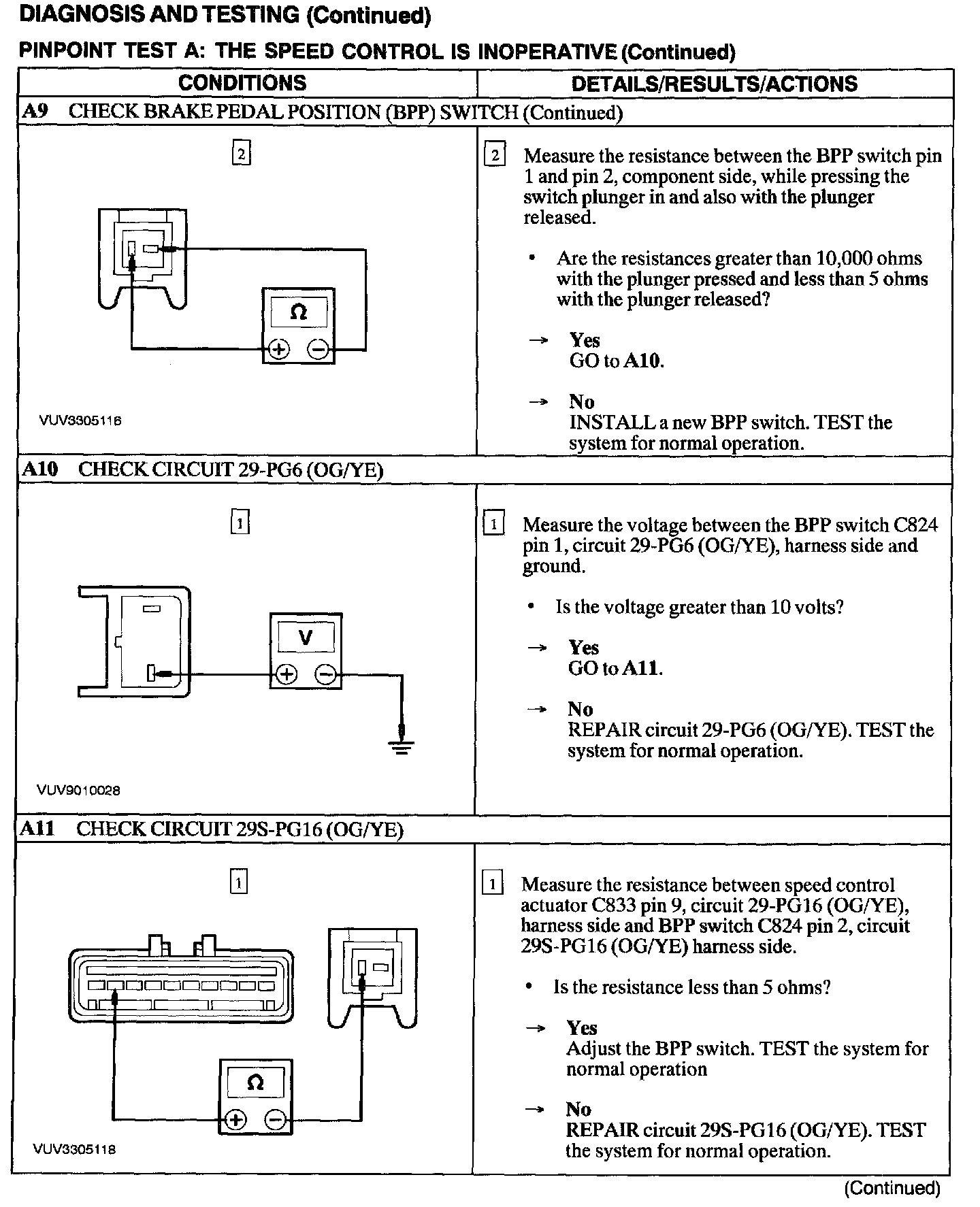

A9 - A11:

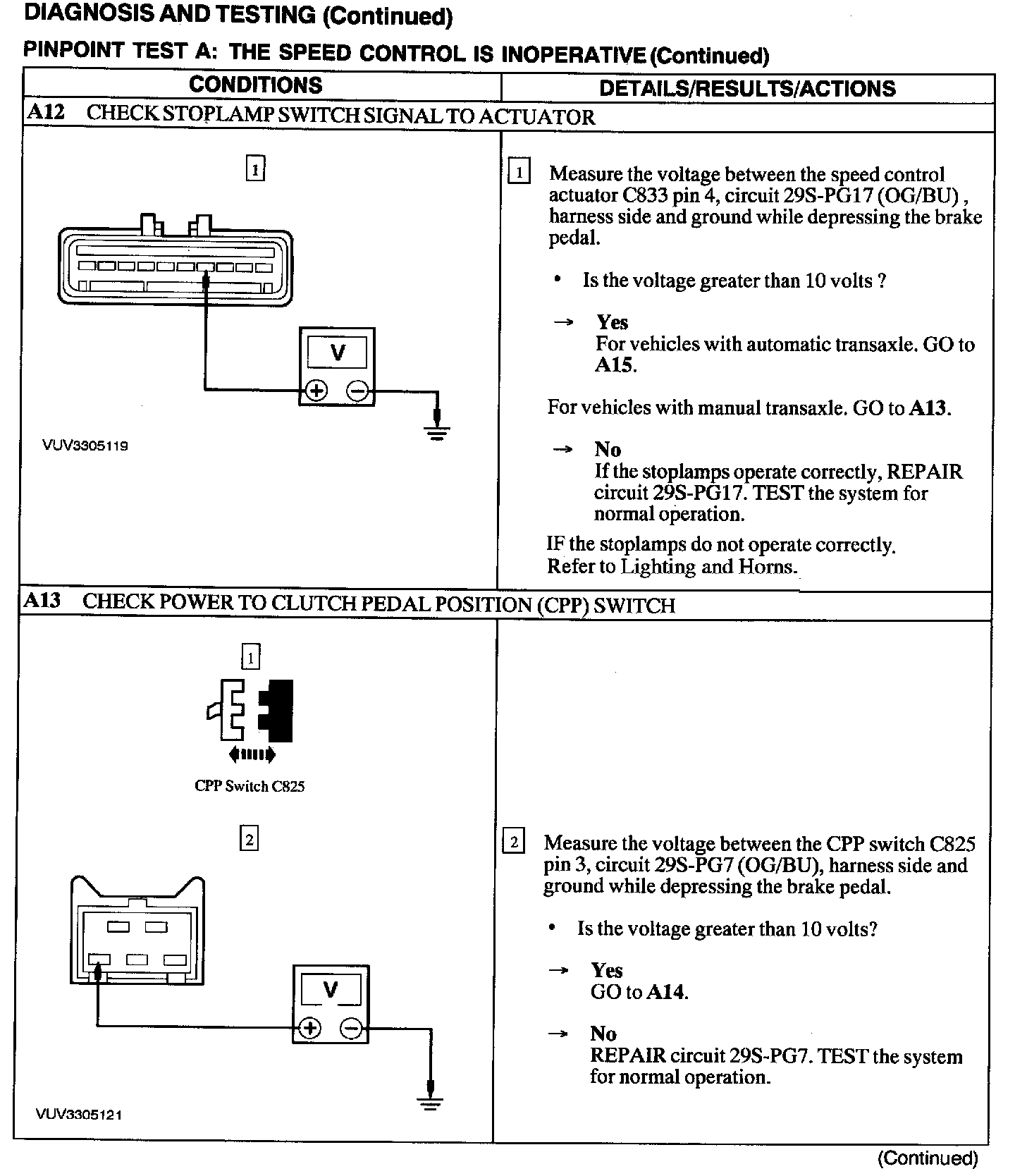

A12 - A13:

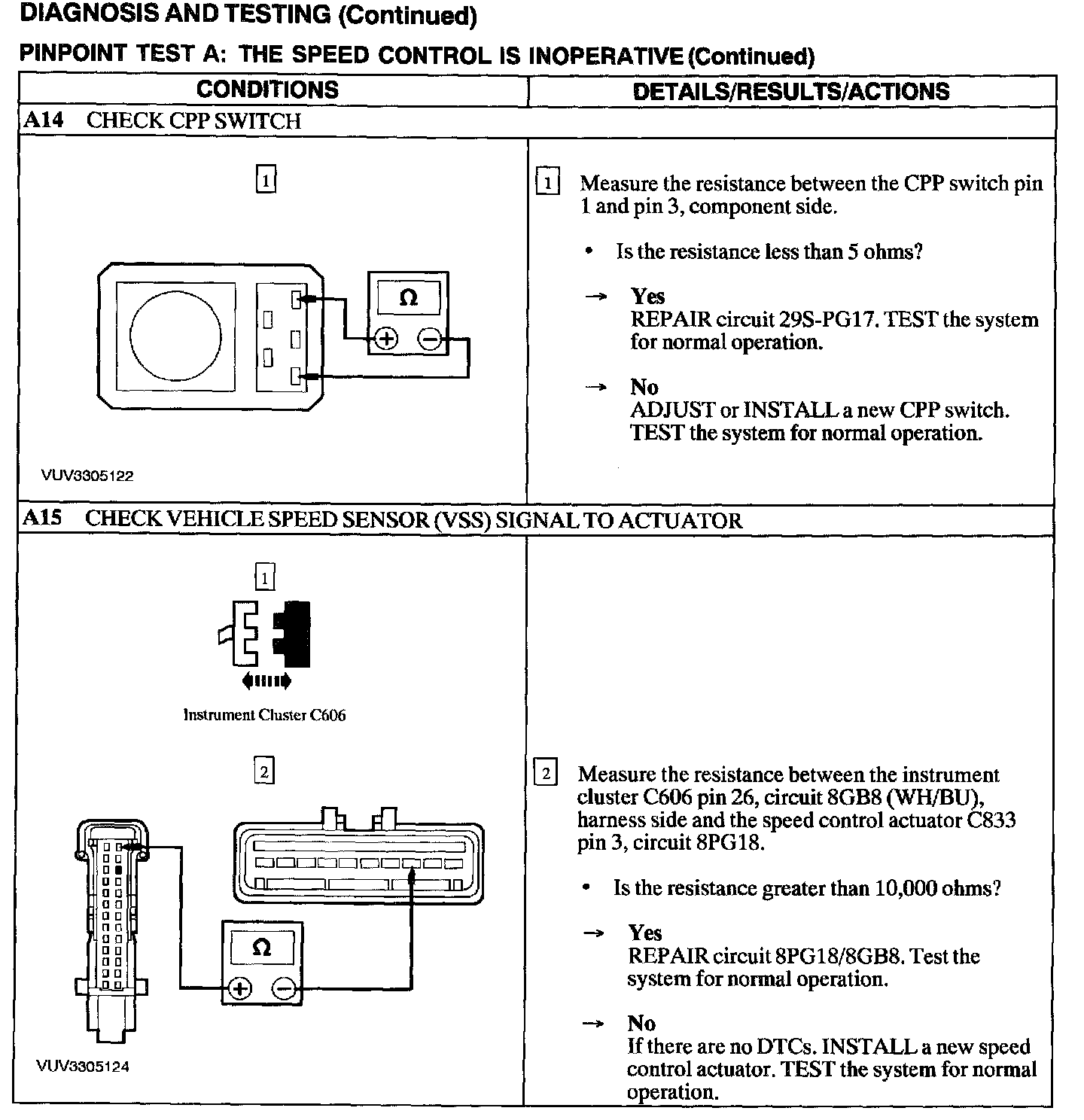

A14 - A15:
