Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> Test E

Test E

PINPOINT TEST E: THE PEDAL GOES DOWN SLOWLY

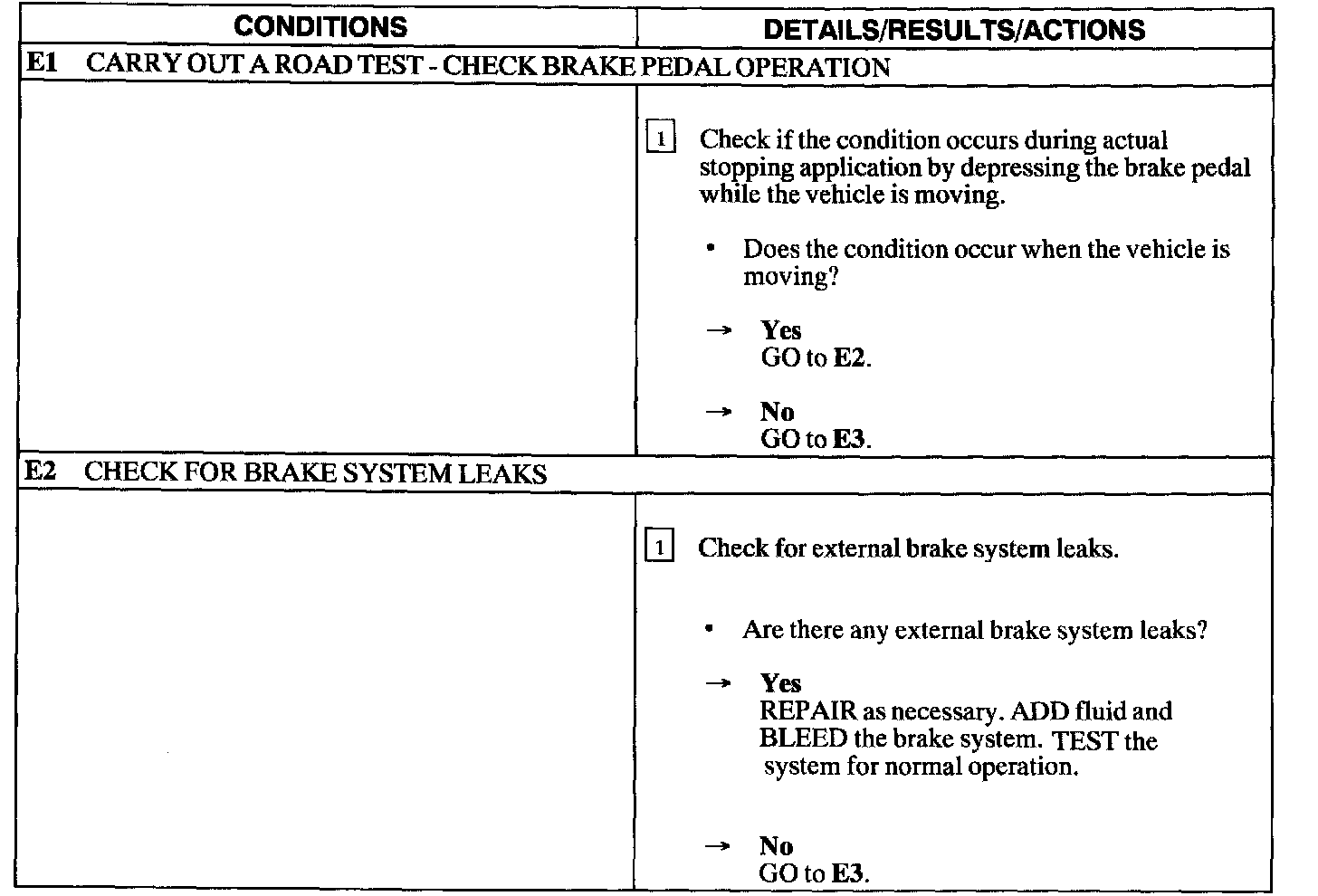

Test E1-E2:

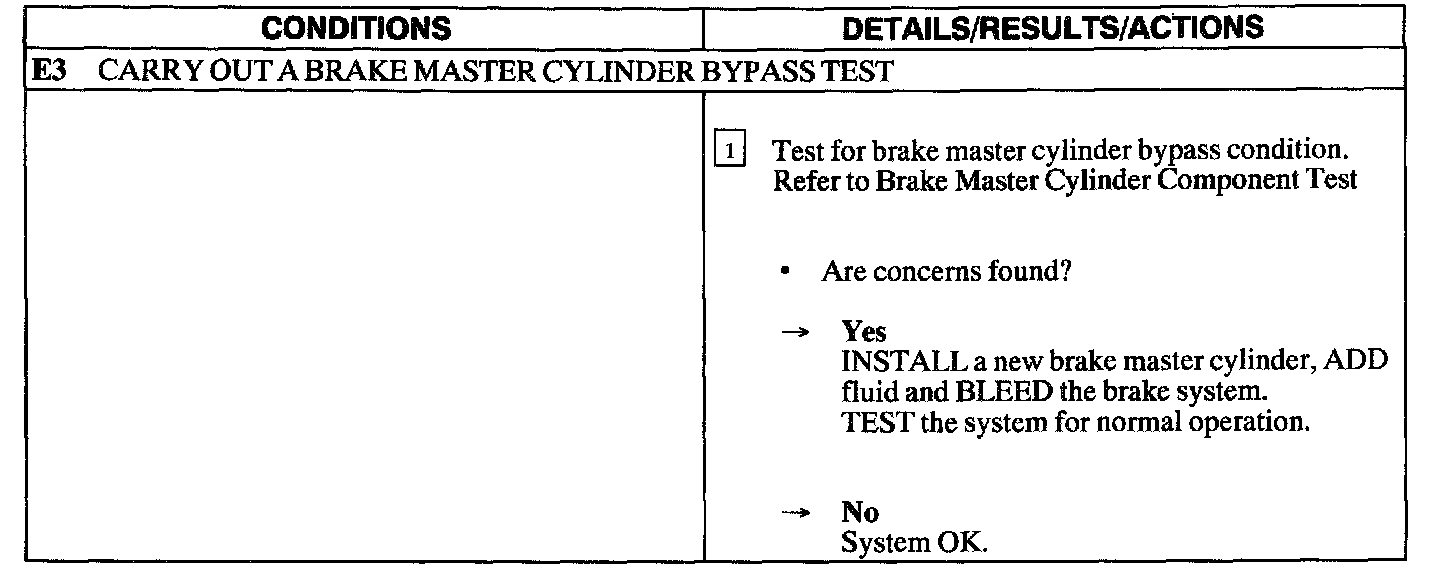

Test E3:
