Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
PINPOINT TEST E: DTC C1095, ABS HYDRAULIC PUMP MOTOR CIRCUIT FAILURE

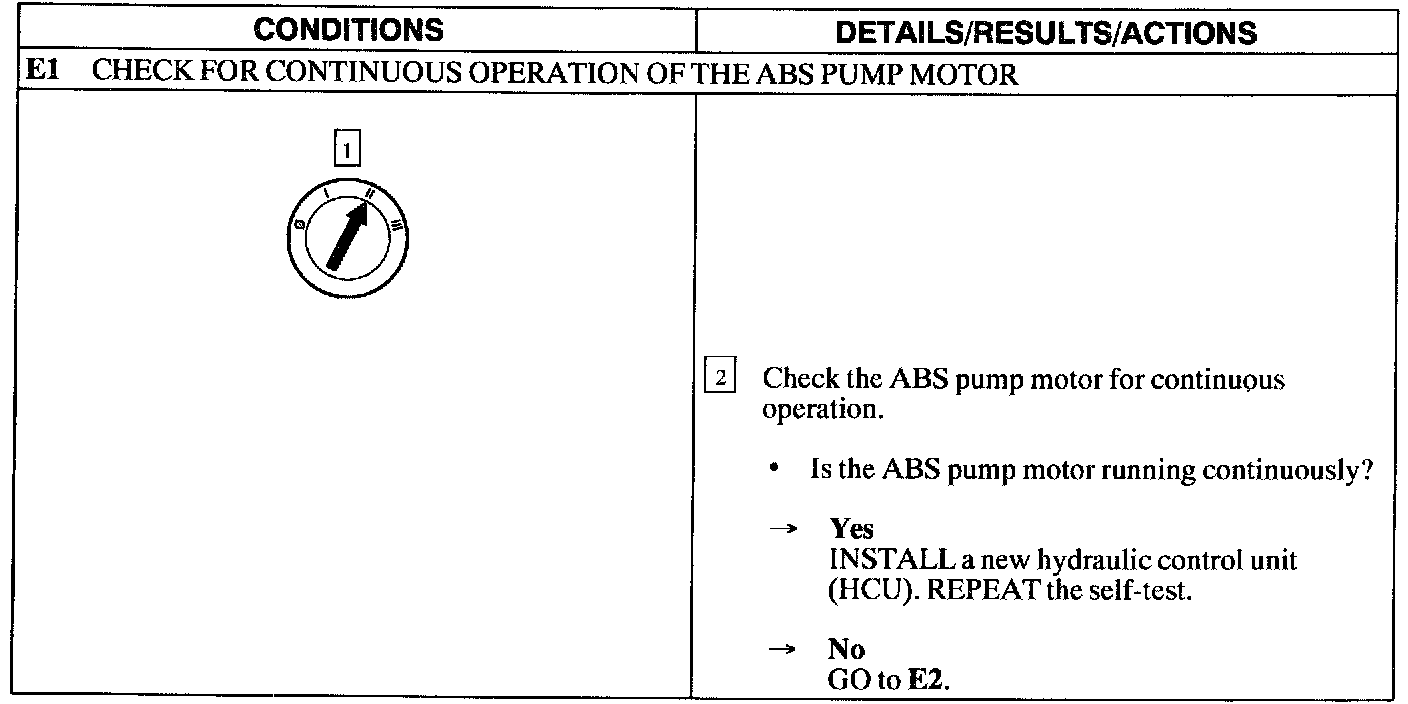

Test E1:

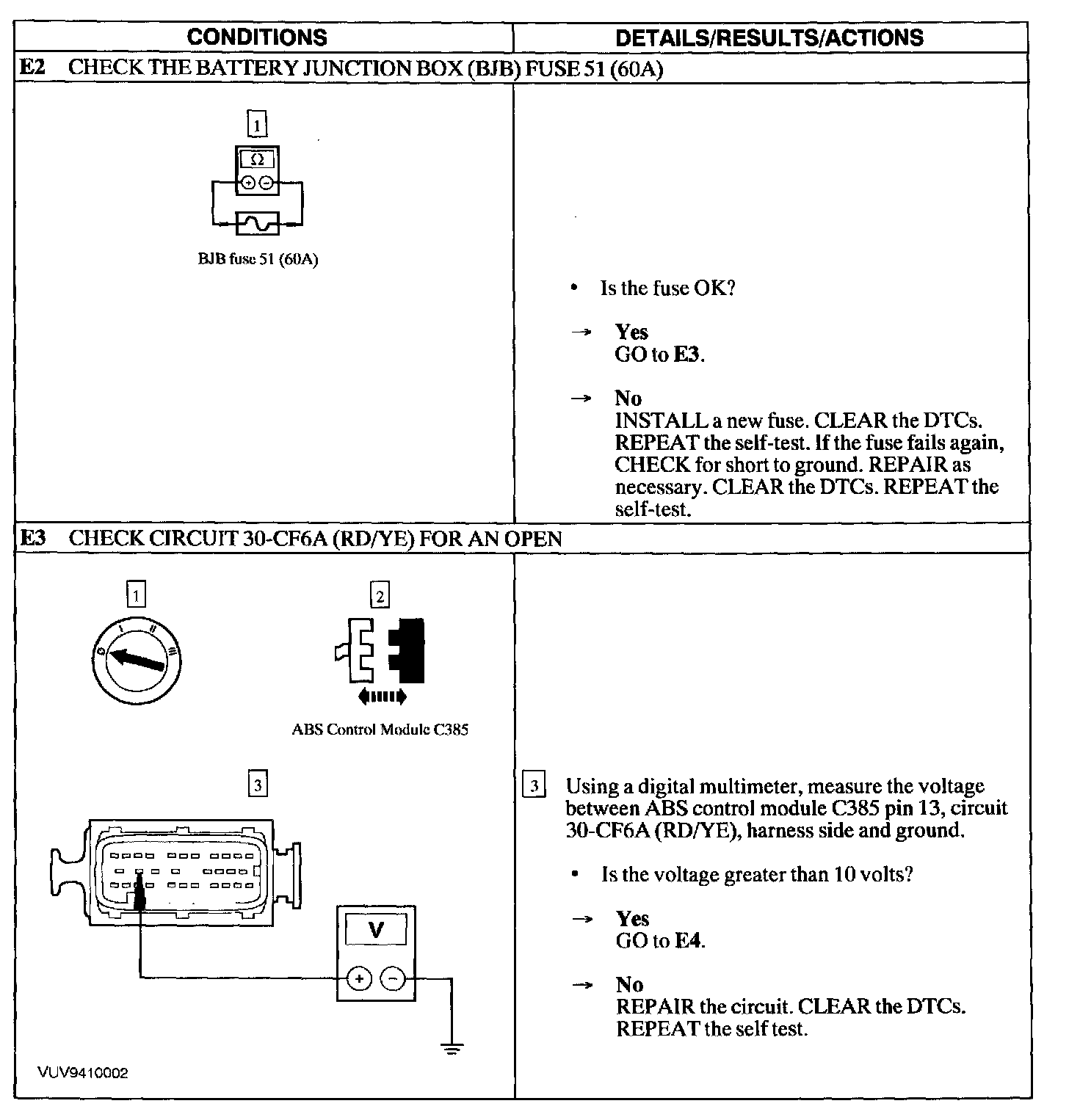

Test E2-E3:

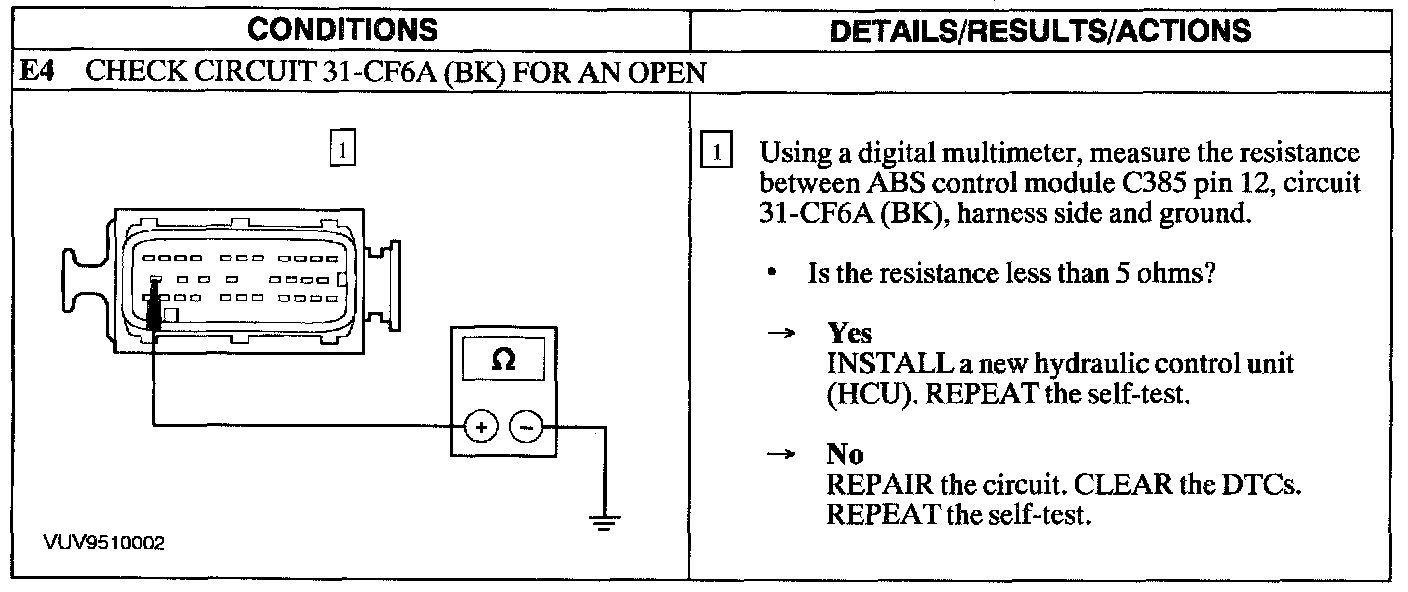

Test E4:
