Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C >> Anti-Lock Brakes

Anti-Lock Brakes

PINPOINT TEST C: DTC B1318 - BATTERY VOLTAGE LOW

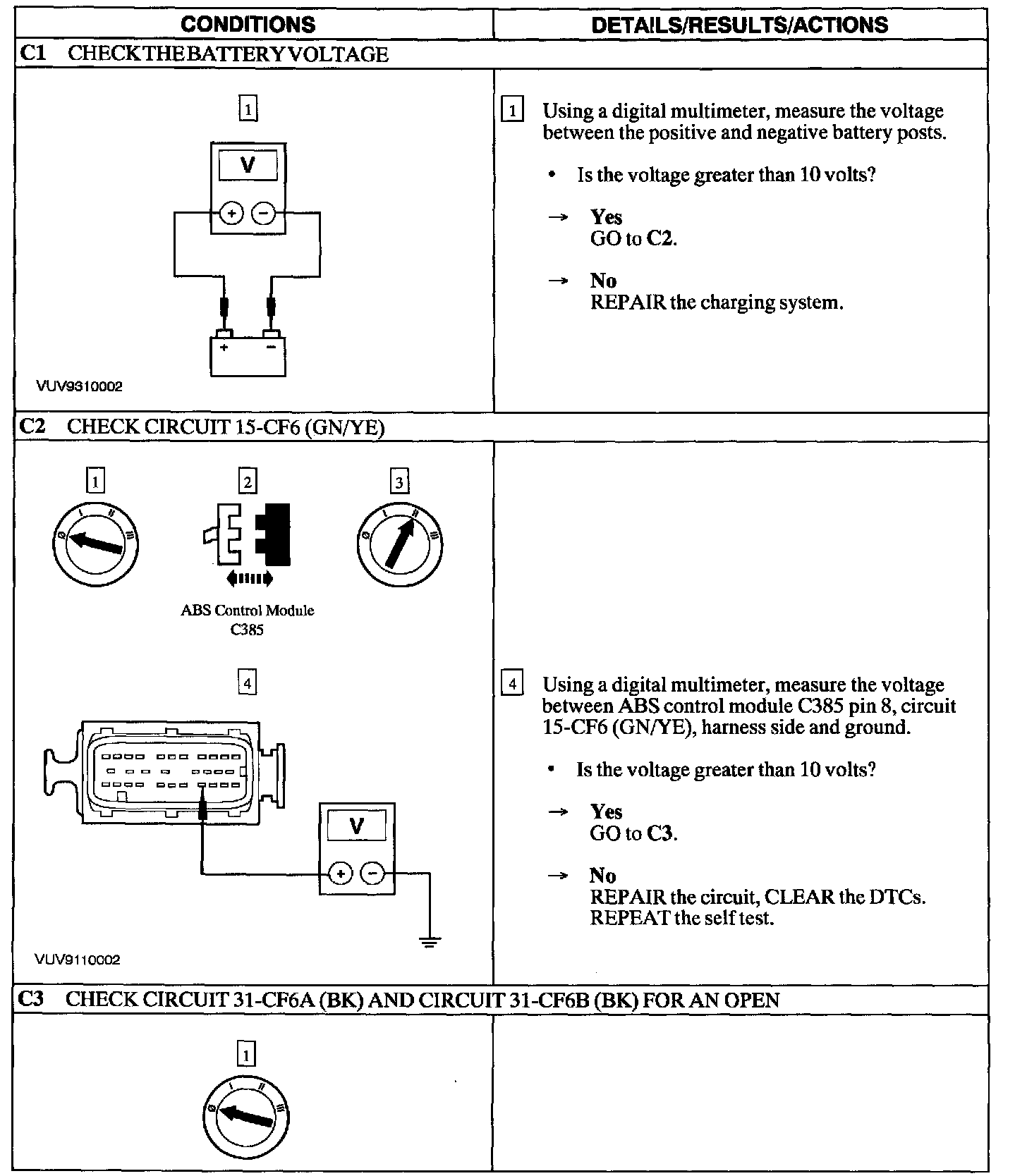

Test C1-C3:

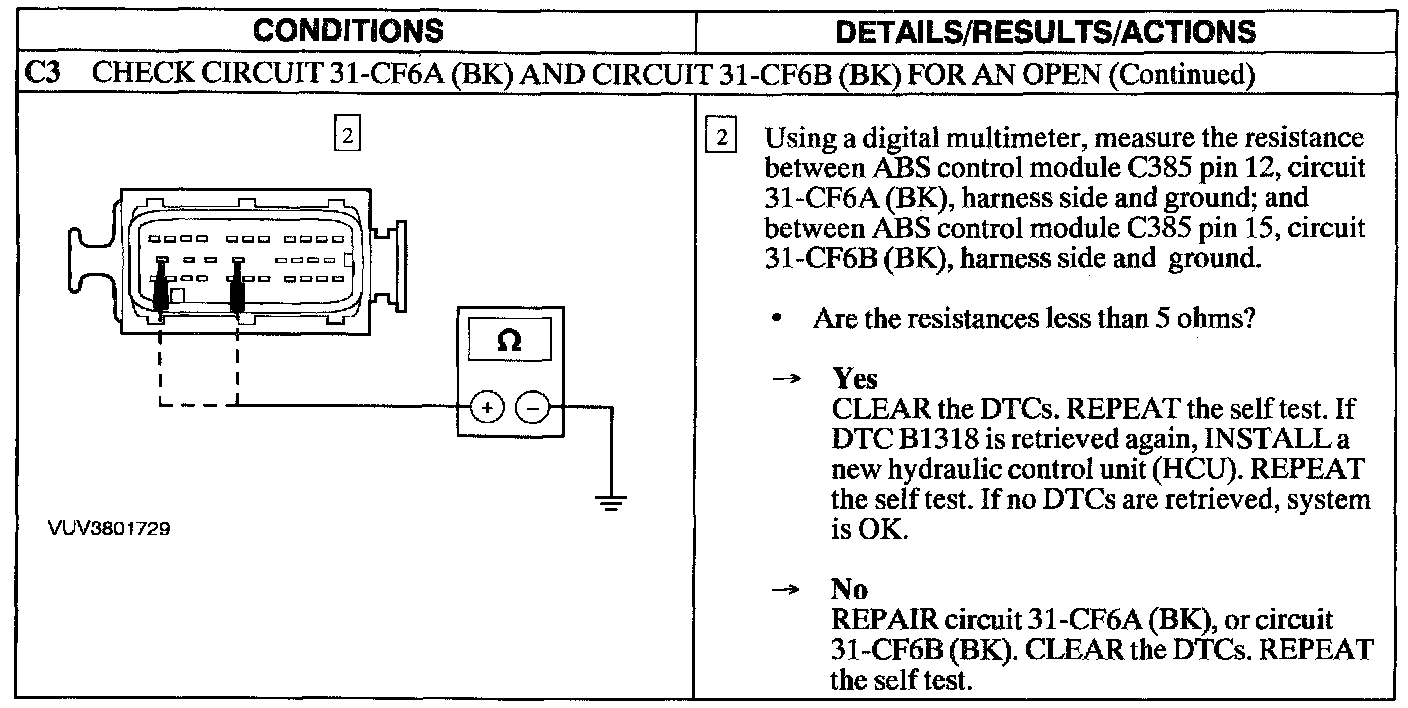

Test C3 Continued:
