Test E: Power Seat Does Not Move Horizontally/Vertically
Test E: Power Seat Does Not Move Horizontally/Vertically

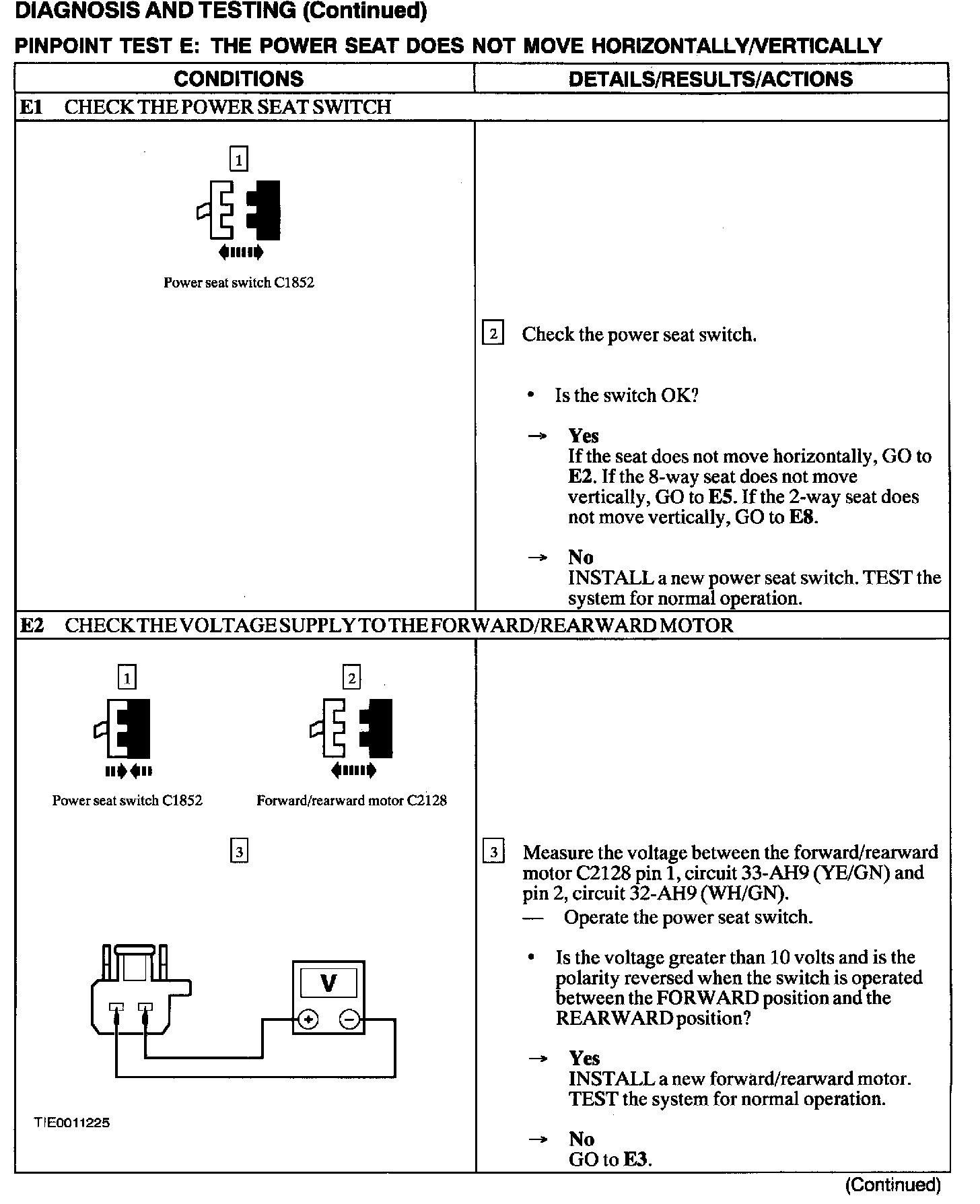

E1 - E2:

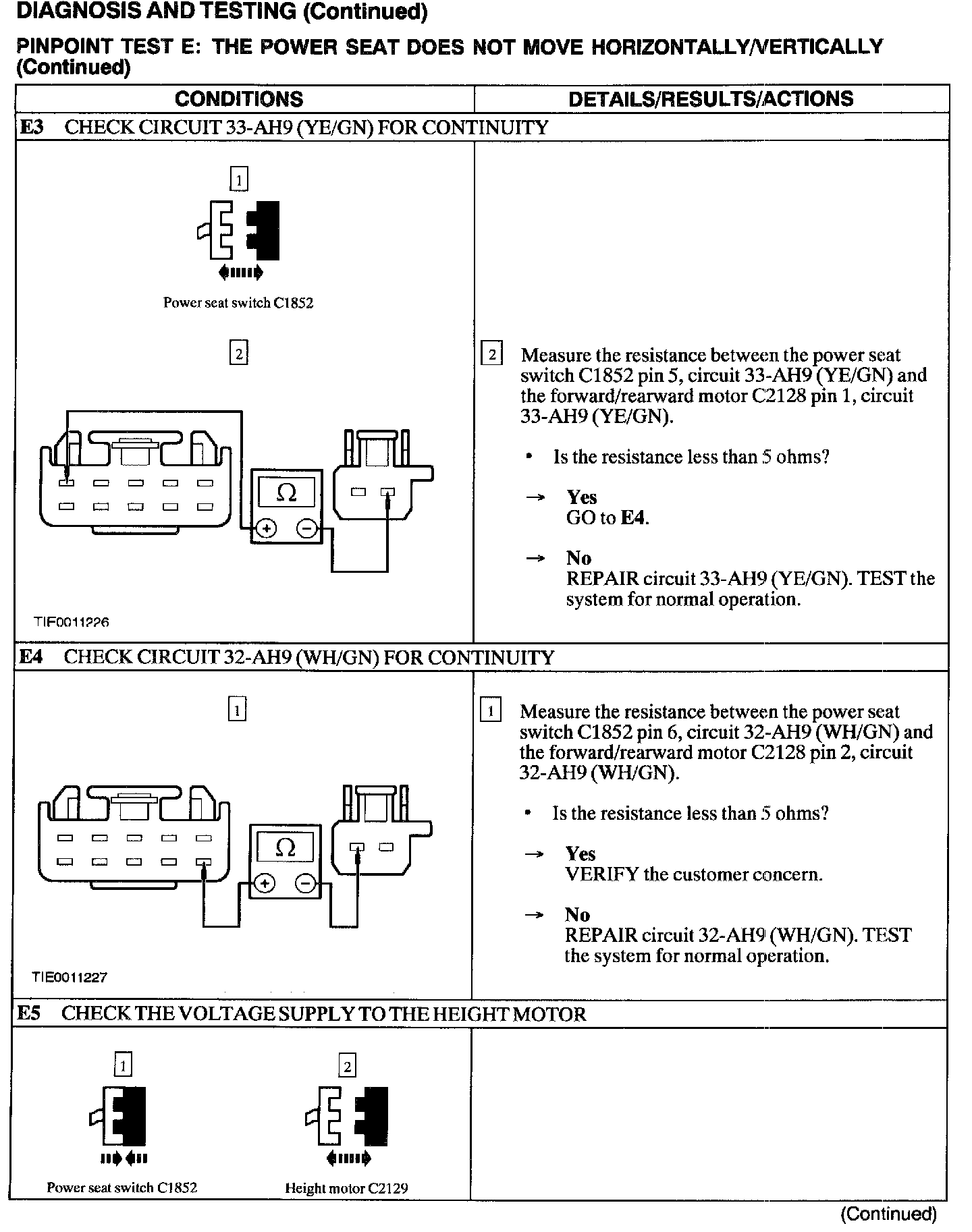

E3 - E5:

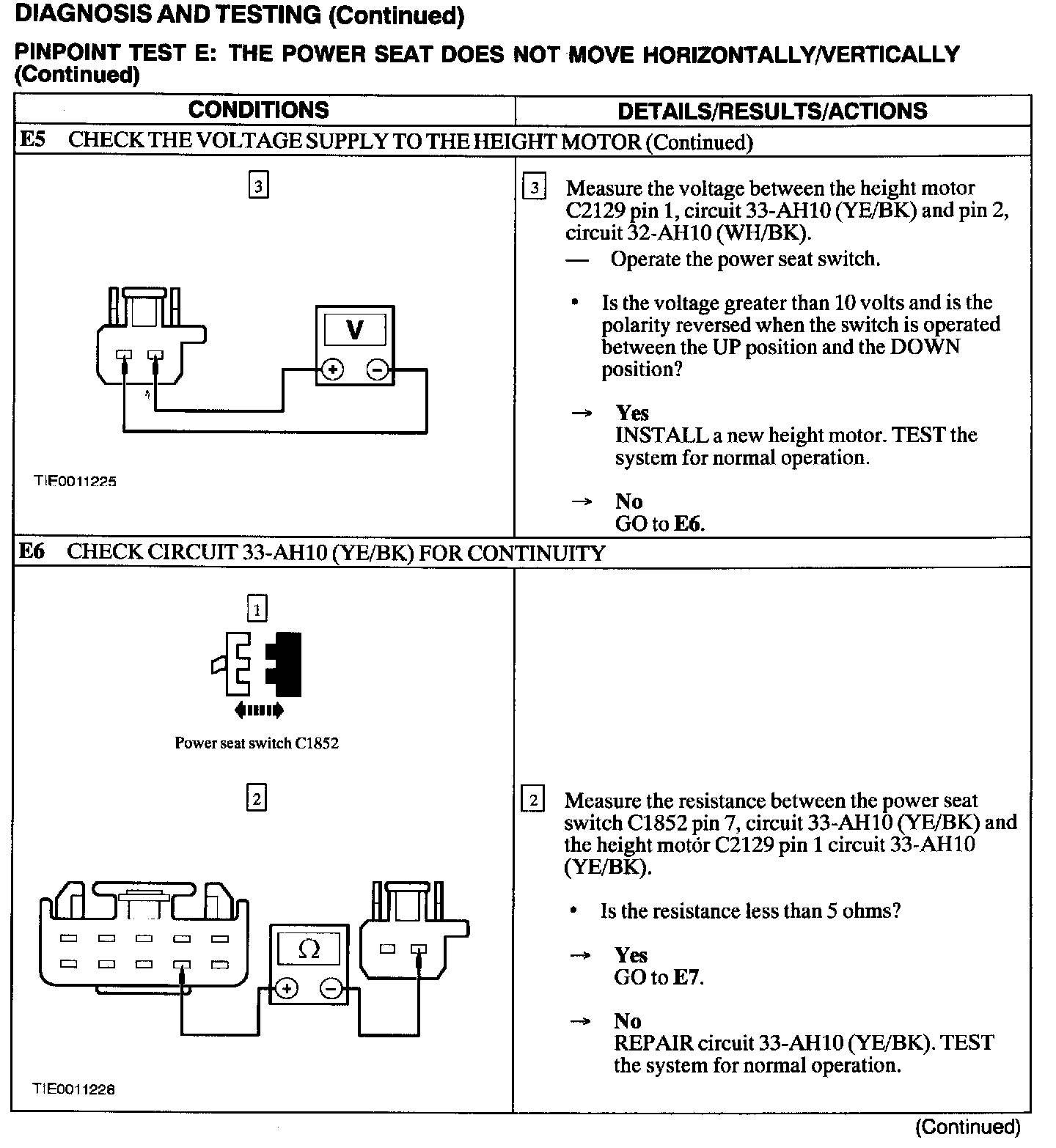

E5 - E6:

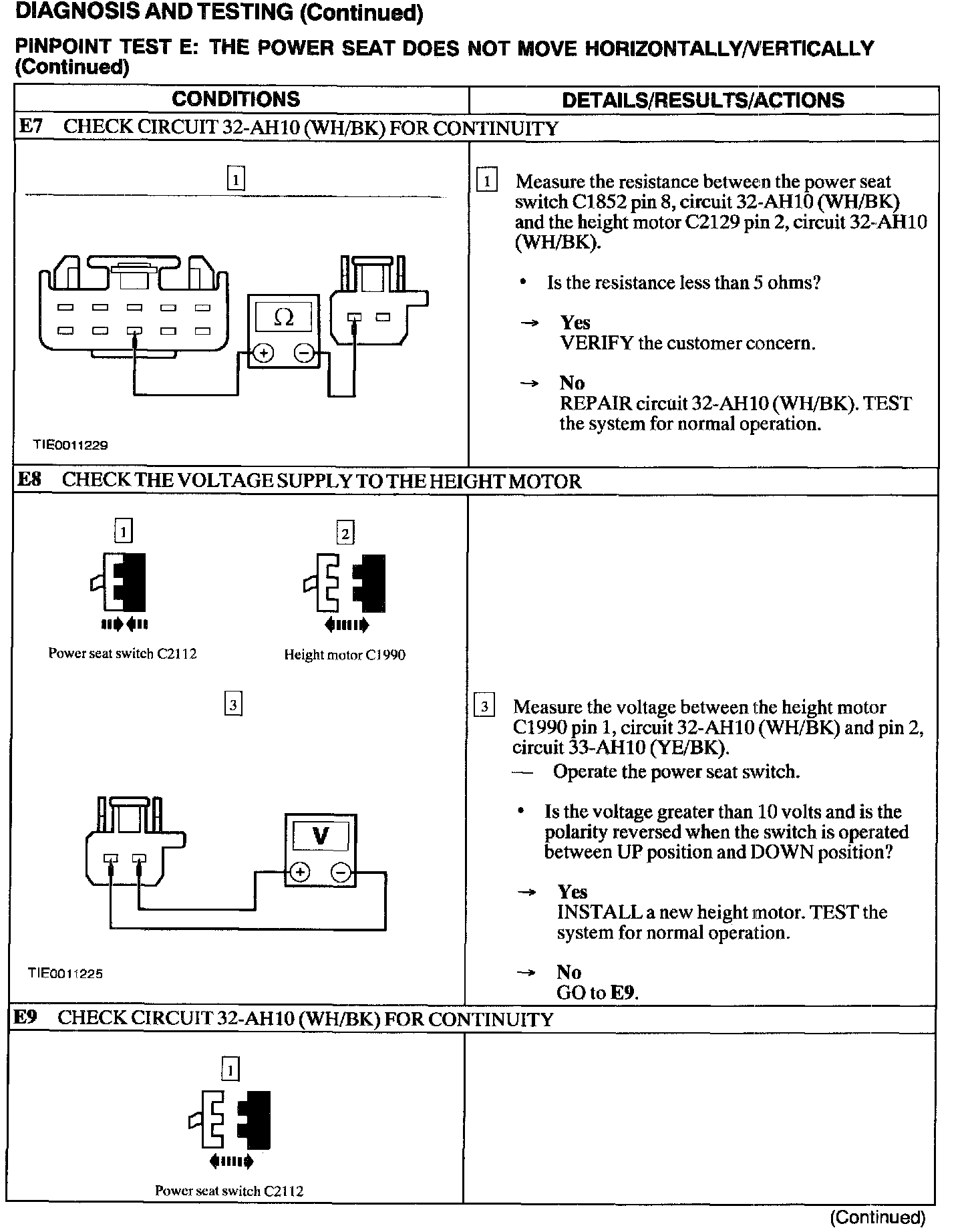

E7 - E9:

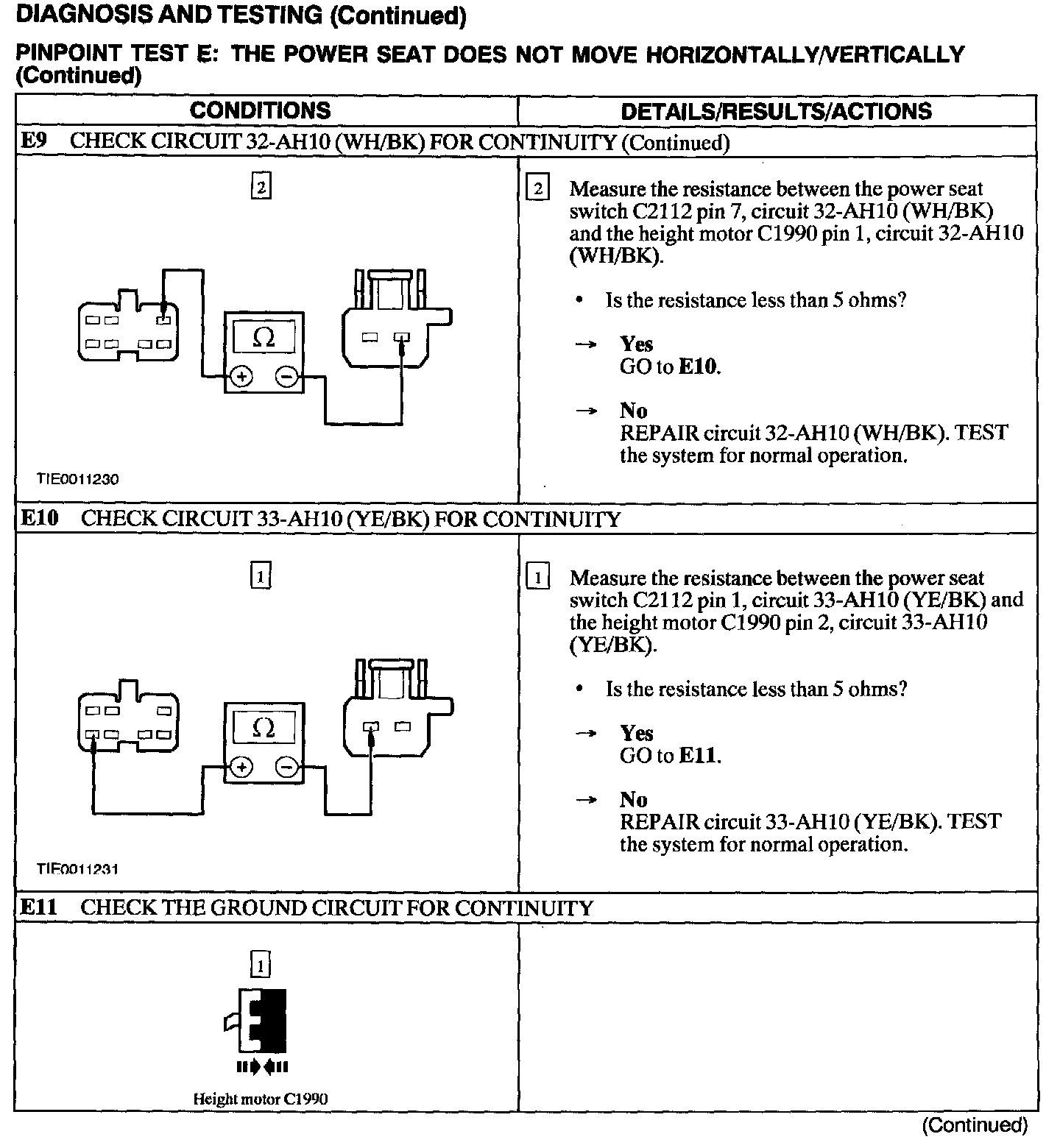

E9 - E11:

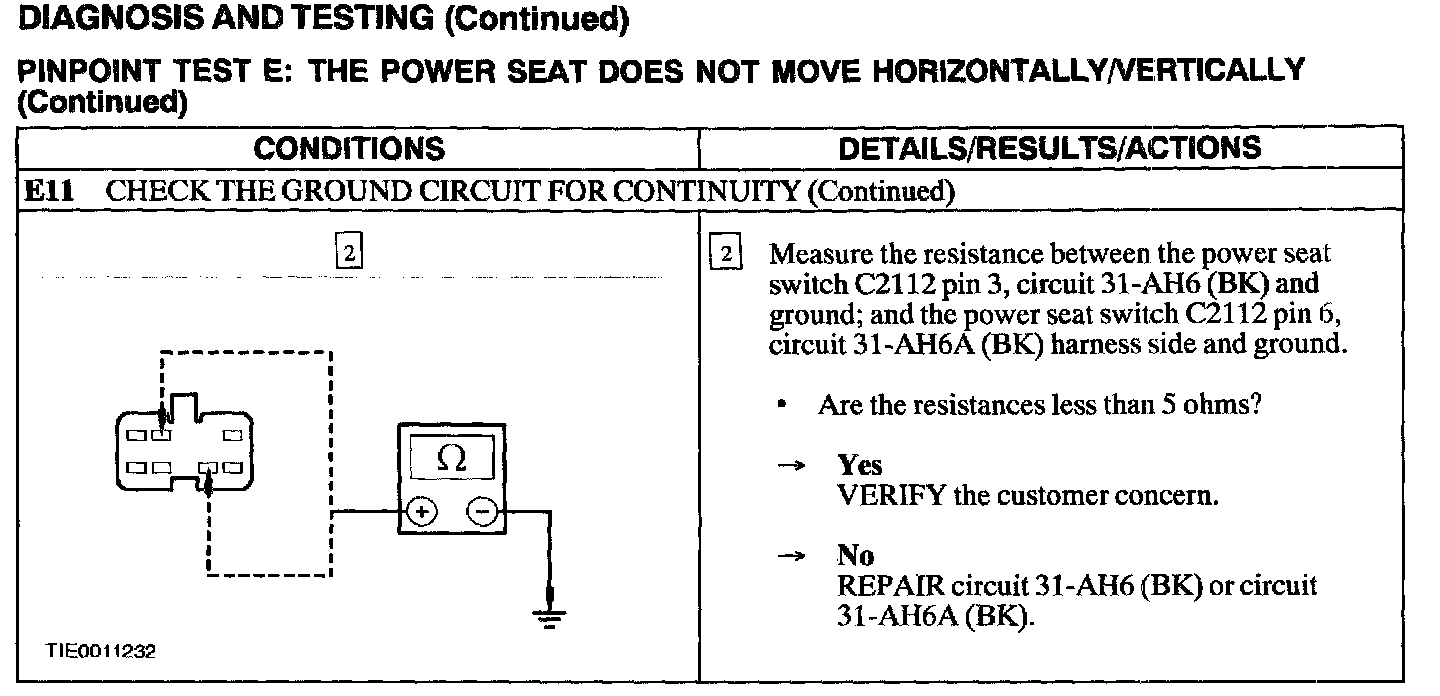

E11:
