Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Pinpoint Tests >> Test F: Roof Opening Panel - No Open/Close Vent Position

Test F: Roof Opening Panel - No Open/Close Vent Position

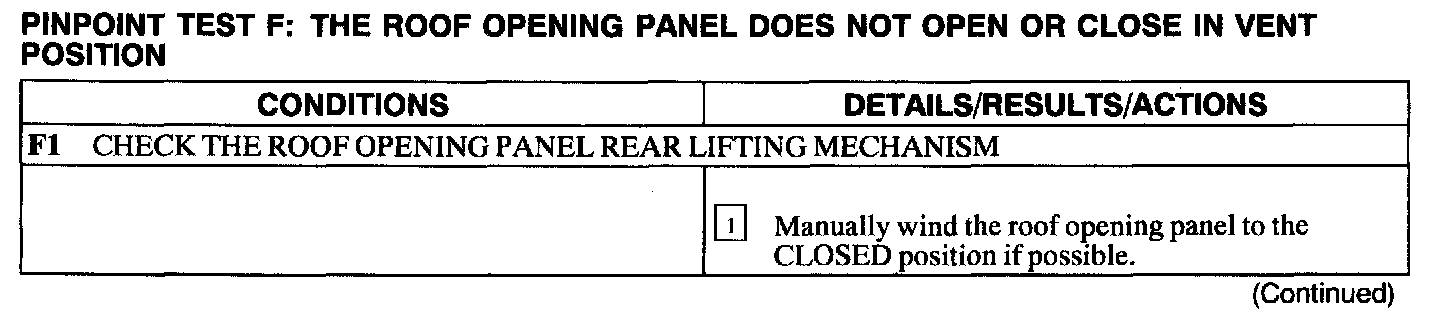

F1:

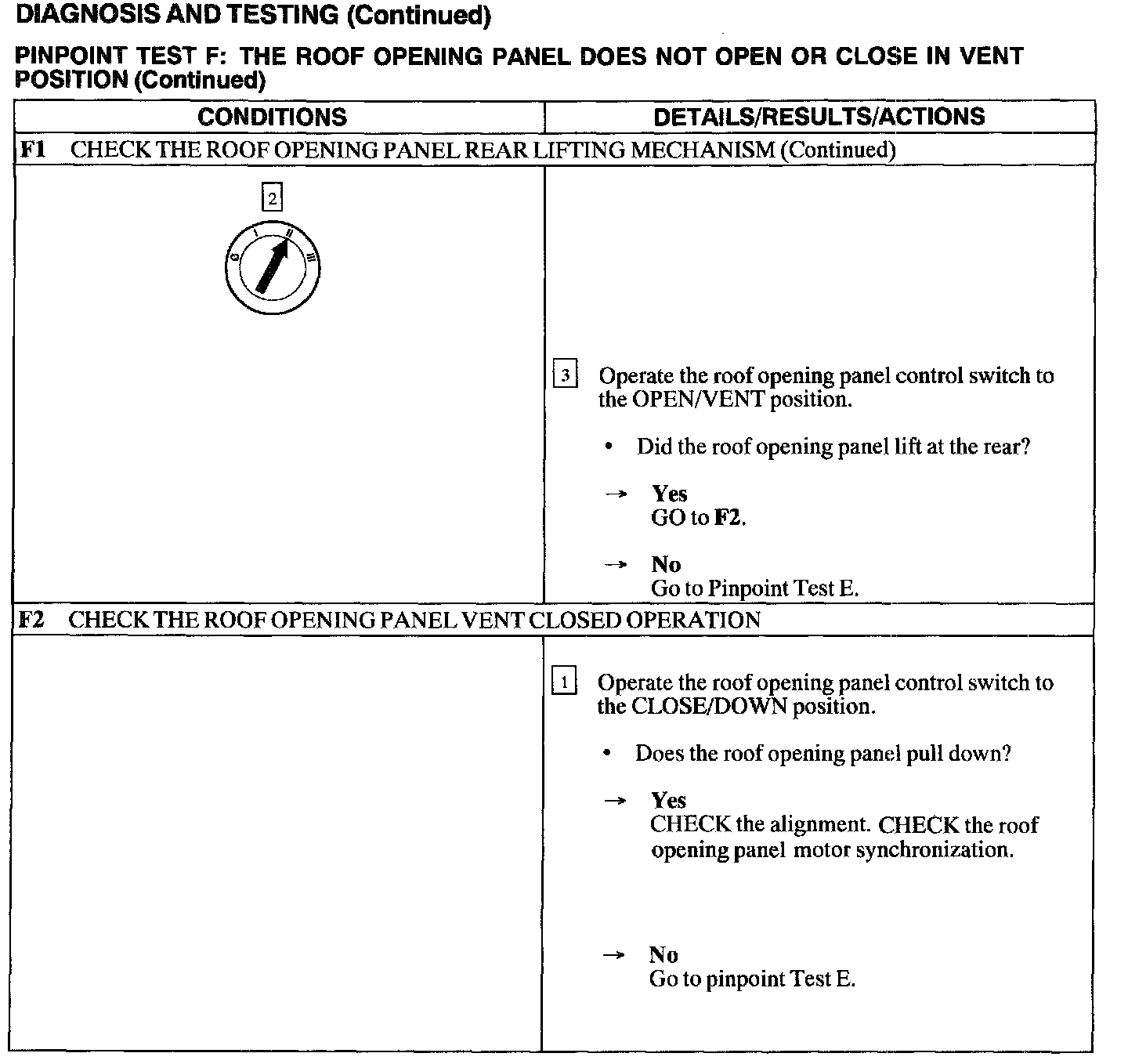

F1 - F2:
