Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B: No Signal W/Security Module - Unable to Enter Self Test
Test B: No Signal W/Security Module - Unable to Enter Self Test

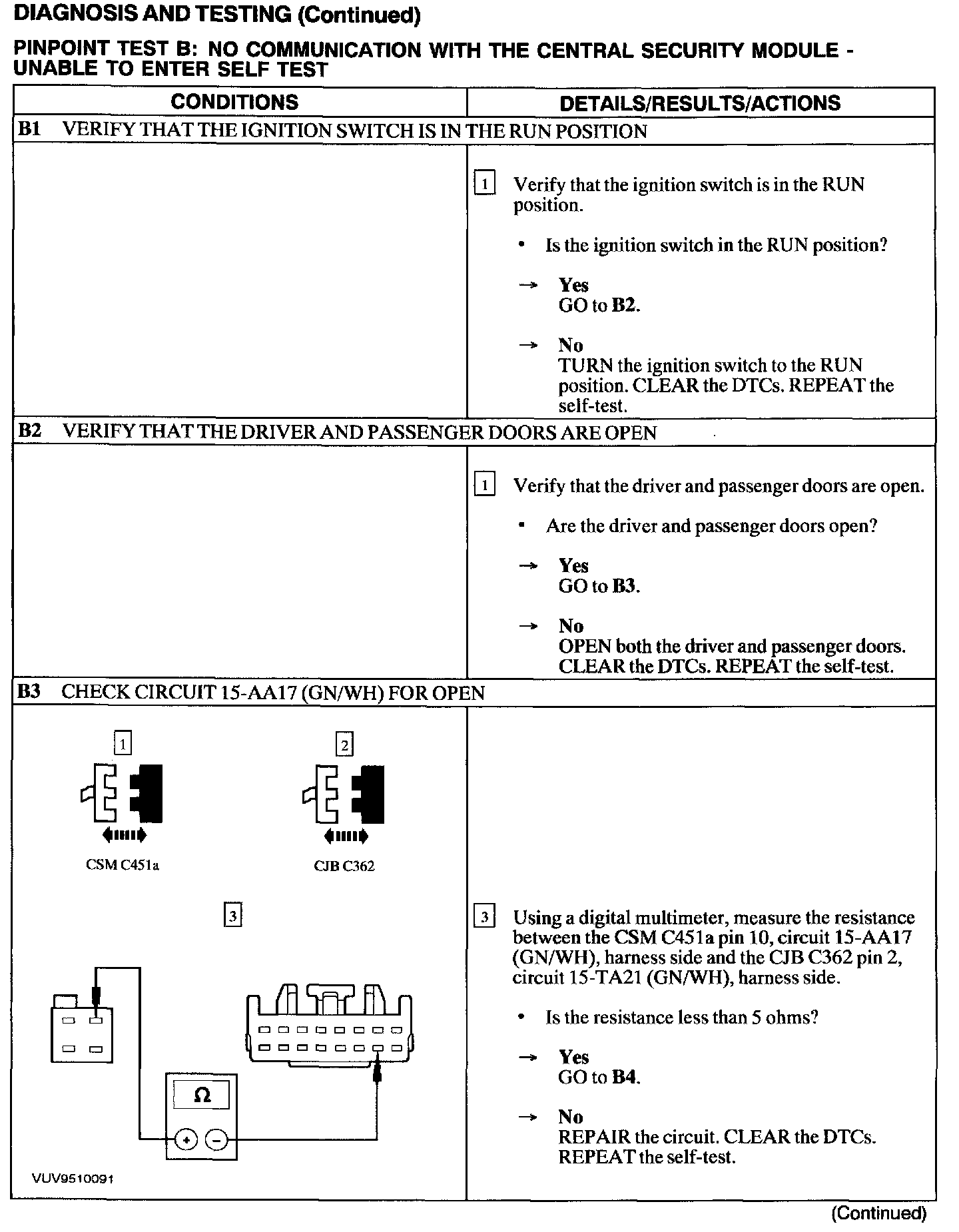

B1 - B3:

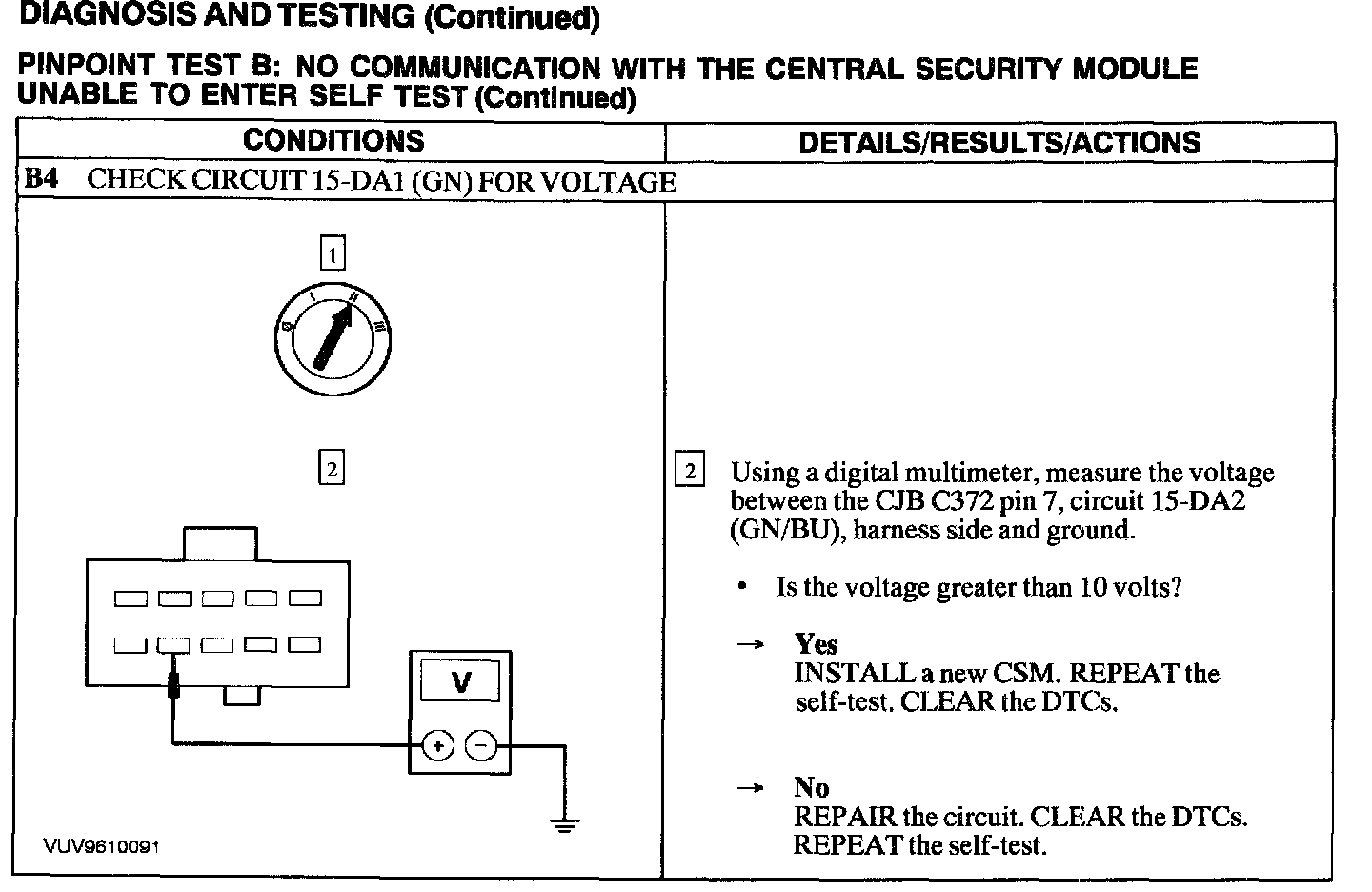

B4:
