B-Pillar Trim Panel

REMOVAL
1. Remove the A-pillar trim panel.
2. Remove the rear quarter trim panel.

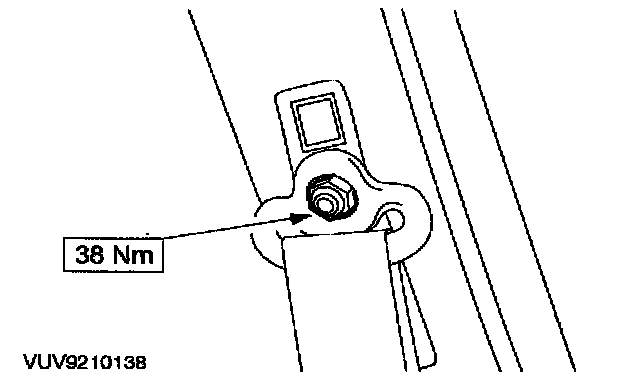

3. Detach the front safety belt top anchor.
1 Open the cover.
2 Detach the front safety belt top anchor.

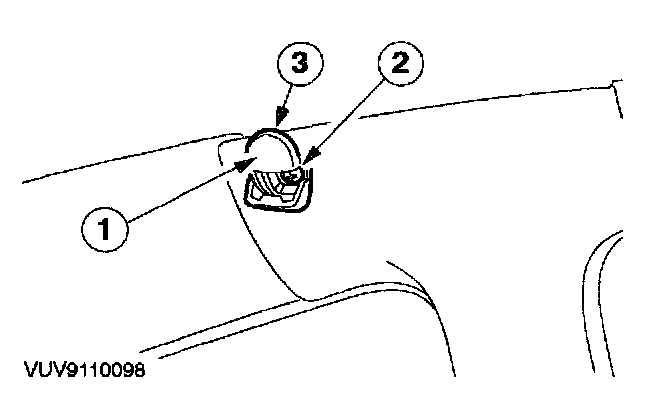

4. Remove the coat hook.
1 Depress the hook.
2 Remove the screw.
3 Remove the coat hook.







5. Disconnect the interior scan sensor electrical connector (if equipped).







6. Remove the B-pillar trim panel clip.







7. Remove the B-pillar trim panel.







8. Remove the interior scan sensor (if equipped).

NOTE: Carefully pass the wiring harness through the trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
