Headliner: Service and Repair

REMOVAL

All Vehicles
1. Remove the A-pillar trim panels.
2. Remove the B-pillar trim panels.
3. Remove the C-pillar trim panels.
4. Remove the sun visors.
5. Remove the overhead console.

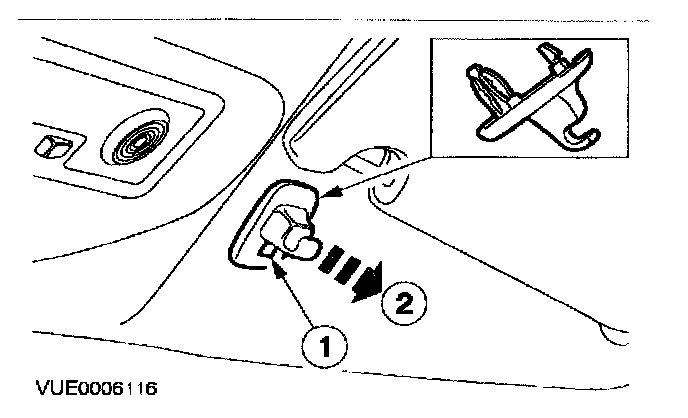

6. Remove the sun visor clips
1 Release the locking pin.
2 Remove the sun visor clips.

Vehicles with power sliding roof opening panel

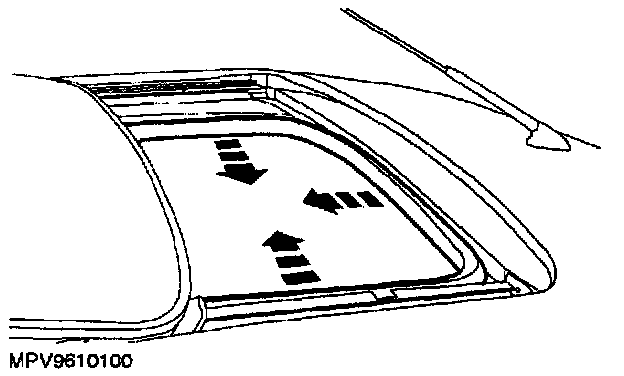

7. Remove the roof opening panel weatherstrip.

All Vehicles

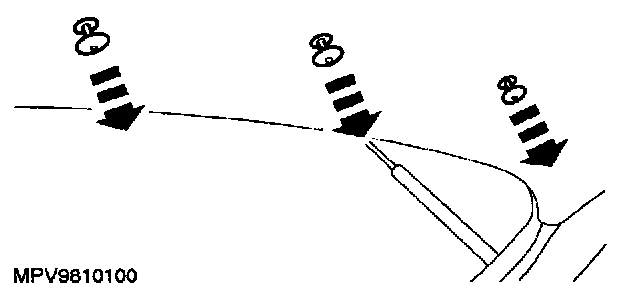

8. Remove the headliner clips along the liftgate opening.

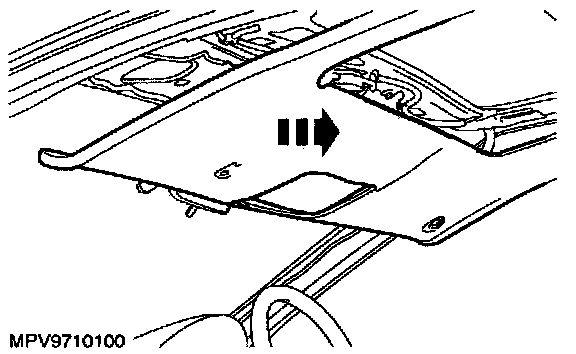

9. Remove the headliner through the liftgate opening.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Make sure the lip on the edge of the headliner is tucked under the liftgate opening seal.
